User Manual for RCF ES 3160-II CD-USB-Bluetooth MP3 Digital Receiver Amplifier Click to enlarge the picture
Contents of the user manual for the RCF ES 3160-II CD-USB-Bluetooth MP3 Digital
- Product category: Mixer/Amplifiers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Mixer/Amplifiers
|
User manual for the RCF ES 3160-II CD-USB-Bluetooth MP3 Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

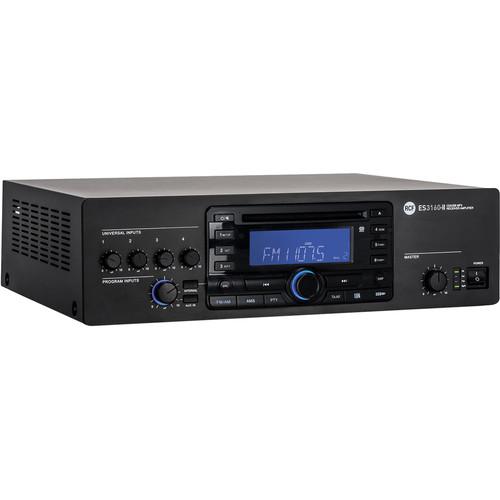

Product description The ES 3160-II CD-USB-Bluetooth/MP3 Digital Receiver Amplifier from RCF is a mixer-amplifier with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket), CD-USB/Bluetooth/MP3 player and tuner, and an aux input for an additional external music source. The amplifier’s nominal power is 160W, available on either a low-impedance output (minimum 4 Ohms) or 100 or 70V constant voltage output (for loudspeakers having 100 or 70V transformers). Input 1 has a signal detection circuit (VOX) providing automatic priority operation.All the four inputs can access the priority through an external command (connected to the removable connector). Inputs 2 and 3 also have an RJ45 socket for quick connection of an RCF BM 3001 paging microphone (through Cat5 cable). A USB port (on the front panel) allows connection of a USB flash drive containing MP3 files. Aux outputs are available to send the internal / external music source signals to additional amplifiers, mixers, phone systems (‘music on hold’ function), etc.The 4 mic-line inputs have a common ‘presence’ control and separate high-pass filters that are useful for improving speech intelligibility. Both the internal music source (CD/USB – MP3 player and tuner) and the aux input have separate tone controls. Front panel LEDs indicate the device state (ON, PROT), priority activation (PRIOR), and signal level (SIG/PK). - General
-
- Mixer amplifier, CD-USB/MP3 player and FM tuner
- Bluetooth connection with external devices
- IR remote control for CD-USB/MP3 player and tuner functions
- Full digital technology 160W RMS amplifier, 70 or 100V / 4 Ohms outputs
- 4 universal inputs for removable screw-terminals and with phantom power supply, high-pass filters feature and a common presence control
- RJ45 ports on inputs 2 and 3 for connection of BM 3001 paging microphones
- Configurable priority settings, VOX feature on input 1
- Aux input with volume and tone controls for an external music source
- USB port on front panel allows reproduction of MP3 files from a flash-drive
- Music-on-hold and PRE outputs
- Chime and siren internal generator, activation through dry contacts
- Status / priority / audio level LED indications
- Applications
-
- Restaurant
- Boutique
- Pub
- Beauty center
- Market
- Hotels
- Office building
- Medical center
In the Box RCF ES 3160-II CD-USB-Bluetooth/MP3 Digital Receiver Amplifier 4 x Male Audio 4-Pole Input Connector Male Command 2-Pole Input Connector Male Relay 3-Pole Input Connector Male Output 4-Pole Connector Safety Protection Cover for 100V Output Connector Remote Control Unit FM Indoor Antenna CR 2025 (3V) Lithium Battery AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF ES 3160-II CD-USB-Bluetooth MP3 Digital Receiver Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF ES-3160 MK2 Specs | Output Power | 160 W (RMS) | | Frequency Response | 50 Hz to 13.5 kHz | | S/N Ratio | Mic (1 to 4): 60 dB
Aux: 80 dB | | Distortion | < 0.3 % | | AUX Input | Bass: ± 8 dB @ 80 Hz
Treble: ± 8 dB @ 13 kHz | | Presence Frequency Bands | Inputs 1 to 4: + 10 dB @ 2.15 kHz | | High-Pass Filter | Inputs 1 to 4: 150 Hz | | Input Sensitivity | Balanced - 50 dBu / 10 kOhms
Balanced - 21 dBu / 5 kOhms
Balanced 0 dBu (maximum +16 dBu) / 10 kOhms
Adjustable - 6 to +13 dBu / 20 kOhms | | AUX Outputs | - 1 dBu / 600 Ohms | | Phantom Power | 32 V / 18 mA | | Loudspeaker Power | 4 Ohms (25 V)
70 V (31 Ohms) / 100 V (62 Ohms) | | Radio | FM Range: 87.5 to 108 MHz
FM Frequency Response: 30 Hz to 15 kHz
FM Channel Separation: (1 kHz) > 30 dB
FM Intermediate Rejection: > 70 dB
FM Image Rejection: > 50 dB
FM Signal / Noise Ratio: > 55 dB
AM (mW) Range: 522 to 1620 kHz
Antenna Input: 75 Ohms | | Audio CD Player | Frequency Response: 20 Hz to 20 kHz
Signal / Noise Ratio: > 80 dB
Total Harmonic Distortion: (1 kHz) < 0.2 %
Channel Separation: 55 dB | | Protection | Amplifier: Short circuit, thermal
Load: DC Offset Delay, fuse
Power Supply: Fuses | | Certifications & Approvals | CE: Complies with European Community 2006/95/CE LVD and 2004/108/CE EMC
Electromagnetic immunity according to IEC EN 55013+A1+A2, IEC EN 55020+A2+EC, EN 61000-3-2, EN 61000-3-3+A1
Electronic apparatus safety requirements according to IEC EN 60065:2002 | | Operating Voltage | 115 to 230 VAC / 50 to 60 Hz | | Power Consumption | 350 W | | Dimensions (W x H x D) | 17 x 5.0 x 14" (44 x 13 x 35 cm) | | Weight | 18 lb (8.0 kg) | | | | Box Dimensions (LxWxH) | 21.0 x 18.0 x 10.0" |
