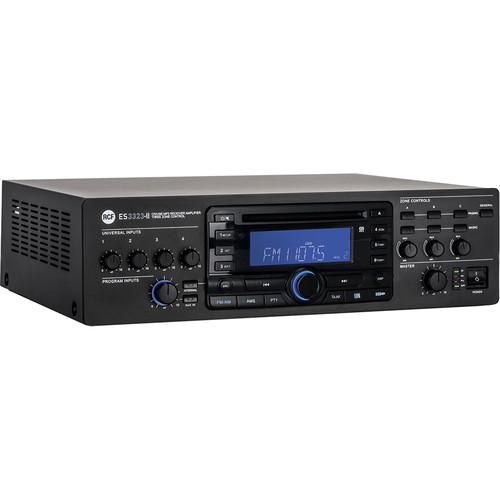

User Manual for RCF ES 3323-II 3-Zone CD USB Bluetooth MP3 Digital Receiver Amplifier Click to enlarge the picture
Contents of the user manual for the RCF ES 3323-II 3-Zone CD USB
- Product category: Mixer/Amplifiers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Mixer/Amplifiers
|
User manual for the RCF ES 3323-II 3-Zone CD USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The ES 3323-II 3-Zone CD/USB/Bluetooth/MP3 Digital Receiver Amplifier from RCF has 4 mic-line audio inputs, CD/USB/MP3 player, tuner, and an aux input for an additional external music source. The amplifier’s nominal power is 320W which can be shared between the 3 zones speakers while the amplifier can separately control the independent activation of announcements & musical program, and control the sound levels of the 3 zone speakers. The 3 zone output and the direct output are available at 100V or 70V for constant voltage line. All four inputs can access the priority through an external command; have a common ‘presence’ control, and separate high-pass filters that are useful for improving speech intelligibility.Inputs 2 and 3 also have an RJ45 socket for quick connection of the BM 3001 or BM 3003 Paging Microphones. The BM 3001 Mic sends the announcements to all 3 zones, while the BM 3003 Mic allows to select the zones to send the announcements. The BM 3003 Mic could be connected in a single unit or daisy-chained using BM 3003 Mic (maximum 12 mics) by using an additional power supply unit (sold separately). The paging buttons on the front panel can be used to select zones to be paged by either channel 1 or 4.The music buttons turn the music on in the respective zones. Aux outputs are available to send the internal / external music source signals to additional amplifiers, mixers, phone systems, and others. For system expansion, it is possible to link a second generic external amplifier to keep the background music in the zones that are not paged. - General
-
- CD-USB/MP3 player/FM tuner/mixer amplifier
- Bluetooth connection with external devices
- IR remote control for CD/USB/MP3 player & tuner functions
- Full digital technology amplifier 320W RMS, 100V or 70V
- Low impedance (minimum 4 Ohms) 2W output for a monitor loudspeaker is available
- 4 universal inputs with phantom power, presence control and per-channel high-pass filters
- RJ45 connectors on input 2 and 3 for connection to BM 3001 or BM 3003 microphones
- Screw terminal connections, additional XLR and RJ45 input connections available
- Configurable priority settings, VOX facility on input 1
- Selectable aux input for music source with volume and tone controls
- USB port on front panel allows reproduction of MP3 files from a memory stick
- Music-on-hold and PRE outputs
- The 3 paging buttons to select zones to be paged by either channel 1 or 4
- General call button is available
- The 3 music buttons turn the music on in the respective zones
- Digital chime and siren built-in generator, activation through dry contact
- Status/priority/audio level LED indications
- Applications
-
- Restaurant
- Boutique
- Pub
- Beauty Center
- Market
- Hotel
- Office building
- Medical Center
In the Box RCF ES 3323-II 3-Zone CD/USB/Bluetooth/MP3 Digital Receiver Amplifier 4 x Male Audio Input 4-Pole Connector Male Command 2-Pole Input Connector Male Relay 3-Pole Input Connector Male Remote Control 4-Pole Input Connector Male Output 4-Pole Connector Safety Protection Cover Remote Control Unit FM Indoor Antenna CR 2025 (3V) Lithium Battery AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF ES 3323-II 3-Zone CD USB Bluetooth MP3 Digital Receiver Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF ES-3323 MK2 Specs | Output Power | 320 W (RMS) | | Distortion | < 0.3 % (@ 1 kHz, Nominal Power) | | Presence Frequency Bands | + 9.5 dB @ 2.2 kHz (input 1 to 4) | | High-Pass Filter | 150 Hz (input 1 to 4) | | Inputs | Inputs 1 to 4, Line:Input Nominal Sensitivity: – 7 dBuMaximum Input: + 21 dBuSignal / Noise Ratio: 80 dBFrequency Response (– 3 dB): 70 Hz - 11.5 kHzImpedance @ 1 kHz: 20 kOhms (balanced) / 10 kOhms (unbalanced) Inputs 1 to 4, Line with Phantom:Input Nominal Sensitivity: – 26 dBuMaximum Input: 0 dBuSignal / Noise Ratio: 80 dBFrequency Response (– 3 dB): 70 Hz - 11.5 kHzImpedance @ 1 kHz: 6.5 kOhms (balanced) Inputs 1 to 4, MIC. / MIC. with PhantomInput Nominal Sensitivity: – 56 dBuMaximum Input: – 28 dBuSignal / Noise Ratio: 65 dBFrequency Response (– 3 dB): 70 Hz - 11.5 kHzImpedance @ 1 kHz: 20 kOhms (balanced) / 10 kOhms (unbalanced)Phantom Power Voltage / Current: 32 V / 18 mA AUX InputInput Nominal Sensitivity: 0 dBu (adjustable)Input Sensitivity Range: – 11 to + 10 dBuMaximum Input: + 14 to 24 dBuSignal / Noise Ratio: 79 dBFrequency Response (– 3 dB): 40 Hz - 14.5 kHz AUX Input Tone ControlsBass: ± 8 dB @ 80 HzTreble: ± 8 dB @ 13 kHz | | Outputs | Pre Out Nominal Output Level: 0 dBm (affected by channel volume controls, presence control, music selectors and controls, not by the front panel / remote MASTER volume control)Paging Out Nominal Output Level: 0 dBm (affected by channel volume controls, presence control, not by the front panel / remote MASTER volume control)Music Out Nominal Output Level: 0 dBm (affected by music selectors and controls, not by the front panel / remote MASTER volume control)Music On Hold Nominal Output Level: 0 dBm (affected by the AUX INPUT gain only)Loudspeaker Outputs: Low Impedance: 4 Ohms - Power: 2 WConstant Voltage: 70 V (16 Ohms) / 100 V (31 Ohms) - Power: 320 W | | Certifications & Approvals | CE: Complies with European Community 2006/95/CE LVD and 2004/108/CE EMC
Electromagnetic immunity according to IEC EN 55013+A1+A2, IEC EN 55020+A2+EC, EN 61000-3-2, EN 61000-3-3+A1
Electronic apparatus safety requirements according to IEC EN 60065:2002 | | | | Radio | FM Range 87.5 - 108 MHzFM Frequency Response: 30 Hz - 15 kHzFM Channel Separation: (1 khz): > 30 dBFM Intermediate Rejection: > 70 dBFM Image Rejection: > 50 dBFM Signal / Noise Ratio: > 55 dBAM (mw) Range: 522 - 1620 kHzAntenna Input: 75 Ohms Coaxial | | | | Audio CD Player | Frequency Response: 20 Hz - 20 kHz
Signal / Noise Ratio: > 80 dB
Total Harmonic Distortion (1 kHz) < 0.2 %
Channel Separation: 55 dB | | Protection | Amplifier: Short circuit, thermal
Load: DC Offset Delay, fuse
Power Supply: Fuses | | | | Operating Voltage | 115 to 230 VAC / 50 to 60 Hz | | Power Consumption | 350 W | | Dimensions (W x H x D) | 17 x 5.1 x 14" (44 x 13 x 35 cm) | | Weight | 22.0 lb (10.1 kg) |
