User Manual for RCF Evox 12 Active Two-Way Array with 15" Subwoofer Click to enlarge the picture
Contents of the user manual for the RCF Evox 12 Active Two-Way Array
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF Evox 12 Active Two-Way Array contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

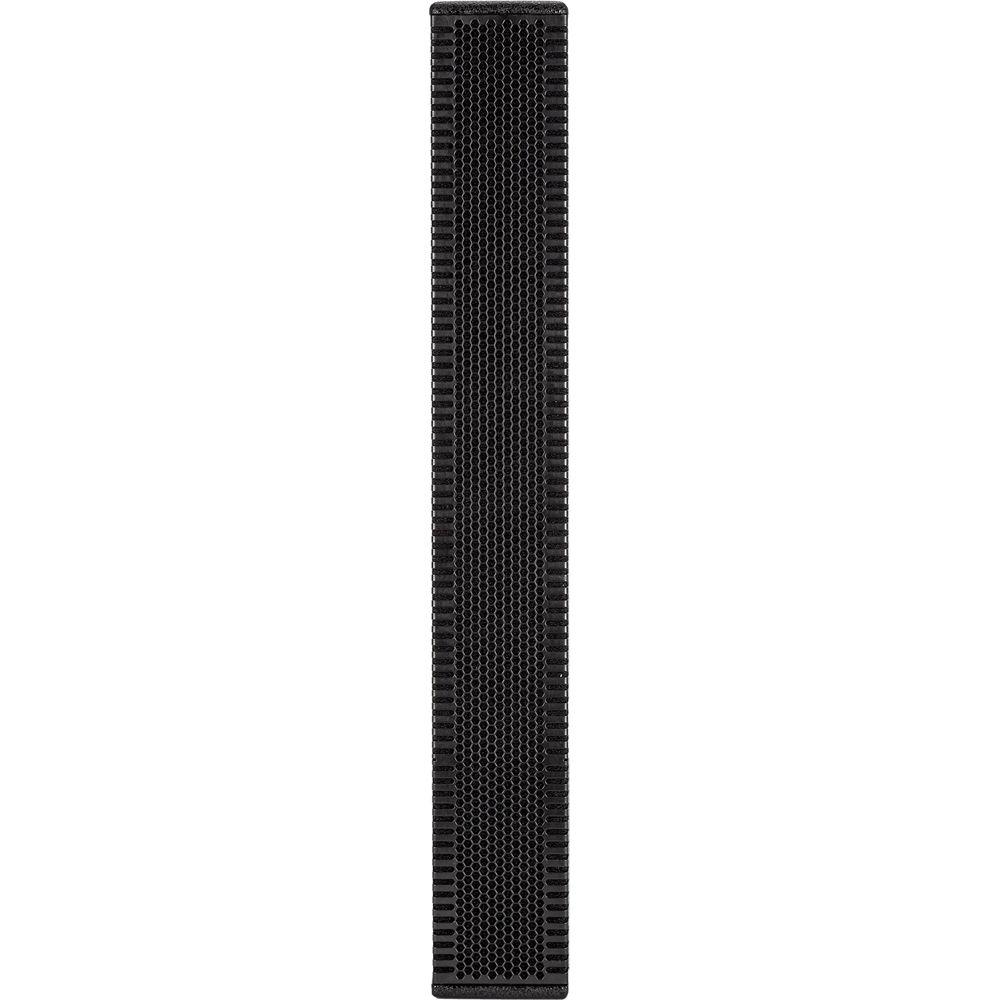

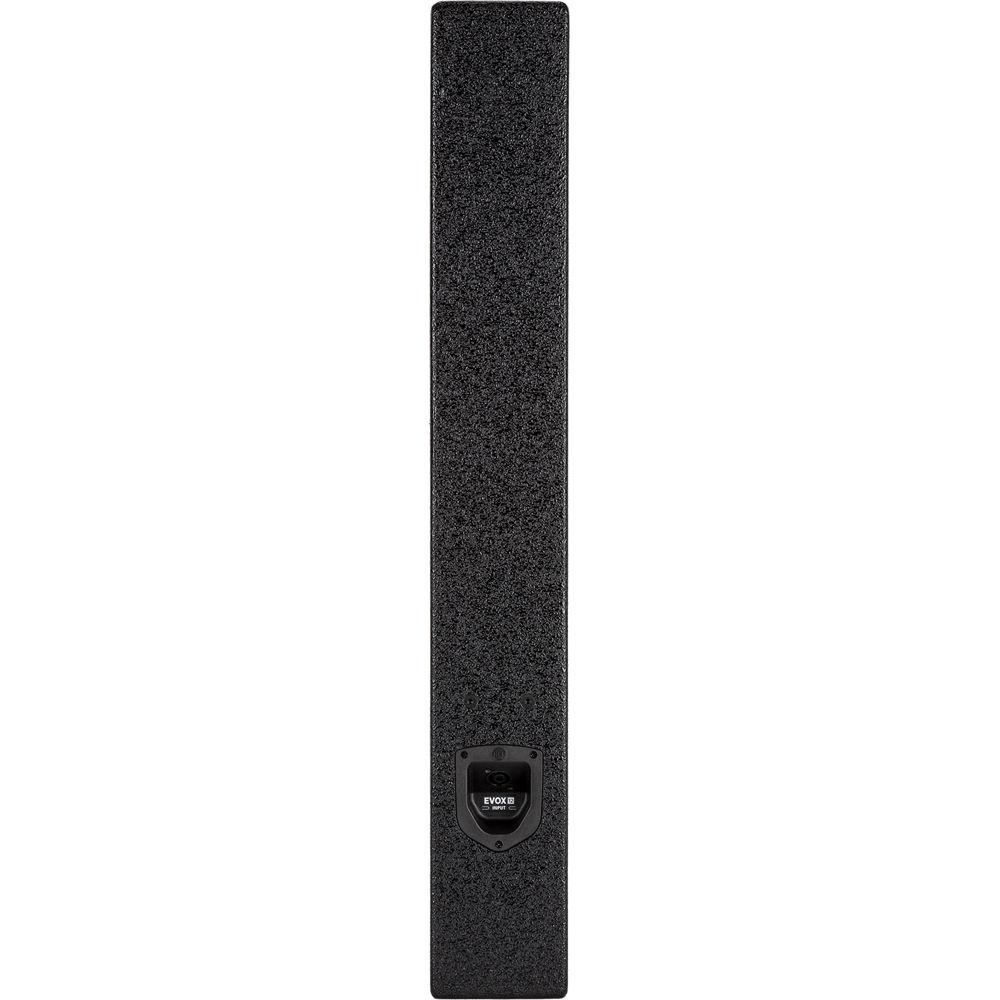

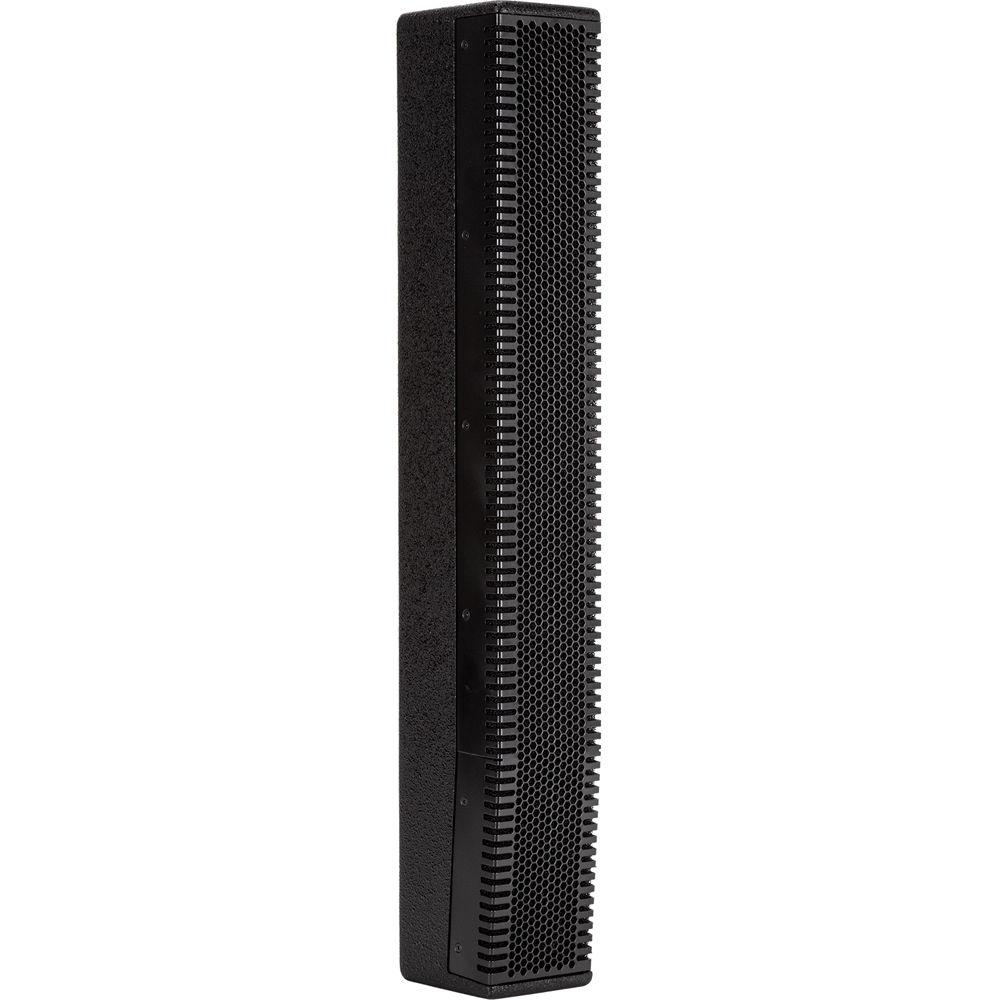

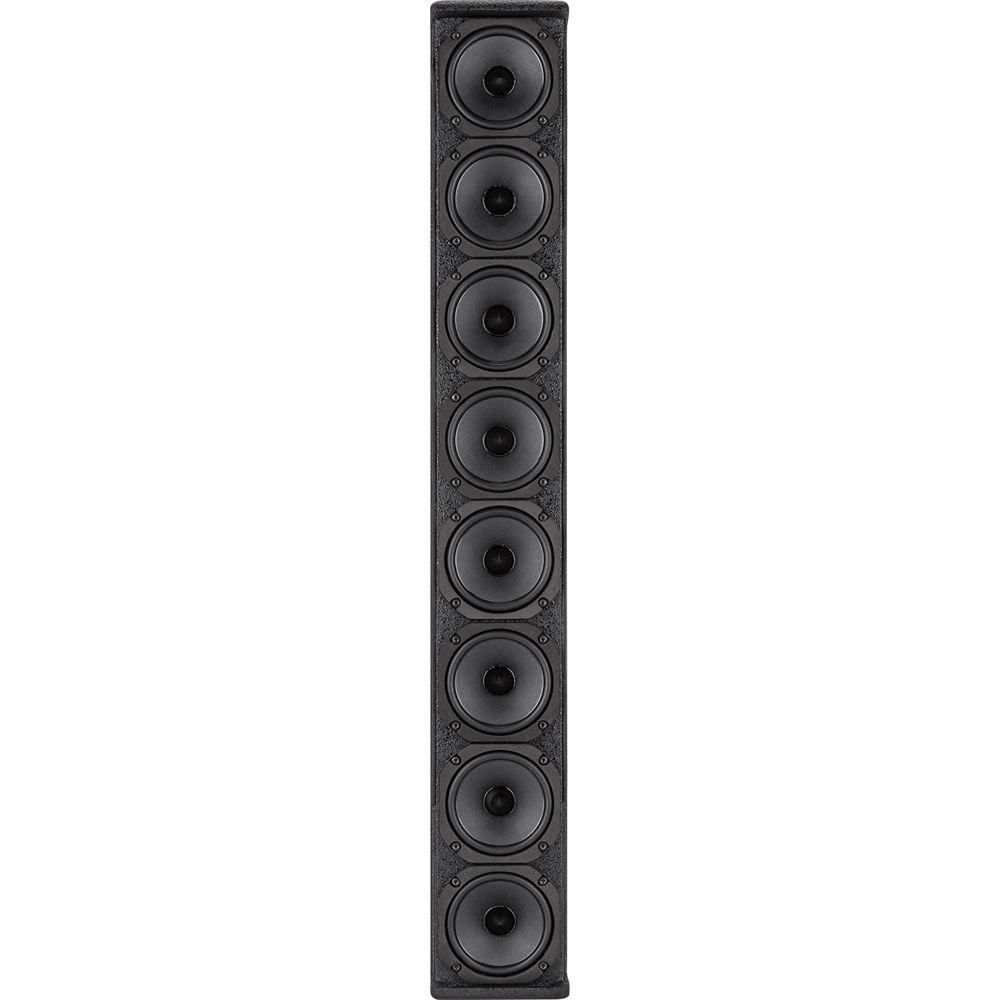

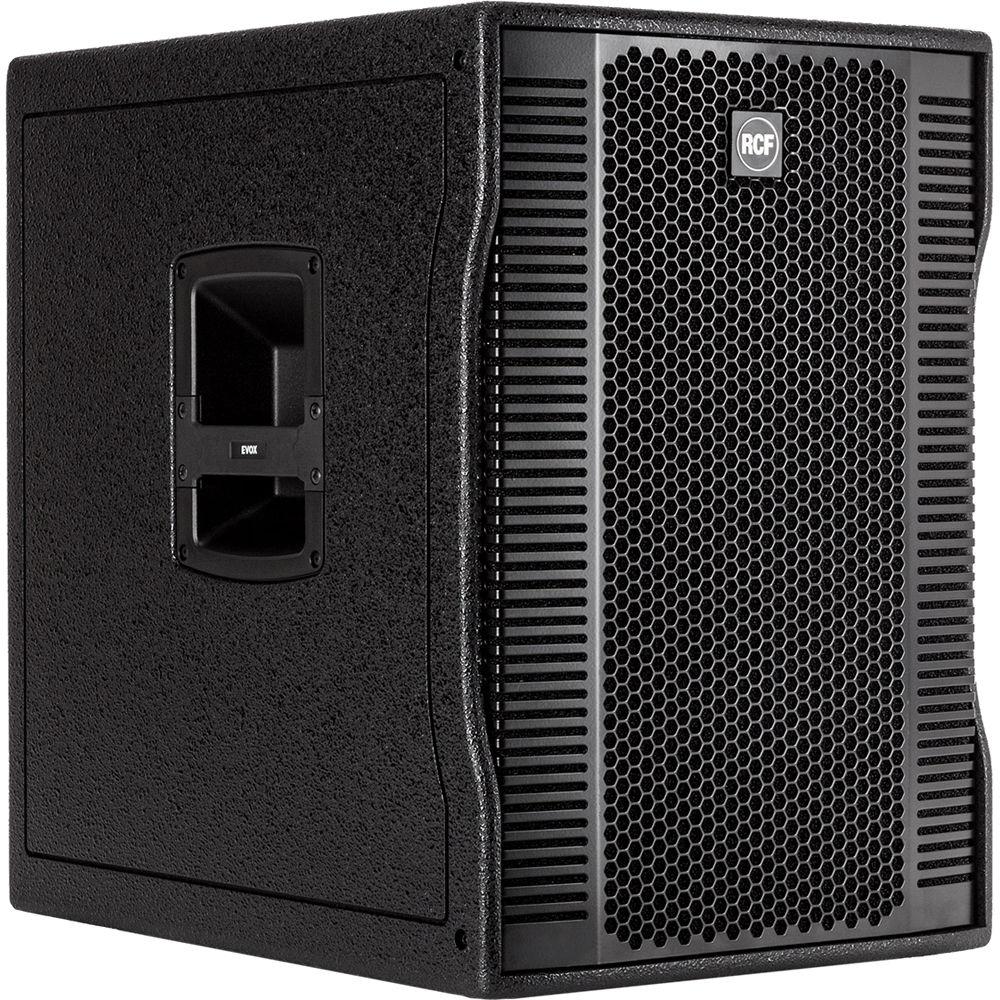

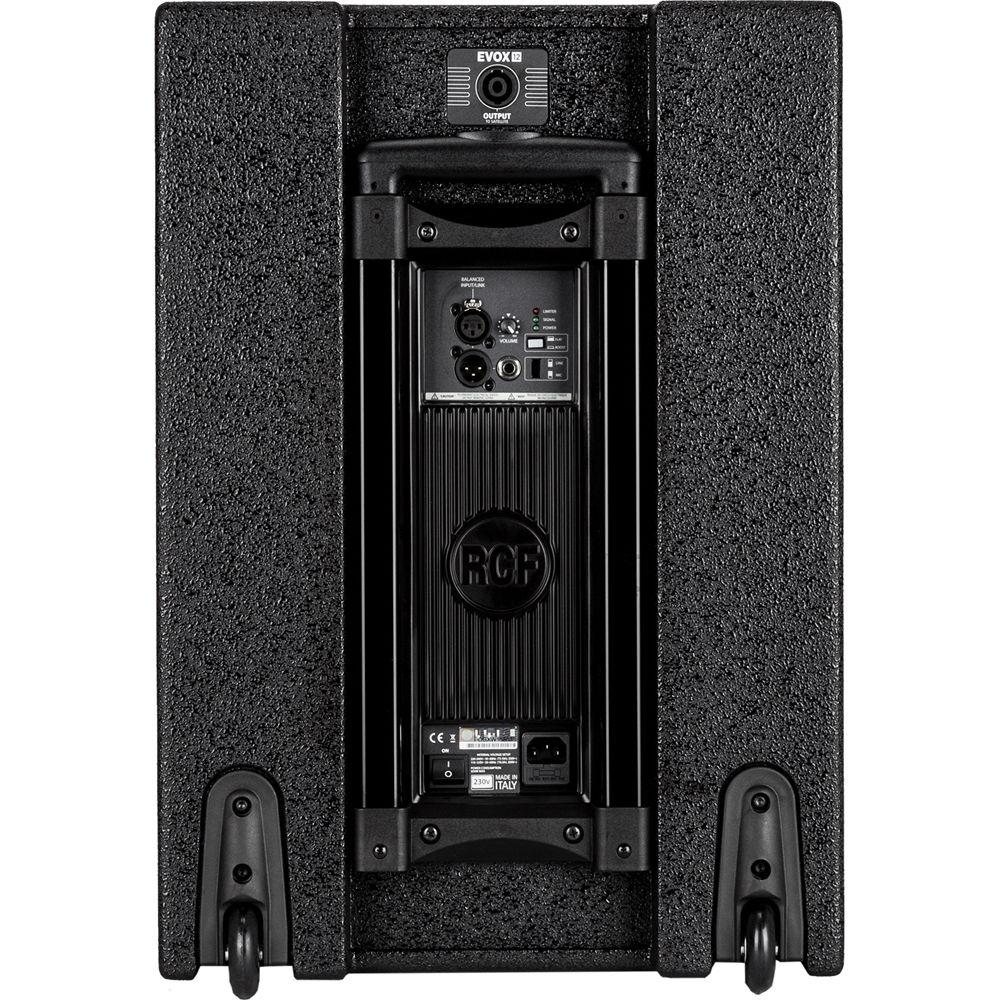

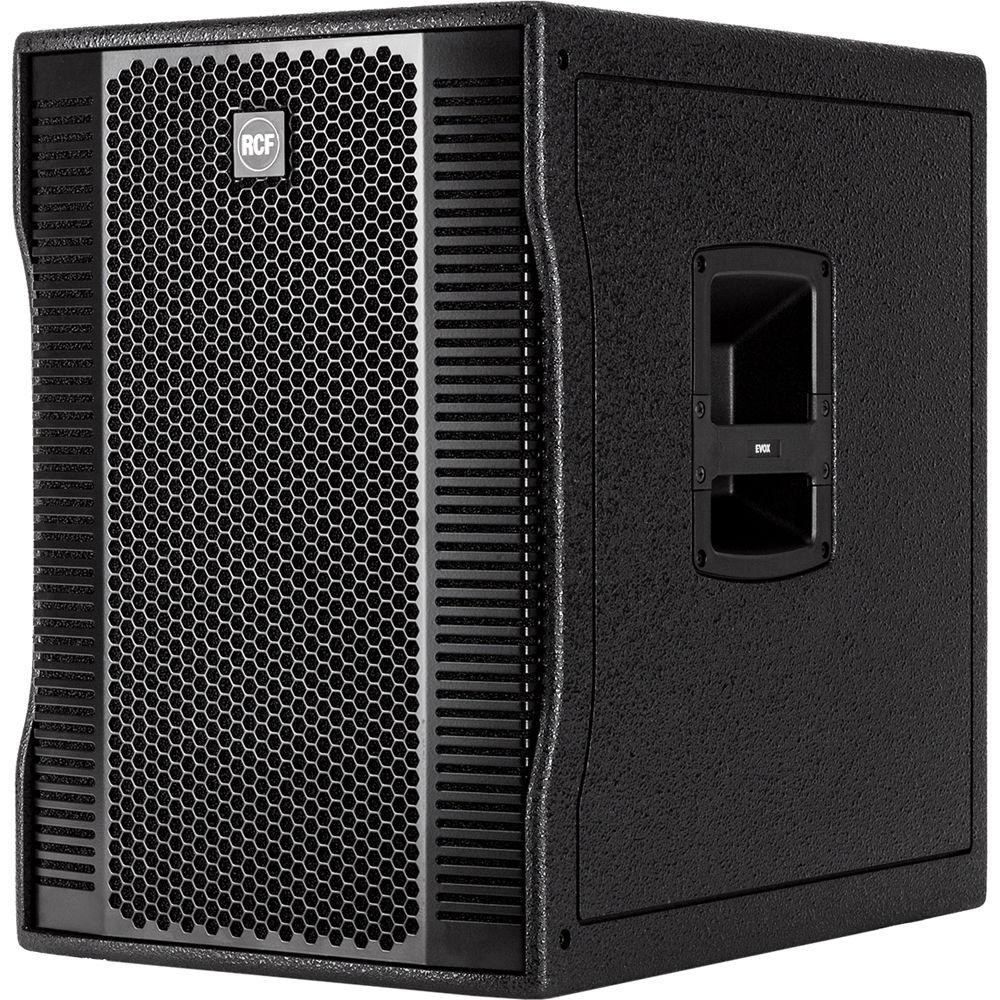

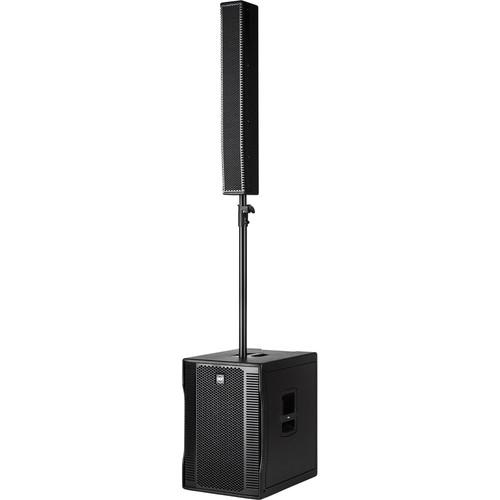

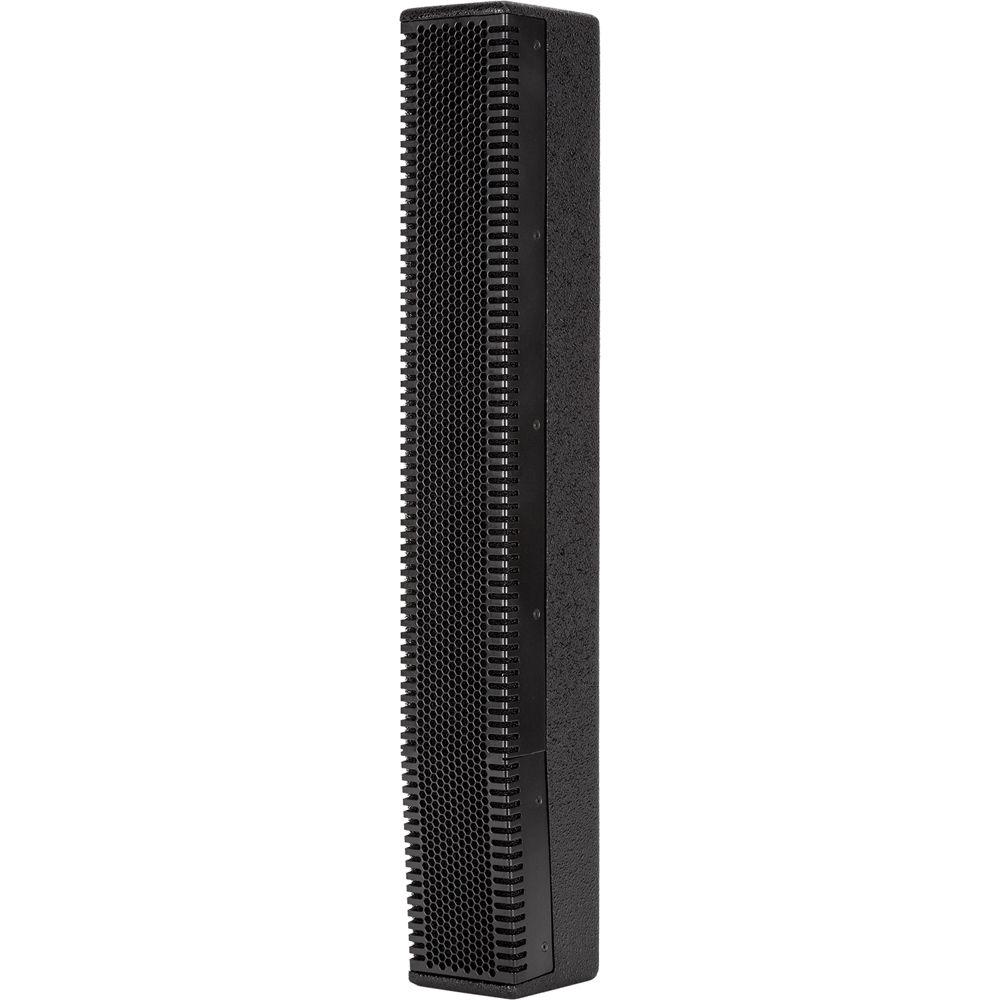

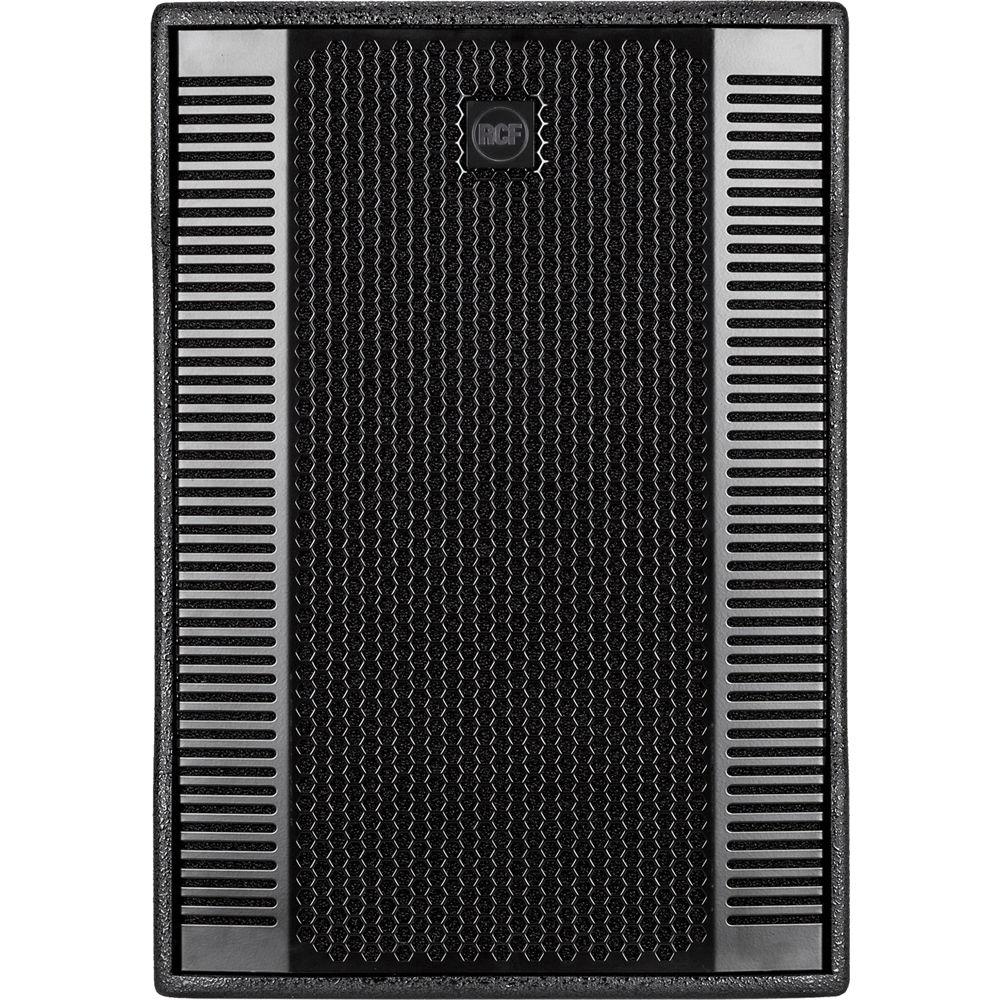

Product description The Evox 12 Active Two-Way Array from Evox offers profound and dynamic sound reproduction at high levels using a built-in 1400-watt power amplifier. The top section of the array has eight high-performance neodymium 4" full-range transducers with a phase plug, resulting in maximum low to mid playback at a constant level with a wide dispersion for the highs. Additionally, the included 15" subwoofer delivers powerful bass to reinforce sound at a large party or the kick drum of a live band. The array features a compact construction, wheels, and an extendable handle for easy transport.
The Evox 12 is designed for constant horizontal-directivity coverage of 90 x 30°. It is shaped for a correct listening experience from the first row of an audience and for avoiding high-frequency beaming. The array provides deep response, precise low-frequency control, and high-quality audio, making it suitable for DJs as well as solo musicians and bands. Providing clarity and dynamic vocal reproduction, at both low and high levels, the array can also be used for speeches or at conferences. - 40 Hz to 20 kHz frequency response
- Eight 4" neodymium transducers for a full-range woofer
- 90 x 30° slightly tilted pattern control
- Innovative DSP processing
- Easy setup and transportation
In the Box RCF Evox 12 Active Two-Way Array with 15" Subwoofer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF Evox 12 Active Two-Way Array with 15" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF EVOX-12-SYSTEM Specs | Acoustics | Frequency response (-3 dB): 40 Hz to 20 kHz
Max SPL: 130 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 30°
Fullrange: 8 x 4.0" / 10.2 cm, 1.0" / 2.5 cm v.c.
Woofer: 15.0" / 38.1 cm, 3.0" / 7.6 cm | | Input/Output | Input connectors: Jack-to-XLR male
Output connectors: XLR female
Input sensitivity: -2 dBu / +4 dBu | | Processor | Crossover frequencies: 180 Hz
Protections: Thermal, rms
Limiter: Soft limiter
Controls: Volume, EQ | | Amplifier | Total power: 1400 W peak, 700 W RMS
High frequencies: 400 W peak, 200 W RMS
Low frequencies: 1000 W peak, 500 W RMS
Cooling: Convection
Connections: VDE connector | | Carry/Transport Options | 2 x side handles
1 x top handle
Extendable handle and wheels | | Material | Cabinet: Baltic birch plywood | | Dimensions | 87.4 x 16.4 x 22.1" / 222.0 x 41.7 x 56.0 cm | | Weight | 80.2 lb / 36.4 kg | | | | Package Weight | 94.95 lb | | Box Dimensions (LxWxH) | 36.0 x 32.0 x 18.0" |
