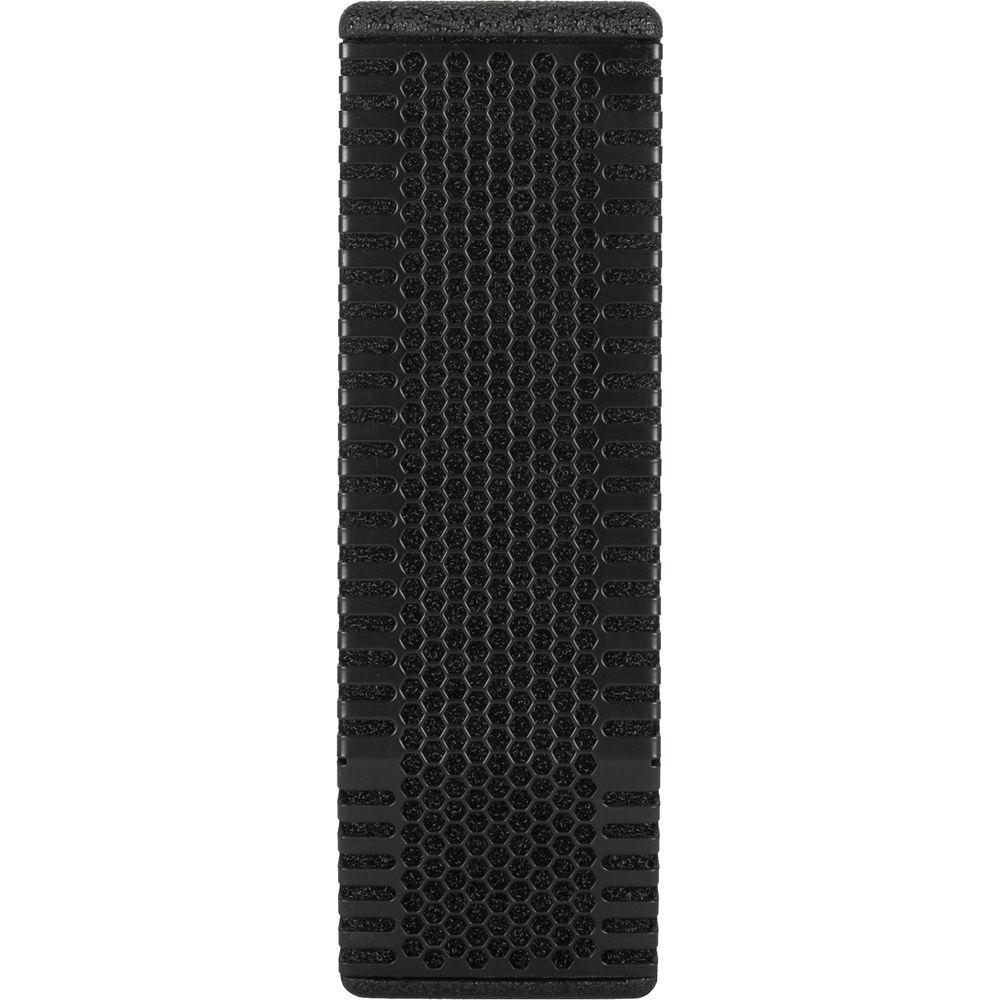

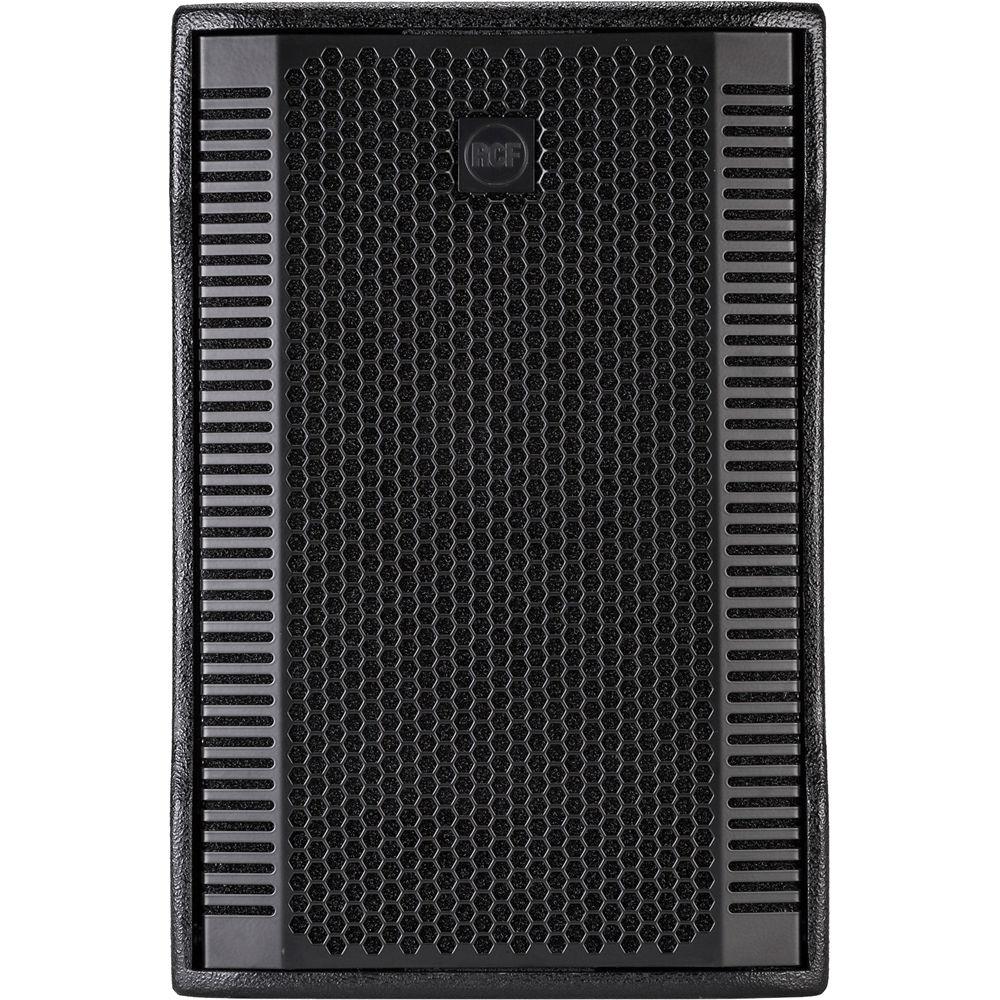

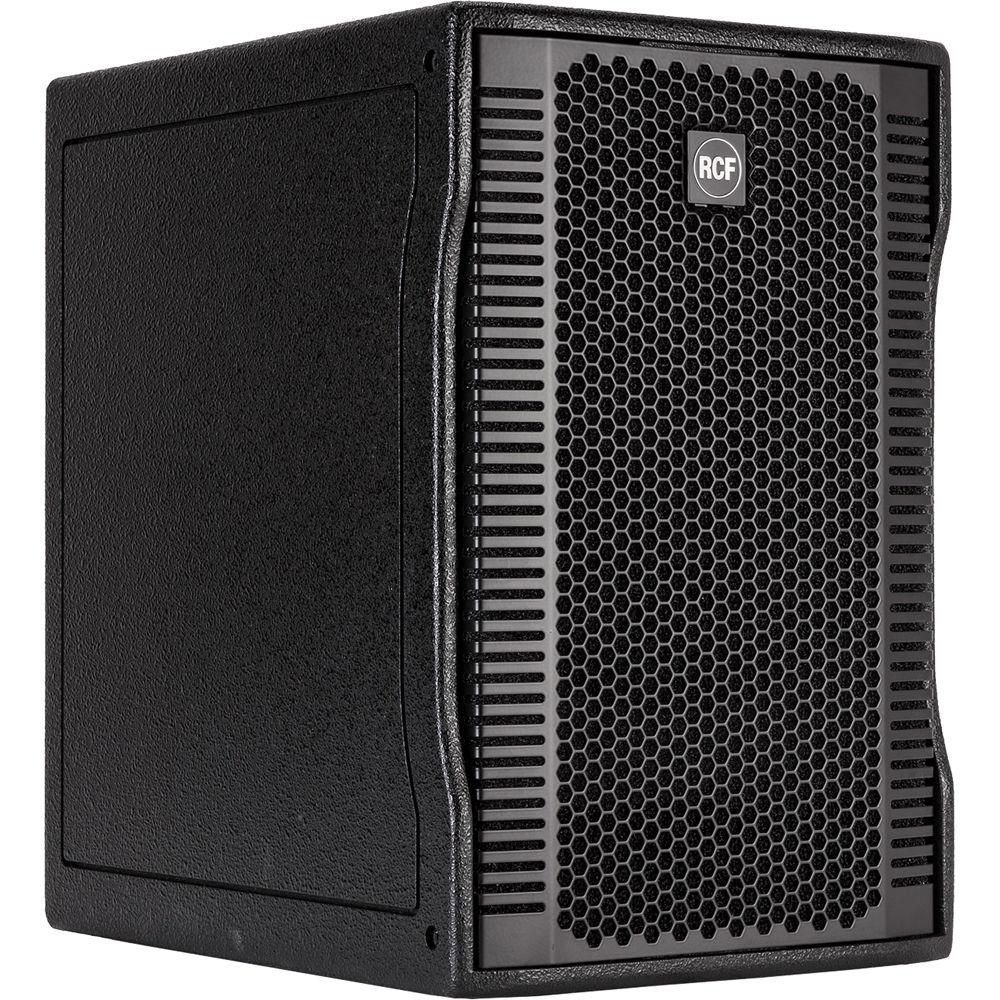

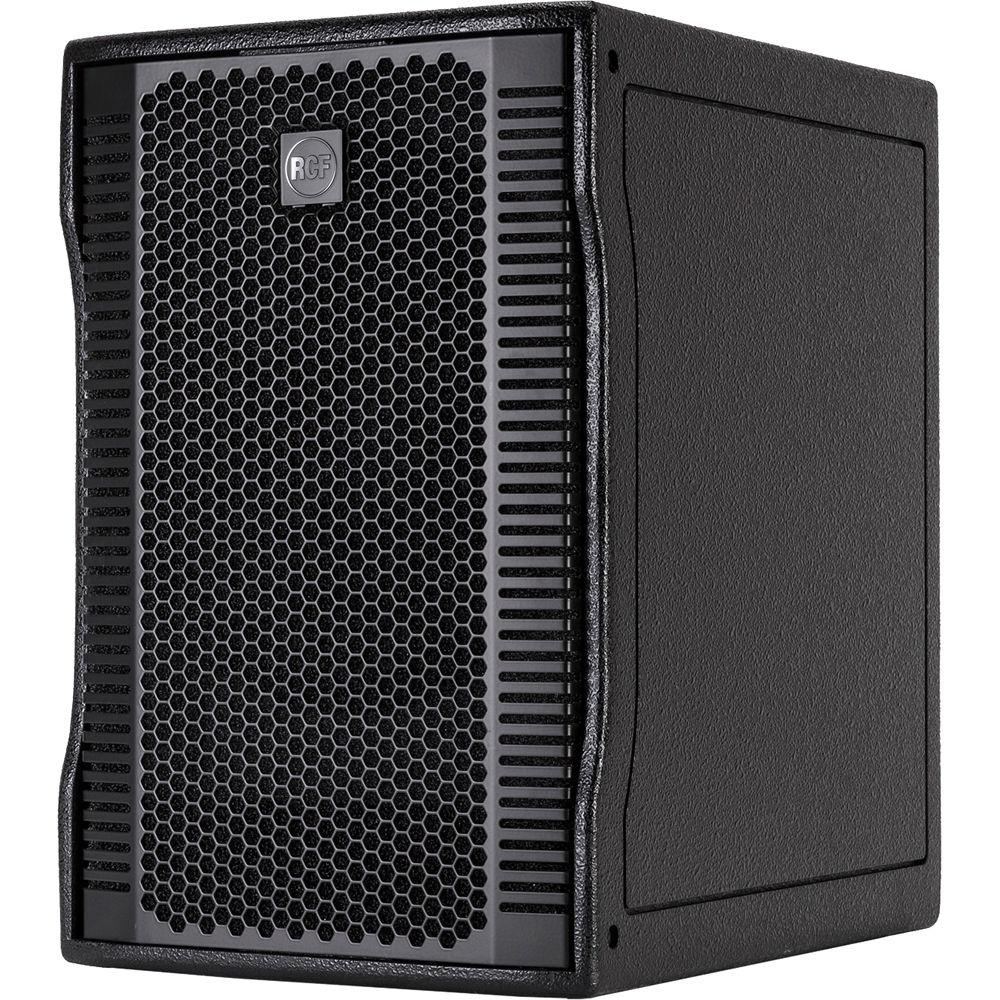

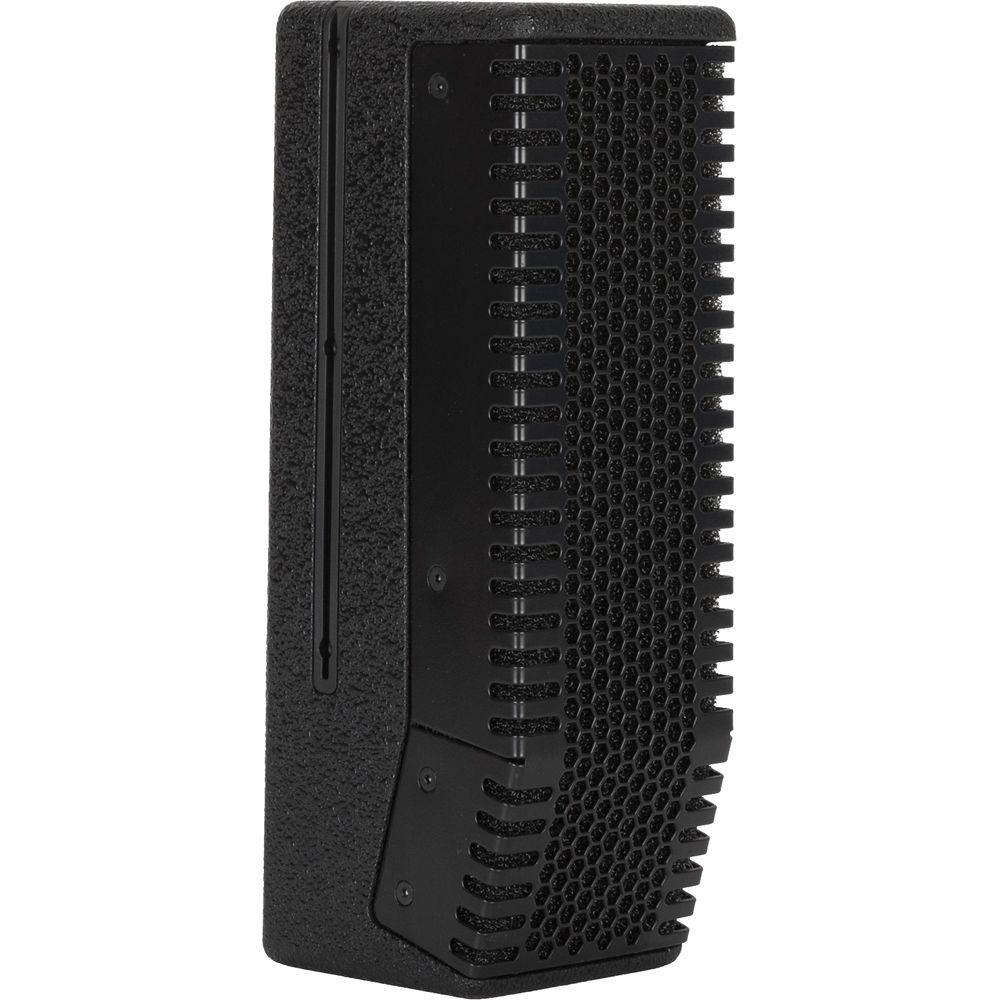

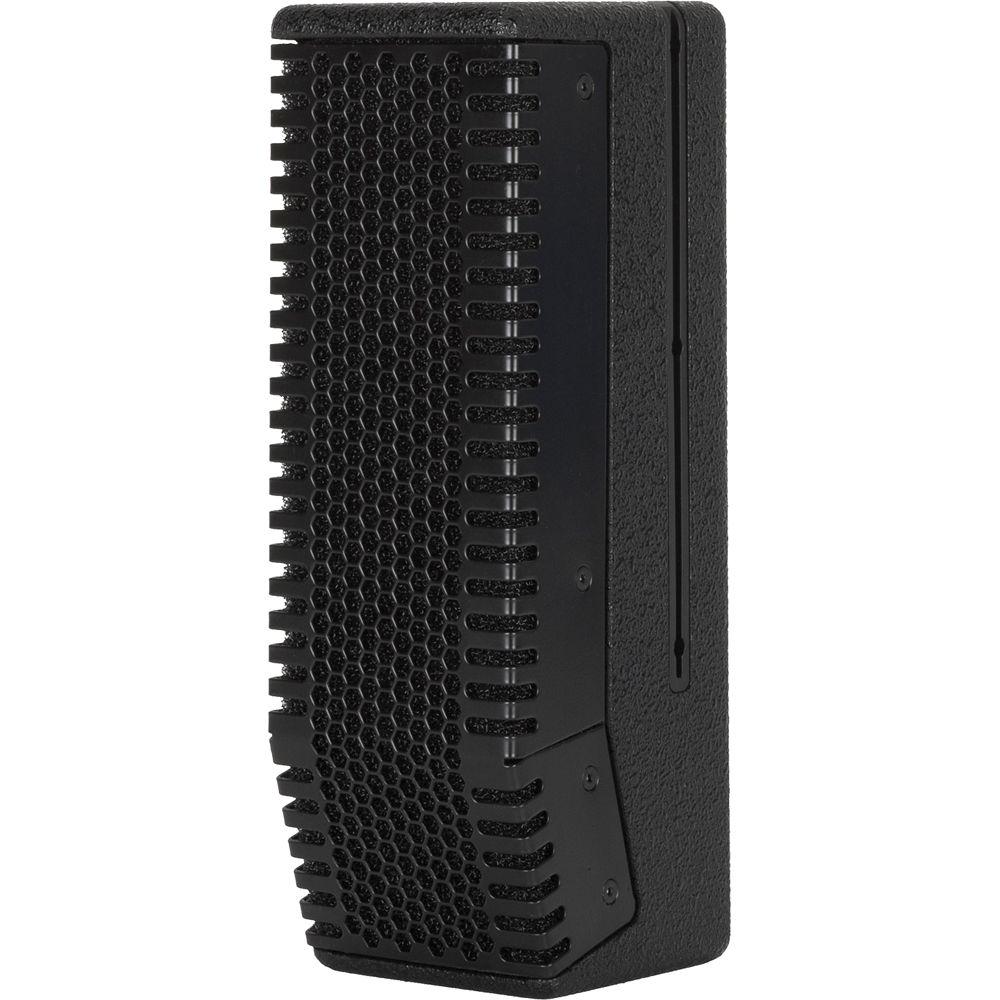

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More Equally well suited for portable DJ shows, live performances, public speaking engagements, and other PA applications, the RCF EVOX 5 Compact Active Two-Way PA Speaker With Bass System uses five full range high-power 2.0" speakers and a 10" satellite subwoofer in a bass reflex enclosure to deliver a frequency response of 45 to 20,000 Hz with a maximum SPL of 125 dB dB.
To achieve this response, the system utilizes a 600W (LF), 200W (HF) peak class D bi-amplifier with DSP and a constant horizontal coverage of 120°. The vertical array design helps avoid high frequency beaming for more balanced coverage from the front to the last row.

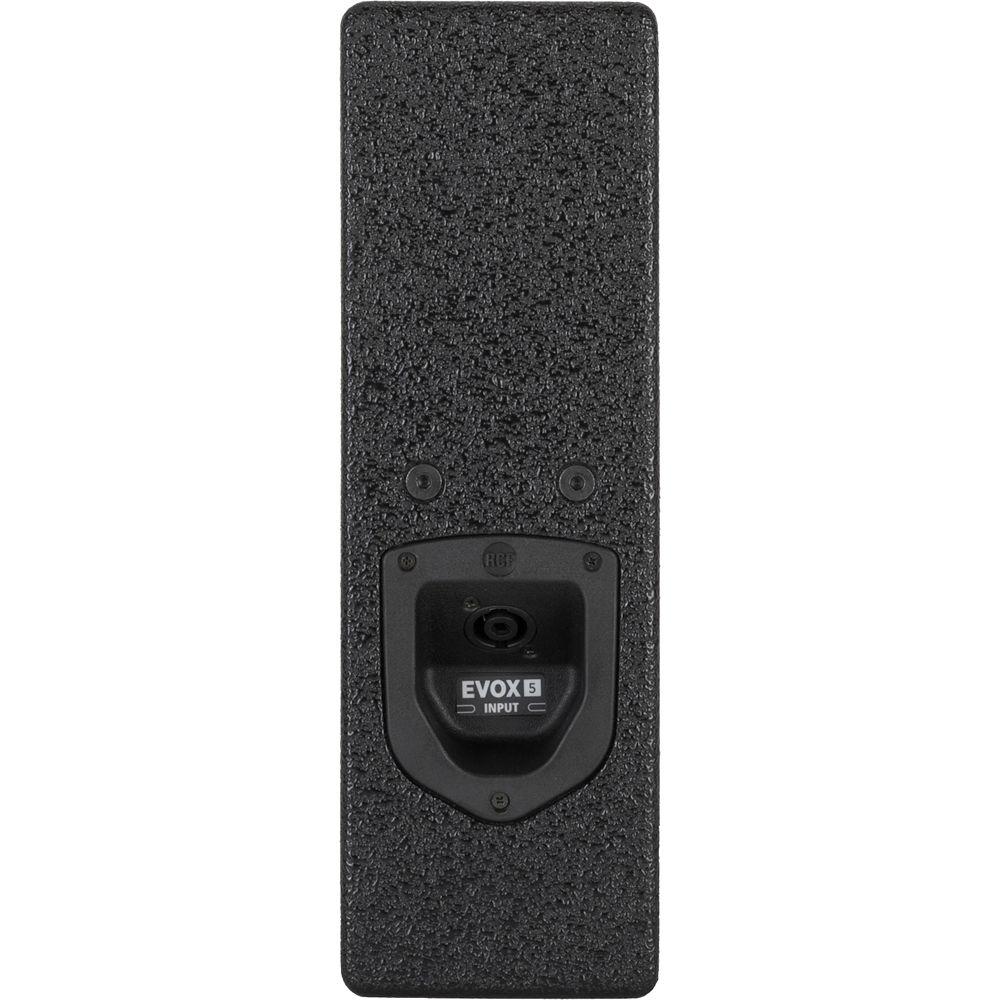

The crossover between the high frequency and low frequency drivers is digitally controlled by onboard DSP with dedicated processing given to accurate vocal reproduction. The rear panel of the amplifier includes balanced switchable mic/line level inputs, an XLR link output, a volume knob, an EQ flat/boost switch, and LED indicators for limiting, signal, and power. The amplifier connects to the top speaker via 2-pole speakON connection.

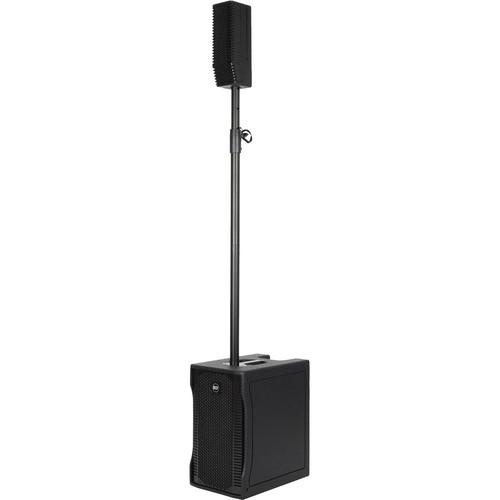

For portability, the top full-range speaker slides into the subwoofer on rail guides. To setup, simply pull the top out of the subwoofer via the rubber handle and screw into the 2-part speaker mount pole. The cabinet is constructed from Baltic birch plywood. - DSP Processing
- Uses digital signal processing and frequency dependent drivers to control excursion and distortion to provide high output from a small system with specific tuning for speech reproduction
- RFC Transducers
- Features ultra-compact full-range 2"drivers to handle high SPL and power as well as high excursion woofers for low and mid-low frequencies
- Controlled Directivity Pattern
- Features a constant horizontal directivity coverage of 120° and a vertical array design that is progressively shaped to provide correct listening from the first row
- Multifunction Top Handle
- Uses a top steel plate that joins the handle and the insert of the pole mounting with a rubber hand grip for improved portability
- Class-D Amplification
- Uses a two-way Class-D amplifier with DSP controlled crossovers
- Portability
- Allows for the assembly of the system in three simple steps with an integrated top, sub, pole mount, and cable package in a dedicated optional transportation bag
- Transportation
- Features a socket for the top column with a rail guide for the insertion and extraction of the top column
- Mounting
- Enables the insertion of the top column into a pole mount which can be screwed onto the top side and the pole mount can be separated in two single parts to place in the transportation bag
In the Box RCF Evox 5 Compact Active Two-Way PA Speaker With Bass System Power Cord Limited 2-Year Warranty, Extendable to 3-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF Evox 5 Compact Active Two-Way PA Speaker With Bass System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF EVOX-5-SYSTEM Specs | I/O | 1x 1/4" TRS balanced audio input
1x XLR-3F balanced audio input
1x XLR-3M balanced parallel audio output
1x speakON output from amplifier to link the satellite speaker | | Controls | 1x amplifier volume control
1x line/mic input sensitivity switch
1x flat/boost switch | | Indicators | 1x limiter LED
1x signal LED

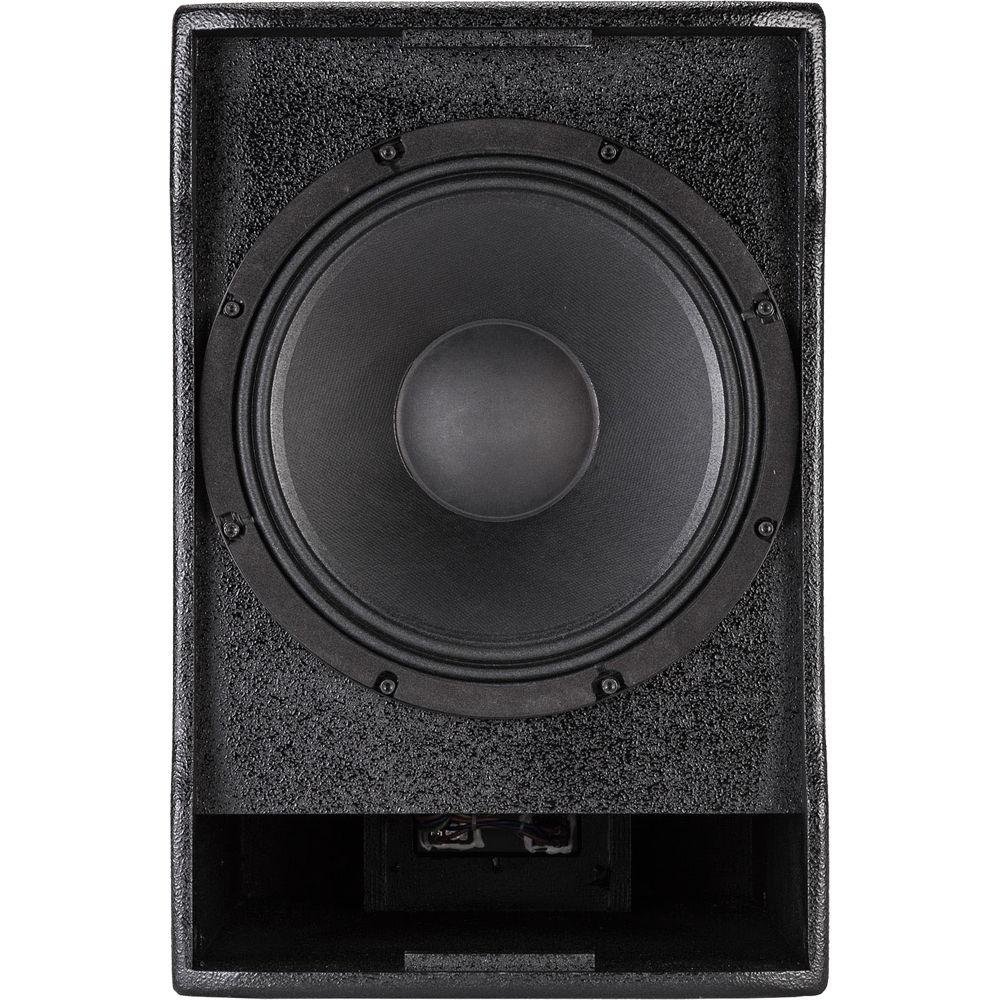

1x status LED | | Drivers | LF: 1x 10" subwoofer with 2.0" voice coil

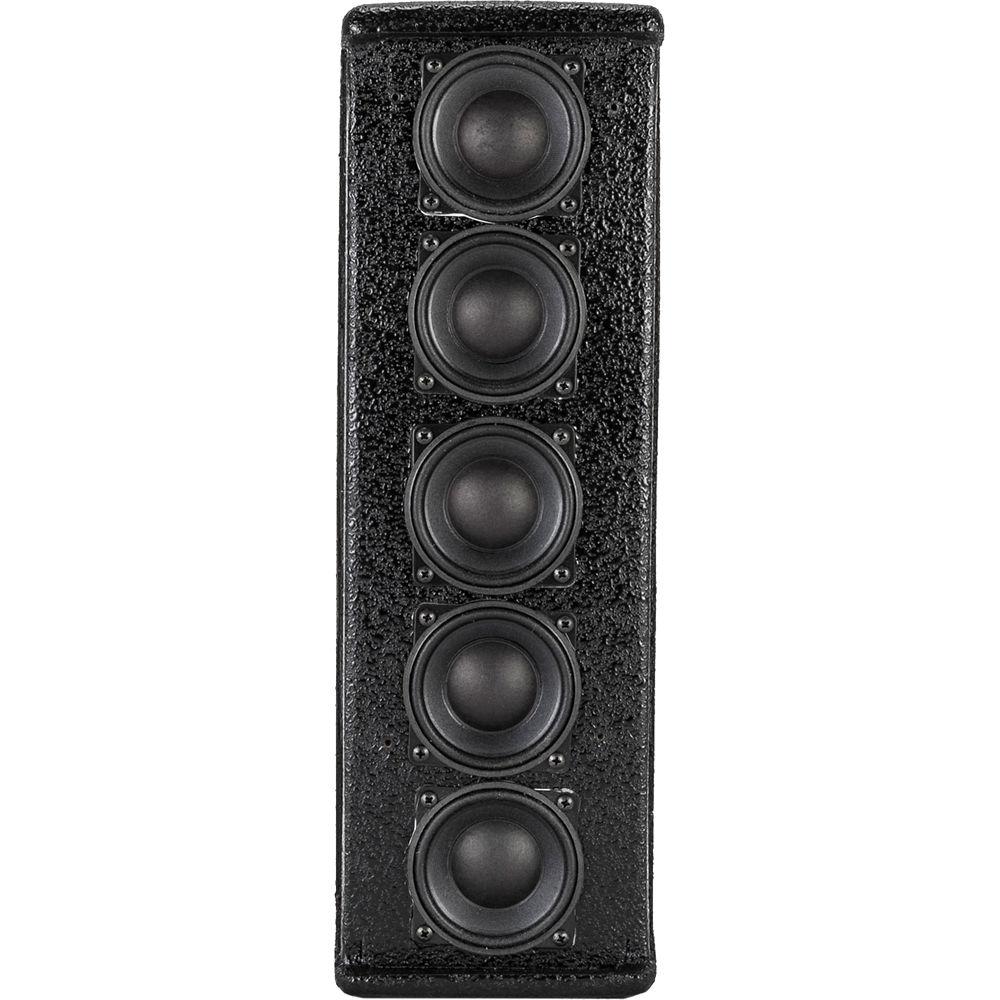

HF: 5x 2" full range drivers with 1.0" voice coils | | Amplifier | Peak 600W (LF), 200W (HF) class-D | | Frequency Response | 45 to 20,000 Hz | | Maximum SPL | 125 dB | | Horizontal Coverage Angle | 120° | | Vertical Coverage Angle | 30° | | Input Sensitivity | +4 dBu | | Crossover Frequency | 220 Hz | | Protections | Thermal drift, RMS | | Limiter | Software limiter | | Cooling | Convective | | Operating Voltage | 115 / 230 V (according to the model), 50 to 60 Hz | | Inrush Current | 10.1 A (according to EN 55013-1:2009) | | Cabinet | Baltic birch plywood | | Dimensions | Subwoofer (H x W x D): 19.29 x 11.34 x 16.81" (49.00 x 28.80 x 42.70 cm)
Satellite speaker (H): 12.83" (32.60 cm) | | Weight | 42.33 lb (19.20 kg) | | | | Package Weight | 52.85 lb | | Box Dimensions (LxWxH) | 25.6 x 18.6 x 13.4" |
