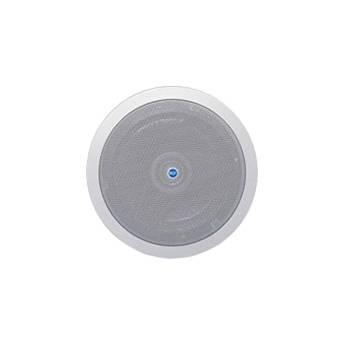

User Manual for RCF Full Range 3.5" Flush Mount Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the RCF Full Range 3.5" Flush Mount
- Product category: Installed Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Installed Speakers
|
User manual for the RCF Full Range 3.5" Flush Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description Provided by third party: Ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels.
Incorporate an 86 mm-3.5" a full range speaker. The speakers are equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make it possible to select the output power from among several values.
Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
- Key Features
-
- Recommended for speech and background-music reproduction
- Music power/RMS: 16/8W
- Low impedance (8O) or 100V
- 3.5" full range speaker
- Three hooks mounting system (no screws or other attachment elements)
- Built-in multi-tapped transformer for constant voltage connection
- Body in self-extinguishing (UL 94V-0) plastic and front metal grille RAL 9003 White
Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF Full Range 3.5" Flush Mount Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF PL40 Specs | | | Product Type | Speaker - for PA system | | Enclosure Color | White, RAL 9003 | | Enclosure Material | Plastic | | | | Speaker Type | Passive | | Nominal Output Power | 8 Watt | | Max (RMS) Output Power | 16 Watt | | Frequency Response | 90 - 20000 Hz | | Nominal Impedance | 8 Ohm | | Output Level (SPL) | 100 dB | | Sensitivity | 88 dB | | Integrated Transformer | 70V/100V or 8 Ohm operation | | Coverage | 120
