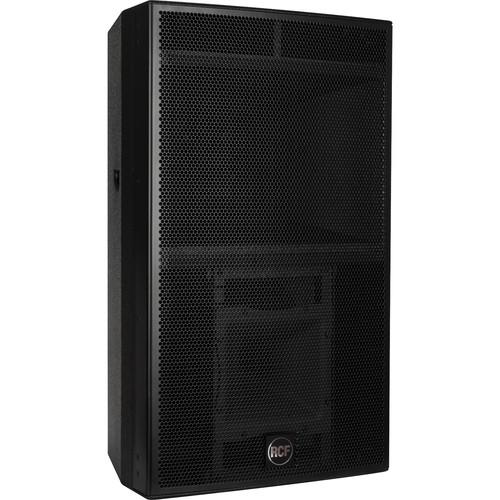

User Manual for RCF H1315 Three-Way Passive Speaker Click to enlarge the picture
Contents of the user manual for the RCF H1315 Three-Way Passive Speaker
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF H1315 Three-Way Passive Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

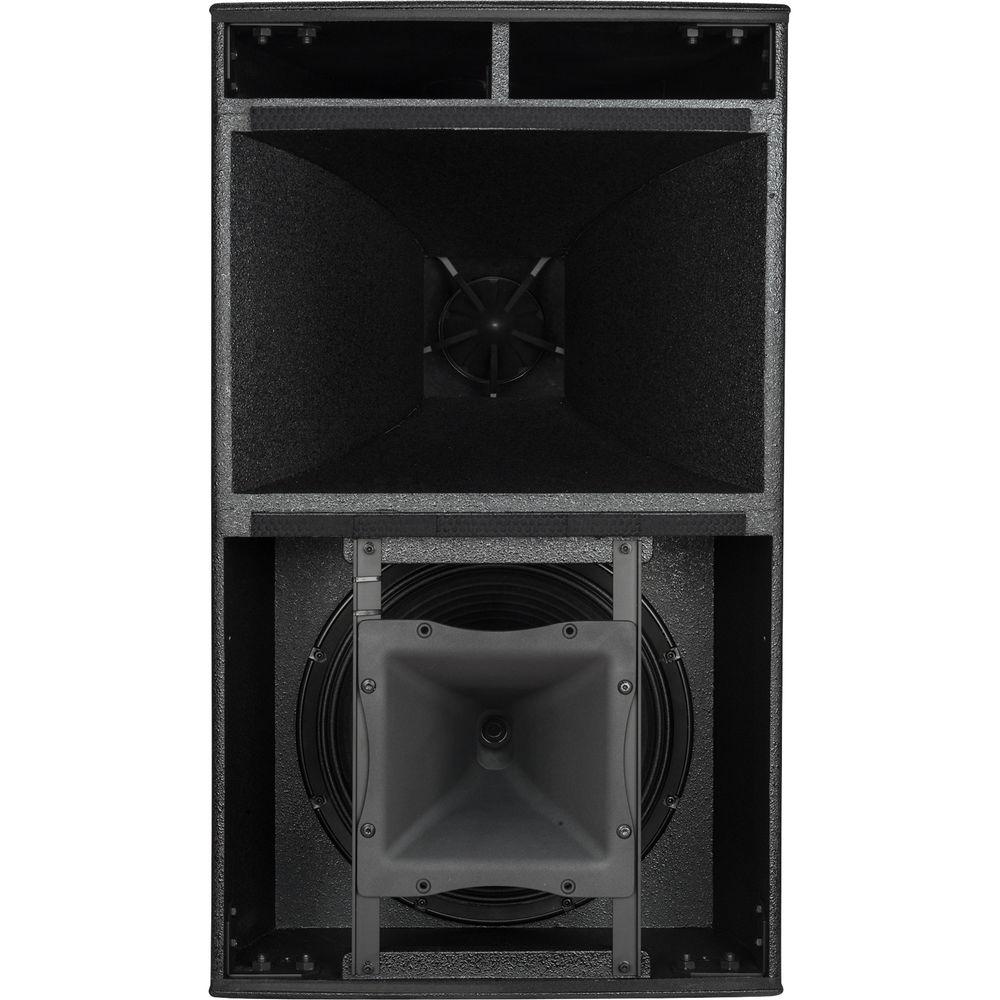

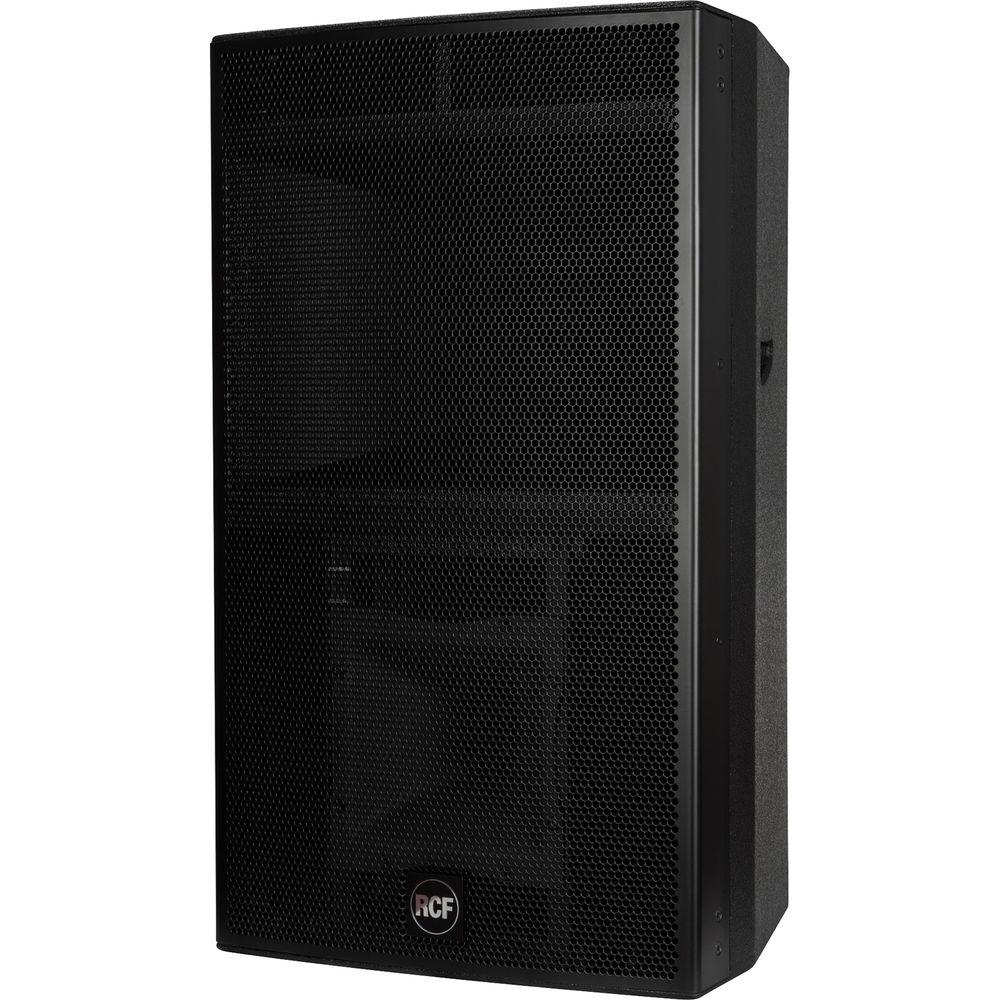

Product description The H1315 Three-Way Passive Speaker from RCF is a three-way full range loudspeaker system that incorporate a 15" LF transducer, a 10" cone MF transducer, and a 1.4" exit titanium compression driver. The speaker system is compact, provides high output and accurate voice & sound reproduction, and uses a SPEAKON connector. The LF driver, equipped with a 4" voice coil and a neodymium motor, is mounted in a vented enclosure with optimized front loading. The MF cone driver is a unique RCF sealed basket design and is loaded into an exponential, Baltic birch 60° x 40° midrange horn. The 3" coil MF driver is acoustically equalized due to a RCF complex phase-plug design. The HF titanium compression driver is loaded on a constant directivity rotatable horn with a coverage of 60° x 40°.

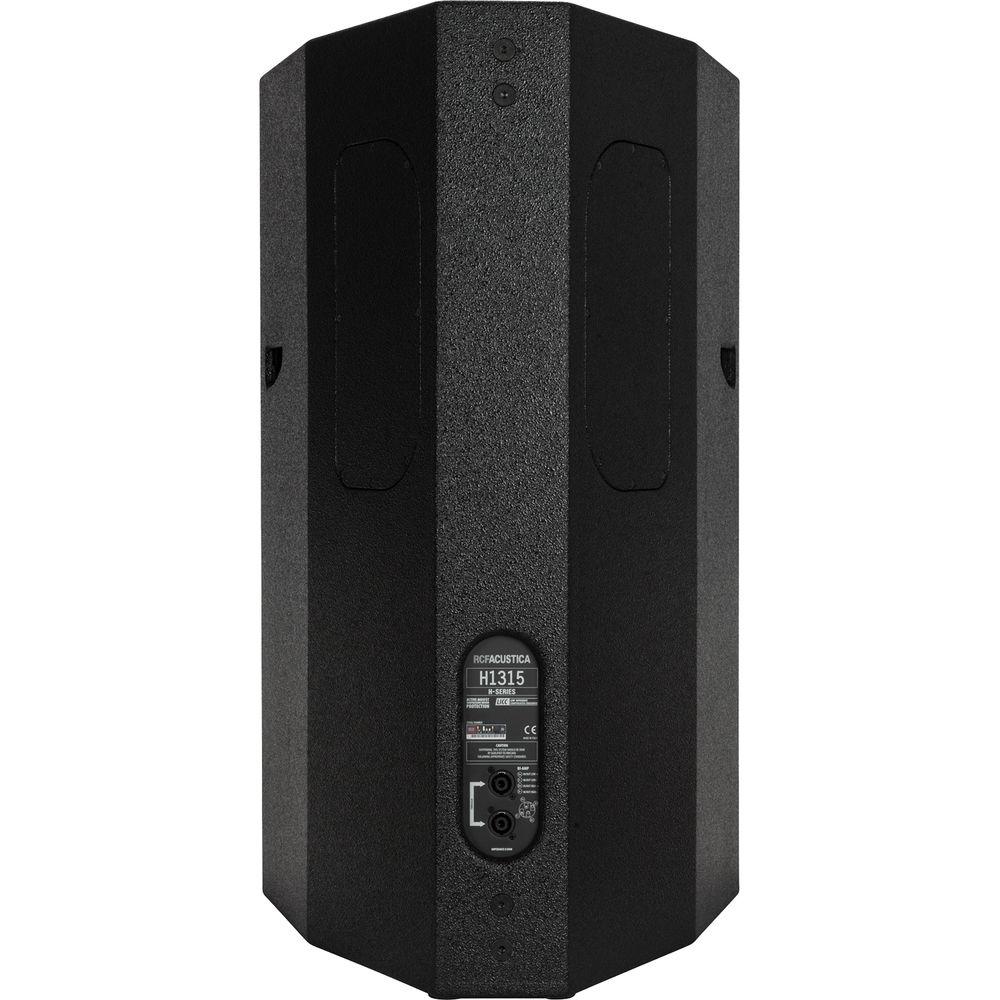

The internal crossover network between midrange and compression driver offers compression driver protection due to an Active MOSFET Circuit. The system is driven in bi-amped mode, is capable of producing a Max SPL higher than 136 dB, and handles 900 W AES (LF) + 400 W AES (MF/HF). The loudspeaker enclosure shape is multi-trapezoidal, and allows a double coupling angle on each side.

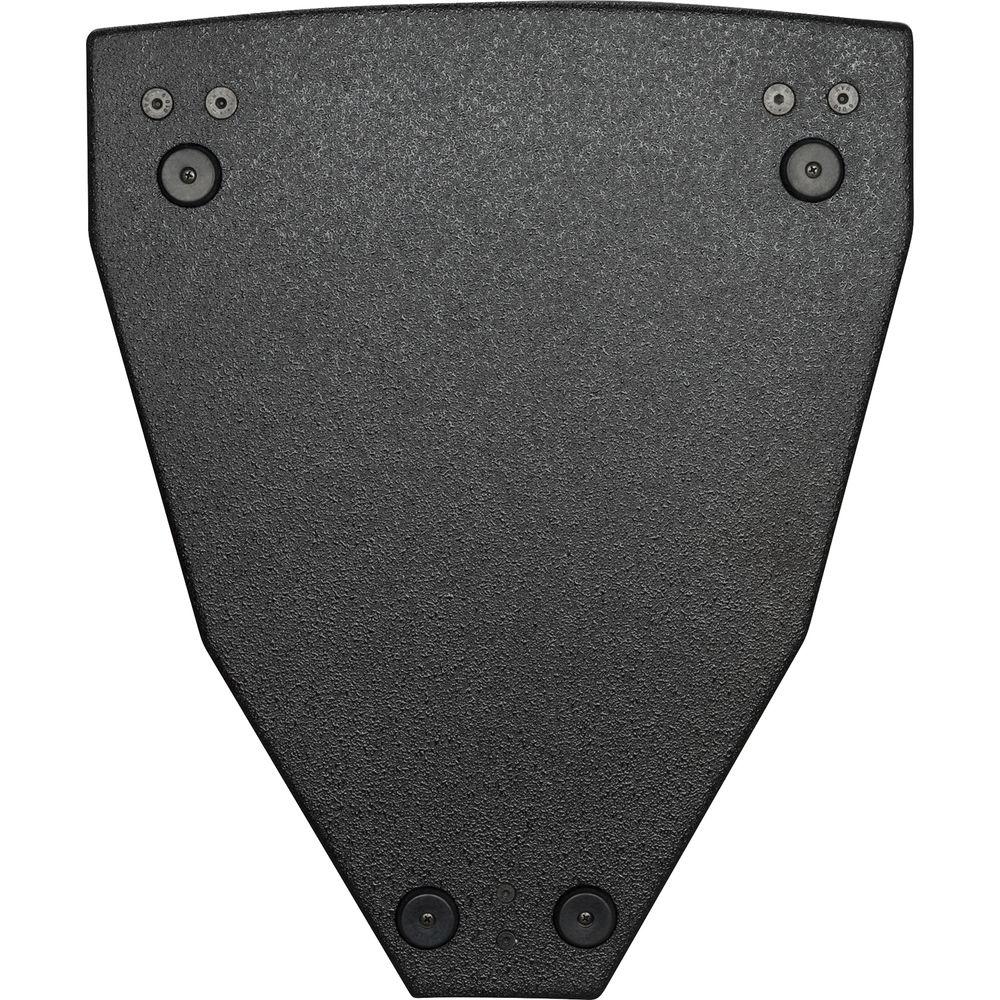

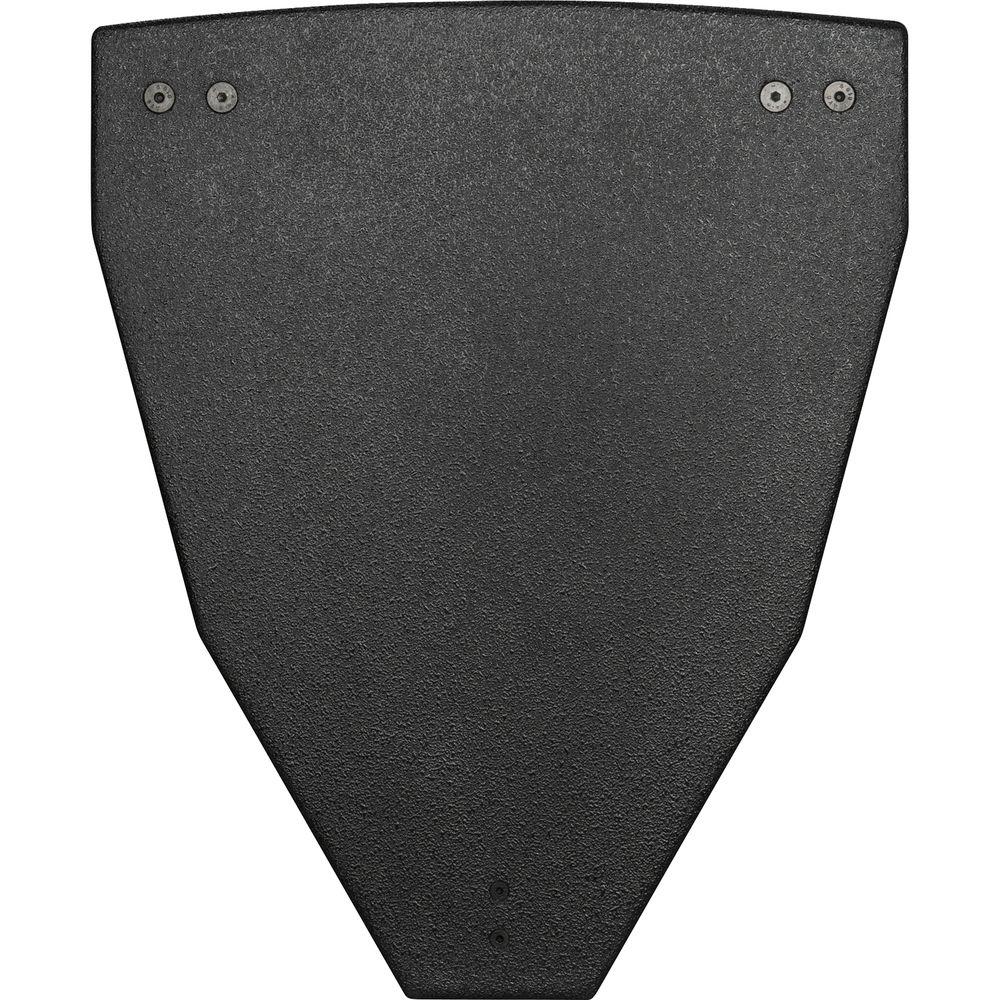

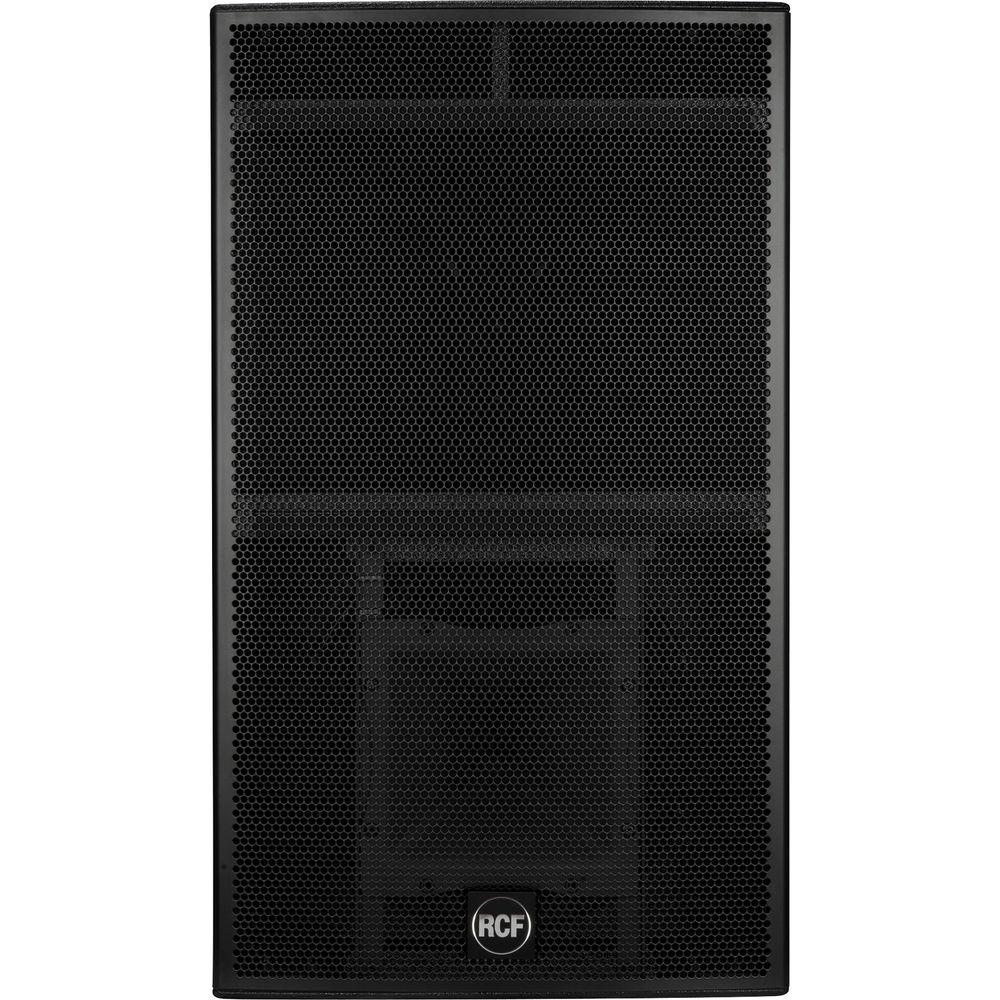

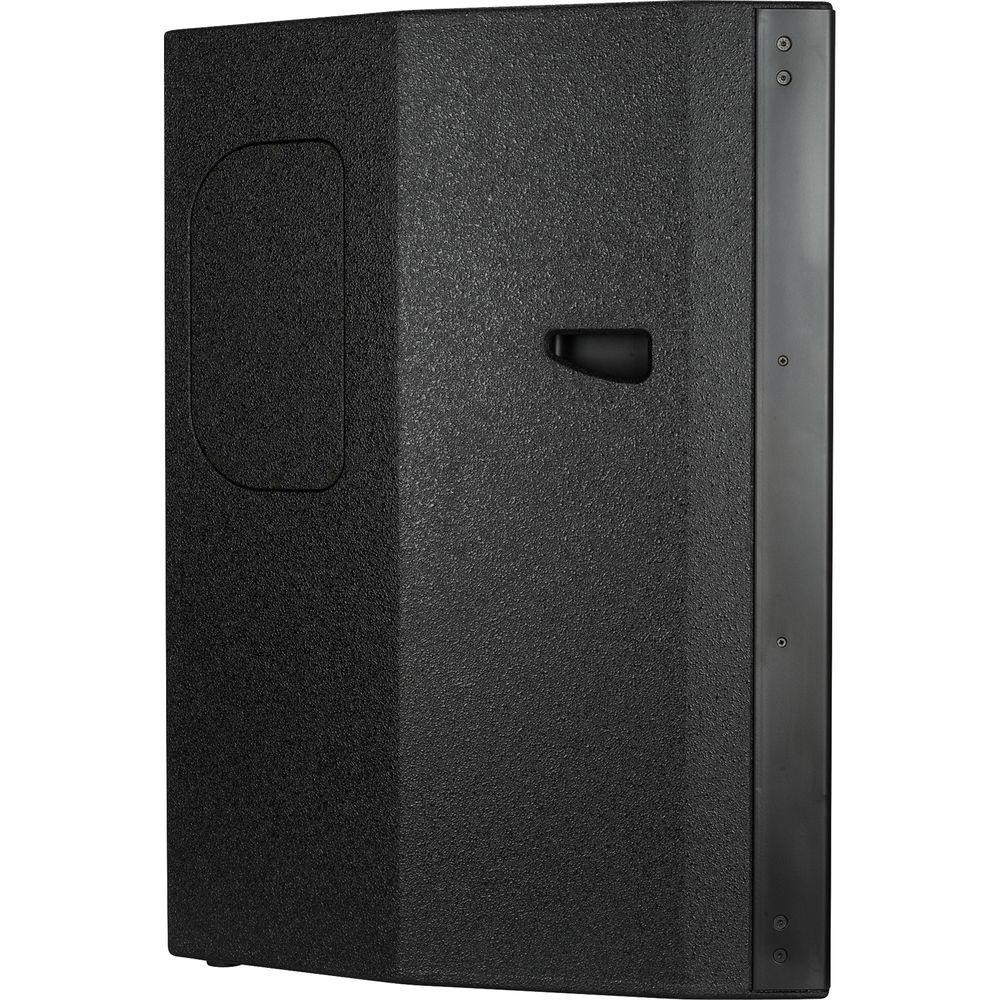

The cabinet of the H1315 is constructed of multi-ply Baltic birch plywood, and finished in a resistant and textured polyurethane black paint. It includes 2 recessed handles for transportation and positioning, and a total of six double M10 fixing points for flown applications and extensive internal metal bracing. The front steel grille is epoxy powder coated. In the Box RCF H1315 Three-Way Passive Speaker Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF H1315 Three-Way Passive Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF H1315 Specs | | | Frequency Range | 50 Hz - 20 kHz @ -10 dB
65 Hz - 20 kHz @ -3 dB | | Coverage Angle | Horizontal: 60° @ -6 dB
Vertical: 40° @-6 dB | | Directivity Factor | Q: 12 | | Sensitivity | LF: 100 dB, HF/MF: 108 dB, 1W @ 1m | | Maximum Sound Pressure Level (SPL) | 136 dB @ 1m | | Nominal Impedance | 8 ohms | | Input Power | RMS: LF 900 W, HF/MF 400 W Peak: LF 3600 W, HF/MF 1600 W | | Recommended Amplifier Power | LF: 1800 W
HF/MF: 800 W | | Protection | Active Mosfet compression driver | | Crossover | Recommended: 300 kHz

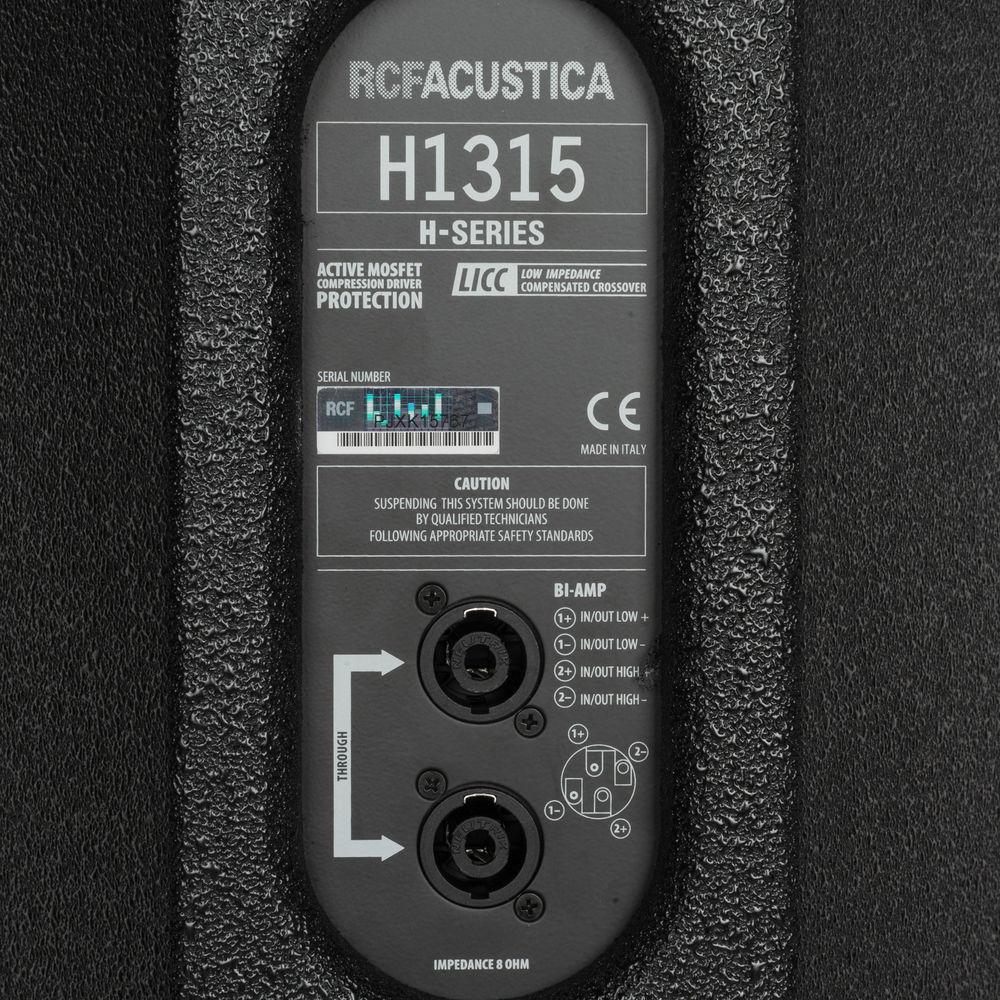

Internal: MF/HF 1300 Hz | | Connector | Speakon NL4, input | | | | Low Frequency Driver | Woofer: 15" (381 mm), neodymium
Voice Coil: 4" (100 mm) | | Nominal Impedance | 8 ohms | | Input Power | 900 W AES | | Sensitivity | 100 dB, 1W @ 1m | | Mid Frequency Driver | Midrange: 10" (254 mm)
Voice coil: 3" (76 mm) | | Nominal Impedance | 8 ohms | | Power Rating | 300 W AES | | Sensitivity | 109 dB, 1W @ 1m | | High Frequency Driver | Throat: 1.4" (35.5 mm)
Voice Coil: 3" (75 mm) | | Nominal Impedance | 8 ohms | | Sensitivity | 109 dB, 1W @ 1m | | | | Enclosure | Double trapezoidal
15 mm Birch plywood construction | | Rigging Points | 12 x M10 | | Grille | Custom perforated steel grille | | Dimensions | 35.0 x 20.5 x 24.9" (89.0 x 52.0 x 63.2 cm) | | Weight | 99.2 lb (45 kg) |
