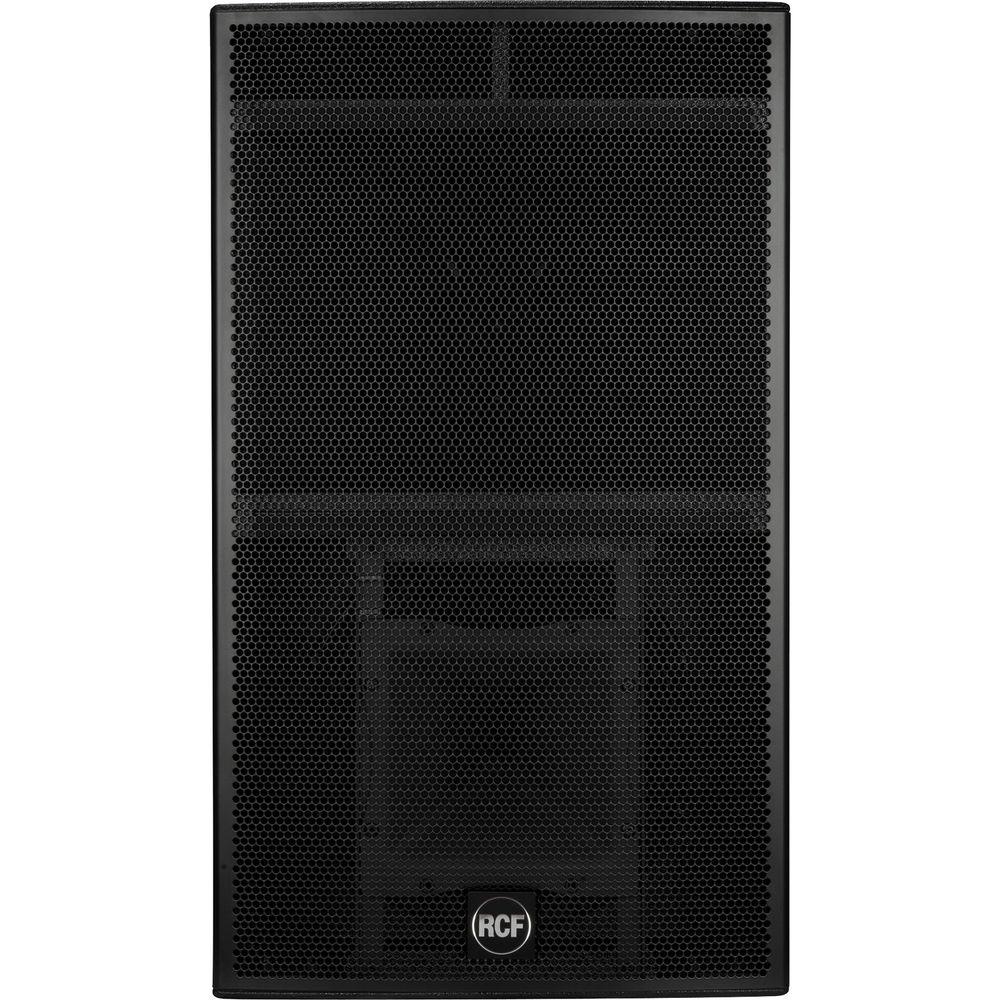

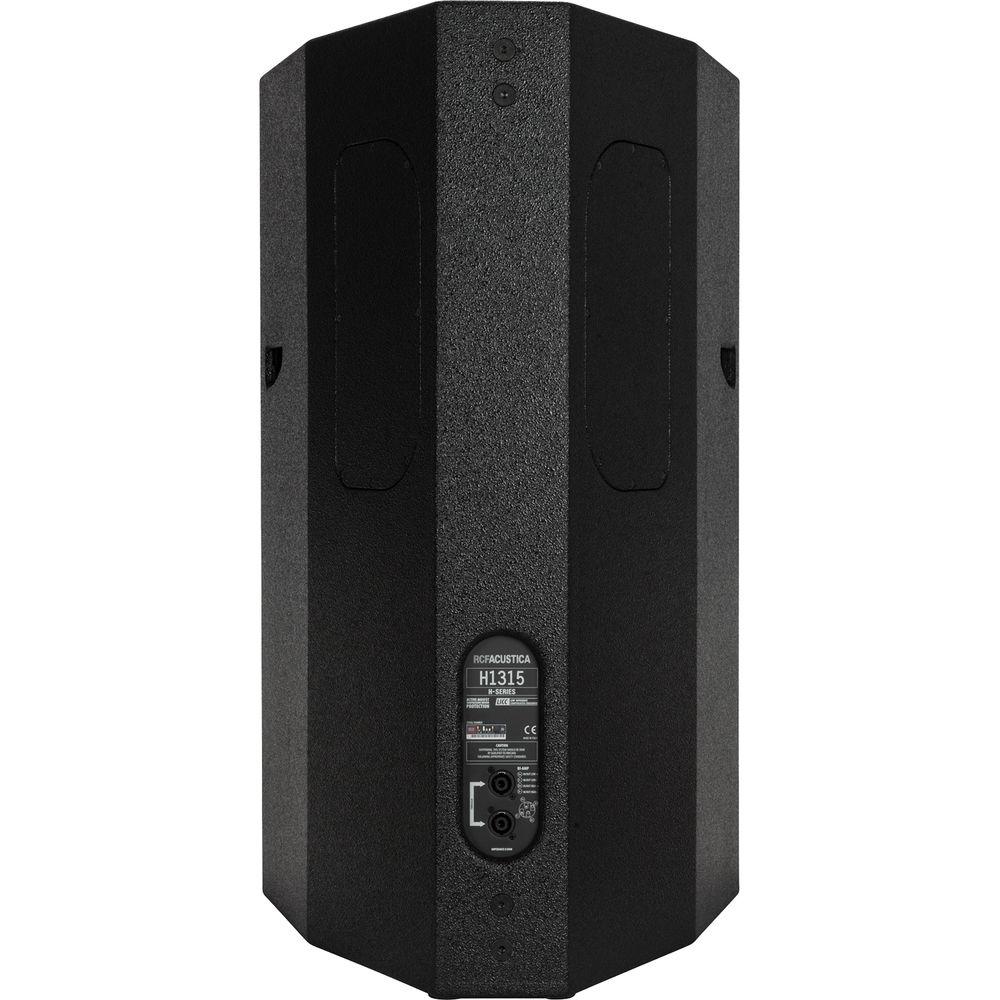

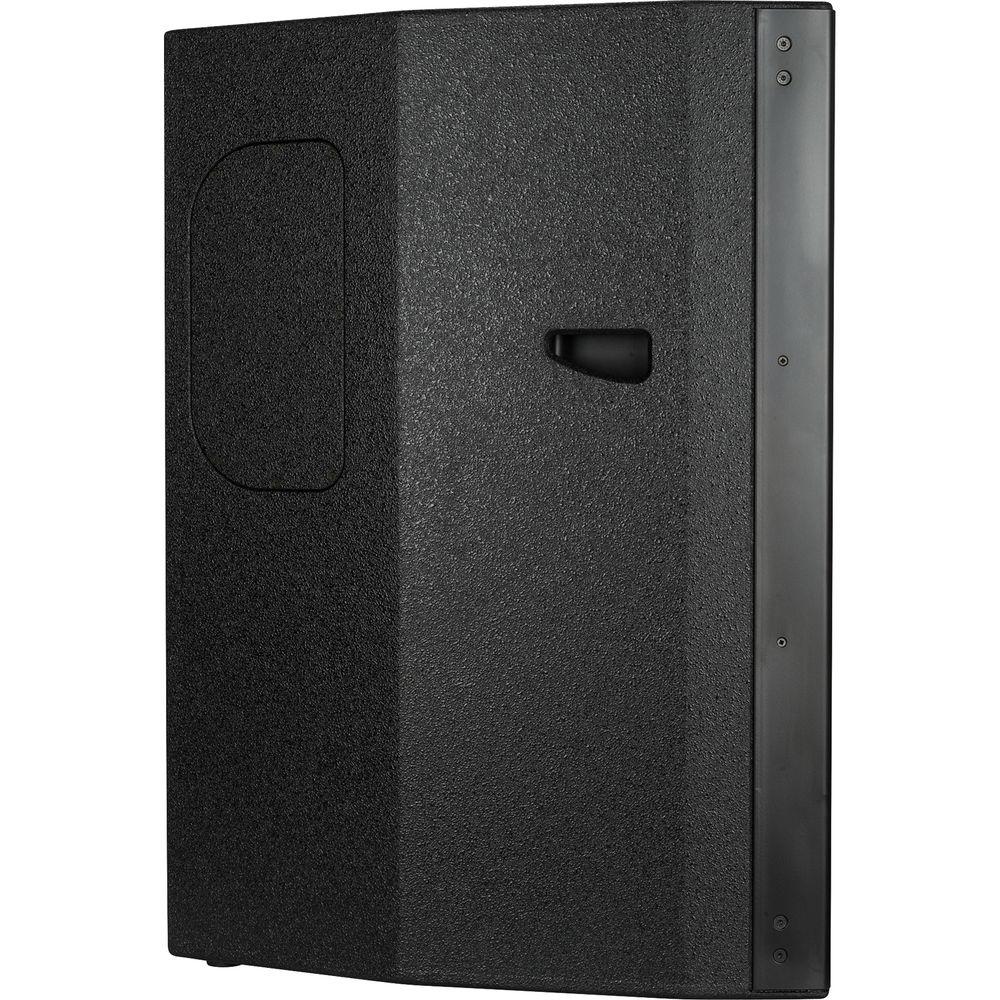

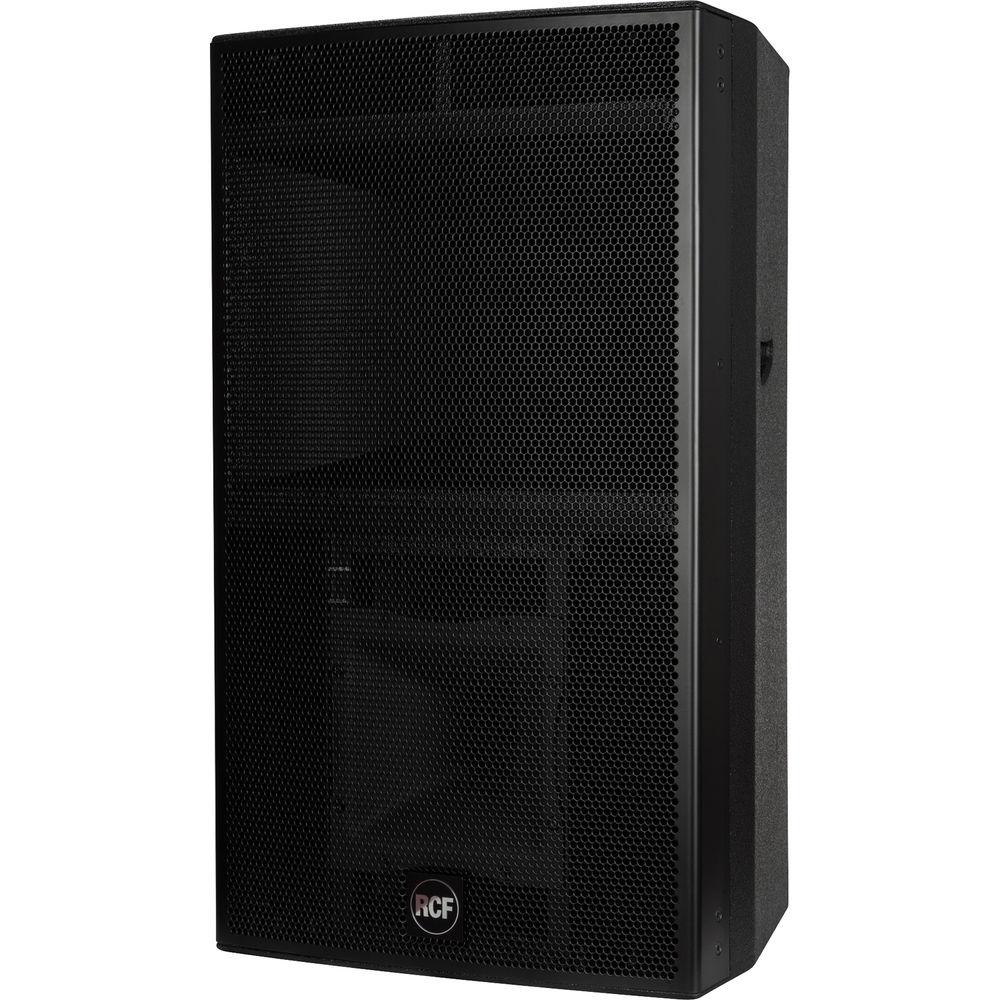

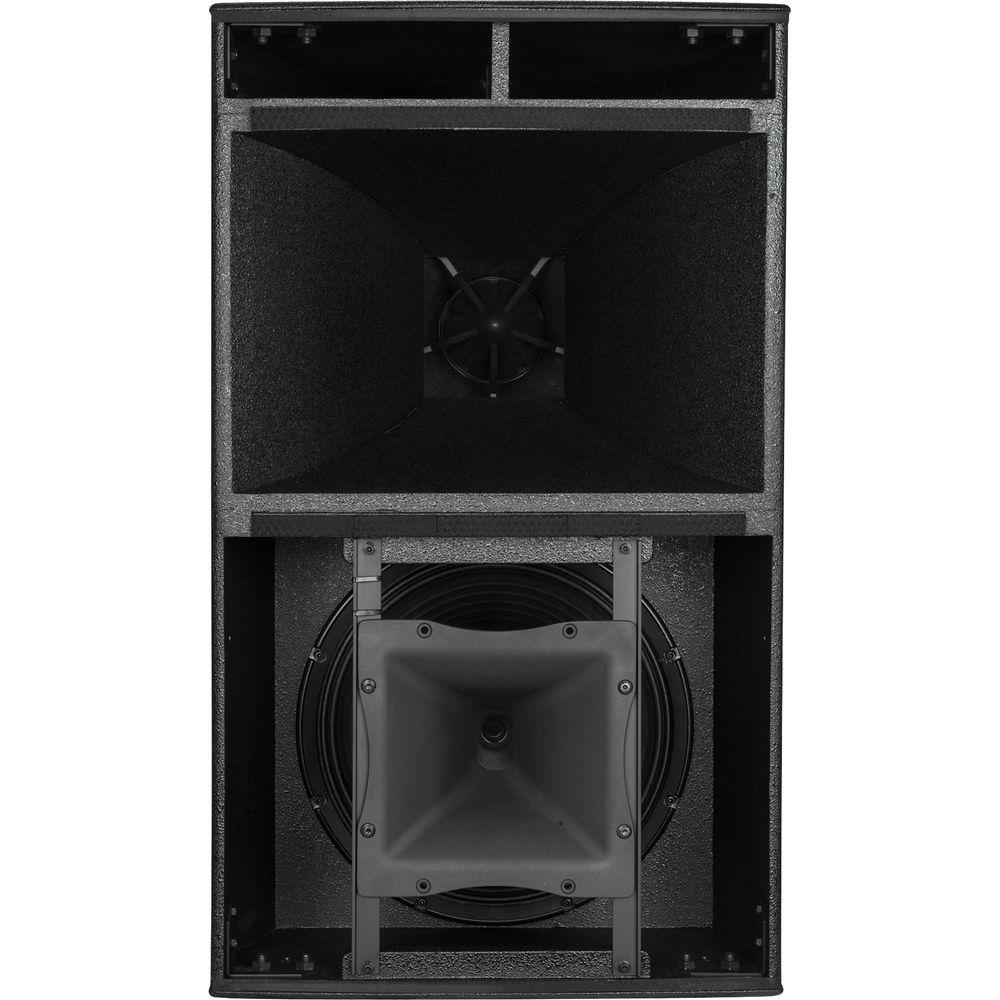

Product description The H1315 WP Three-Way Indoor/Outdoor Horn-Loaded Speaker System from RCF is a three-way full-range loudspeaker system that incorporates a 15" LF transducer, a 10" cone MF transducer, and a 1.4"-exit titanium-compression driver. The LF driver, equipped with a 4" voice coil and a state-of-the-art neodymium motor, is mounted in a vented enclosure with optimised front loading. The MF cone driver is a unique RCF-sealed basket design and is loaded into a exponential, Baltic birch 60 x 40° mid-range horn. The 3" coil MF driver is acoustically equalized thanks to a unique RCF complex phase-plug design. The HF titanium-compression driver is loaded on a constant-directivity rotatable horn with coverage of 60 x 40°. The speaker cabinet is treated inside-outside with polyurea black paint. - Compact arrayable 3-way system
- Fully horn-loaded LF / MF / HF (60 x 40° directivity)
- Fully equipped with neodymium transducers
- Bi-amp system (passive crossover MF / HF included)
- Active Mosfet compression-driver protection
- Sound reinforcement in medium-to-large spaces
- Main PA in mid- to large-size systems
In the Box RCF H1315 WP Three-Way Indoor/Outdoor Horn-Loaded Speaker System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF H1315 WP Three-Way Indoor Outdoor Horn-Loaded Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF H1315 Specs | | | Frequency Range | 50 Hz to 20 kHz @ -10 dB
65 Hz to 20 kHz @ -3 dB | | Coverage Angle | Horizontal: 60° @ -6 dB
Vertical: 40° @ -6 dB | | Directivity Factor | Q: 12 | | Sensitivity | LF: 100 dB
HF/MF: 108 dB, 1 W @ 3.3' (1.0 m) | | Maximum Sound Pressure Level (SPL) | 136 dB @ 3.3' (1.0 m) | | Nominal Impedance | 8 ohms | | Input Power | RMS: LF 900 W, HF / MF 400 W
Peak: LF 3600 W, HF / MF 1600 W | | Recommended Amplifier Power | LF: 1800 W
HF / MF: 800 W | | Protection | Active Mosfet compression driver | | Crossover | Recommended: 300 kHz

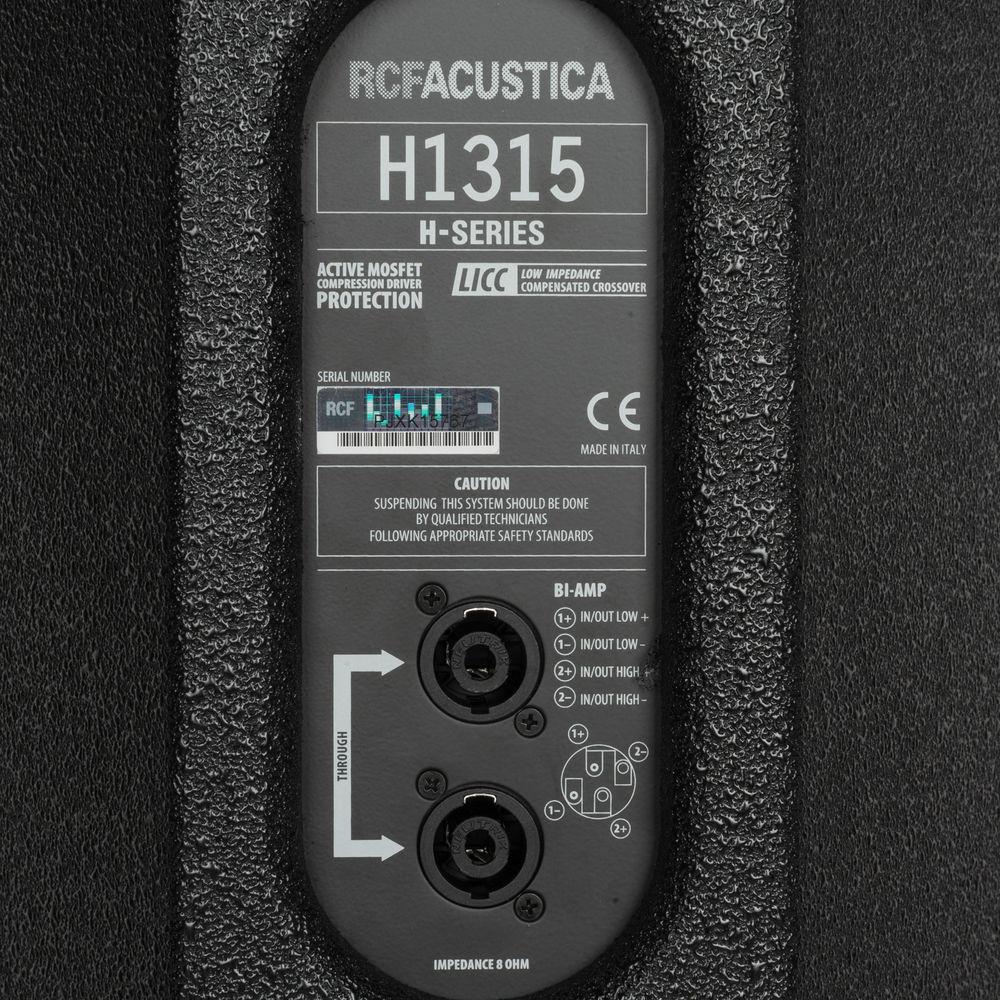

Internal: MF / HF 1300 Hz | | Connector | Amphenol eco-mat IP67 | | | | Low Frequency Driver | Woofer: 15.0" (381 mm) neodymium
Coil: 4.0" (102 mm) | | Nominal Impedance | 8 ohms | | Input Power | 900 W AES | | Sensitivity | 100 dB, 1 W @ 3.3' (1.0 m) | | Mid Frequency Driver | Midrange: 10.0" (254.0 mm)
Voice coil: 3.0" (76.2 mm) | | Nominal Impedance | 8 ohms | | Power Rating | 300 W AES | | Sensitivity | 109 dB, 1 W @ 3.3' (1.0 m) | | High Frequency Driver | Throat: 1.4" (35.5 mm)
Voice Coil: 3.0" (76.2 mm) | | Nominal Impedance | 8 ohms | | Sensitivity | 109 dB, 1 W @ 3.3' (1 m) | | | | Enclosure | Double trapezoidal

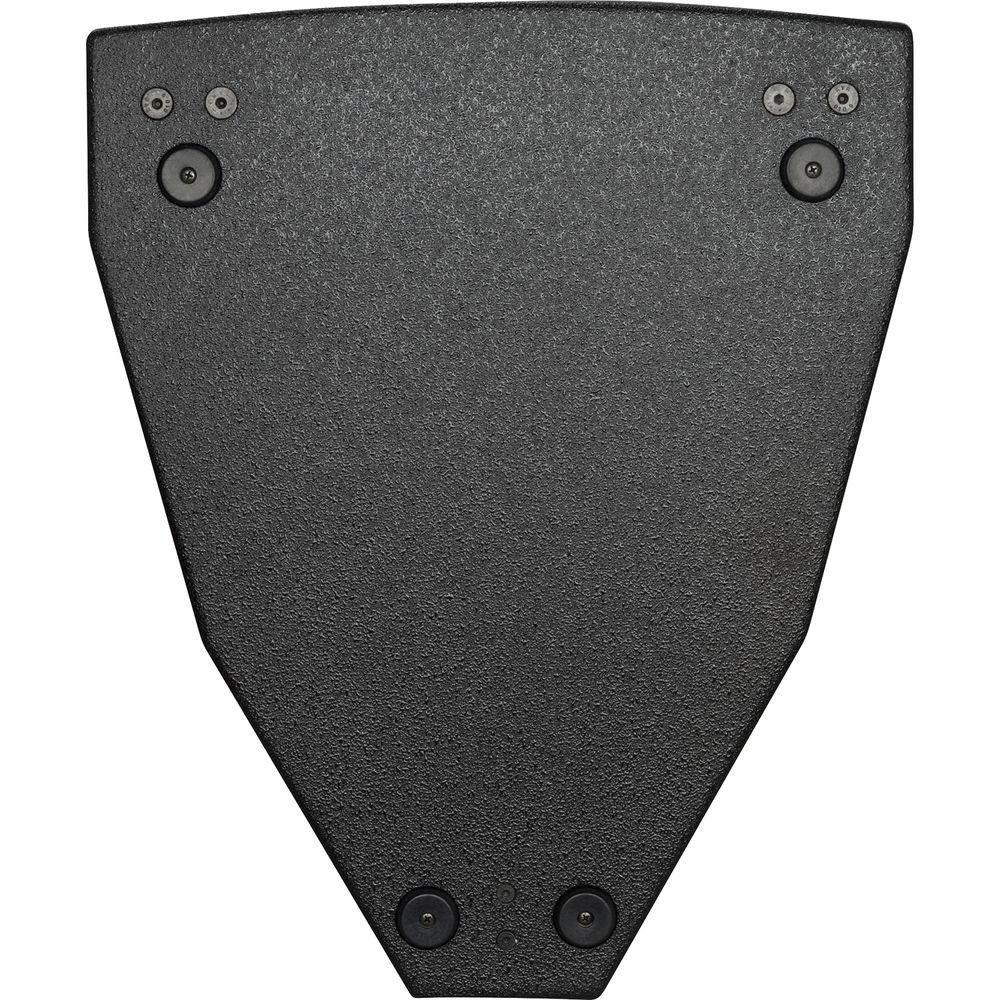

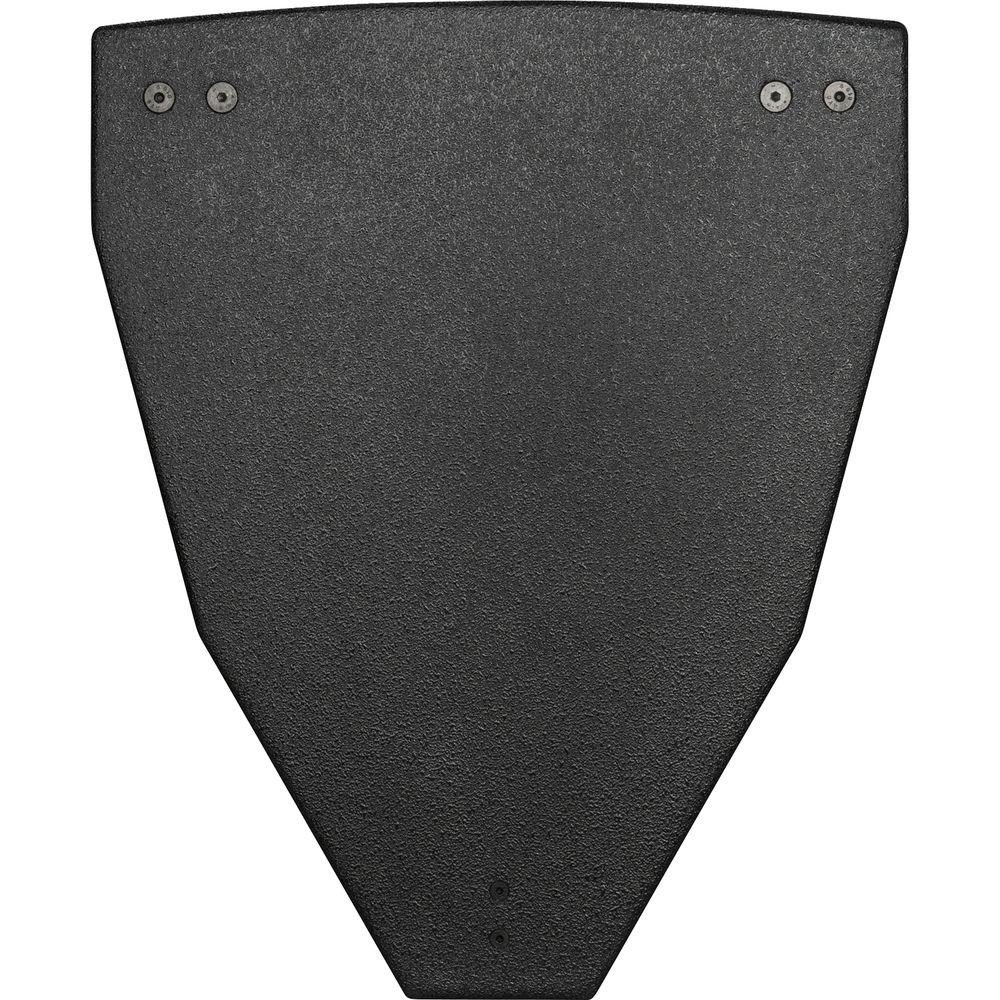

0.6" (15.0 mm) Birch plywood construction | | Rigging Points | 12 x M10 | | Grille | Epoxy powder-coated, weather-resistant open-cell fibres and water-repellent woven-fabric backing | | Dimensions | 35.03 x 20.47 x 24.88" (88.97 x 51.99 x 63.19 cm) | | Weight | 78.26 lb (35.50 kg) |
