User Manual for RCF HD 10-A MK4 Active 2-Way Monitor Click to enlarge the picture
Contents of the user manual for the RCF HD 10-A MK4 Active 2-Way
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF HD 10-A MK4 Active 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

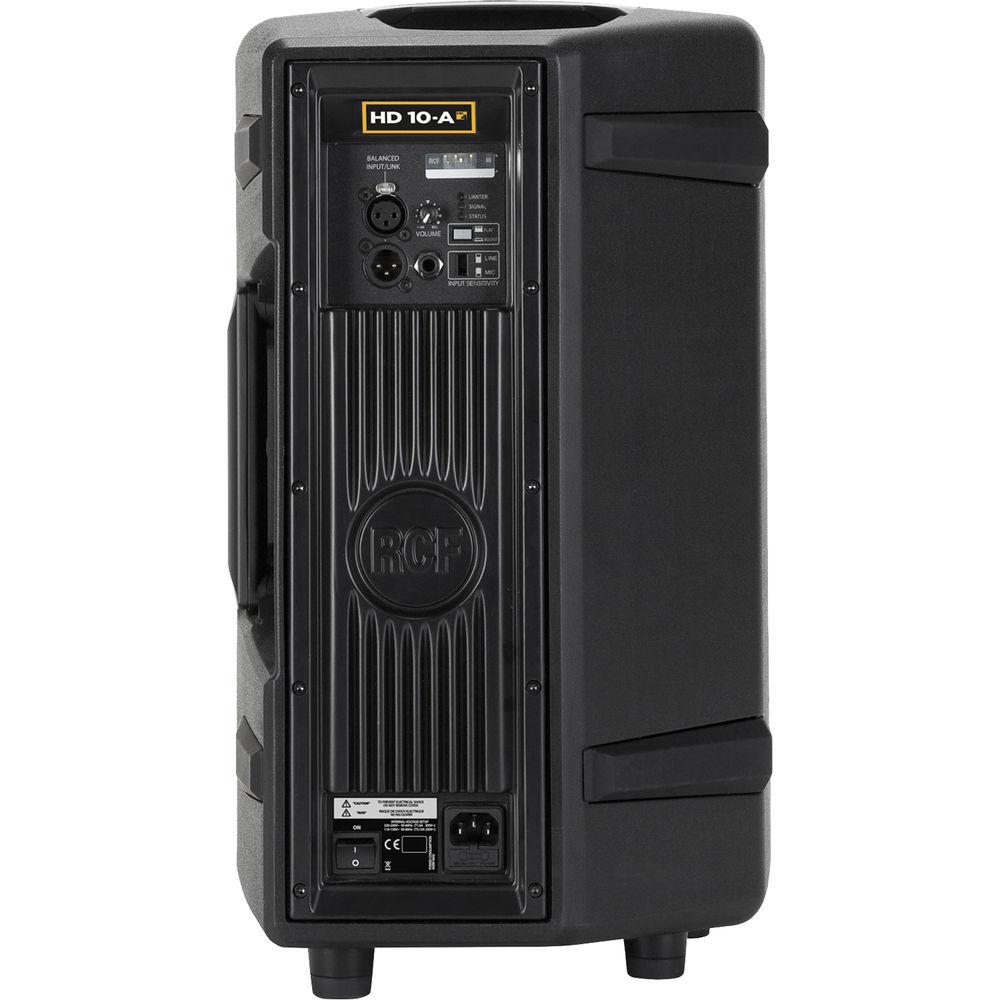

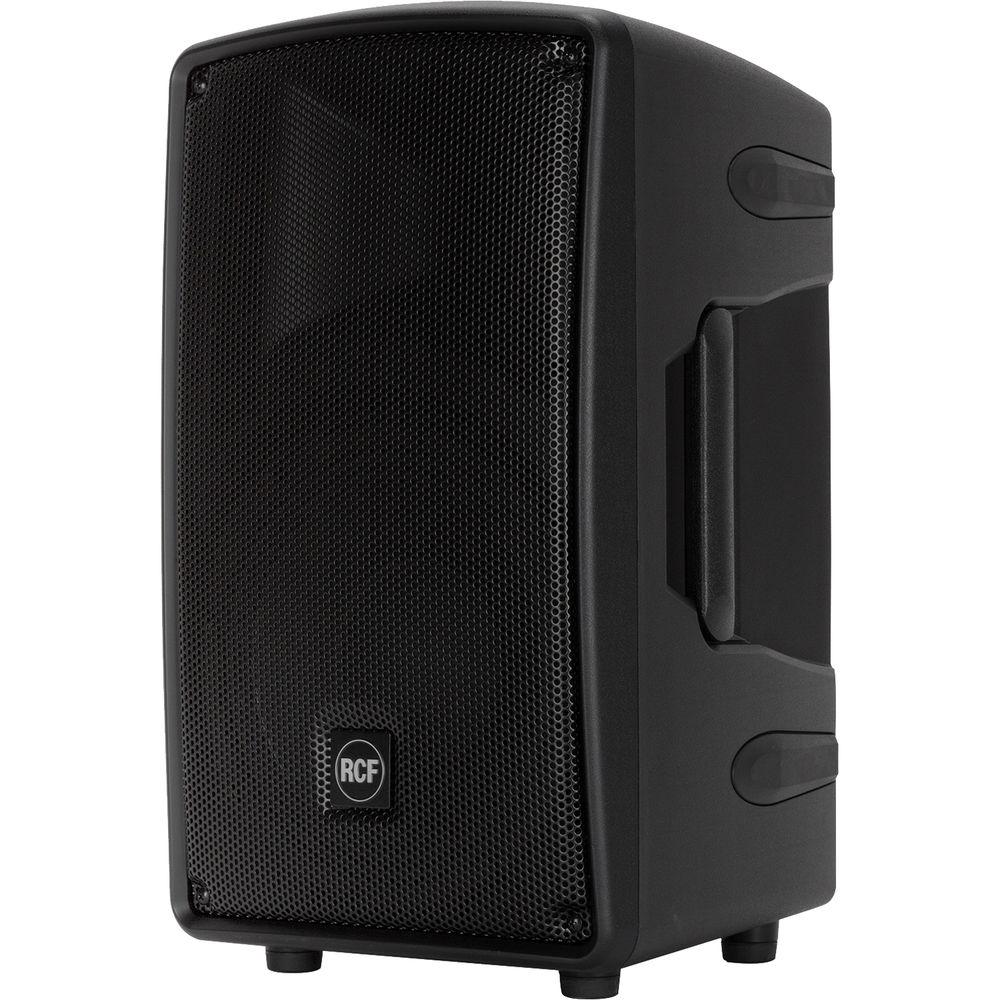

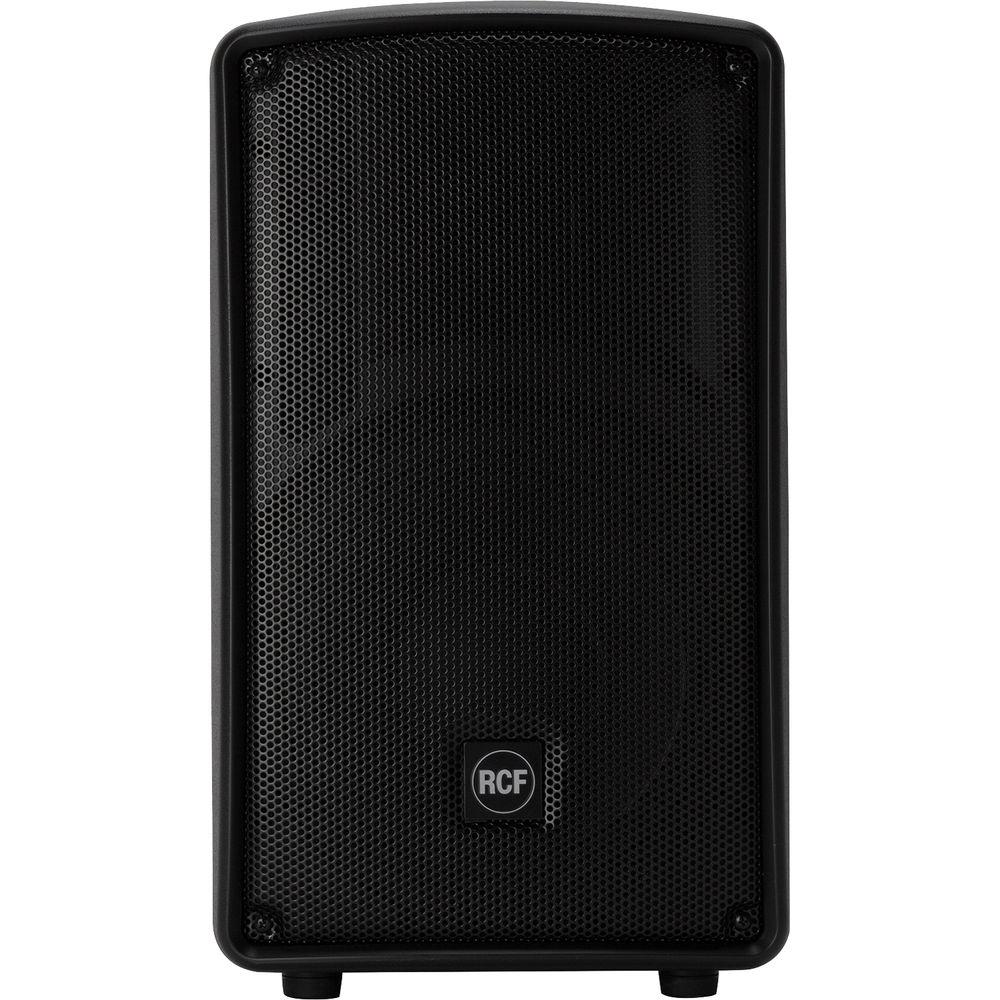

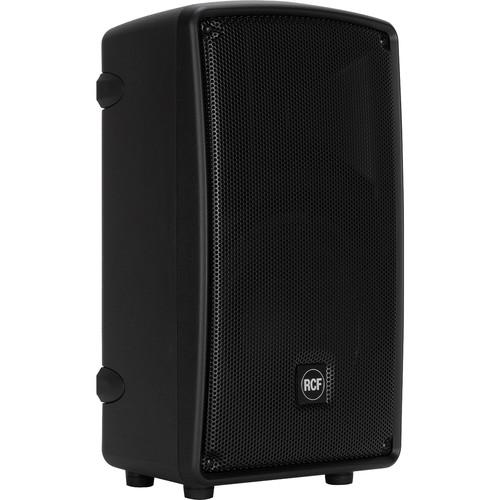

Product description The HD 10-A MK4 Active 2-Way Monitor from RCF is designed for live sound, portable PA, stage monitoring, and club applications. It is capable of up to 800W, 2-way peak performance for a total of 128 dB SPL. The speaker features a 10" woofer and a 1" compression driver, XLR input and output connectors, and an unbalanced 1/4" input jack. Other features include: DSP sound processing and FIRPhase processing. The HD 10-A MK4 is built with a volume, EQ shape, and mic/line controls, and is designed with a 90 x 70° directivity horn for wide dispersion. You can connect your microphone, your device, or your mixer to the HD 10-A speaker and turn up the volume. In addition, thermal, RMS protection is also included to prevent damage to the speaker. - Rental Proof
- Molded on a special polypropylene composite material, and designed to dampen vibrations, even at maximum volume settings. From molding to the final texture, HD 10-A MK4 offers reliability and strength for intensive use on the road. The speaker is equipped with top and side handles with rubber handgrip for greater portability. It can be mounted on a stand or on a subwoofer pole, or positioned on its side to serve as a wedge monitor.
- Digital Amplifiers
- RCF Class-D power amplifiers technology allows high-output performance in a lightweight package. The amplifier features a solid mechanical aluminum structure, which not only stabilize the amplifier during transportation but also assists heat dissipation. All the D-LINE amplifiers presents an SMPS power supply section in order to produce maximum output and minimum transportation weight
In the Box RCF HD 10-A MK4 Active 2-Way Monitor Power Cord Limited 2-Year Warranty, Extended to 3 Years with Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF HD 10-A MK4 Active 2-Way Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF HD 10-A MK4 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 800 W Peak
400 W RMS | | Amplifier Power Rating | HF:
300 W Peak
150 W RMS
LF:
500 W Peak
250 W RMS | | | | HF Driver | 1 x 1" / 25.4 mm Compression Driver | | HF Voice Coil | 1" / 25 mm | | LF Driver | 1 x 10" / 254 mm Woofer | | LF Voice Coil | 2" / 51 mm | | | | Frequency Response | 50 Hz to 20 kHz -3 dB | | Maximum SPL | 128 dB | | Coverage Angle | 90° H x 70° V | | Input Sensitivity | Line Input:
+4 dBu to -2 dBu
Mic Input:
-32 dBu | | Protections | RMS, Thermal | | | | Audio I/O | 1 x XLR Female Balanced
1 x 1/4" TRS Female Balanced/Unbalanced
XLR Male Balanced Output | | | | Crossover | 1.7 kHz | | Dynamic Processing | Soft Limiter | | | | AC Input Power | User Selectable:
115 VAC, 60 Hz (T 6.3 A L 250 V)
230 VAC, 50 Hz (3.15 A L 250 V) | | AC Power Connector | 1 x VDE | | | | Mounting | 2 x M10
3 x M6
1 x Pole Socket | | Handles | 1 x Top
1 x Side | | Cooling | Convection | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 20.7 x 11.9 x 11.9" / 527.0 x 303.0 x 302.5 mm | | Weight | 26 lb / 11.8 kg | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 22.0 x 14.5 x 14.5" |
