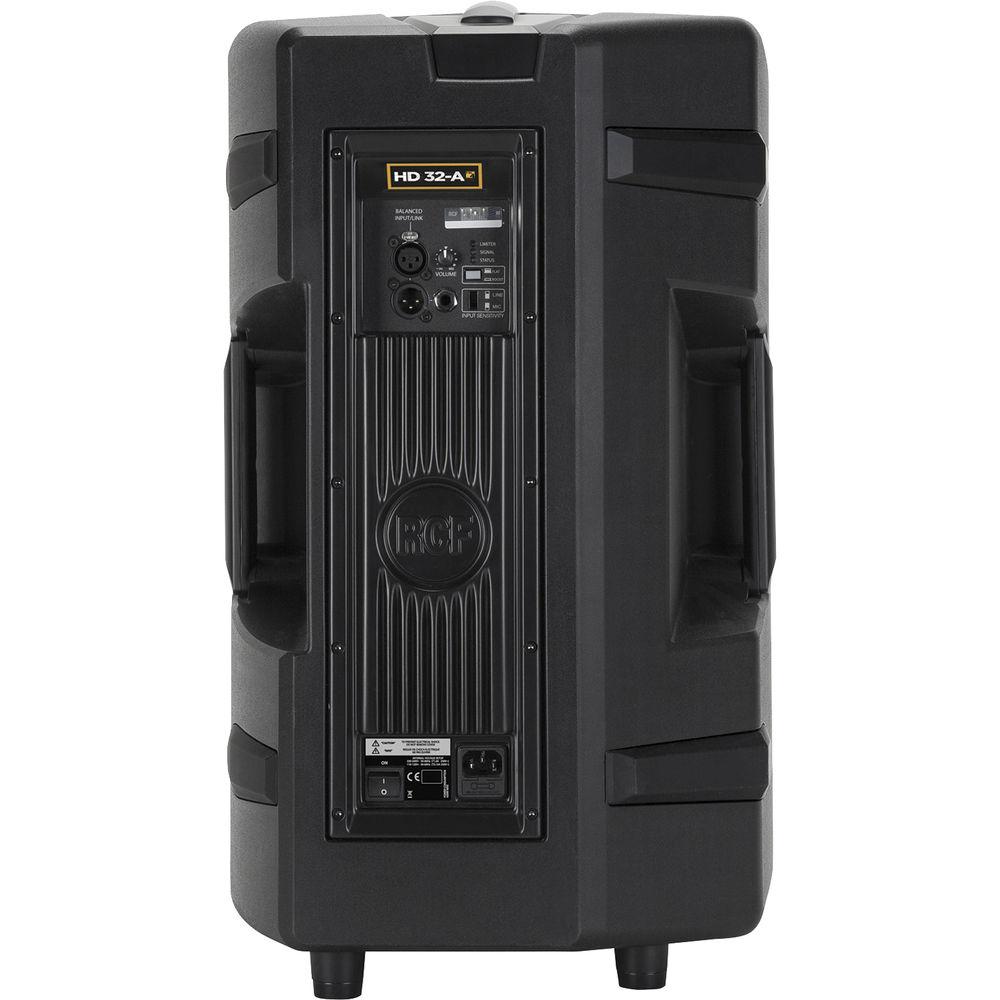

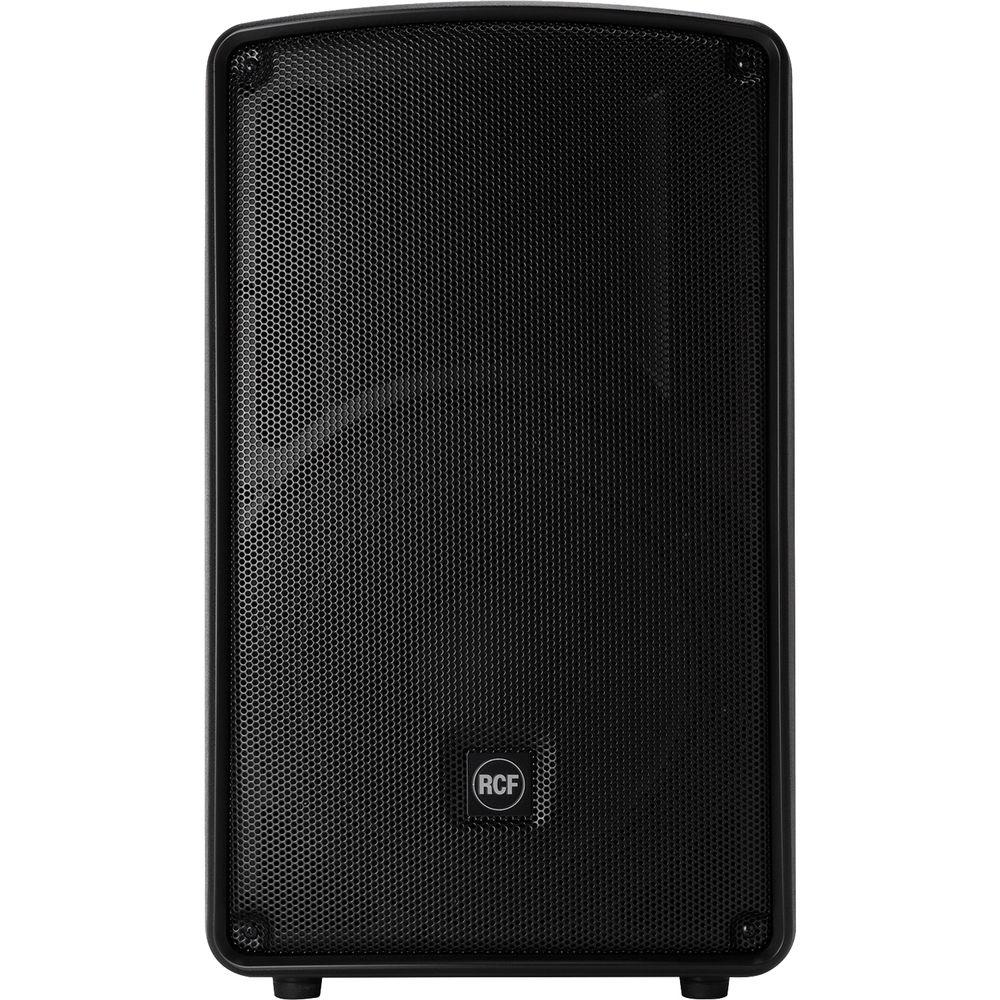

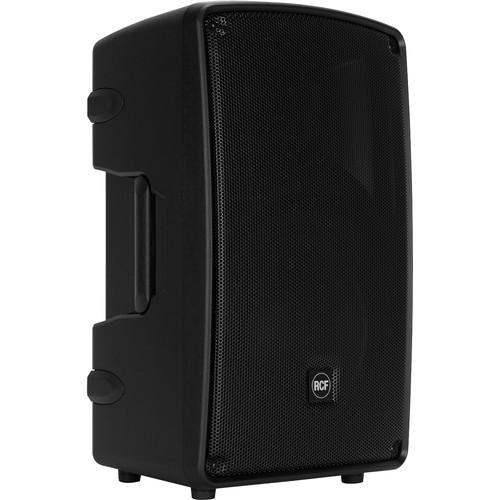

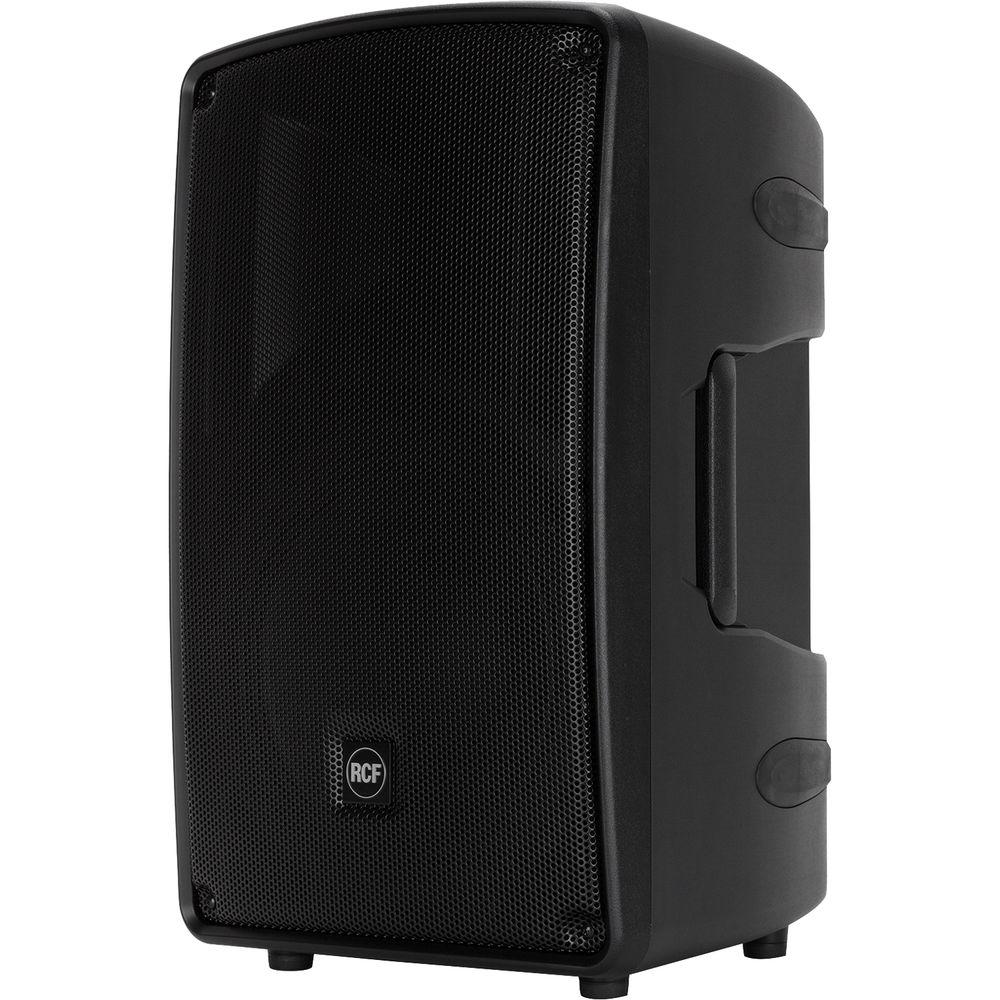

User Manual for RCF HD 32-A MK4 - 12" 2-Way 1400W Active Speaker Click to enlarge the picture
Contents of the user manual for the RCF HD 32-A MK4 - 12"
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF HD 32-A MK4 - 12" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description Part of the D Line Series MK4 line of speakers, the RCF HD 32-A MK4 is a lightweight (at 41.44 lb) and portable active speaker, which delivers full-range sound with accurate high frequencies, controlled deep bass, and stable SPL, even at high levels. With a design derived from the touring industry, it is well suited to withstand the rigors of live sound reinforcement or rentals applications, in clubs, corporate spaces, houses of worship, mobile DJ setups, and more.The HD 32-A MK4 is equipped with a 1400W peak, Class-D digital amplifier, which drives 1000W into the 12" woofer and 400W into the 1.4", titanium compression driver. The speaker delivers a frequency response of 45 Hz to 20 kHz with a peak SPL output of 131 dB, and wide, 90°H x 60°V coverage angles. The HF driver features a 3.0" voice coil, perfect for a crossover point at only 700 Hz, which allows for almost all the vocal range to be reproduced by the driver for better coverage, dispersion control, and superior efficiency. The integrated DSP manages the loudspeaker processing, including crossover and EQ, soft limiter, and dynamic bass boost. Phase and amplitude are corrected using proprietary FiRPHASE technology conceived for delivering a natural and transparent sound, with a balanced stereo image.Easy to operate, the HD 32-A MK4 comes with XLR and 1/4" balanced/unbalanced inputs for connecting a microphone, mixer, or audio device, and with a volume knob to set the level. Furthermore, the switchable Flat/Boost mode enables you to emphasize the bass response when playing at low volume, or keep it flat for all other applications.The cabinet is molded with rugged polypropylene composite material (PP), and designed to dampen vibrations, even at maximum volume settings. It features a top, and side handles with rubber handgrips, which allow you to firmly hold the speaker, and move it easily. The HD 32-A MK4 can be mounted on a stand or a subwoofer pole, or positioned on its side to serve as a wedge monitor. - Key Features
-
- D Line Series HD 32-A MK4 portable active speaker for live sound reinforcement, stage monitoring, front-fill/side-fill, rental applications
- Elegant and compact cabinet with rugged construction provides a reliable performance on the road
- Use in clubs, music venues, corporate spaces, or for mobile DJ setups
- 12" woofer – delivers a fast and accurate reproduction of the mid-bass frequency range, and controlled deep bass
- 1.4" titanium compression driver – offers open and natural midrange frequencies, precise high-frequency reproduction, and sound projection. It also features a 3.0" voice coil, and a neodymium magnet; perfect for a crossover point at only 700 Hz – allows for better coverage, dispersion control, and superior efficiency
- 90°H x 60°V, wide-dispersion horn with constant directivity
- Class-D amplifier – 1400W, 2-way peak power
- SMPS power supply produces high output and low transportation weight
- Connect microphone, mixer, or audio device
- Simple to operate plug'n'go design with double input (XLR or 1/4" jack) and one volume knob
- 131 dB maximum SPL – SPL power remains stable at high levels
- 45 Hz to 20 kHz frequency response
- Reflex port sized to optimize efficiency
- Integrated DSP manages full loudspeaker processing, FiRPHASE filters, crossover and EQ, soft limiter, and dynamic bass boost
- FiRPHASE proprietary and advanced FIR filtering technology delivers transparent sound, and balanced stereo image
- Solid mechanical aluminum structure stabilizes the amplifier during transportation and facilitates fan-less heat dissipation
- Cabinet is molded with polypropylene composite material (PP) and designed to dampen vibrations, even at maximum volume settings
- Internal reinforcement prevents any deformation of the cabinet
- Rear profile design of the cabinet allows speaker to be used as a monitor wedge
- Ergonomically designed top and side handles with rubber handgrips – allow to firmly hold the cabinet, and move it easily
- Lightweight (at 41.44 lb) design for portability
- Steel pole socket for mounting on a stand or on a subwoofer pole
- Two M10 and three M6 fittings for flown applications
- 115-230V operation, user switchable
In the Box RCF HD 32-A MK4 - 12" 2-Way 1400W Active Speaker Power Cord Limited 2-Year Warranty, Extended to 3 Years with Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF HD 32-A MK4 - 12" 2-Way 1400W Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF HD 32-A MK4 - Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1400 W Peak
700 W RMS | | Amplifier Power Rating | HF:
400 W Peak
200 W RMS
LF:
1000 W Peak
500 W RMS | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.4" / 35.6 mm Titanium Dome | | HF Voice Coil | 3" / 76.2 mm | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 2.5" / 64 mm | | Magnet | HF:
Neodymium | | | | Frequency Response | 45 Hz to 20 kHz -3 dB | | Maximum SPL | 131 dB | | Coverage Angle | 90° H x 60° V | | Input Sensitivity | Line Input:
+4 dBu to -2 dBu
Mic Input:
-32 dBu | | Protections | RMS, Thermal | | | | Audio I/O | Combo XLR / 1/4" Balanced/Unbalanced Input
XLR Male Balanced Output | | | | Crossover | 700 Hz | | Dynamic Processing | Soft Limiter | | | | AC Input Power | User Selectable:
115 VAC, 60 Hz (T 6.3 A L 250 V)
230 VAC, 50 Hz (3.15 A L 250 V) | | AC Power Connector | 1 x powerCON | | | | Mounting | 1 x M10 (Top)
1 x M10 (Bottom)
3 x M6 (Bottom) | | Handles | 1 x Top
2 x Side | | Cooling | Convection | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 25.5 x 15.0 x 15.0" / 647.0 x 380.0 x 380.0 mm | | Weight | 41.4 lb / 18.8 kg | | | | Package Weight | 47.0 lb | | Box Dimensions (LxWxH) | 27.0 x 17.0 x 17.0" |
