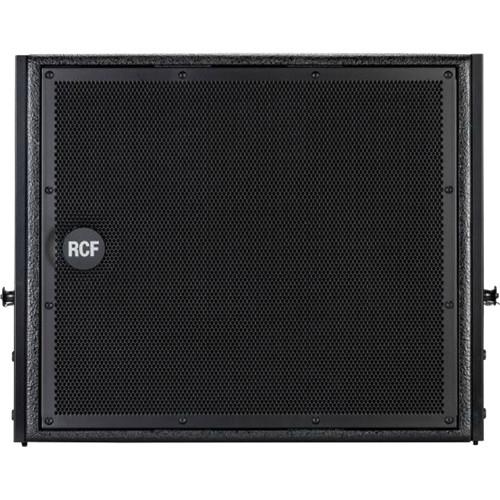

User Manual for RCF HDL 15-AS Active Flyable High Power Subwoofer Click to enlarge the picture
Contents of the user manual for the RCF HDL 15-AS Active Flyable High
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF HDL 15-AS Active Flyable High contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

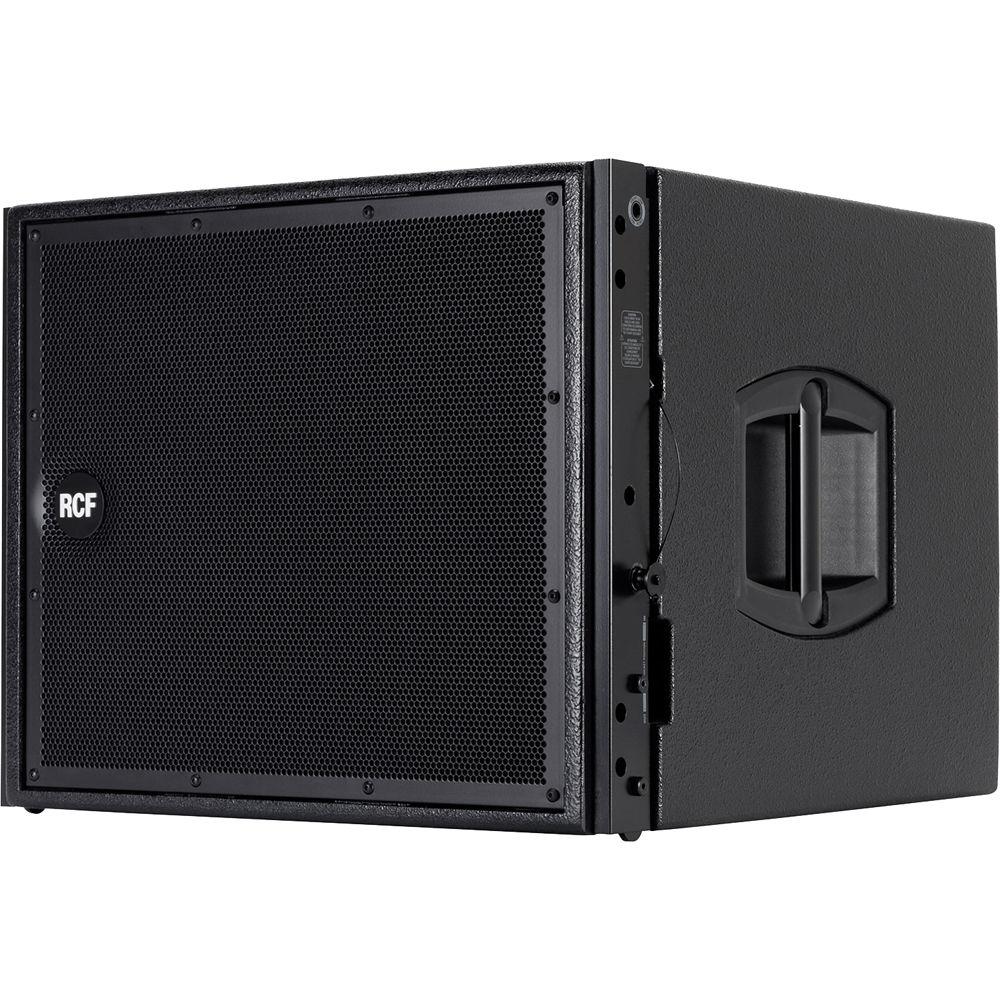

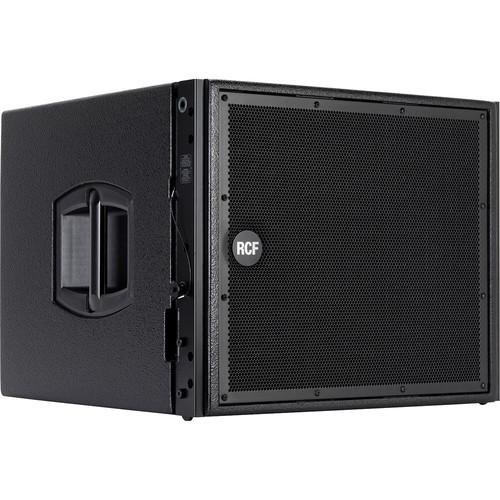

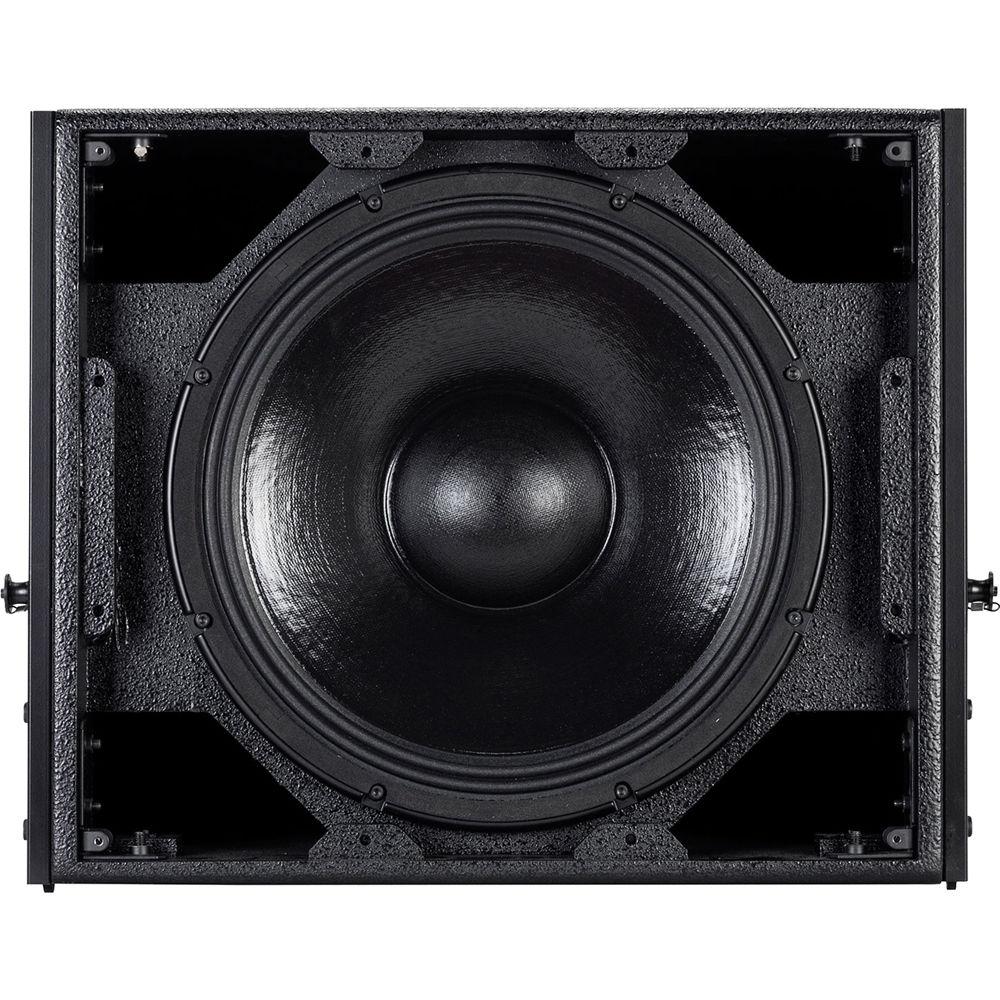

Product description The HDL 15-AS Active Flyable High Power Subwoofer from RCF is a compact, flyable high power subwoofer, designed to integrate into an HDL 10-A flown array. The bass reflex design guarantees a deep, linear power response while the 3.5" voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 10-A array module. - 15" woofer and 3.5" voice coil
- 2000W Peak power - 1000W RMS
- DSP controlled input section with selectable presets

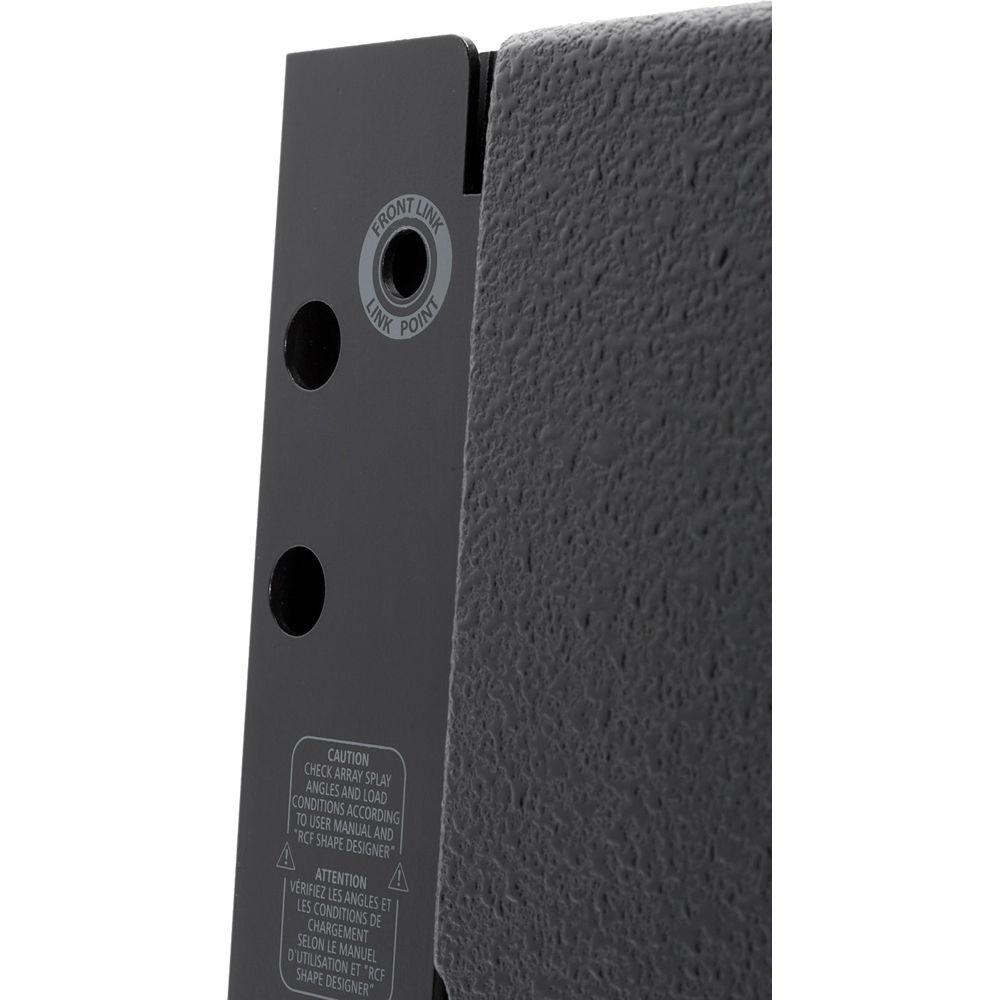

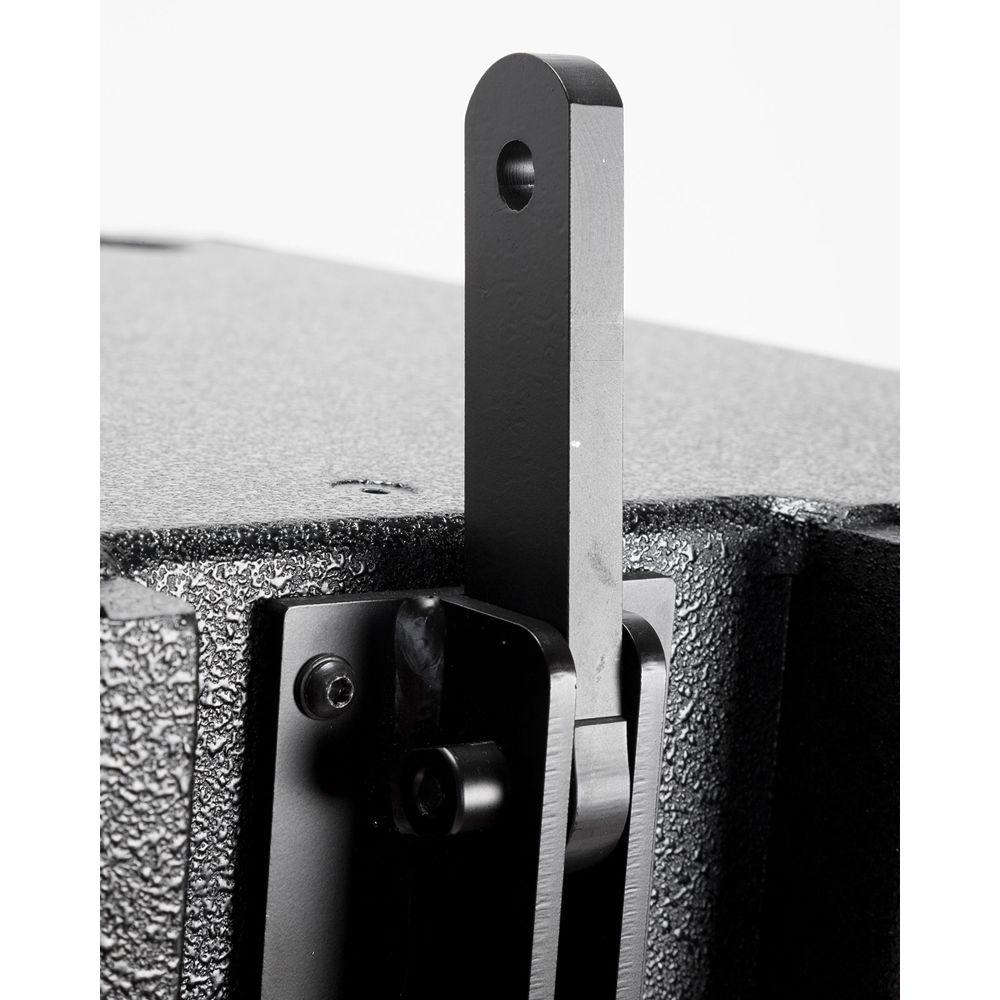

- Tour-grade safe and solid variable mechanics, compatible with HDL 10-A flown array
- Designed to complement the HDL 10-A speaker system
- Baltic birch tour-grade cabinet, with two side handles and wheels for easy transportation

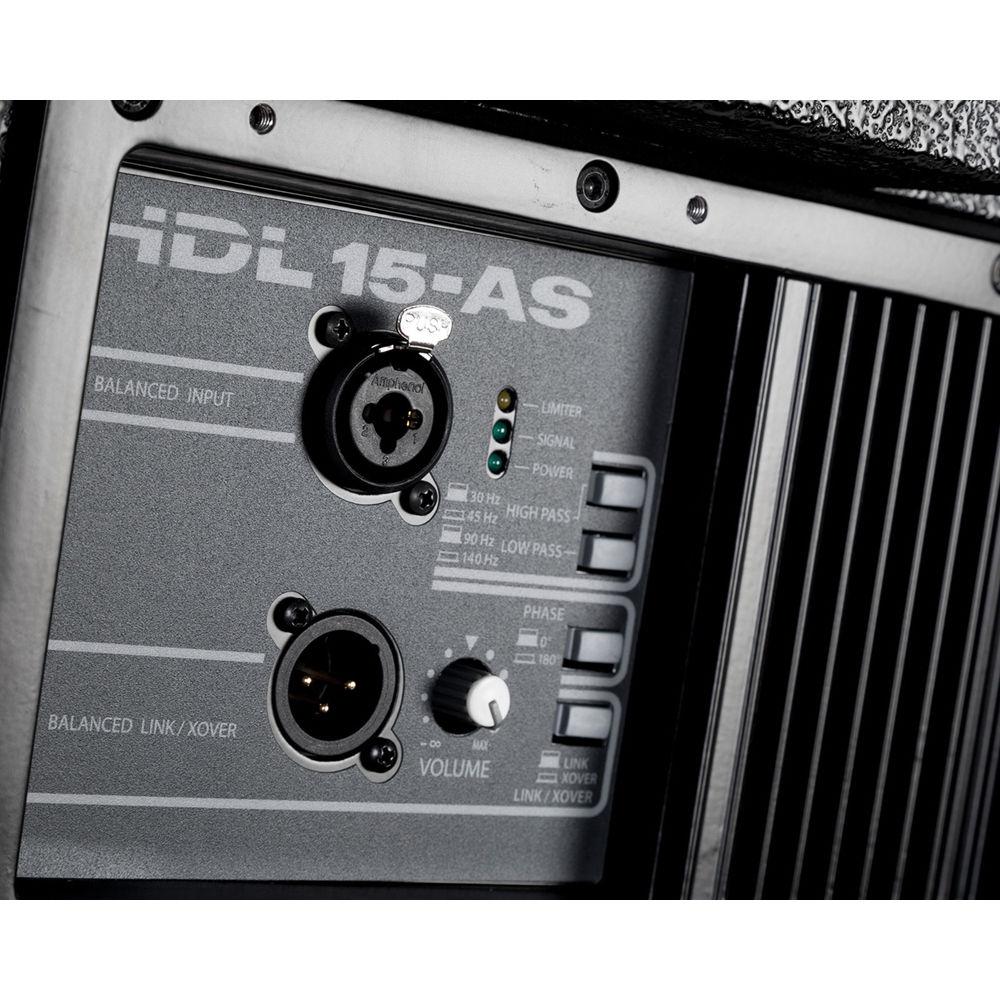

- Xover selector, phase switch and high pass outputs
- Electronic equalization, soft limiter and protection
In the Box RCF HDL 15-AS Active Flyable High Power Subwoofer AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF HDL 15-AS Active Flyable High Power Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF HDL15-AS Specs | Frequency Response | 40 - 140 Hz @ -3 dB | | Maximum Sound Pressure Level (SPL) | 133 dB | | Subwoofer Drivers | Woofer: 15", neodymium

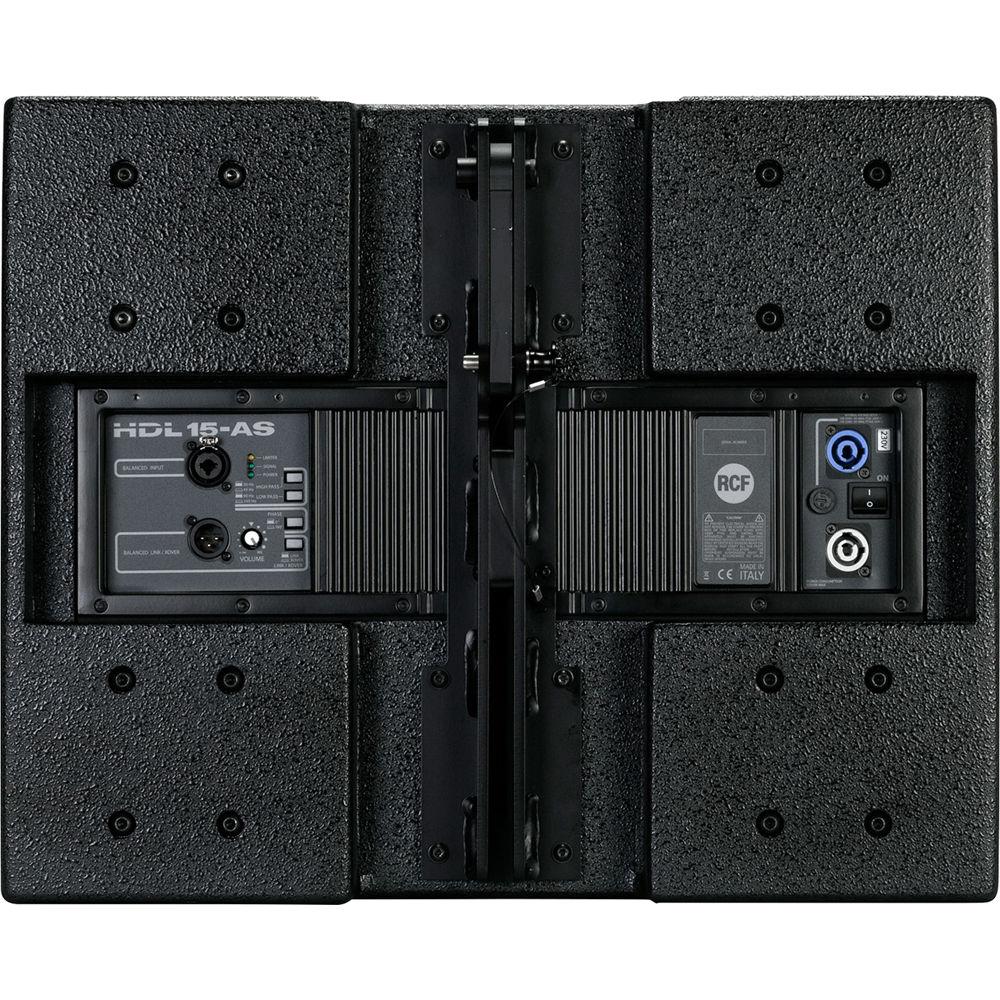

Voice Coil: 3.5" | | Connectors | XLR, input/output | | Input Sensitivity | -2 dBu / +4 dBu | | Total Power | 2000 W Peak, 1000 W RMS | | Protections | Thermal, RMS | | Limiter | Soft limiter | | Controls | Volume
EQ shape
Link/Xover switch
Power switch
Phase switch | | Indicator LEDs | LED green, power
LED green, signal
LED orange/red, limiter | | Material | Baltic birch | | Hardware | Rigging flyware

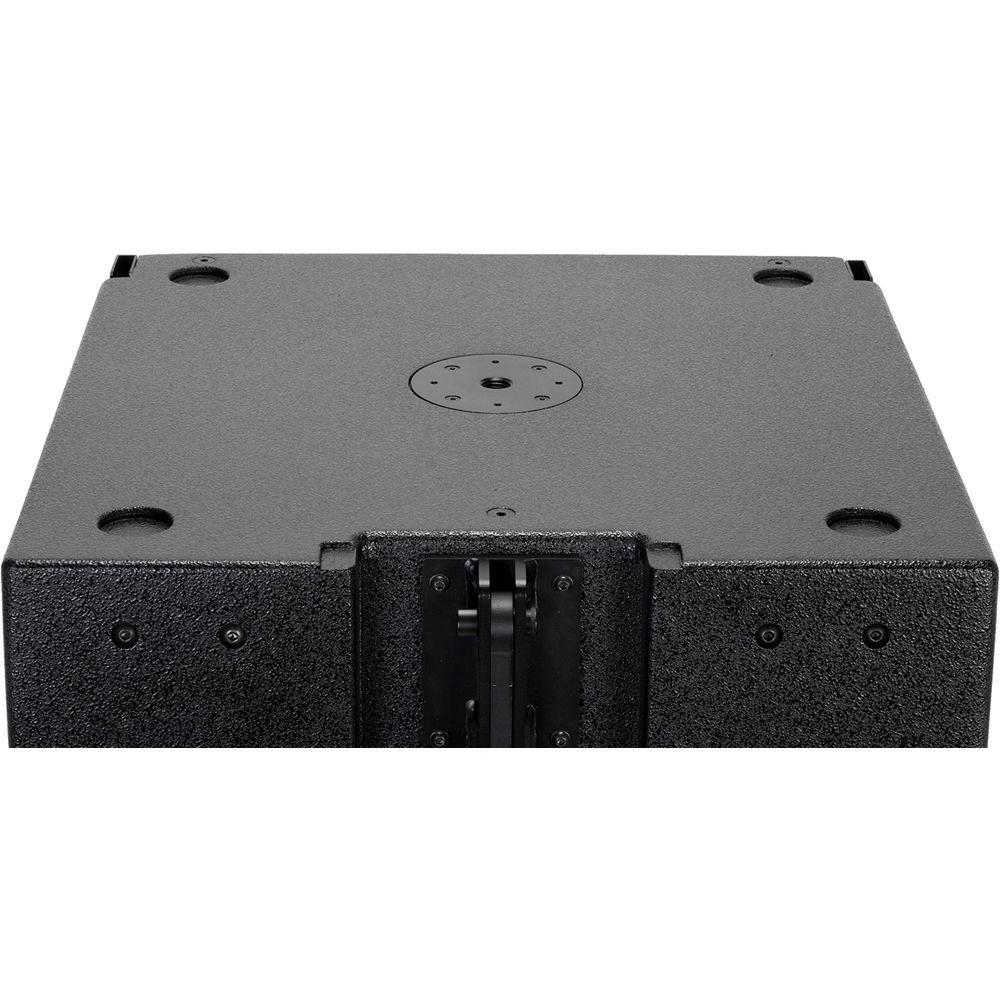

M20 insert | | Handles | 2 | | Cooling | Convection / forced | | Power Supply | 1000 W switching | | Connection | VDE connector IN | | Dimensions | 18.0 x 21.9 x 22.4" (45.8 x 55.5 x 56.9 cm) | | Weight | 86 lb (39.0 kg) |
