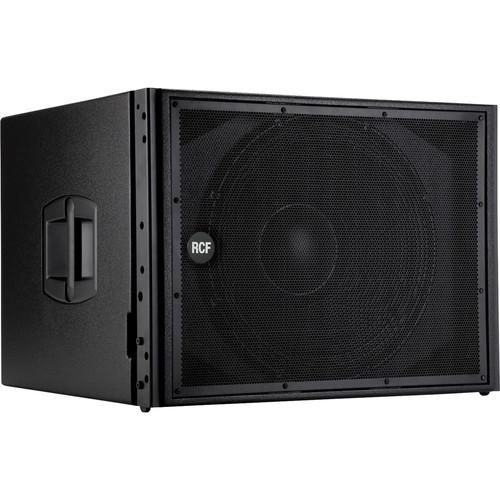

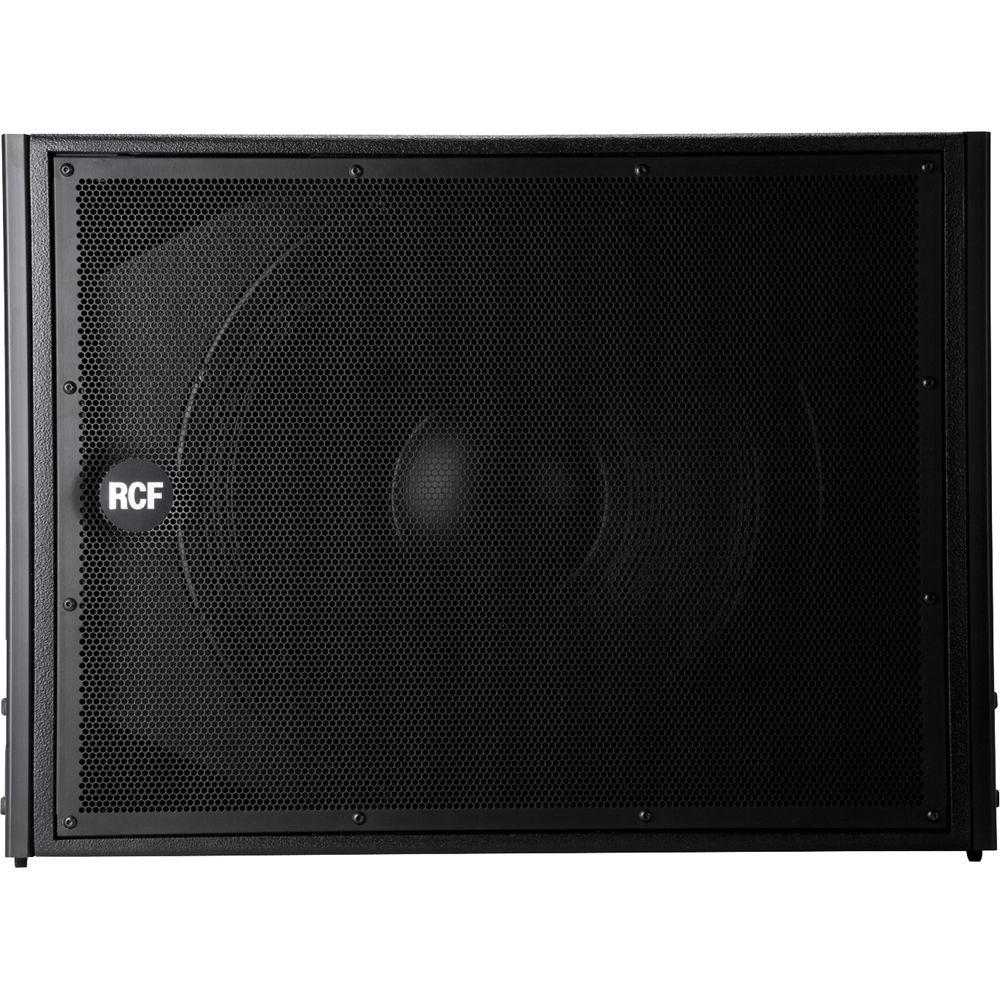

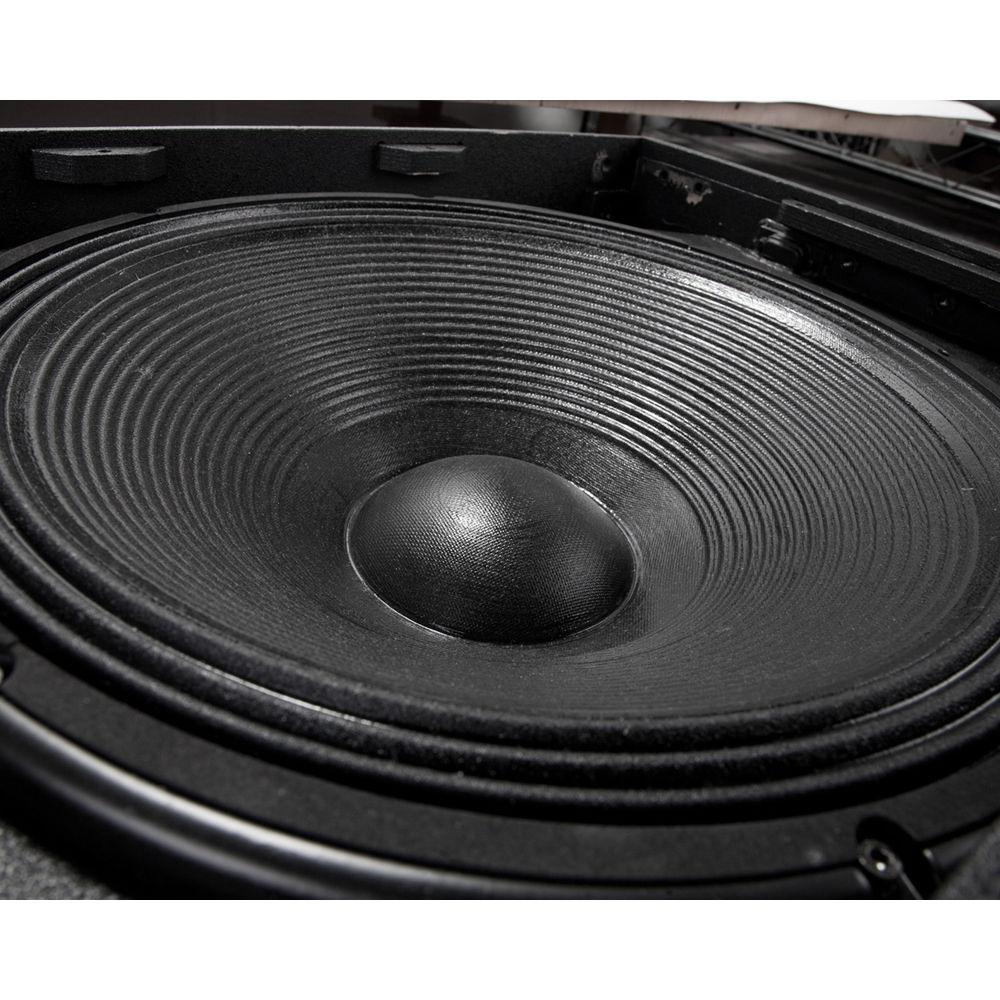

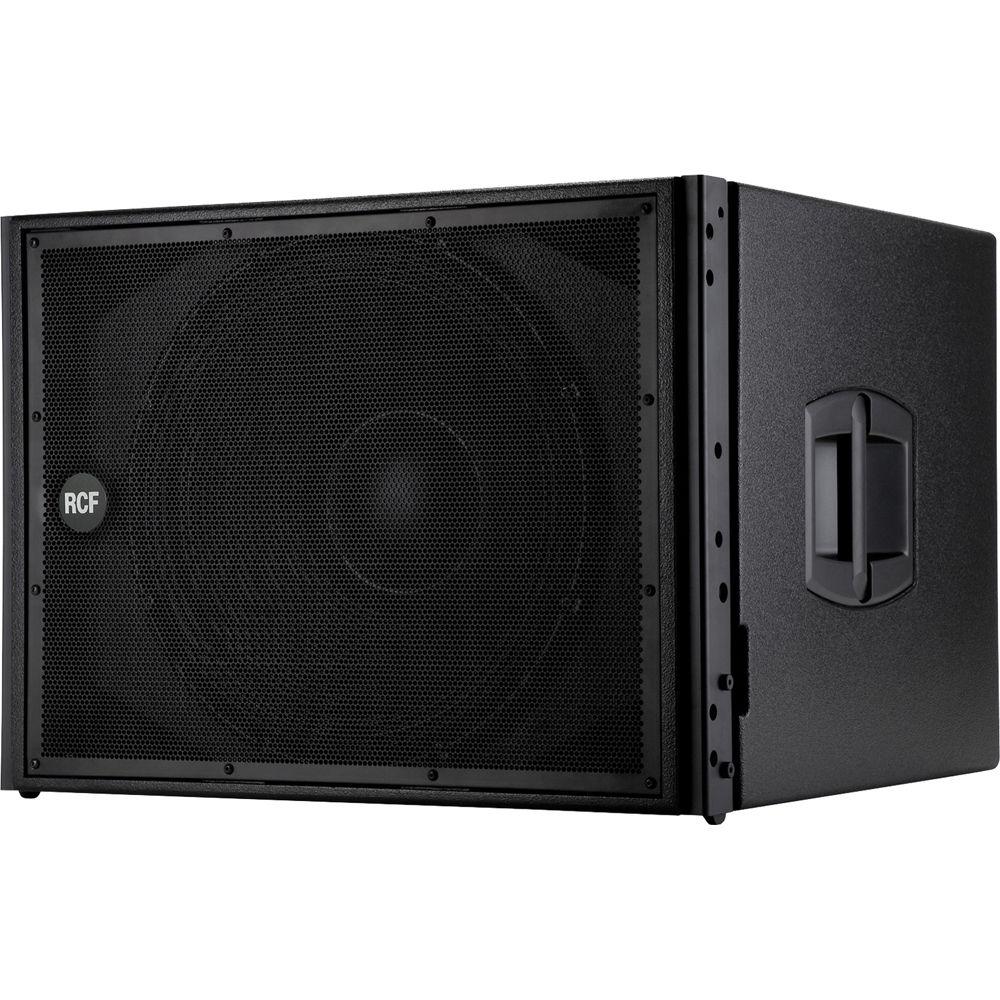

Product description The HDL 18-AS Active Flyable High Power Subwoofer from RCF is a compact, flyable high power subwoofer, designed to integrate into an HDL 20-A flown array. The bass reflex design guarantees a deep, linear power response while the 4" voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 20-A array module. - 18" woofer and 4" voice coil
- 2000W Peak power - 1000W RMS
- DSP controlled input section with selectable presets

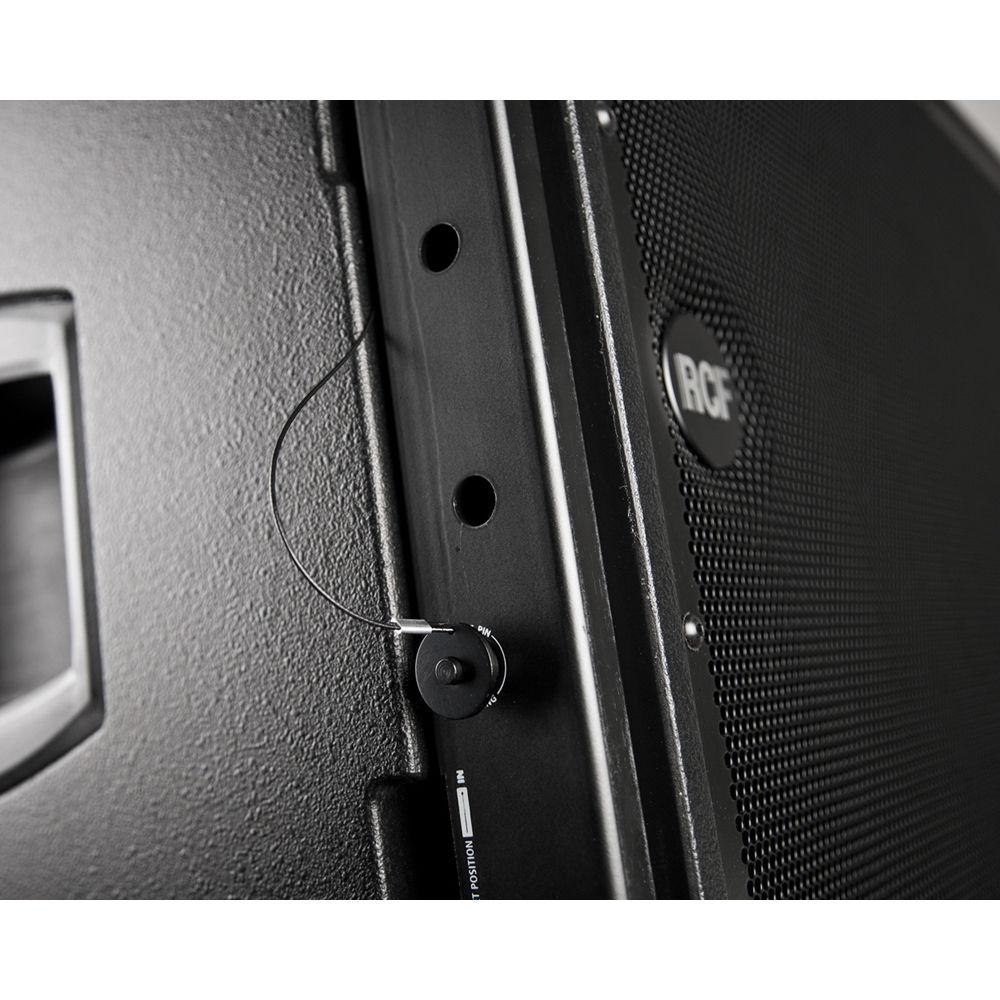

- Tour-grade safe and solid variable mechanics, compatible with HDL 20-A flown array
- Designed to complement the HDL 20-A speaker system
- Baltic birch tour-grade cabinet, with two side handles and wheels for easy transportation

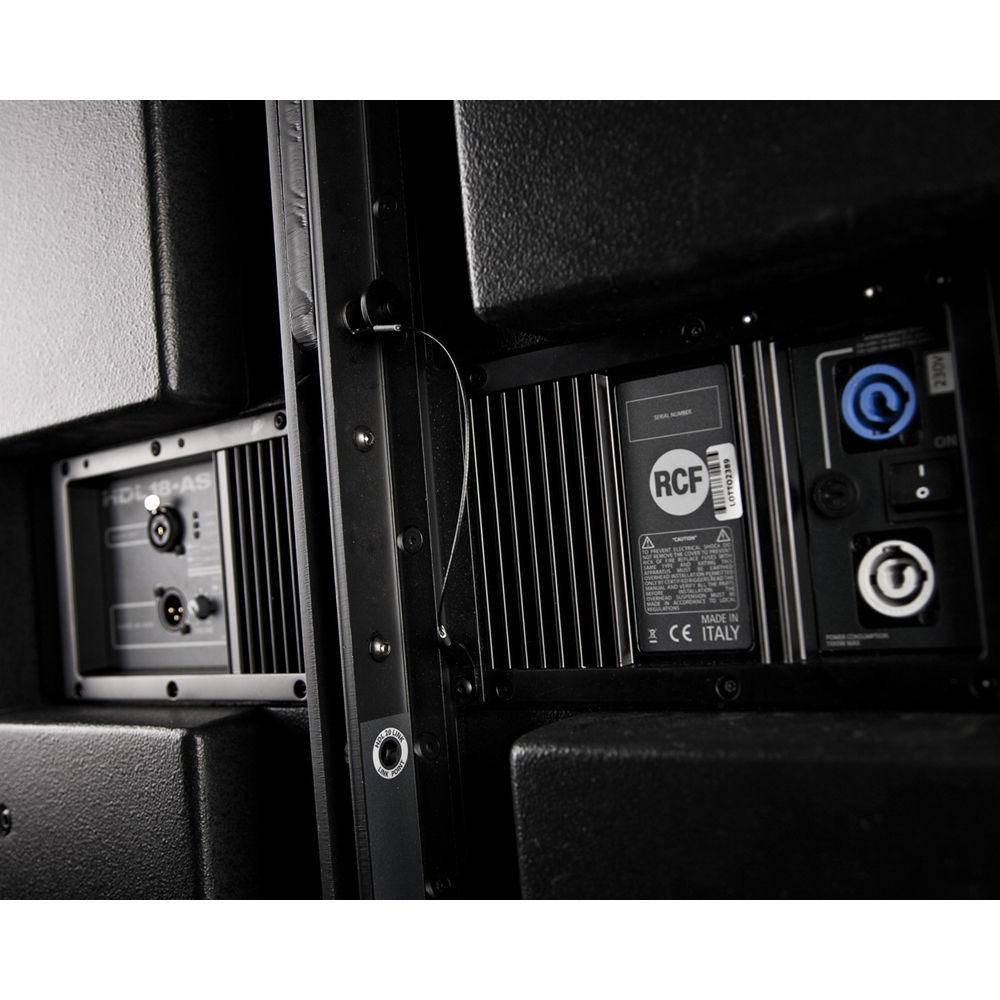

- Xover selector, phase switch and high pass outputs
- Electronic equalization, soft limiter and protection
In the Box RCF HDL 18-AS Active Flyable High Power Subwoofer AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF HDL 18-AS Active Flyable High Power Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF HDL18-AS Specs | Frequency Response | 30 - 140 Hz @ -3 dB | | Maximum Sound Pressure Level (SPL) | 135 dB | | Subwoofer Drivers | Woofer: 18", neodymium
Voice Coil: 4" | | Connectors | XLR, input/output | | Input Sensitivity | -2 dBu / +4 dBu | | Total Power | 2000 W Peak, 1000 W RMS | | Protections | Thermal, RMS | | Limiter | Soft limiter | | Controls | Volume
EQ shape
Link/Xover switch
Power switch
Phase switch | | Indicator LEDs | LED green, power
LED green, signal
LED orange/red, limiter | | Material | Baltic birch | | Hardware | Rigging flyware
M20 insert | | Handles | 2 | | Cooling | Convection / forced | | Power Supply | 1000 W switching | | Connection | VDE connector IN | | Dimensions | 20.1 x 27.6 x 24.4" (51.2 x 70.0 x 62.0 cm) | | Weight | 107 lb (48.4 kg) |
