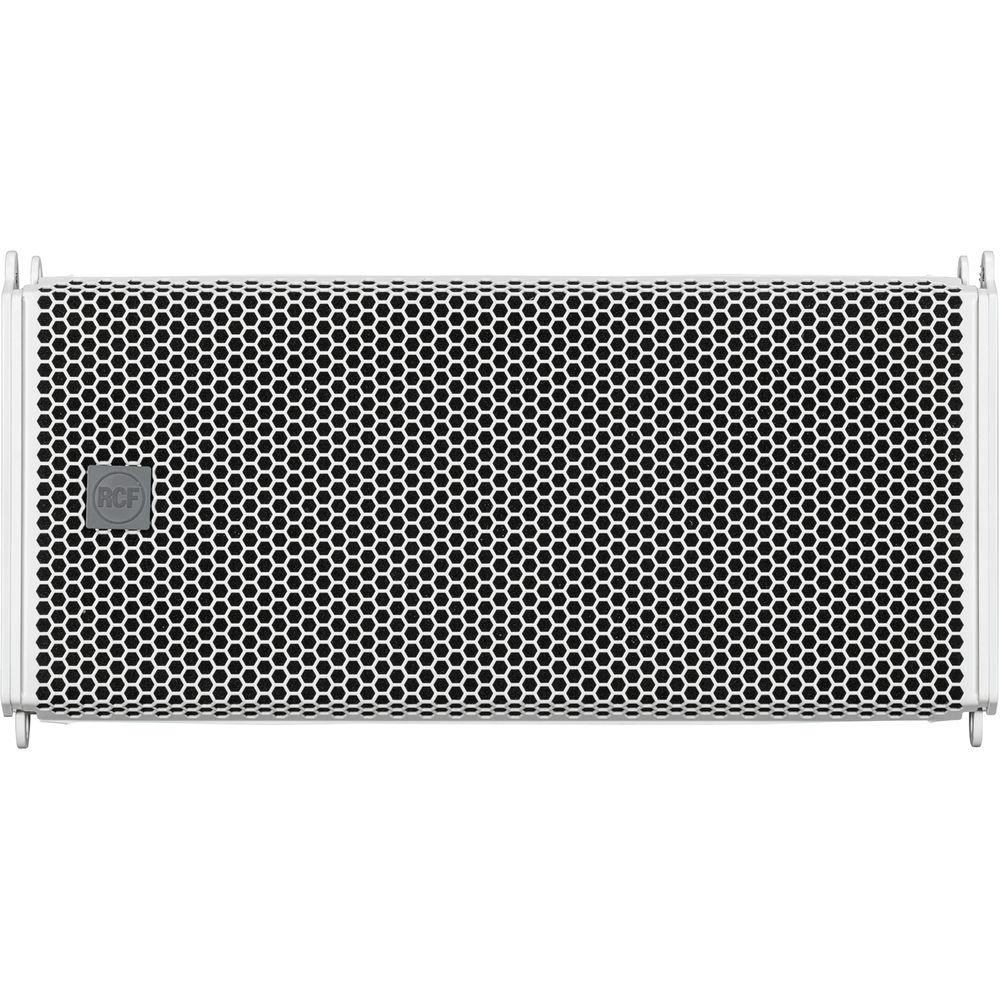

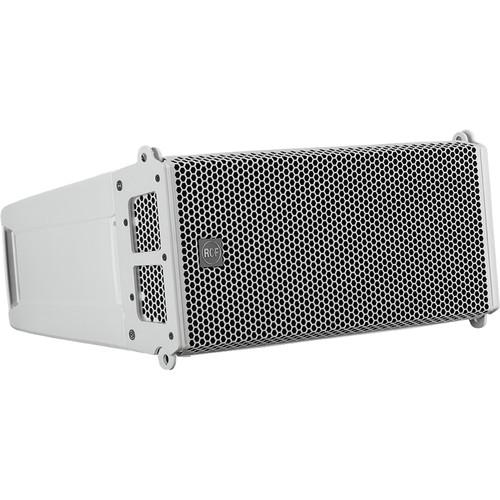

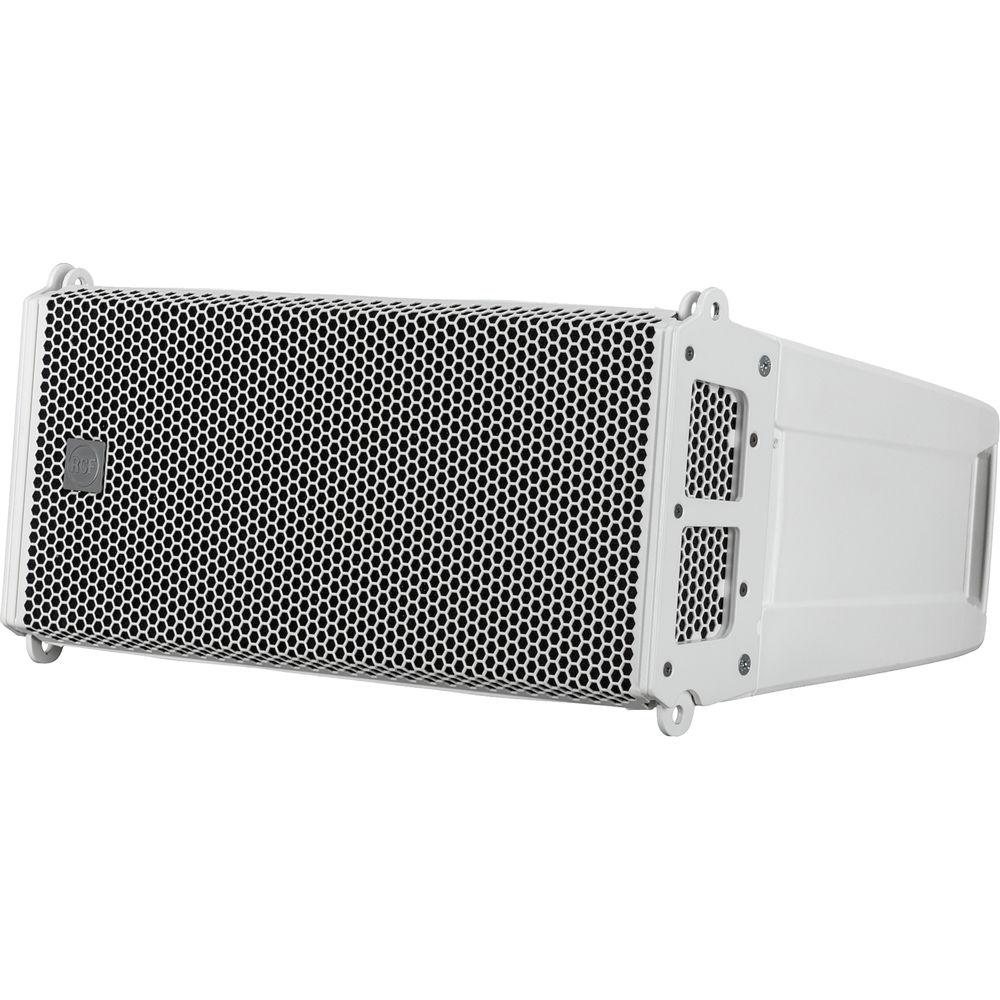

User Manual for RCF HDL 6-A Active Line Array Module Click to enlarge the picture
Contents of the user manual for the RCF HDL 6-A Active Line Array
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF HDL 6-A Active Line Array contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The white HDL 6-A Active Line Array Module from RCF is a 2-way active line array module designed for live sound reinforcement and installed sound applications. Powered by a 1400W 2-channel class-D amplifier, it features two 6" neodymium woofers for a solid bass reproduction and a 1.7" voice coil compression driver mounted on a precise 100 x 10° waveguide. The powerful DSP processes the sound including crossover, phase correction, limiting, and protection. The system accept female XLR input connectors and line-level signals from a mixing console or other signal source. The output XLR male connector provides a loop-trough for speaker's daisy chaining. The volume knob controls the volume of the power amplifier. The control ranges from maximum attenuation to the maximum level (maximum output). - Equipped with two aluminum rear handles for portability
- Integrated mechanics are both fast and reconfigurable, allowing the system engineer to create J-shaped or spiral arrays
- Wooden reinforced composite polypropylene enclosure
- Integrated processing and cabling reduction
- Digital amplifier with switch mode power supply and DSP controlled input section with selectable presets
- Powered by a 1400W peak power digital amplifier, split 400W for the HF, and 1000W for the LF

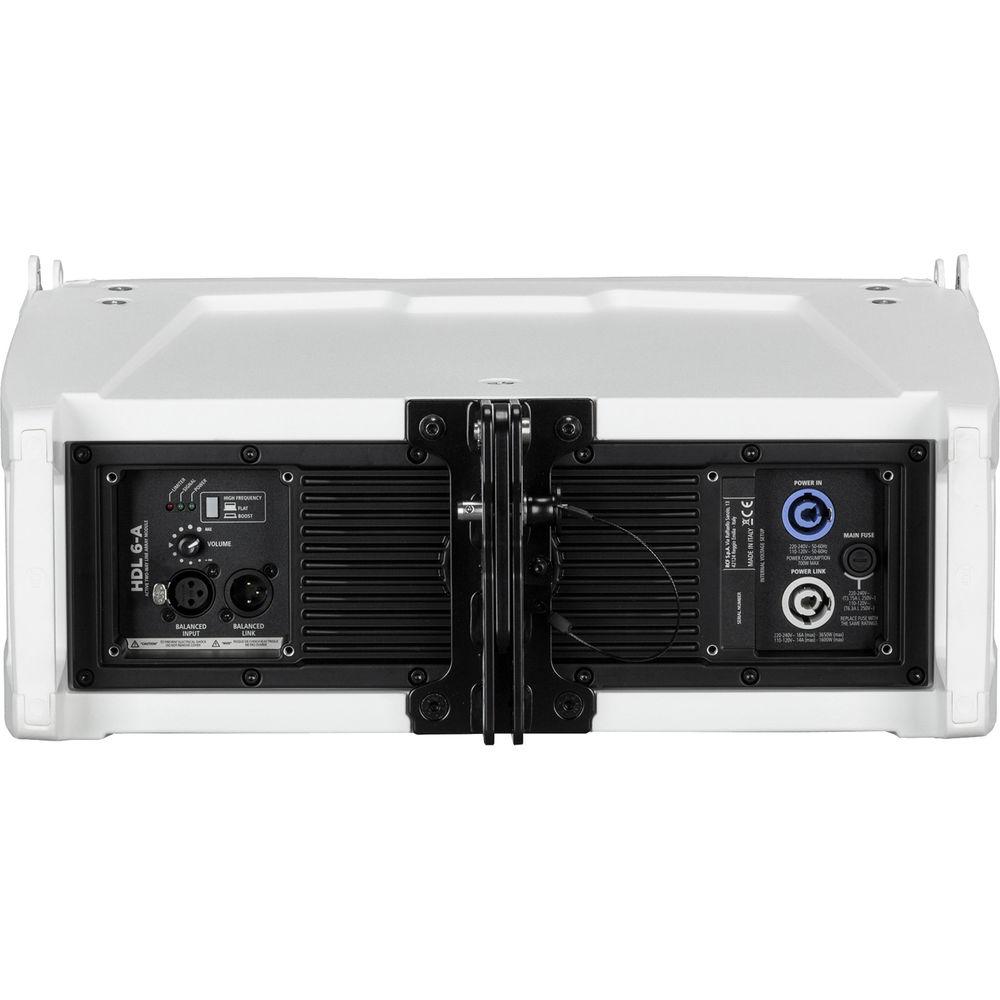

- HF projection is adjusted by the button on the rear of the cabinets
- 2.0" inside-outside voice coil
- Water-resistant fiber doped cone
- Polycotton M-roll surround
- High-power magnetic structure
- Inside/outside coil doubles the dissipation surface
- Adhesion area to the former is doubled
- ND 340 high-power compression driver
- 1.7" voice coil with a crossover point of 900 Hz
- Coverage and dispersion control
- Linear frequency response and maximum SPL output
Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF HDL 6-A Active Line Array Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF HDL6-A W Specs | | | Frequency Response (-3 dB) | 65 Hz to 20 kHz | | Maximum SPL | 131 dB | | Horizontal Coverage Angle | 100° | | Vertical Coverage Angle | 10° maximum | | Compression Driver | 1.0" (2.5 cm) neo, 1.7" (4.3 cm) voice coil | | Woofer | 2 x 6" (15.2 cm) neo, 2.0" (5.1 cm) voice coil | | | | Input Connectors | XLR male | | Output Connectors | XLR female | | Input Sensitivity | +4 dBu | | Power Indicators | Power cord is connected and the power switch is turned on this indicator lights green | | Signal Indicator | Signal indicator lights green if there is signal present on the main XLR input | | Limiter | Built-in limiter circuit to prevent clipping of the amplifiers or overdriving the transducers | | | | Crossover Frequencies | 900 Hz | | Protection | Thermal, RMS | | Limiter | Soft limiter | | Controls | HF correction | | | | Peak Power | Total: 1400 W
High Frequencies: 400 W
Low Frequencies: 1000 W | | RMS Power | Total: 700 W
High Frequencies: 200 W
Low Frequencies: 500 W | | Cooling | Convection | | Connection | VDE connector in | | | | Hardware | Array fittings | | Cabinet | Composite PP | | Handles | 2 back | | Dimensions | 9.3 x 18.5 x 15" (23.7 x 47 x 37.7 cm) | | Weight | 25.4 lb (11.5 kg) |
