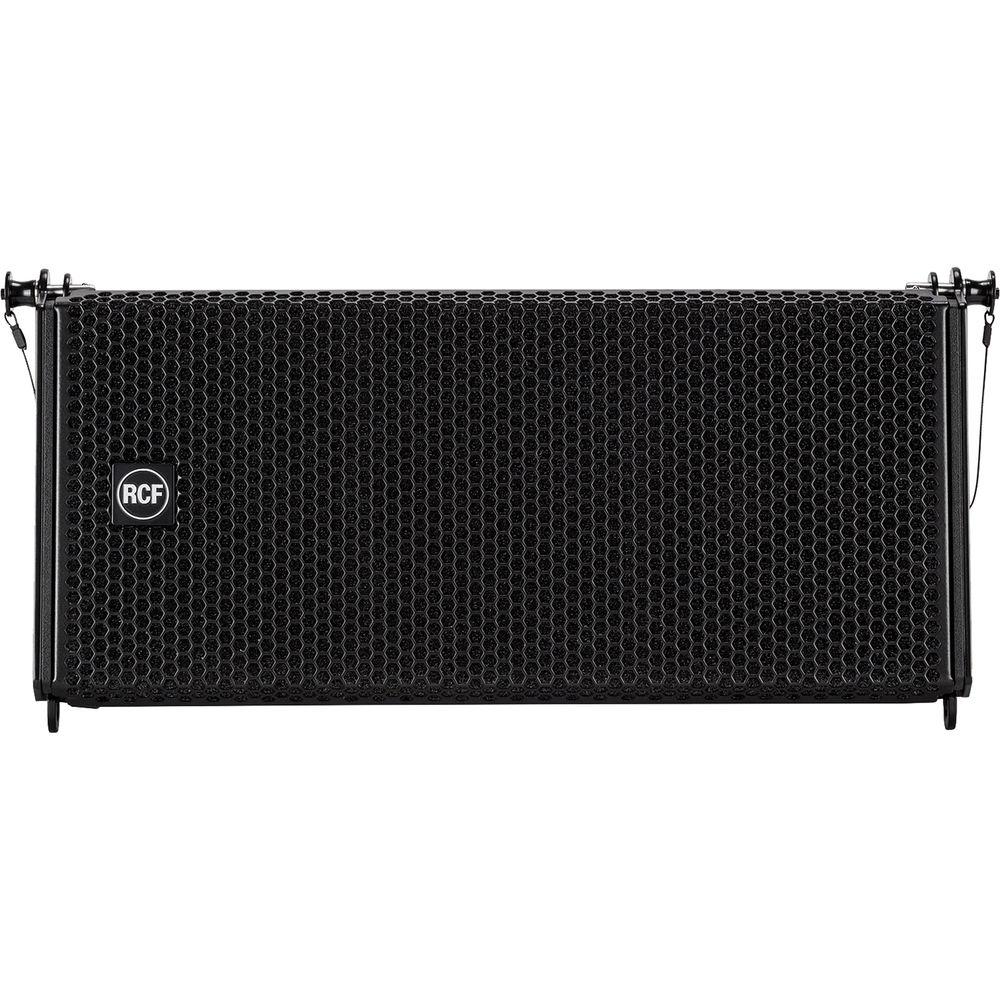

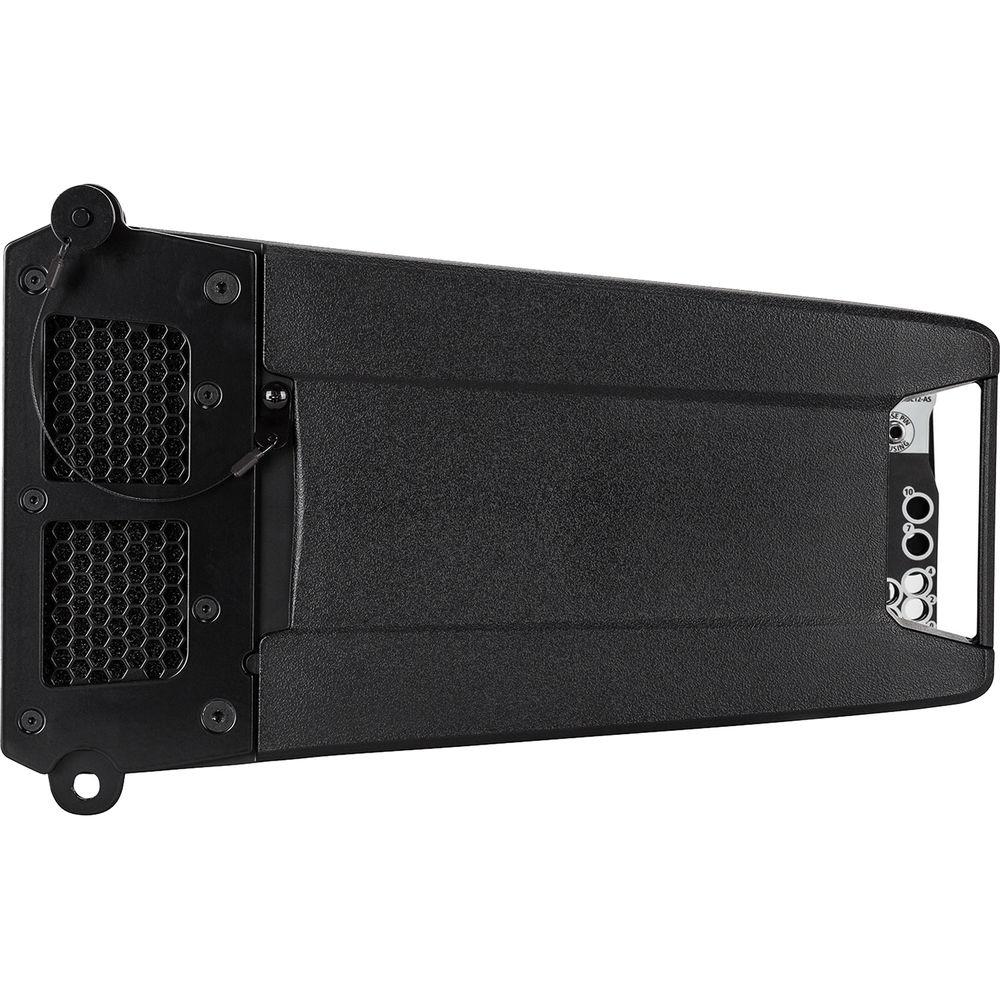

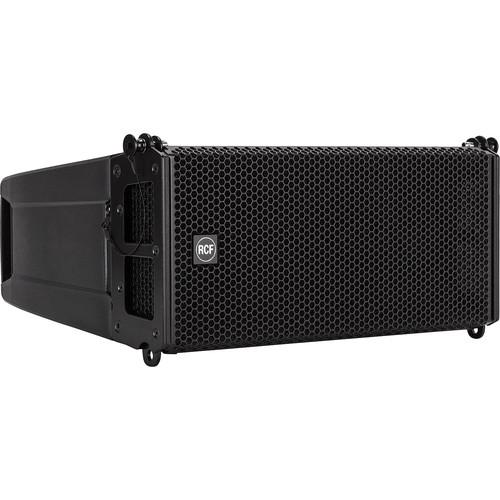

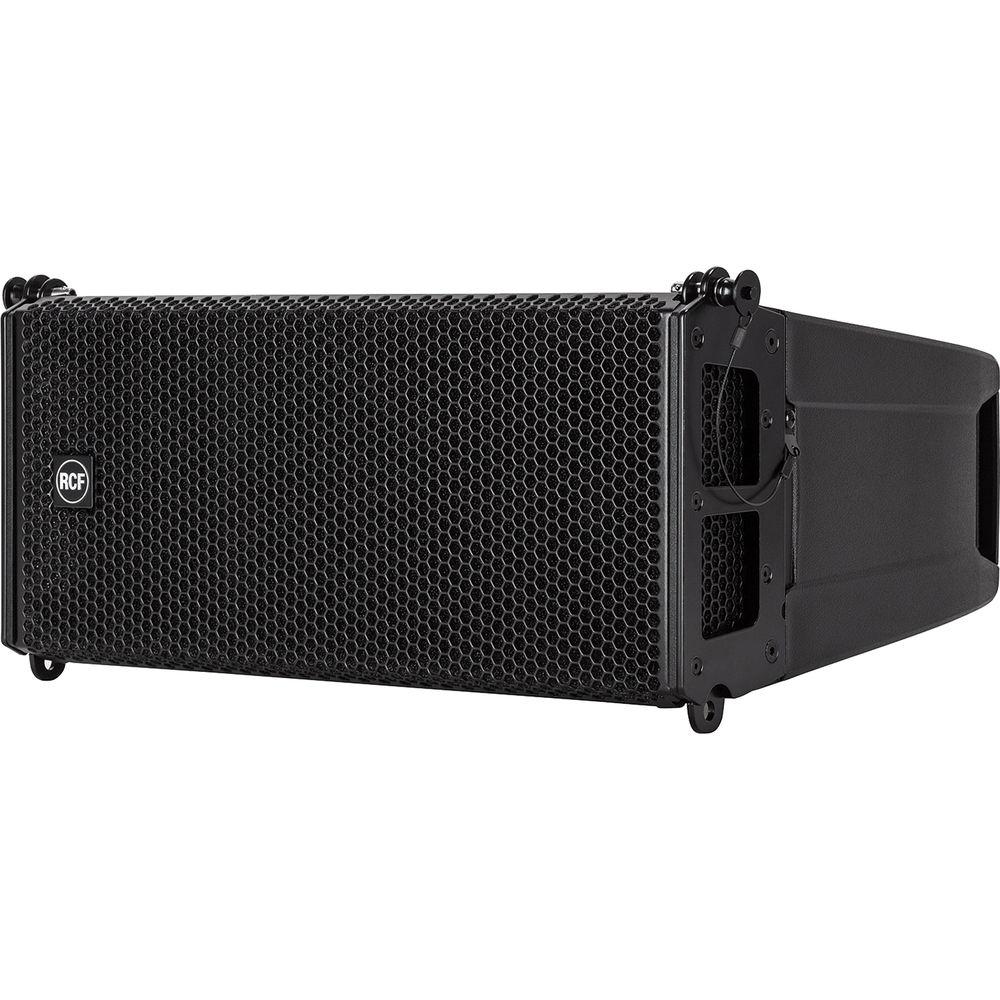

Product description The black HDL 6-A Active Line Array Module from RCF is a 2-way active line array module designed for live sound reinforcement and installed sound applications. Powered by a 1400W 2-channel class-D amplifier, it features two 6" neodymium woofers for a solid bass reproduction and a 1.7" voice coil compression driver mounted on a precise 100 x 10° waveguide. The powerful DSP processes the sound including crossover, phase correction, limiting, and protection. The system accept female XLR input connectors and line-level signals from a mixing console or other signal source. The output XLR male connector provides a loop-trough for speaker's daisy chaining. The volume knob controls the volume of the power amplifier. The control ranges from maximum attenuation to the maximum level (maximum output). - Equipped with two aluminum rear handles for portability

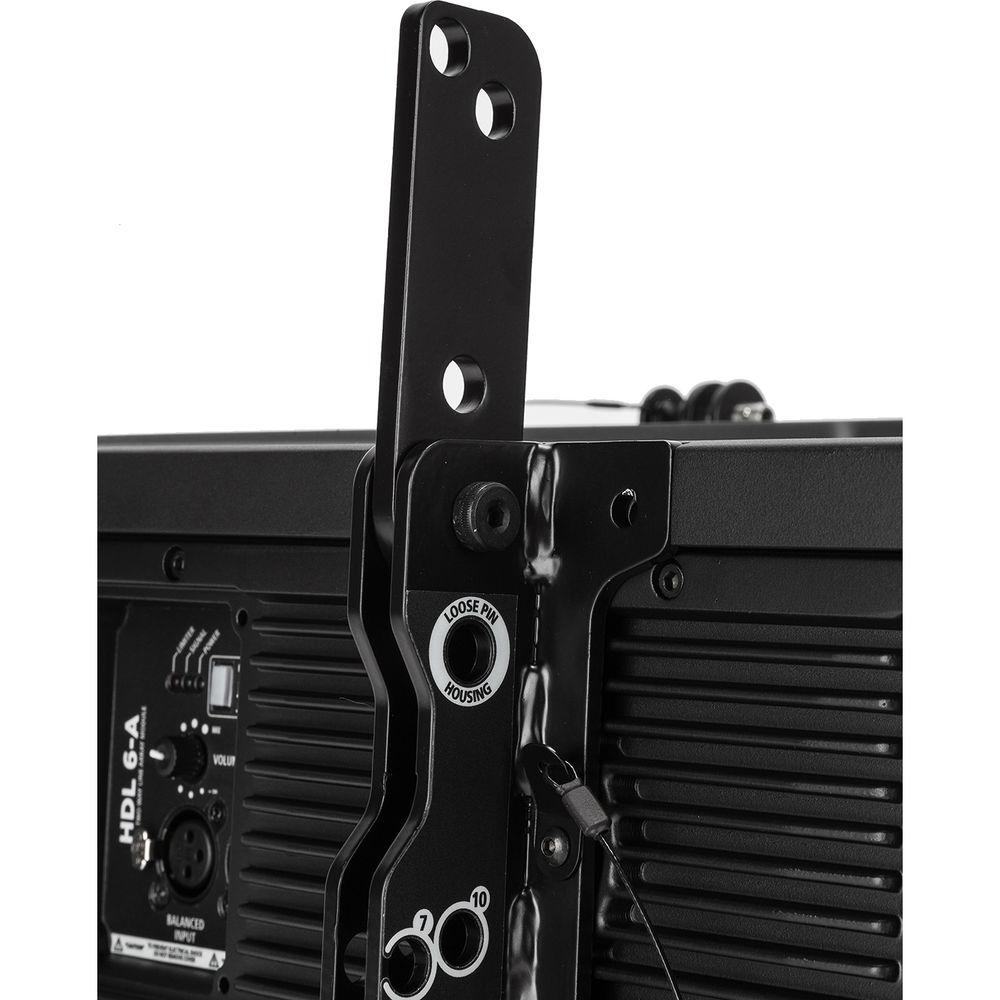

- Integrated mechanics are both fast and reconfigurable, allowing the system engineer to create J-shaped or spiral arrays
- Wooden reinforced composite polypropylene enclosure
- Integrated processing and cabling reduction
- Digital amplifier with switch mode power supply and DSP controlled input section with selectable presets
- Powered by a 1400W peak power digital amplifier, split 400W for the HF, and 1000W for the LF
- HF projection is adjusted by the button on the rear of the cabinets
- 2.0" inside-outside voice coil
- Water-resistant fiber doped cone
- Polycotton M-roll surround
- High-power magnetic structure
- Inside/outside coil doubles the dissipation surface
- Adhesion area to the former is doubled
- ND 340 high-power compression driver
- 1.7" voice coil with a crossover point of 900 Hz
- Coverage and dispersion control
- Linear frequency response and maximum SPL output
Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF HDL 6-A Active Line Array Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF HDL6-A Specs | | | Frequency Response (-3 dB) | 65 Hz to 20 kHz | | Maximum SPL | 131 dB | | Horizontal Coverage Angle | 100° | | Vertical Coverage Angle | 10° maximum | | Compression Driver | 1.0" (2.5 cm) neo, 1.7" (4.3 cm) voice coil | | Woofer | 2 x 6" (15.2 cm) neo, 2.0" (5.1 cm) voice coil | | | | Input Connectors | XLR male | | Output Connectors | XLR female | | Input Sensitivity | +4 dBu | | Power Indicators | Power cord is connected and the power switch is turned on this indicator lights green | | Signal Indicator | Signal indicator lights green if there is signal present on the main XLR input | | Limiter | Built-in limiter circuit to prevent clipping of the amplifiers or overdriving the transducers | | | | Crossover Frequencies | 900 Hz | | Protection | Thermal, RMS | | Limiter | Soft limiter | | Controls | HF correction | | | | Peak Power | Total: 1400 W
High Frequencies: 400 W
Low Frequencies: 1000 W | | RMS Power | Total: 700 W
High Frequencies: 200 W
Low Frequencies: 500 W | | Cooling | Convection | | Connection | VDE connector in | | | | Hardware | Array fittings | | Cabinet | Composite PP | | Handles | 2 back | | Dimensions | 9.3 x 18.5 x 15" (23.7 x 47 x 37.7 cm) | | Weight | 25.4 lb (11.5 kg) |
