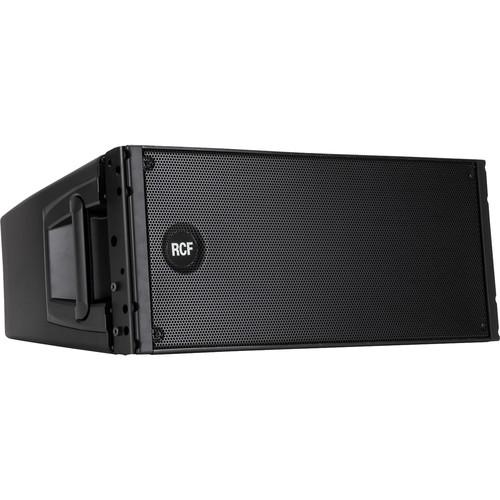

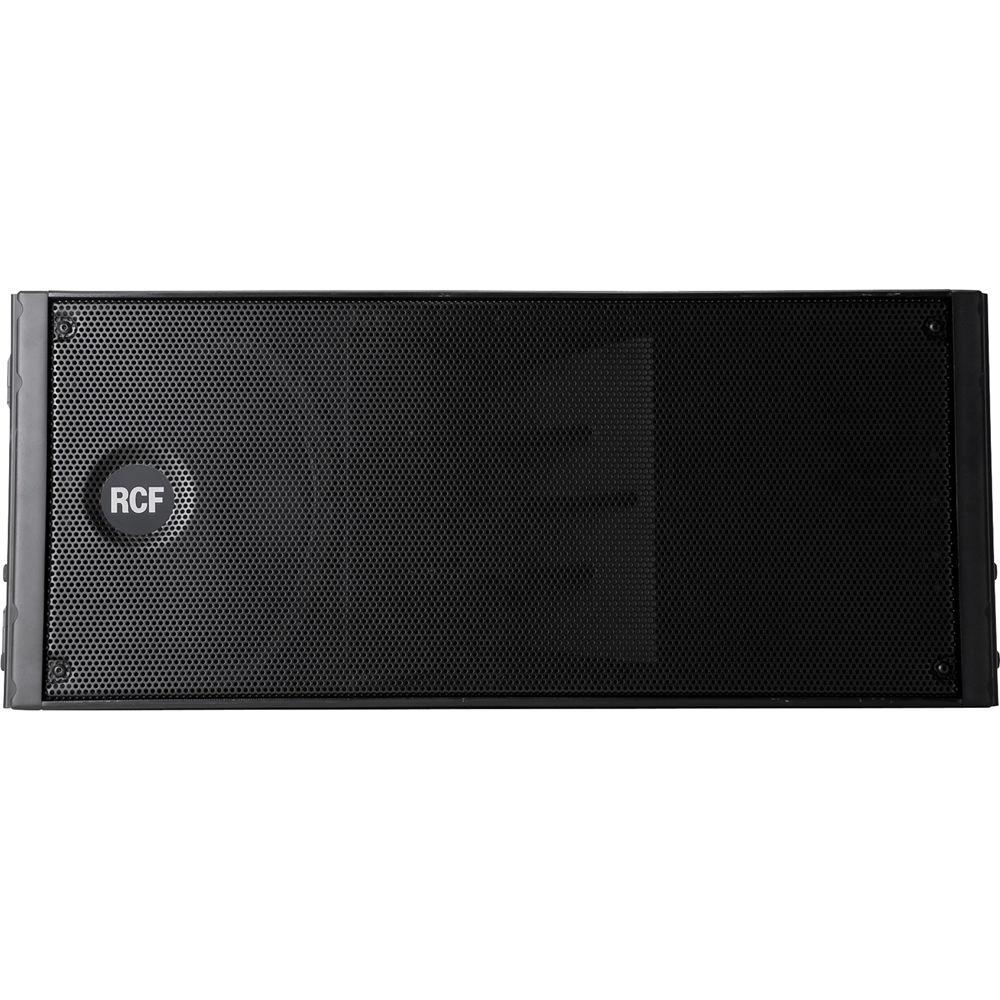

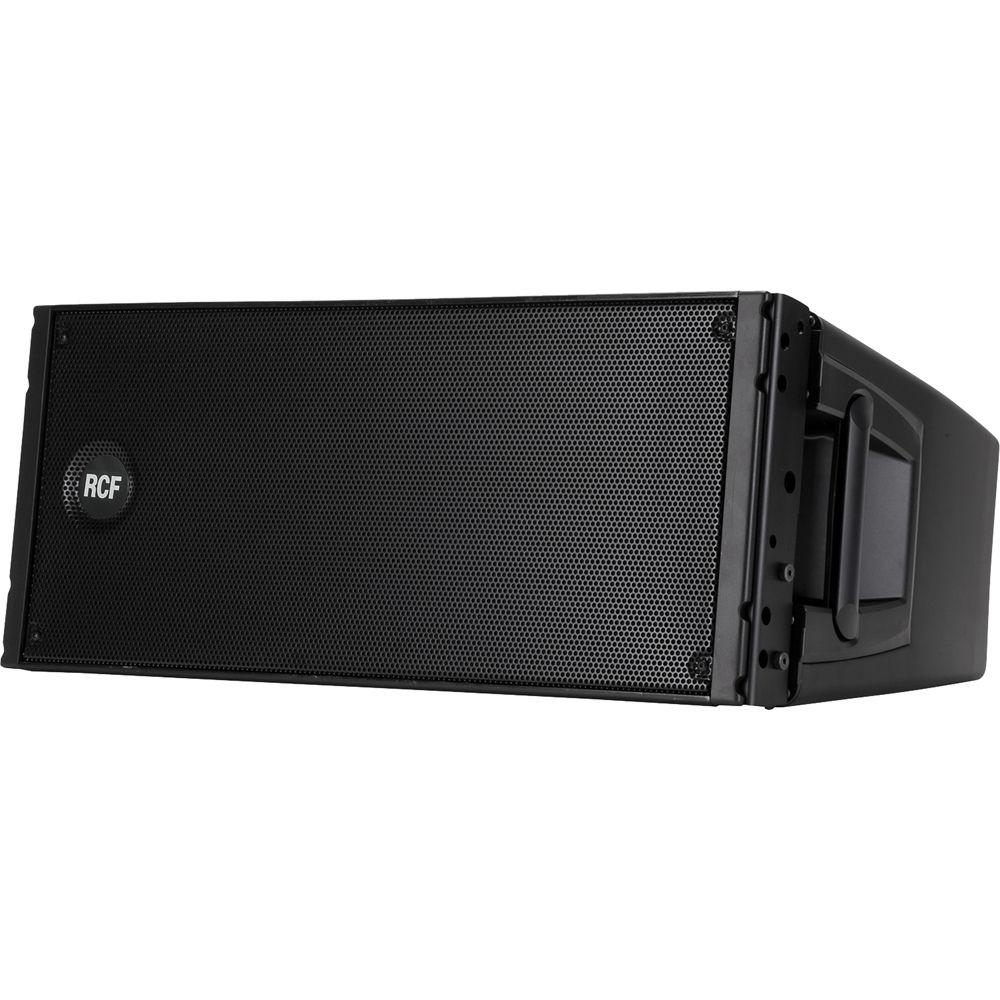

Product description The HDL20-A Active Line Array Module from RCF is designed for use in live sound reinforcement and installed situations. The system is powered from a 1400W Peak Power two-way digital amplifier (split 400W for the HF and 1000W for the LF), and sound is processed from a powerful DSP. The system features two 10" transducers with a 2.5" voice coil for a solid bass reproduction, and a large format 2" compression driver with a 3" voice coil to deliver vocal clarity and high definition. The module allows a coverage of 100° x 15°, whilst also delivering high frequency response.
The CD 850 compression driver's 3.0" voice coil allows a crossover point of 800Hz, which allows a wide vocal range to be produced by this driver. The DSP also includes presets for indoor/outdoor usage and highly curved arrays.

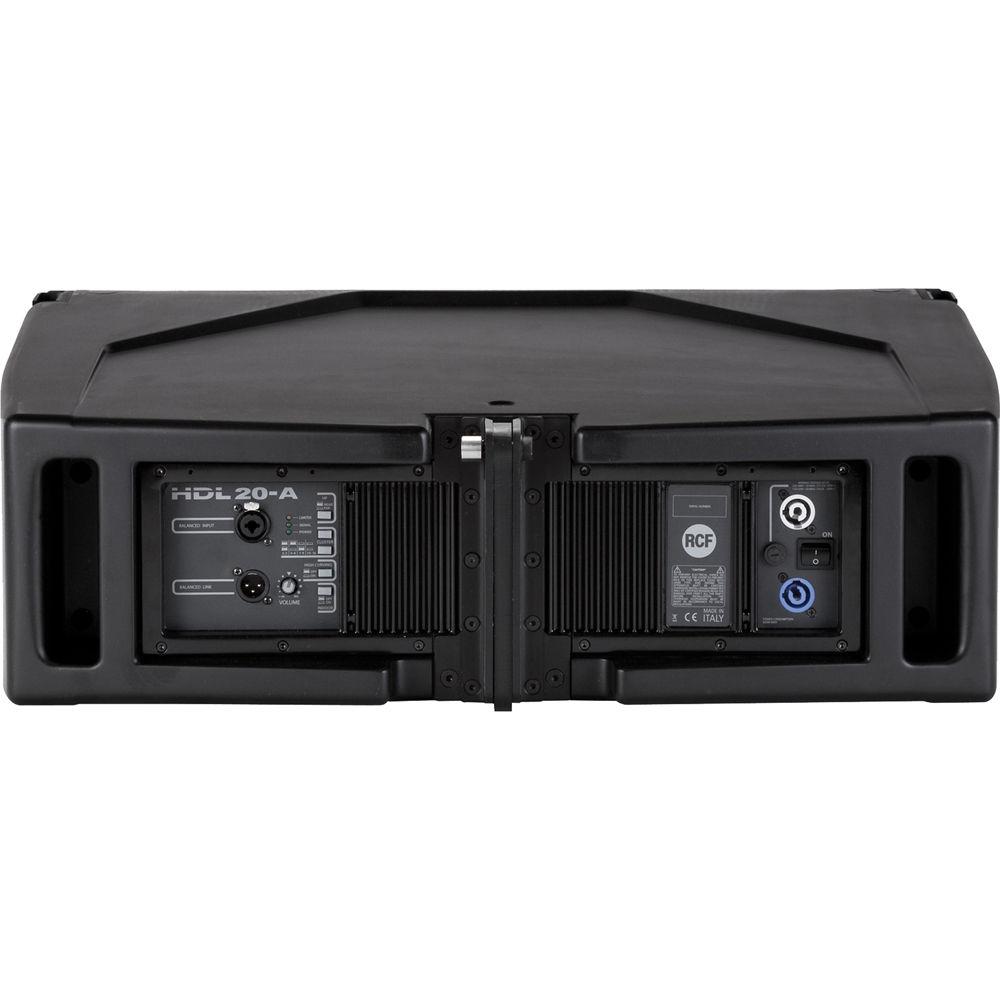

The back-panel controls allow a number of simple optimizations to be carried out: two possible HF settings, four possible cluster configurations, an EQ setting for high curved configurations, and an Indoor Correction EQ. A volume knob allows to set the overall volume of the speaker according to its application. This unit provides Power, Signal, and Status LEDs for monitoring the system.

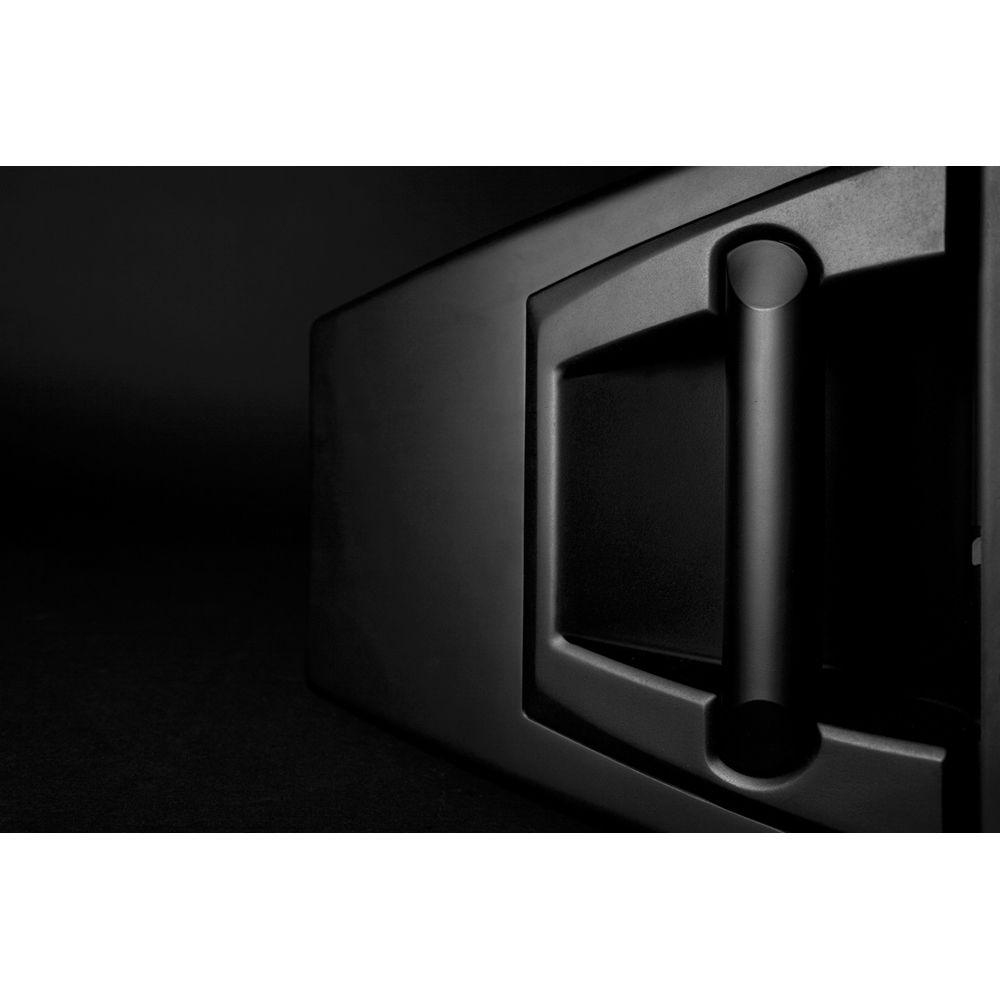

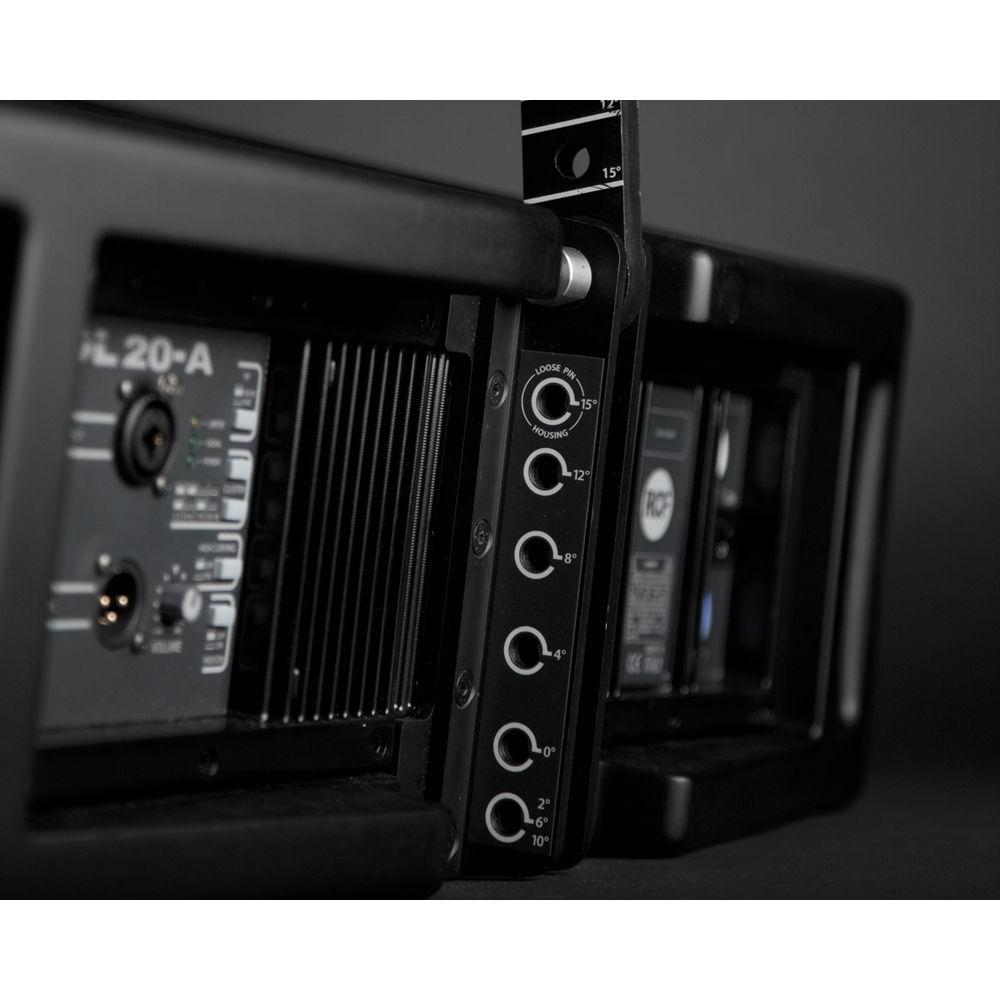

The HDL20-A features configurable mechanics, angles between cabinets are selectable with 2° resolution and allow the system engineer to create J-shaped or spiral arrays. HDL20-A cabinets are molded on a polypropylene composite material designed to dampen down vibrations even at maximum volume settings. The module is equipped with two aluminum side handles with a rubber handgrip for portability. The system is equipped with a heavy duty fly bar. The steel construction mechanics make it possible to fly up to 16 modules in daisy chain manner. - Features:
-
- Provides up to 1400W of power (700W RMS)
- Two 10" woofers
- One 2" compression driver
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics
- Wooden reinforced composite PP enclosure
- Applications:
-
- Live sound
- Rental
- Portable PA, clubs, ballrooms, live theatre
- Theme parks
- Music playback and sound reinforcement in small and mid-size venues
- Corporate A/V professionals and sound system hire companies
In the Box RCF HDL20-A Active Line Array Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF HDL20-A Active Line Array Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF HDL 20-A Specs | Frequency Response | 55 Hz - 20 kHz | | Maximum SPL | 135 dB | | Horizontal Coverage Angle | 100° | | Vertical Coverage Angle | 15° | | Compression Driver | 2.0" (5.1 cm) with 3.0" (7.6 cm) voice coil | | Woofer | 2 x 10.0" (25.4 cm) with 2.5" (6.4 cm) voice coil | | Input Connectors | XLR-Jack combo | | Output Connectors | XLR | | Input Sensitivity | -2 dBu / +4 dBu | | Crossover Frequencies | 800 Hz | | Protection | Thermal, RMS | | Limiter | Soft limiter | | Controls | Cluster, HF, high curving, indoor | | Peak Power | Total: 1400 W
High Frequencies: 400 W
Low Frequencies: 1000 W | | RMS Power | Total: 700 W
High Frequencies: 200 W
Low Frequencies: 500 W | | Cooling | Convection | | Other Connectors | PowerCON in/out
VDE connector input | | Material | Composite PP, wooden reinforced | | Hardware | Rigging flyware | | Handles | 2 side | | Dimensions | 11.5 x 27.7 x 17.5" (29.4 x 70.5 x 44.5 cm) | | Weight | 63.9 lb (29.0 kg) | | | | Package Weight | 75.0 lb | | Box Dimensions (LxWxH) | 30.9 x 19.7 x 14.5" |
