RCF HL 2260 Horn Loaded Two-Way

Search your instruction manual in PDF to download

User Manual for RCF HL 2260 Horn Loaded Two-Way Array

Click to enlarge the picture
RCF HL 2260 Horn Loaded Two-Way Array Contents of the user manual for the RCF HL 2260 Horn Loaded Two-Way
  • Product category: PA Speakers RCF
  • Brand: RCF
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for RCF PA Speakers

RCF HL 2260 Horn Loaded Two-Way Array RCF HL 2260 Horn Loaded Two-Way Array
User manual for the RCF HL 2260 Horn Loaded Two-Way contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any RCF product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!



Product description

The HL 2260 Horn Loaded Two-Way Array from RCF is a horn loaded two-way full-range array system that incorporates a 2 x 12" woofer and a 2" exit 4" voice coil titanium compression driver for mid distance and long throw applications. The system is compact and provides high-output and accurate voice & sound reproduction. The system is equipped with the latest generation of RCF precision transducers.

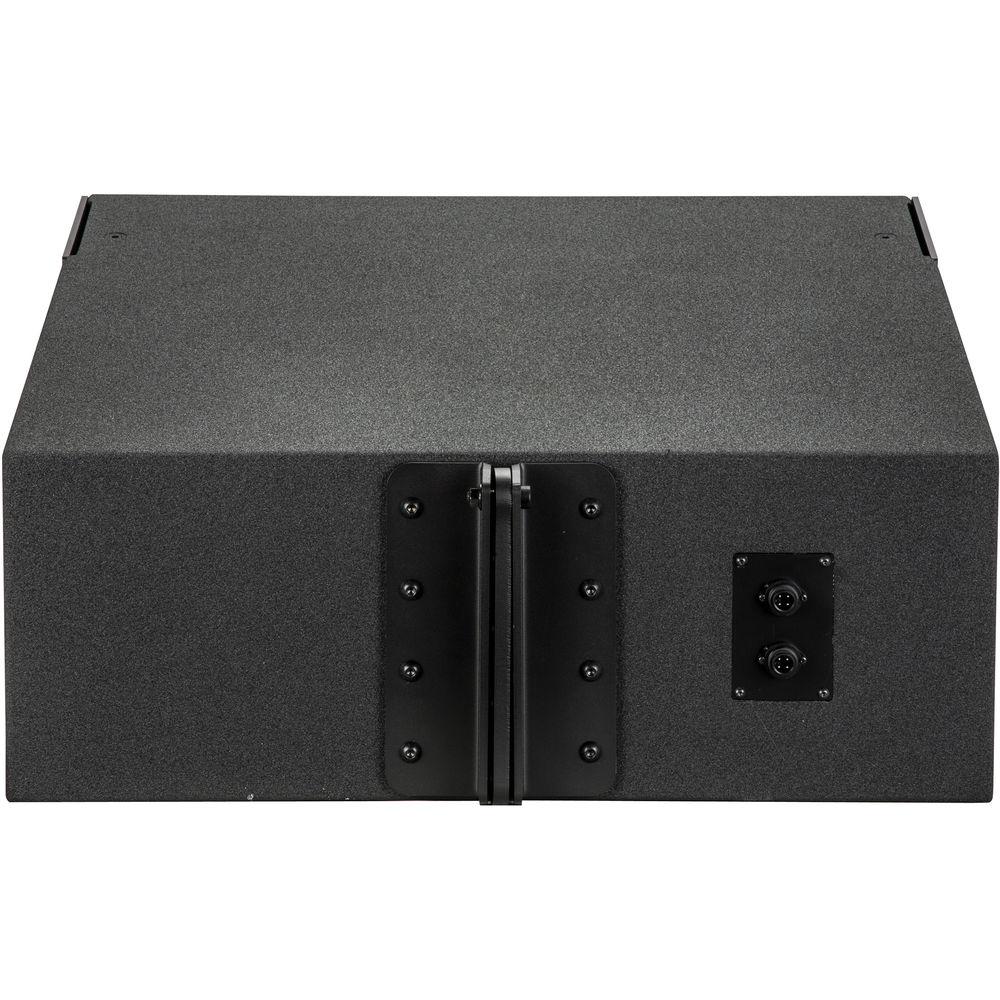

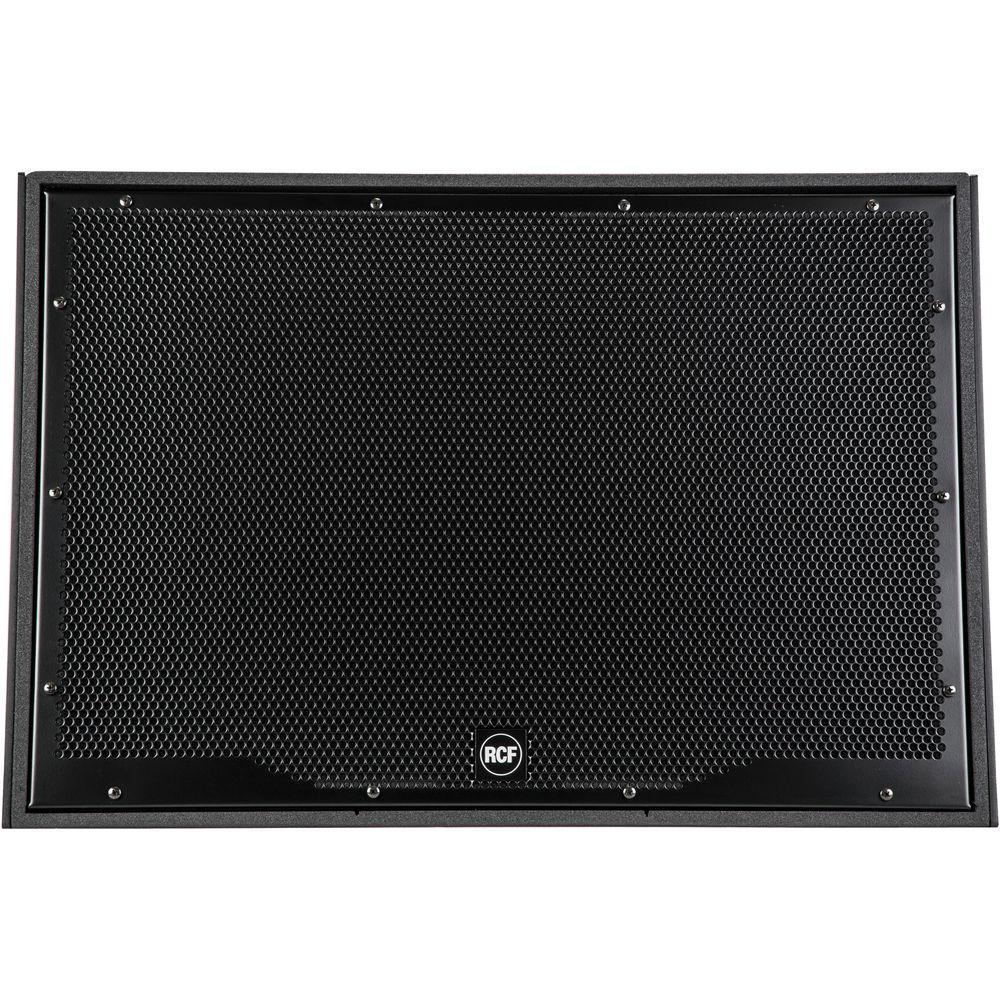

The system has a vertical dispersion of 22.5° and is ideally used in point source configuration for mid-distance applications, or can be clustered with narrower angles for long throw applications. The loudspeaker enclosure shape is trapezoidal and offers a 22.5° coupling angle each side. Connections to the amplifier are made through a watertight Amphenol multi-pole connector. The grille is in custom perforated steel, and is epoxy coated, with open-cell fibers and water-repellent woven fabric backing. The cabinet is constructed of multi-ply Baltic birch marine plywood and finished in a highly resistant, textured, polyurea black paint.
  • Fully horn-loaded, 60° x 22.5° directivity
  • 2 x 12" RCF precision woofers with 3.5" voice coil
  • RCF precision 4" voice coil compression driver, titanium dome
  • Horn loading on RCF waveguide
  • 141 dB Max SPL
  • System power rating 1500 Watt RMS (1350 Watt LF, 150 Watt HF)
  • Safe and solid variable array mechanics
  • Baltic birch plywood enclosure with internal structural metal bracings
In the Box RCF HL 2260 Horn Loaded Two-Way Array (22.5° x 60°)
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the RCF HL 2260 Horn Loaded Two-Way Array in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    RCF HL2260 Specs

    Frequency Response 60 Hz - 20 kHz @ -10 dB
    Maximum Sound Pressure Level (SPL) 141 dB @ 1m
    Coverage Angle Horizontal: 60° @ -6 dB
    Vertical: 22.5° @ -6 dB
    Directivity Index Q: 14
    Sensitivity LF 104 dB
    HF 113 dB
    Nominal Impedance 8 ohms
    Power Handling 1500 W
    6000 W, peak
    Recommended Amplifier Power 3000 W
    Crossover Frequencies 600 Hz
    Compression Driver 1.5"
    4" voice coil
    Nominal Impedance 8 ohms
    Power Rating 150 W, AES
    Sensitivity 113 dB
    Woofer 2 x 12"
    3.5" voice coil
    Nominal Impedance 8 ohms
    Power Rating 1350 W, AES
    Sensitivity 104 dB
    Connector Amphenol eco/mat IP 67
    Material Trapezoidal, 15 mm birch plywood construction
    Hardware Side and rear array rigging point
    Grille Custom perforated steel grille
    Dimensions 20.9 x 30.4 x 25.0" (53.0 x 77.1 x 63.5 cm)
    Weight 146 lb (66 kg)
