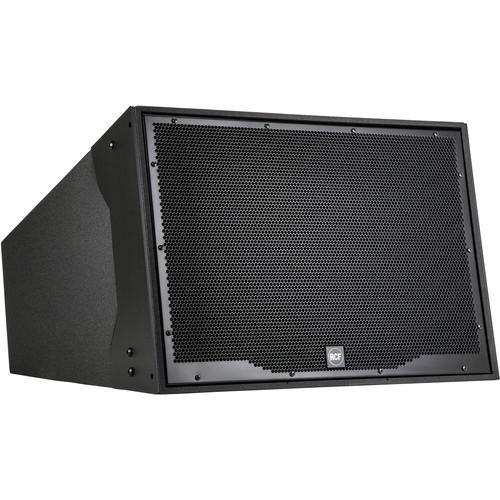

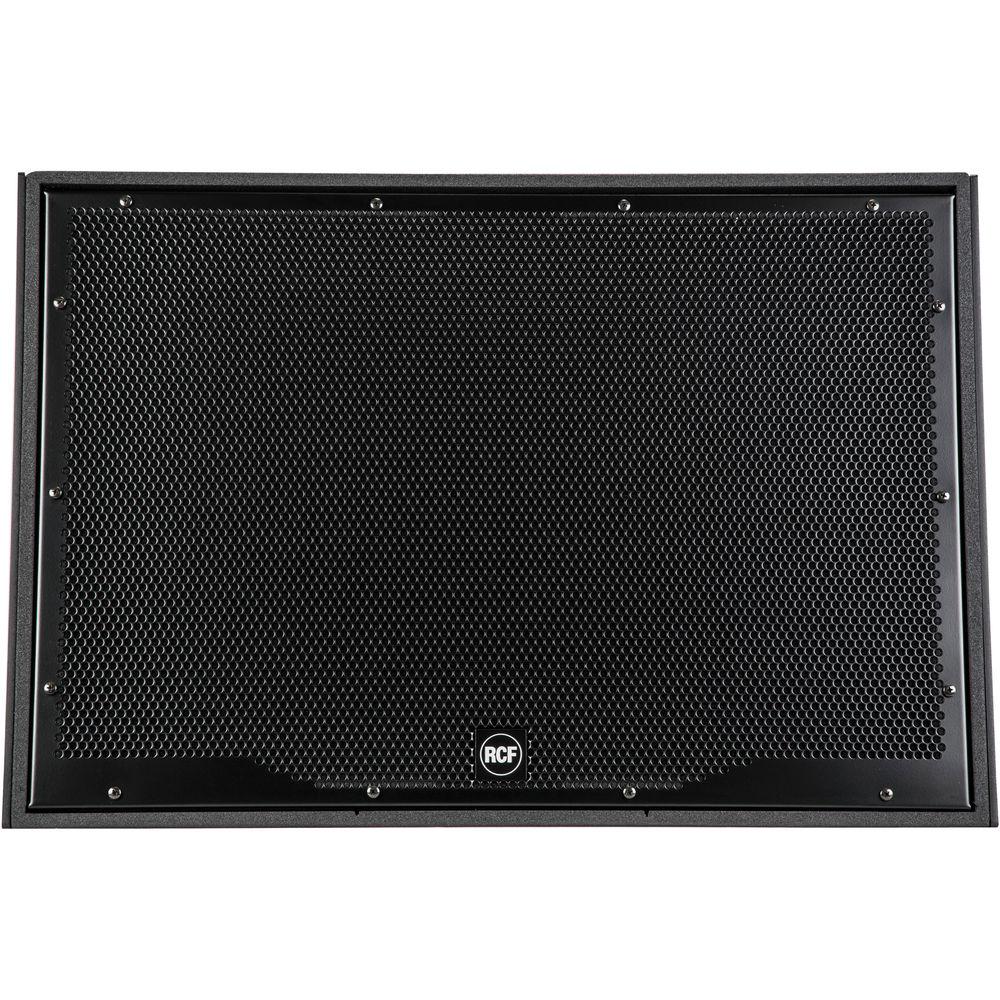

Product description The HL 2290 Horn Loaded Two-Way Array from RCF is a horn loaded two-way full-range array system that incorporates a 2 x 12" woofer and a 2" exit 4" voice coil titanium compression driver for mid distance and long throw applications. The system is compact and provides high-output and accurate voice & sound reproduction. The system is equipped with the latest generation of RCF precision transducers.
The system has a vertical dispersion of 22.5° and is ideally used in point source configuration for mid-distance applications, or can be clustered with narrower angles for long throw applications. The loudspeaker enclosure shape is trapezoidal and offers a 22.5° coupling angle each side. Connections to the amplifier are made through a watertight Amphenol multi-pole connector. The grille is in custom perforated steel, and is epoxy coated, with open-cell fibers and water-repellent woven fabric backing. The cabinet is constructed of multi-ply Baltic birch marine plywood and finished in a highly resistant, textured, polyurea black paint. - Fully horn-loaded, 90° x 22.5° directivity
- 2 x 12" RCF precision woofers with 3.5" voice coil
- RCF precision 4" voice coil compression driver, titanium dome
- Horn loading on RCF waveguide
- System power rating 1500 Watt RMS (1350 Watt LF, 150 Watt HF)
- Safe and solid variable array mechanics
- Baltic birch plywood enclosure with internal structural metal bracings
In the Box RCF HL 2290 Horn Loaded Two-Way Array (22.5° x 90°) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF HL 2290 Horn Loaded Two-Way Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF HL2290 Specs | | | Frequency Response | 60 Hz - 20 kHz @ -10 dB | | Maximum Sound Pressure Level (SPL) | 141 dB @ 1m | | Coverage Angle | Horizontal: 90° @ -6 dB
Vertical: 22.5° @ -6 dB | | Directivity Index | Q: 13 | | Sensitivity | LF 104 dB
HF 113 dB | | Nominal Impedance | 8 ohms | | Power Handling | 1500 W
6000 W, peak | | Recommended Amplifier Power | 3000 W | | Crossover Frequencies | 600 Hz | | | | Compression Driver | 1.5"
4" voice coil | | Nominal Impedance | 8 ohms | | Power Rating | 150 W, AES | | Sensitivity | 113 dB | | Woofer | 2 x 12"

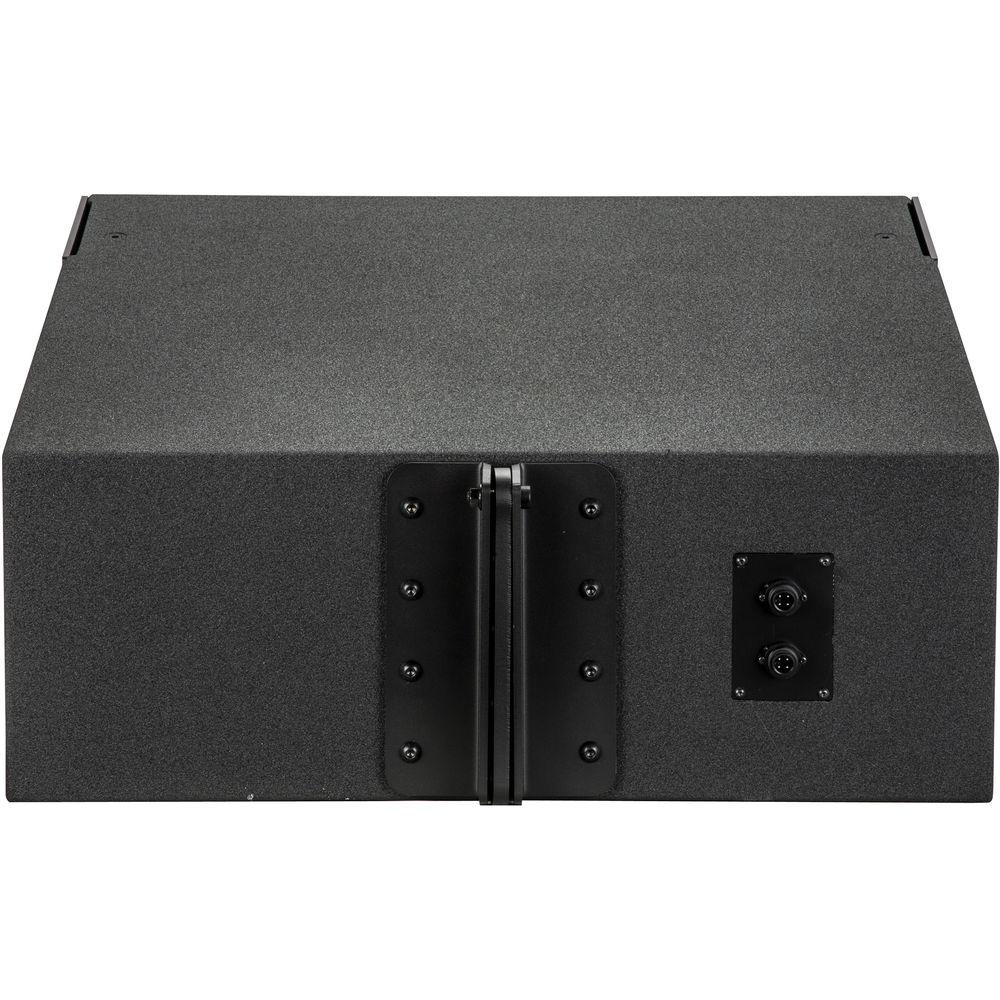

3.5" voice coil | | Nominal Impedance | 8 ohms | | Power Rating | 1350 W, AES | | Sensitivity | 104 dB | | | | Connector | Amphenol eco/mat IP 67 | | | | Material | Trapezoidal, 15 mm birch plywood construction | | Hardware | Side and rear array rigging point | | Grille | Custom perforated steel grille | | Dimensions | 20.9 x 30.4 x 25.0" (53.0 x 77.1 x 63.5 cm) | | Weight | 152 lb (69 kg) |
