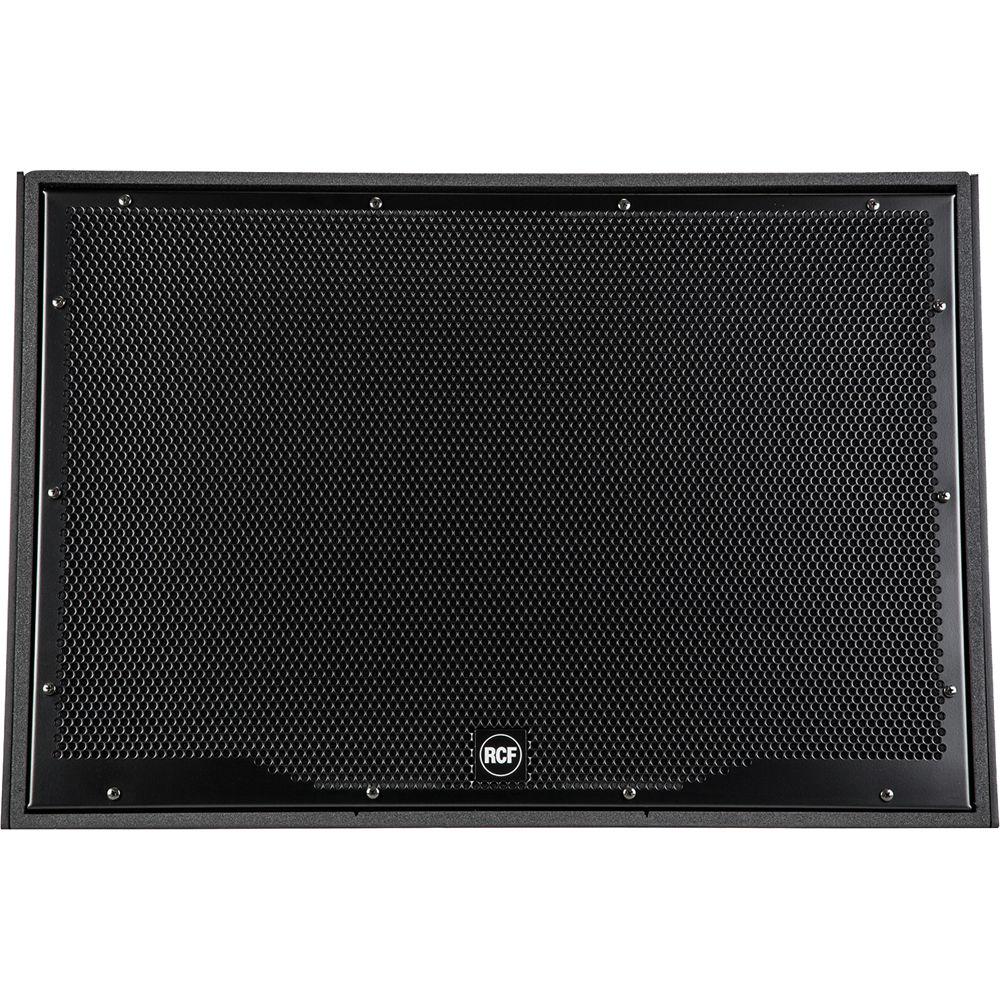

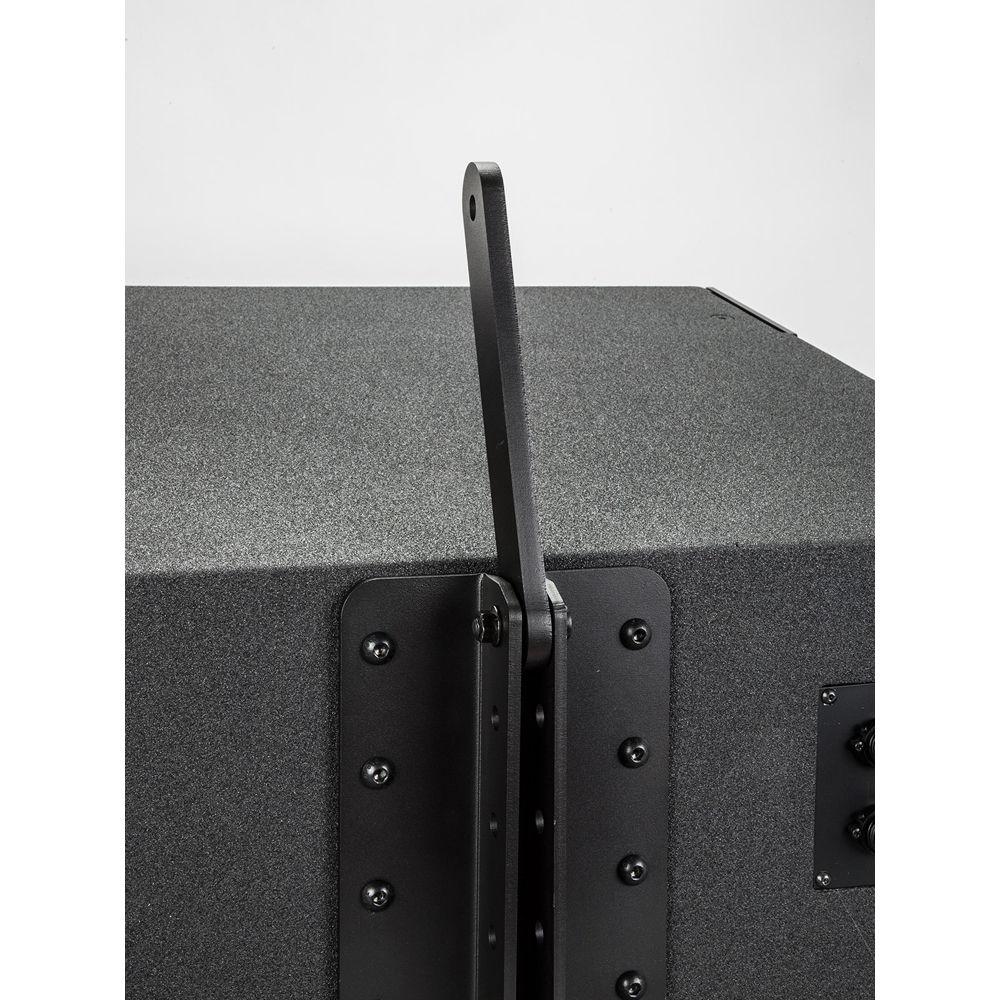

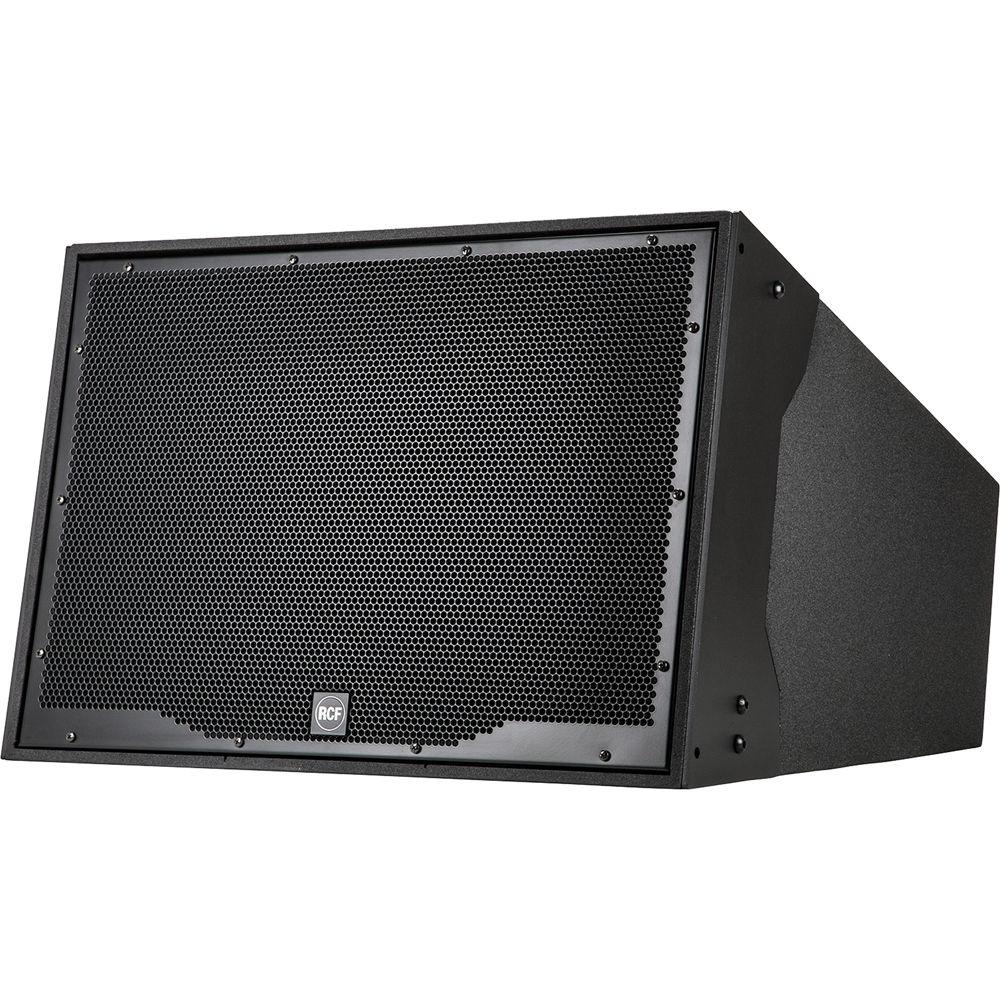

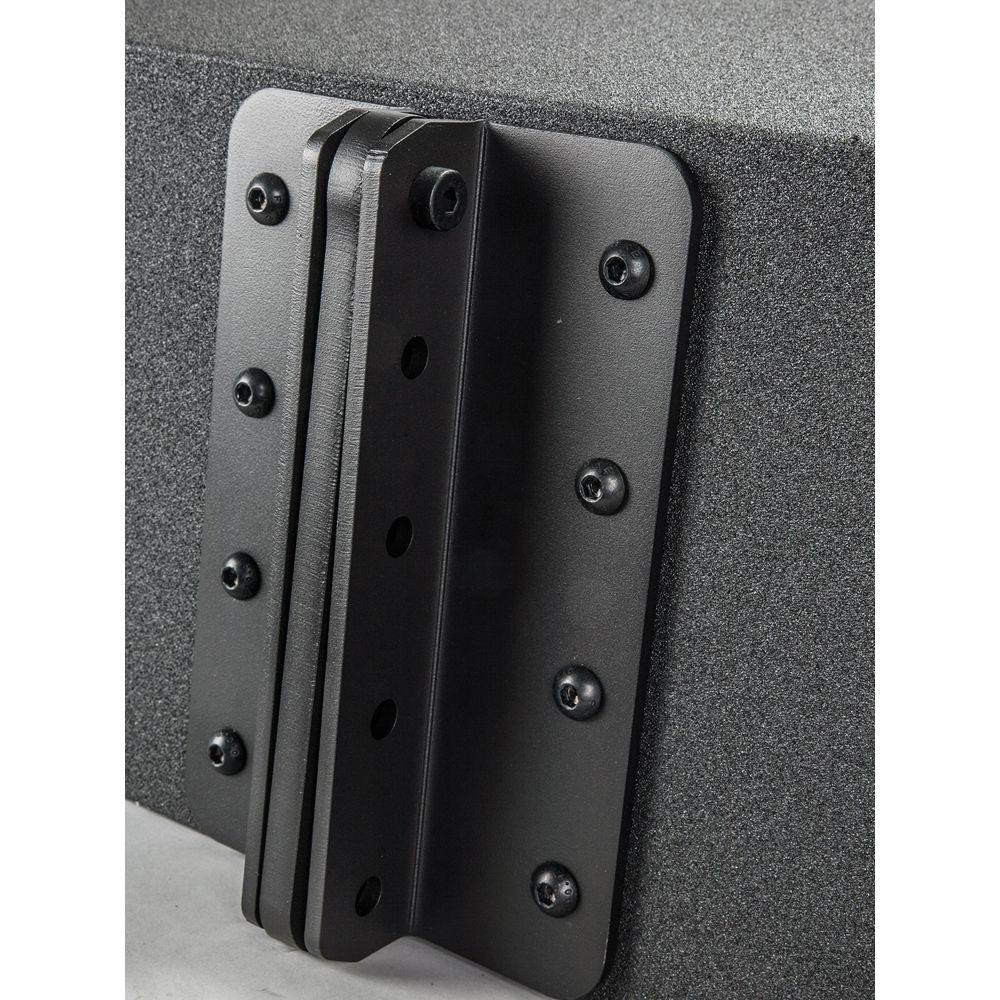

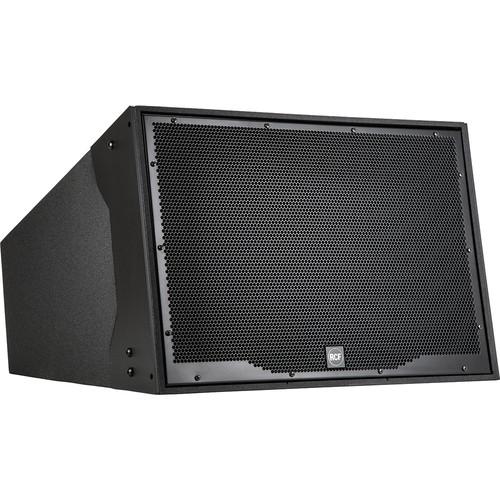

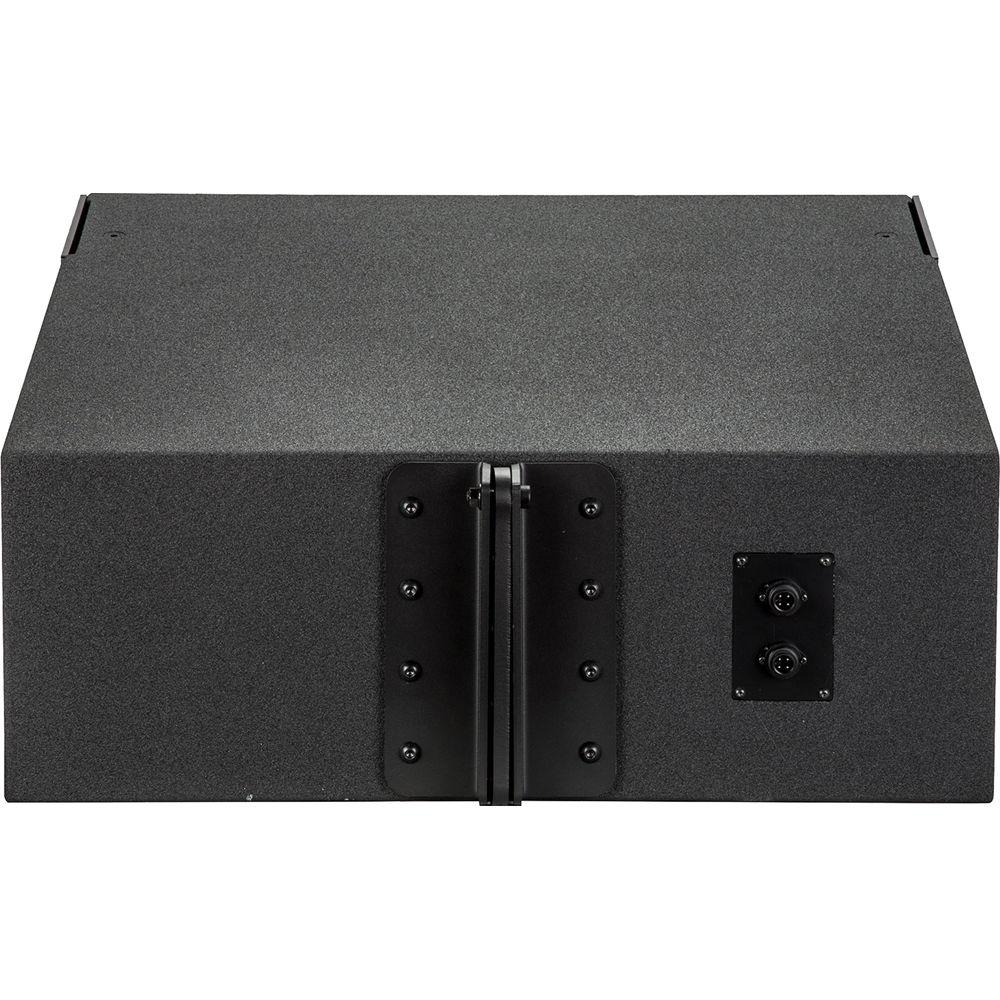

Product description The HL 2200 Array Subwoofer from RCF is a compact, high-output, bass-reflex subwoofer. The system is equipped with a hyper-vented 18" RCF precision woofer. It features a massive ceramic magnet and a high excursion 4" copper voice coil. The cabinet is designed to achieve tight and maximized output. The system is able to produce a max SPL of 136 dB and handles 900 W AES. The loudspeaker enclosure shape is trapezoidal, and offers a 22.5° coupling angle each side. Connections to the amplifier are made through a watertight Amphenol multi-pole connector. The grille is in custom perforated steel, epoxy coated, with open-cell fibers and water-repellent woven fabric backing. The cabinet is constructed of multi-ply Baltic birch marine plywood, and is finished with resistant and textured polyurea black paint. The cabinet is equipped with 12 x M 8 brass inserts, a stainless steel U-bracket and a pair of spacers for 90° mounting. The front logo is aluminum and rotatable. - 18" RCF Precision woofers with 4" voice coil, 136 dB Max SPL
- System power rating 900W RMS
- Safe and solid variable array mechanics
- Baltic Birch Plywood enclosure with internal structural metal bracings
In the Box RCF HS 2200 Array Subwoofer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF HS 2200 Array Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF HS2200 Specs | Frequency Response | 30 - 200 Hz @ -10 dB 35 - 200 Hz @ -3 dB | | Maximum Sound Pressure Level (SPL) | 136 dB @ 1m | | Sensitivity | LF 100 dB, 1W @ 1m | | Nominal Impedance | 8 ohms | | Power Handling | RMS: 900 W
Peak: 3600 W | | Recommended Amplifier Power | 1800 W | | Low Frequency Transducer | Woofer: 18"
Voice coil: 4" | | Nominal Impedance | 8 ohms | | Power Rating | 900 W AES | | Sensitivity | 100 dB, 1W @ 1m | | Input Connector | Amphenol eco/mat IP 67 | | Material | Trapezoidal, 15 mm birch plywood construction | | Hardware | Side and rear array rigging point | | Grille | Custom perforated steel grille | | Dimensions | 20.9 x 30.4 x 25.0" (530 x 771 x 635 mm) | | Weight | 112 lb (51 kg) |
