User Manual for RCF IPS 2700 2 x 1100 W Class H Professional Power Amplifier Click to enlarge the picture
Contents of the user manual for the RCF IPS 2700 2 x 1100
- Product category: Power Amplifiers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Power Amplifiers
|
User manual for the RCF IPS 2700 2 x 1100 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

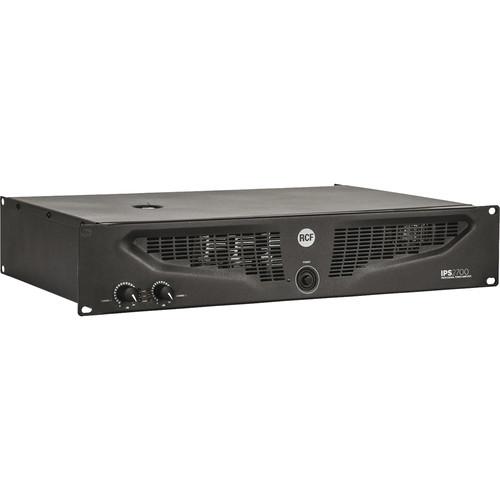

Product description The IPS 2700 2 x 1100 W Class H Professional Power Amplifier from RCF is a two-way professional amplifier that combines performance and reliability with power amplifications technologies. This design offers, in compact 2 rack unit space, the sound quality and the durability of class AB and class H designs with the innovation of modern technology. The IPS 2700 is a 2 channel power amplifier that delivers up to 2 x 1100 W RMS @ 4 ohms (2200 W RMS bridged @ 8 ohms) and weighs just under 27 lb. It features independent gain dials, signal, clip and fault LEDs, stereo XLR input and Output link, 1.4 V to 0.775 V input sensitivity switch, mono-stereo-bridge switch, and powercon outputs; moreover, it is protected against short- or open-circuits. Due to its efficient heat sinks and high speed DC fans, the IPS 2700 can withstand high heat conditions ensuring reliability. -
- 2 unit 19" rack for easy transportation
- Fast response and low distortion
- Easy to configure in stereo/mono/bridge modes
- Extensive protective circuits ensure reliability and operating safety
- Front panel signal/clip/protect LED indicators
- XLR input connectors
- Speakon NL4 output connectors
In the Box RCF IPS 2700 2 x 1100 W Class H Professional Power Amplifier Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF IPS 2700 2 x 1100 W Class H Professional Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF IPS-2700 Specs | RMS Power Output | 1100 W RMS @ 4 ohms
700 W RMS @ 8 ohms
2200 W RMS, bridged under 8 ohms | | Frequency Response | 20 Hz to 20 kHz (-3 dB) | | Signal to Noise Ratio | 100 dB | | Crosstalk | -75 dB | | Damping Factor | >200 | | Slew Rate | 10V /μS | | Input | 1x XLR
Sensitivity: 1.4 V RMS (32 to 26 dB)
Impedance: 20 K ohms balanced, 10 K ohms unbalanced | | Output Connector | Speakon | | Power | Voltage: 220 - 240 V (50 / 60 Hz) V ~ Hz
Consumption: 700 W
Protections: DC, internal fault, input overload, RF interference, unmatched load, output short-circuit, thermal drift, power supply over-current
Forced cooling
| | Dimensions (HxWxD) | 3.4 x 18.9 x 10.0" (8.8 x 48.2 x 25.4 cm) | | Weight | 26.8 lb (12.2 kg) |
