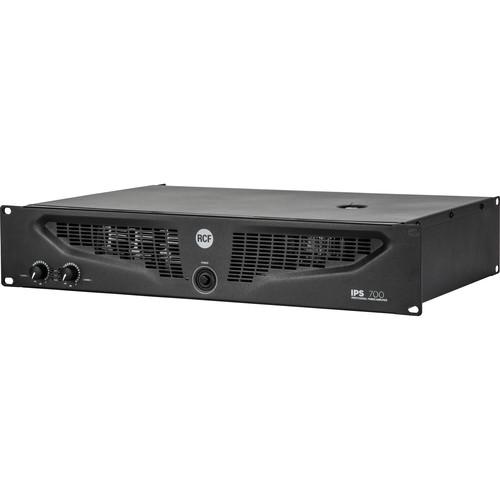

Product description The IPS 700 2 x 300 W Class AB Professional Power Amplifier from RCF is a two-way professional amplifier that combines performance and reliability with power amplifications technologies. This design offers, in compact 2 rack unit space, the sound quality and the durability of class AB and class H designs with the innovation of modern technology. This 2 channel power amplifier delivers up to 2 x 300 W RMS @ 4 ohms (600 W RMS bridged @ 8 ohms) and weighs only 21 lb. It features independent gain dials, signal, clip and fault LEDs, stereo XLR input and Output link, 1.4 V to 0.775 V input sensitivity switch, mono-stereo-bridge switch, and powercon outputs; moreover, it is protected against short- or open-circuits. Due to its efficient heat sinks and high speed DC fans, it can withstand high heat conditions, ensuring reliability. -
- 2 unit 19" rack for easy transportation
- Fast response and low distortion
- Easy to configure in stereo/mono/bridge modes
- Extensive protective circuits ensure reliability and operating safety
- Front panel signal/clip/protect LED indicators
- XLR input connectors
- Speakon NL4 output connectors
In the Box RCF IPS 700 2 x 300 W Class AB Professional Power Amplifier Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF IPS 700 2 x 300 W Class AB Professional Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF IPS-700 Specs | RMS Power Output | 300 W RMS @ 4 ohms
150 W RMS @ 8 ohms
600 W RMS, bridged under 8 ohms | | Frequency Response | 20 Hz to 20 kHz (-3 dB) | | Signal to Noise Ratio | 100 dB | | Crosstalk | -75 dB | | Damping Factor | >200 | | Slew Rate | 10V /μS | | Input | 1x XLR
Sensitivity: 1.4 V RMS (32 to 26 dB)
Impedance: 20 K ohms balanced, 10 K ohms unbalanced | | Output Connector | Speakon | | Power | Voltage: 220 - 240 V (50/60 Hz)
Consumption: 350 W
Protections: DC, internal fault, input overload, RF interference, unmatched load, output short-circuit, thermal drift, power supply over-current
Forced cooling
| | Dimensions (HxWxD) | 3.4 x 18.9 x 10.0" (8.8 x 48.2 x 25.4 cm) | | Weight | 21 lb (10 kg) |
