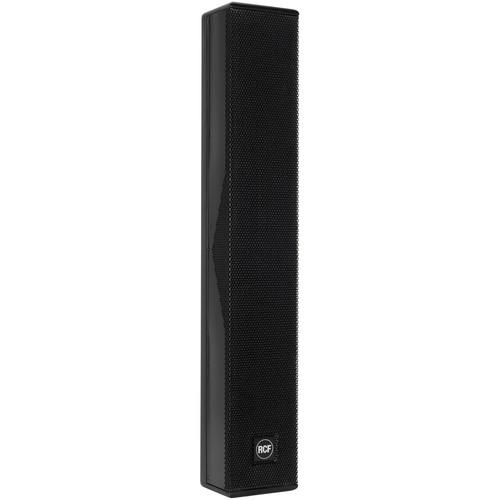

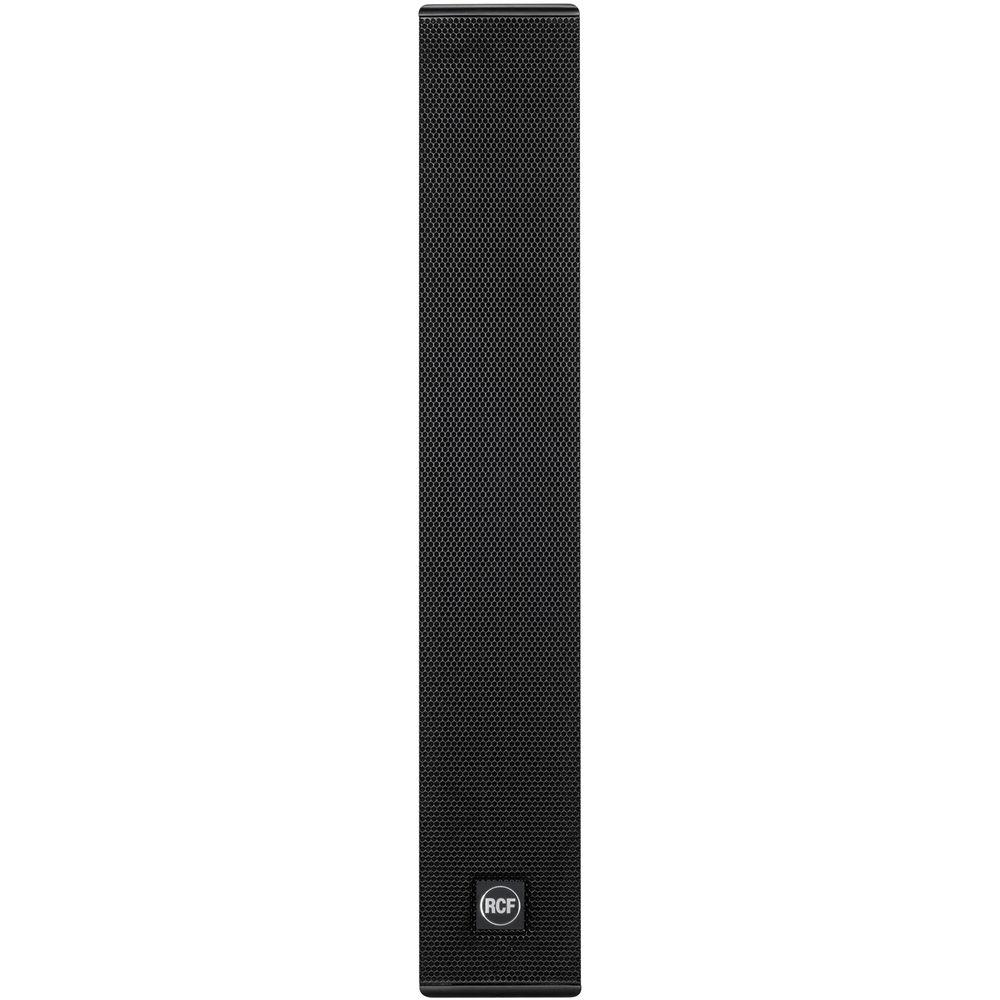

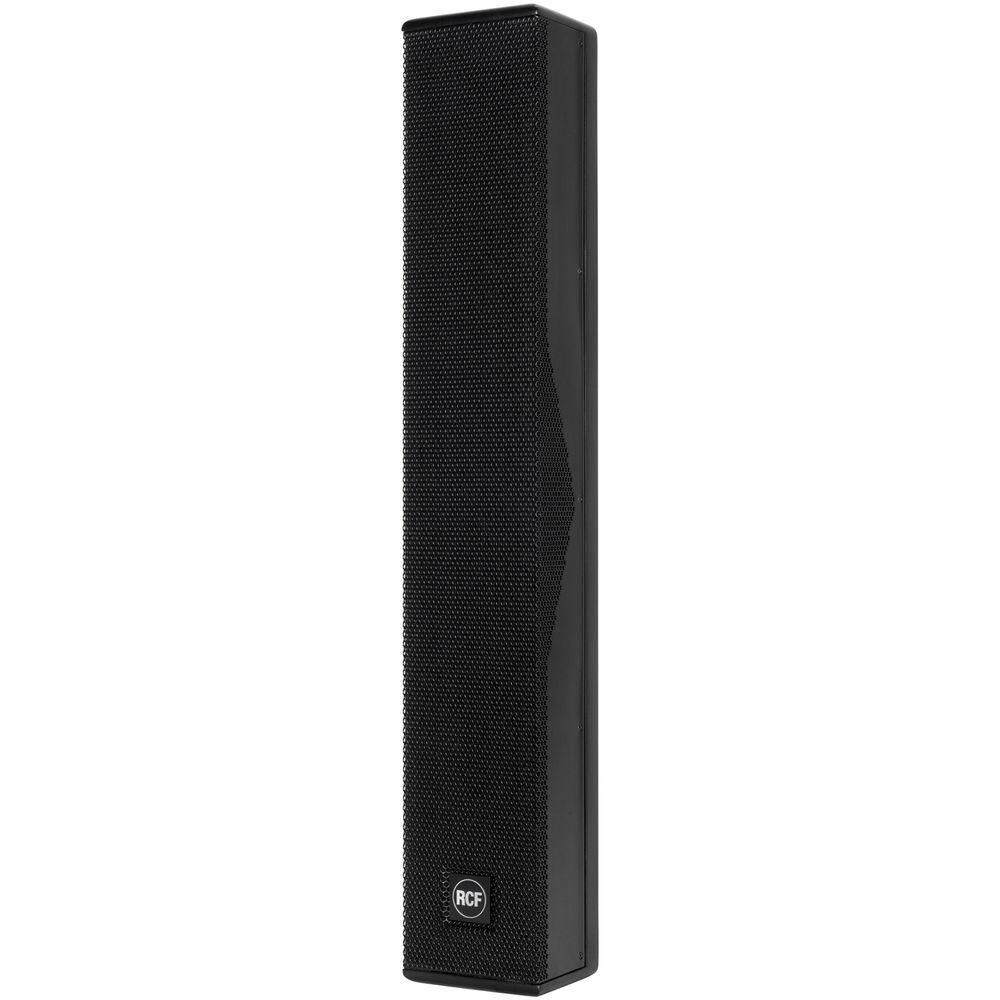

Product description The black L 2406 3-Way Column Array from RCF is a passive 3-way column speaker that features six 5" woofers and four 1" dome tweeters arranged to produce wide sound dispersion. It is designed for use in permanent installations such as houses of worship, auditoriums, transportation halls, or anywhere speech and music reinforcement are required.

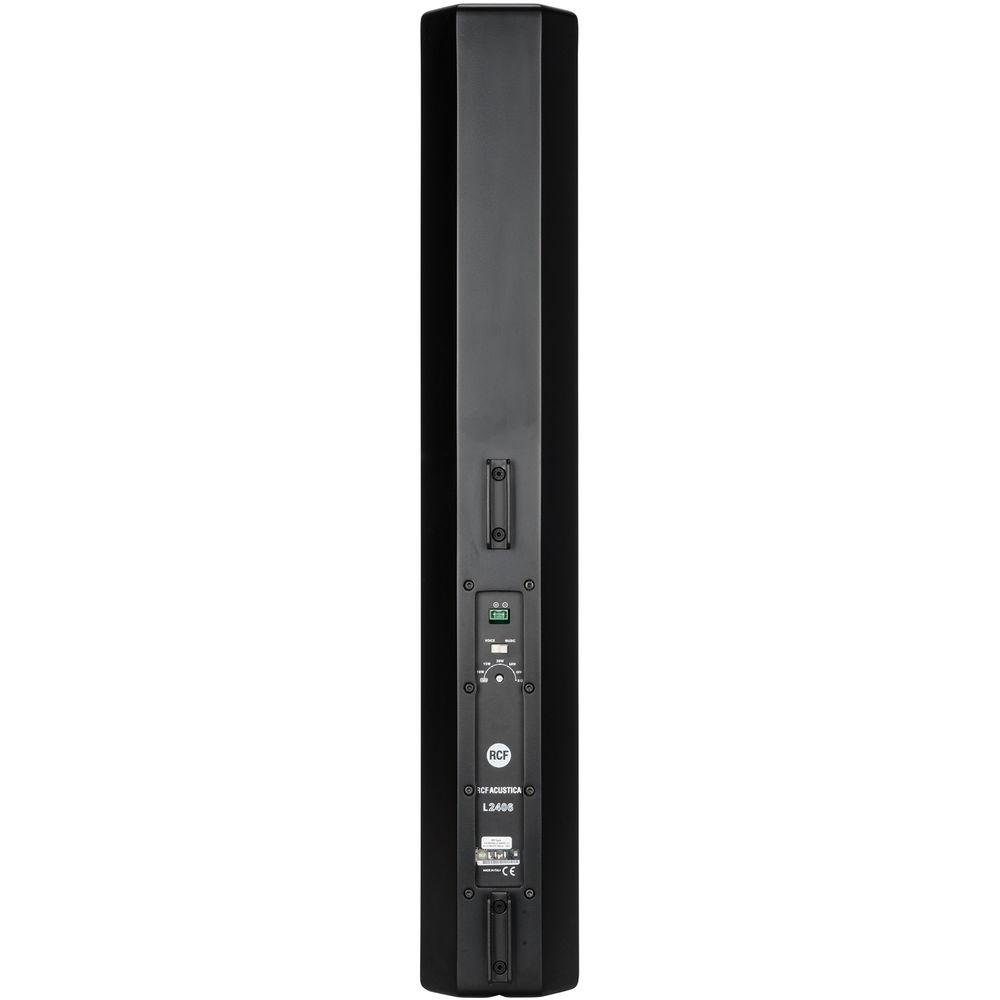

The array can be optimized for either voice or music performance via the VOICE/MUSIC selector, which alters its frequency response. It can be powered by either a 100V (/70V) constant voltage line or via low-impedance output. - 6 x 5" woofer, 4 x 1" dome tweeter
- 150° wide horizontal coverage angle
- 30° controlled vertical coverage angle
- Low-impedance compensated crossover (LICC)
In the Box RCF L 2406 3-Way Column Array (Black) Wall Mount Accessory Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF L 2406 3-Way Column Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF L 2406 Specs | | | Configuration | Passive 3-Way | | Enclosure Type | Line Array | | Total Power Capacity | 200 W RMS
400 W Program
800 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 4 x 1" / 25 mm Dome Tweeter | | MF Driver | 2 x 5" / 130 mm | | LF Driver | 4 x 5" / 130 mm Woofer | | | | Frequency Range | 100 Hz to 20 kHz -10 dB
150 Hz to 15 kHz -3 dB | | Maximum SPL | 120 dB | | Coverage Angle | 150° H x 30° V | | Speaker Sensitivity | 94 dB | | | | Crossover | 2 kHz | | Dynamic Processing | HF Limiter | | | | Mounting | 4 x M5 | | Construction Material | Plywood | | Dimensions | 5.0 x 32.0 x 5.0" / 135.0 x 826.0 x 139.0 mm | | Weight | 25 lb / 11 kg |
