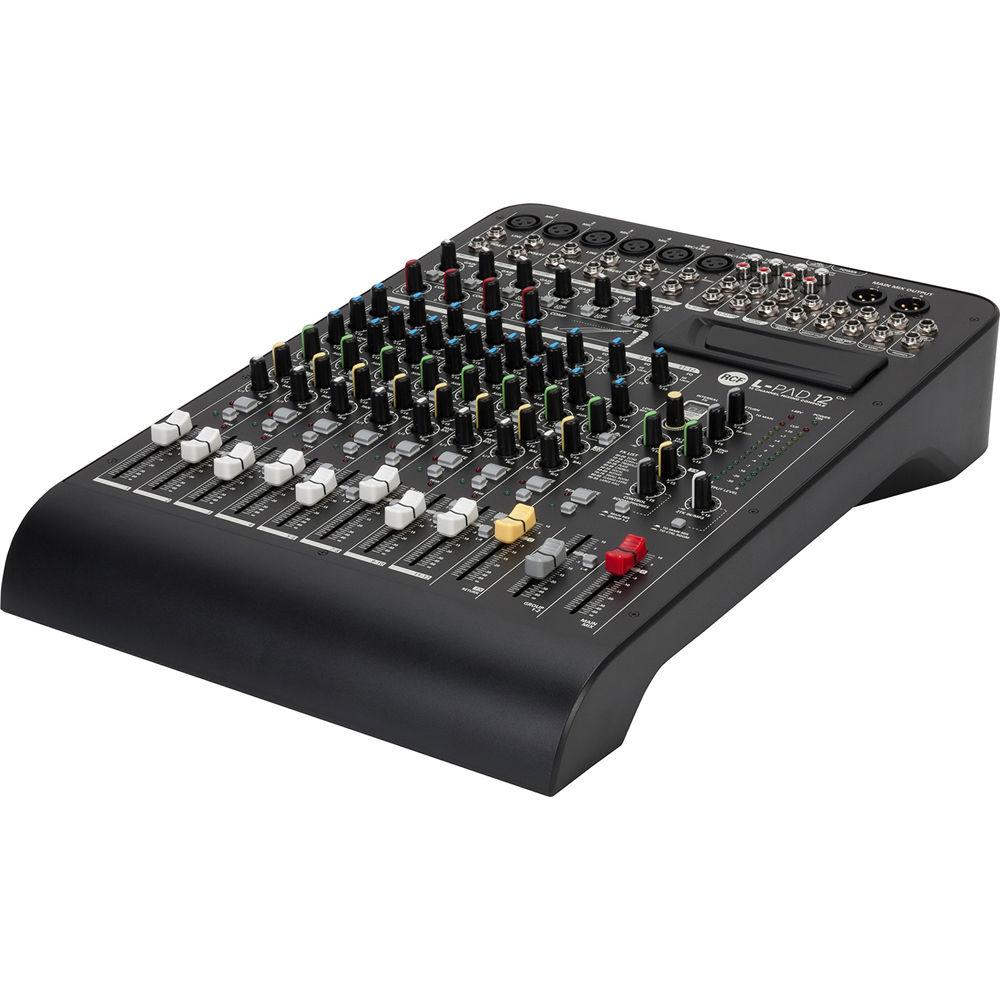

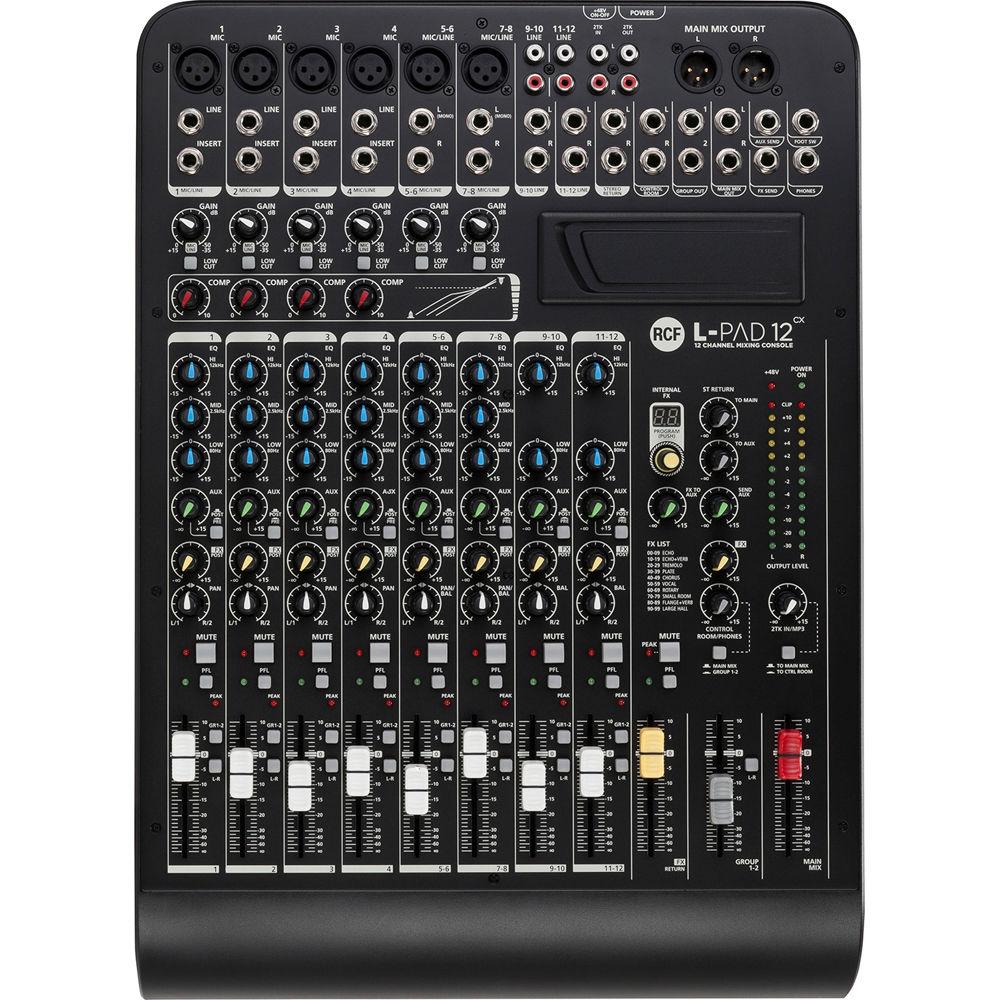

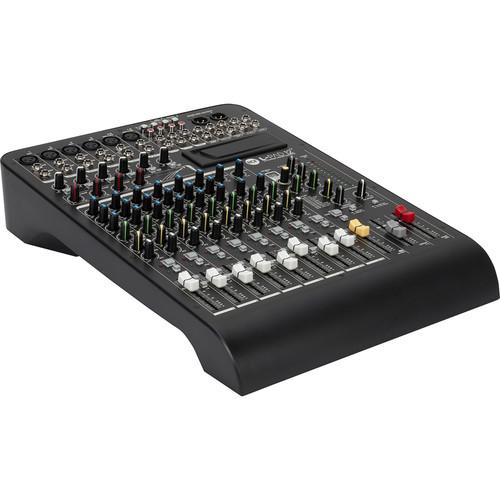

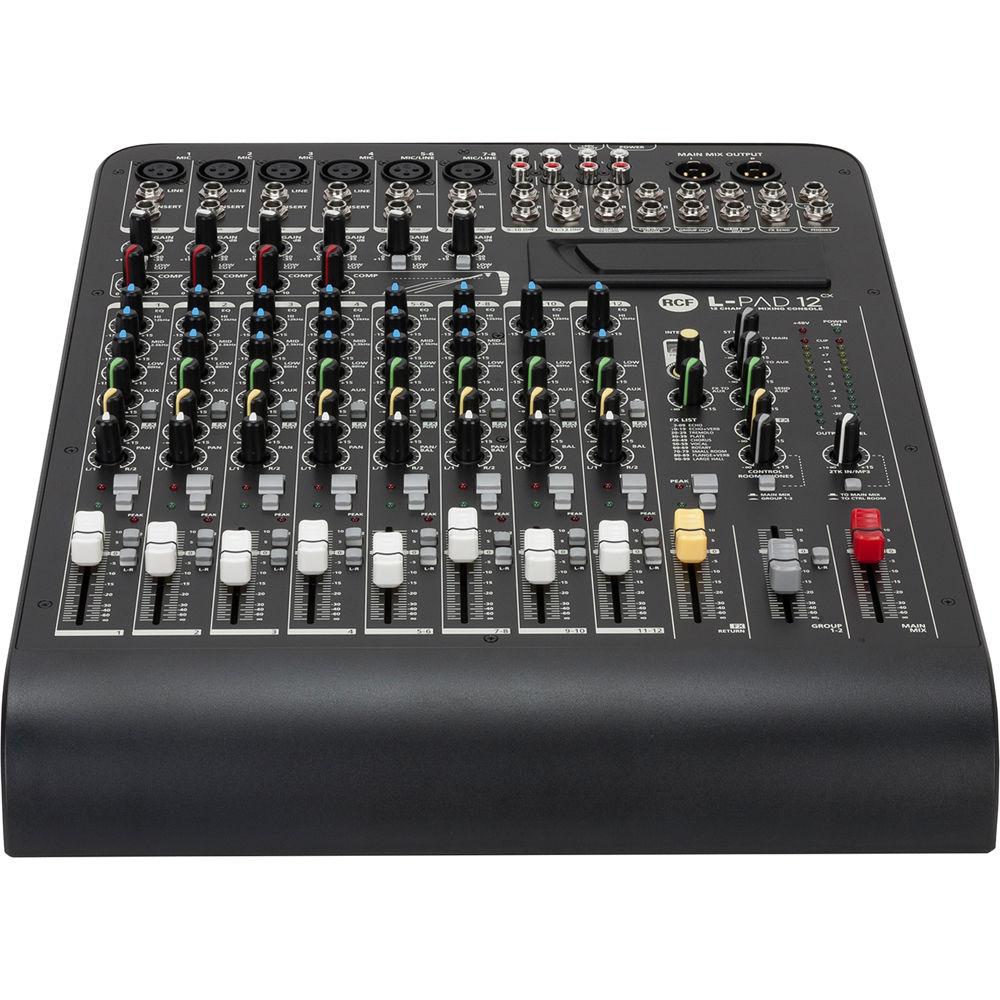

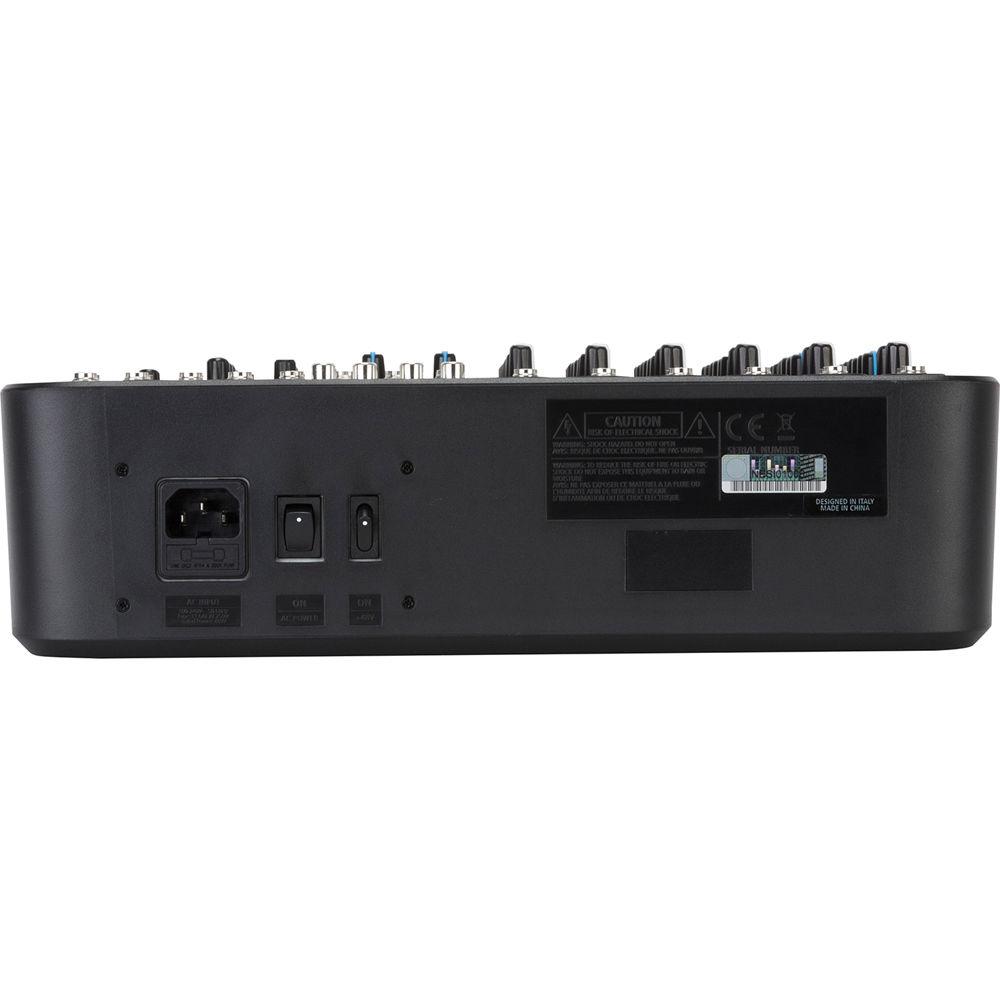

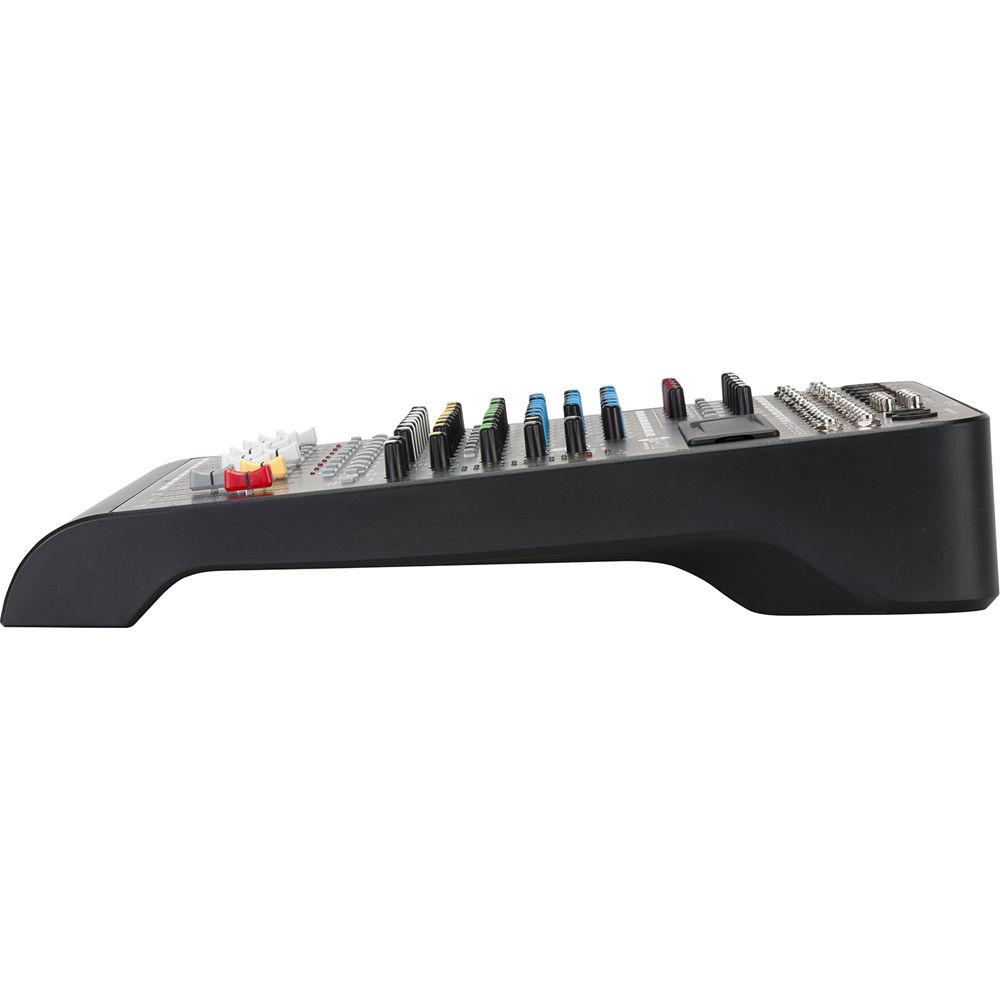

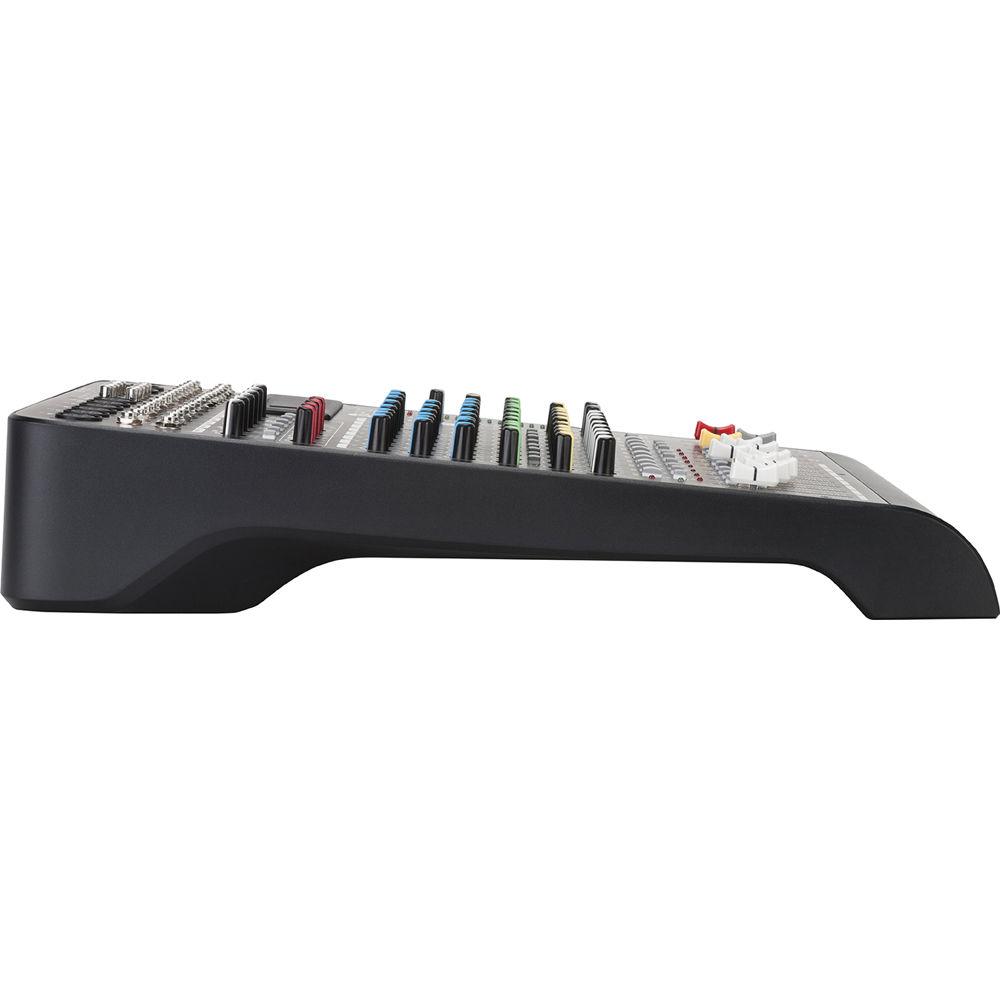

User Manual for RCF L-PAD 12CX 12-Channel Mixing Console with Effects Click to enlarge the picture
Contents of the user manual for the RCF L-PAD 12CX 12-Channel Mixing Console
- Product category: Sound Reinforcement Mixers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Sound Reinforcement Mixers
 |
User manual for the RCF L-PAD 12CX 12-Channel Mixing Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description With six transparent sound mic inputs, four stereo line inputs and the 2-track in/out, the black L-PAD 12CX 12-Channel Mixing Console with Effects from RCF is well suited for small band gigs, complex conference, corporate events and all situations where it is necessary to handle several signals. Four single-control compressors on mic channels help to handle even the more dynamic-complex signals. The 99 preset Internal FX DSP allows the sound to be enhanced by adding accurate and warm effects. When not in use for Internal effects, the FX send and the AUX sends allow small stage control, with the appropriate wedge monitors. - 6 mono inputs + 4 stereo inputs
- 4 compressors (channels 1-4)
- 99 preset internal digital effects
- For use in small bands, conferences, corporate events
- L-PAD slot permits the optional L-PAD MP3 Player, Player/Recorder or Bluetooth cards to be inserted
In the Box RCF L-PAD 12CX 12-Channel Mixing Console with Effects (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF L-PAD 12CX 12-Channel Mixing Console with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF LPAD Specs | | | Frequency Response | 20 Hz to 22 kHz | | Total Harmonic Distortion (THD) + N | 0.03% | | | | Mic | 6 | | Gain Range | 0 to -50 dB | | Low Cut Frequency | 75 Hz | | Phantom Power | +48 V | | # Of Mono Inputs & Type | 4 | | Gain Range | 15 to -35 dB | | Stereo Line Inputs | 4 | | Track Configuration | 2 | | Stereo Return | 1 | | | | Main Mix | 1 | | Control Room Outputs | 1 | | Aux Sends | 1 | | FX Range | 1 | | Groups | Group output: 1 | | Phones | 1 | | Track Configuration | 2 | | | | Control | 4; single control | | | | Bands | MONO channels: 3
+/-15 dB @ 12 kHz shelving, +/-15 dB @ 2.5 kHz, +/-15 dB @ 80 Hz shelving
STEREO channels: 2
+/-15 dB @ 12 kHz shelving, +/-15 dB @ 80 Hz shelving | | | | Auxiliary Sends | AUX: 1 Pre/Post
FX: 1 Post | | | | Power Supply | Internal | | Power Requirements | 100-240 VAC | | Power Consumption | 40 W | | | | Dimensions (W x H x D) | 13.44 x 3.65 x 18.65" (341.4 x 92.8 x 473.6 mm) | | Weight | 8.48 lb (3.85 kg) |
