User Manual for RCF L-PAD 16CX USB 16-Channel Mixing Console with Effects Click to enlarge the picture
Contents of the user manual for the RCF L-PAD 16CX USB 16-Channel Mixing
- Product category: Sound Reinforcement Mixers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Sound Reinforcement Mixers
 |
User manual for the RCF L-PAD 16CX USB 16-Channel Mixing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

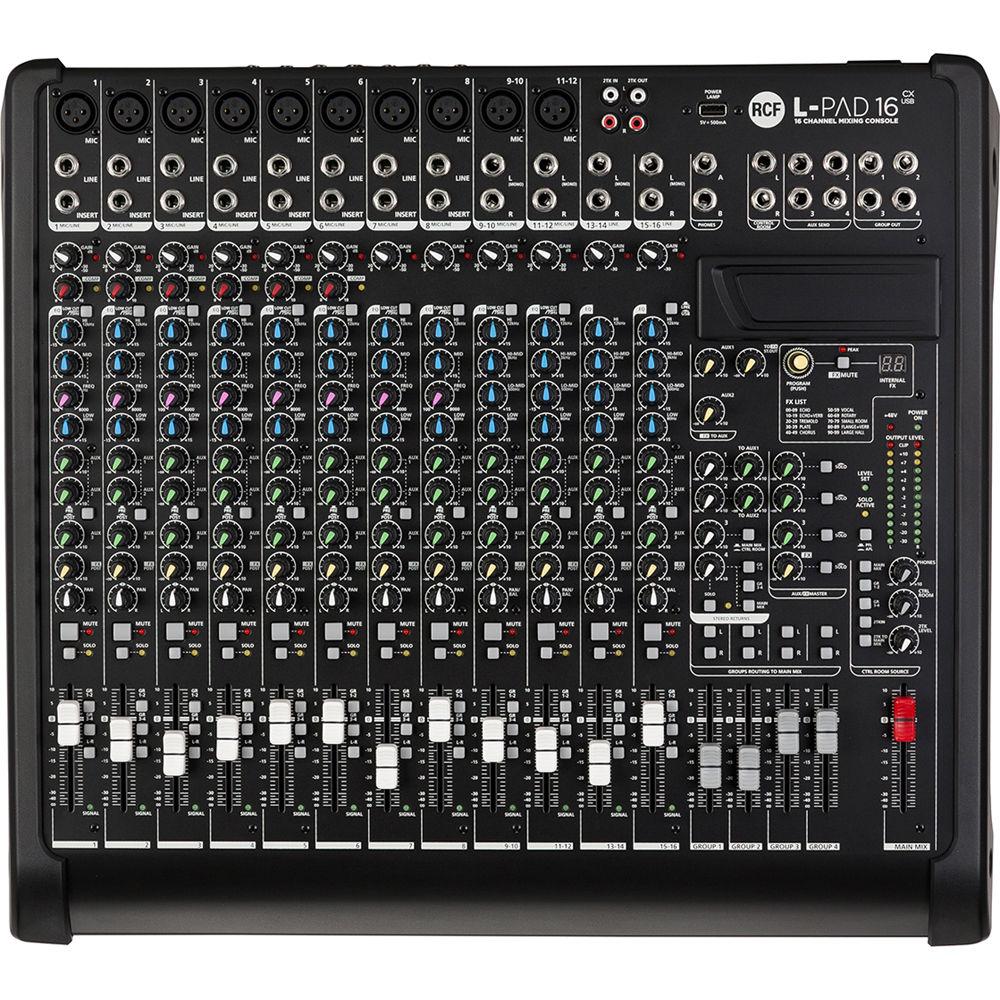

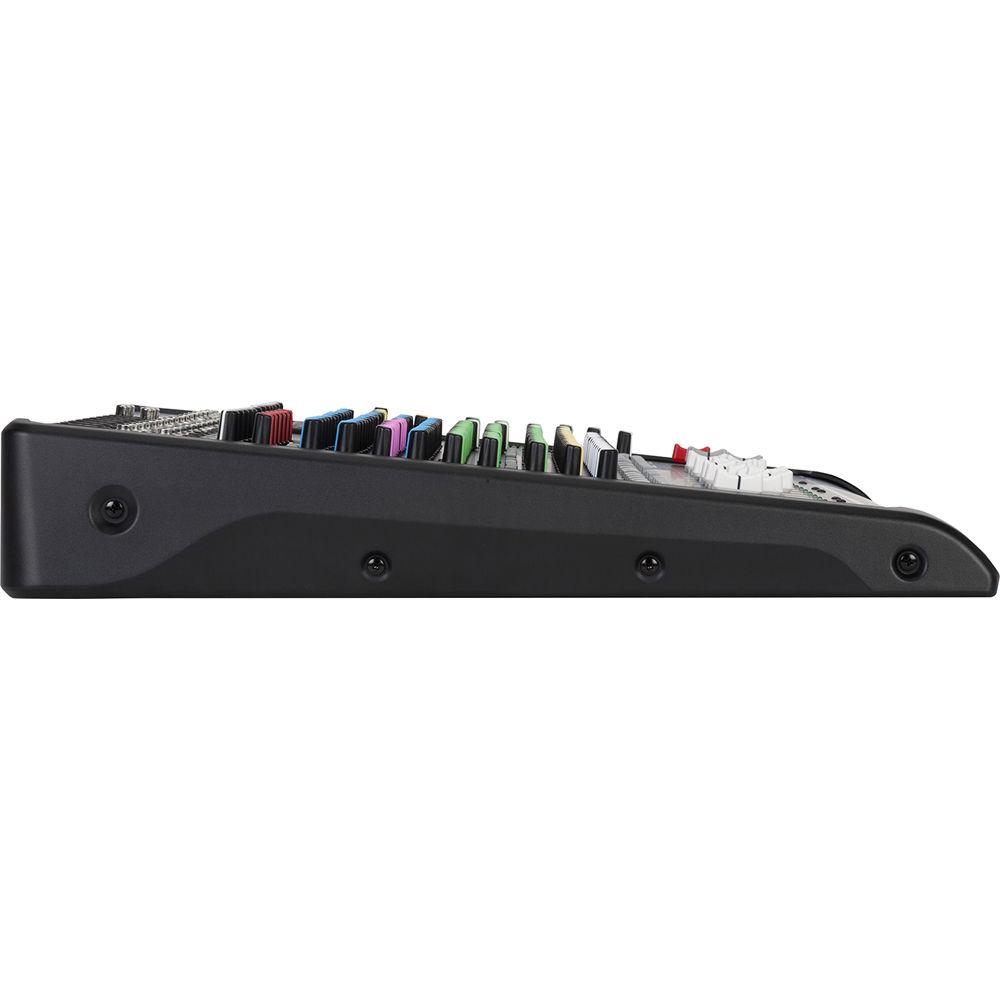

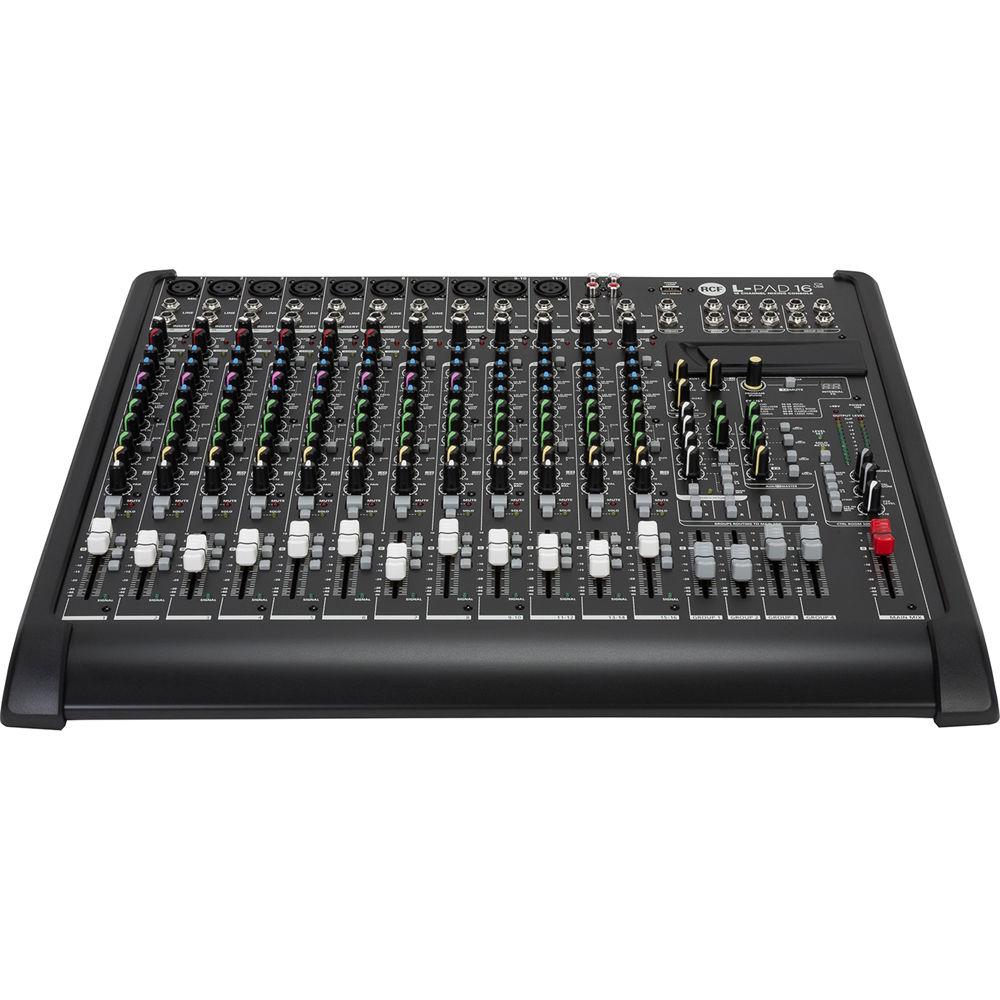

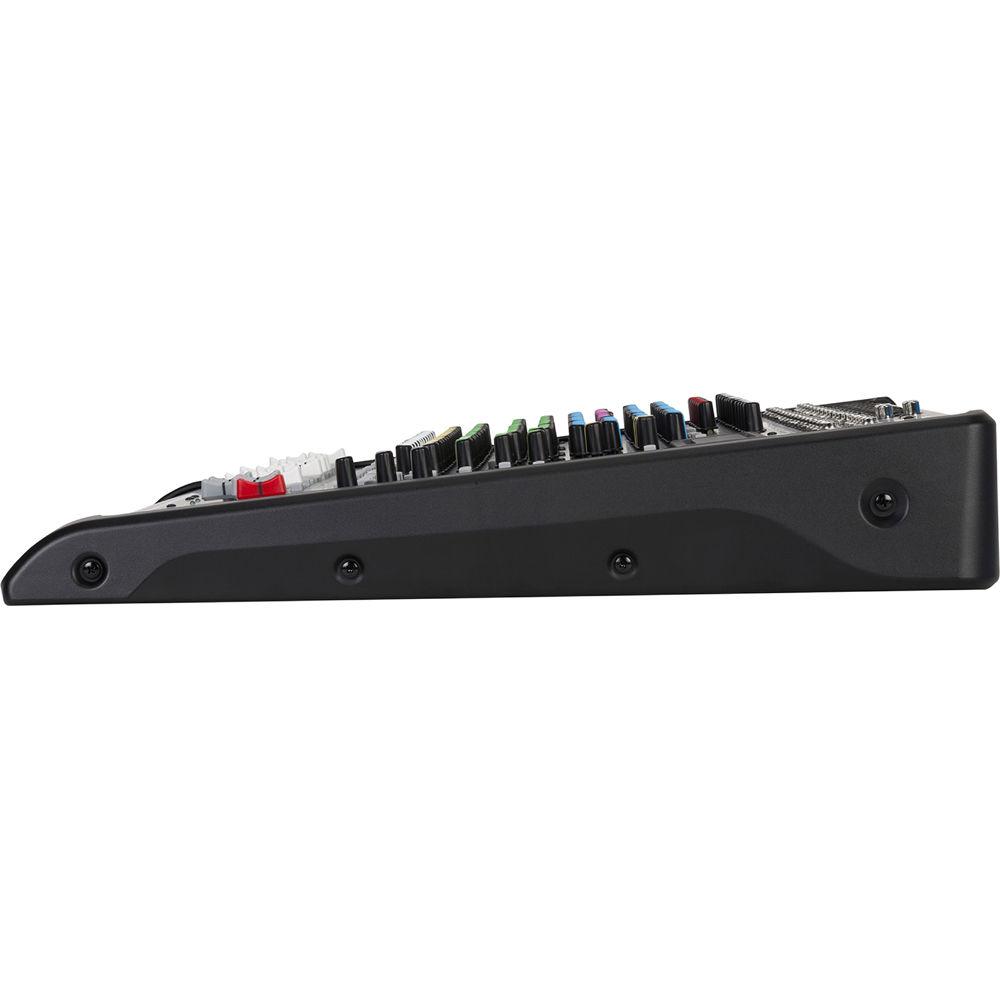

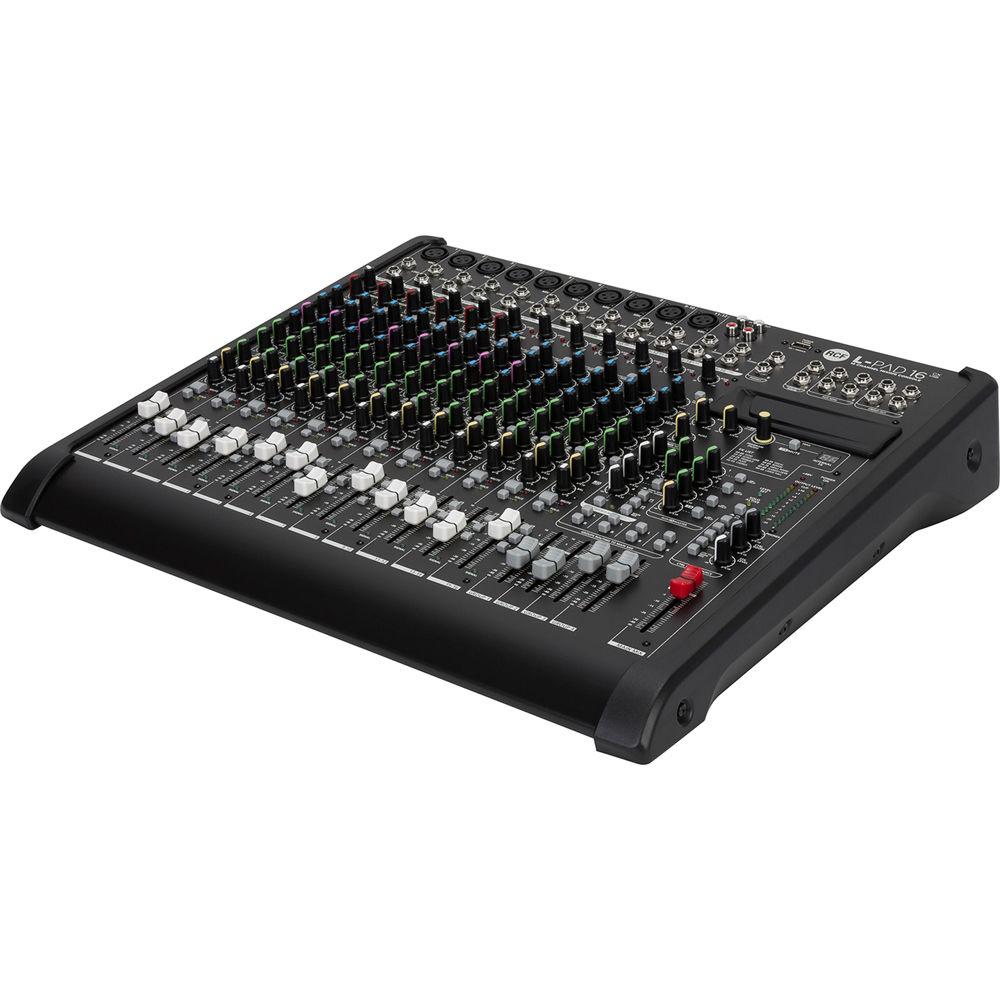

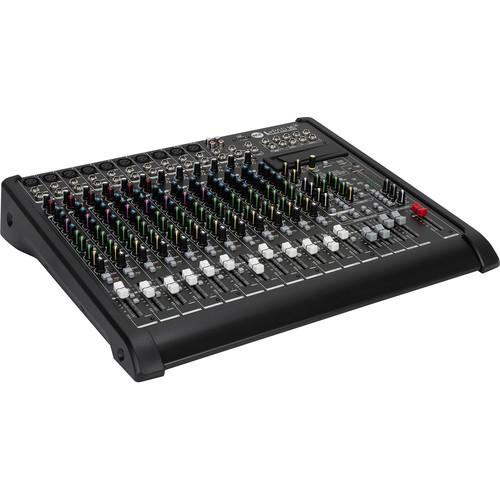

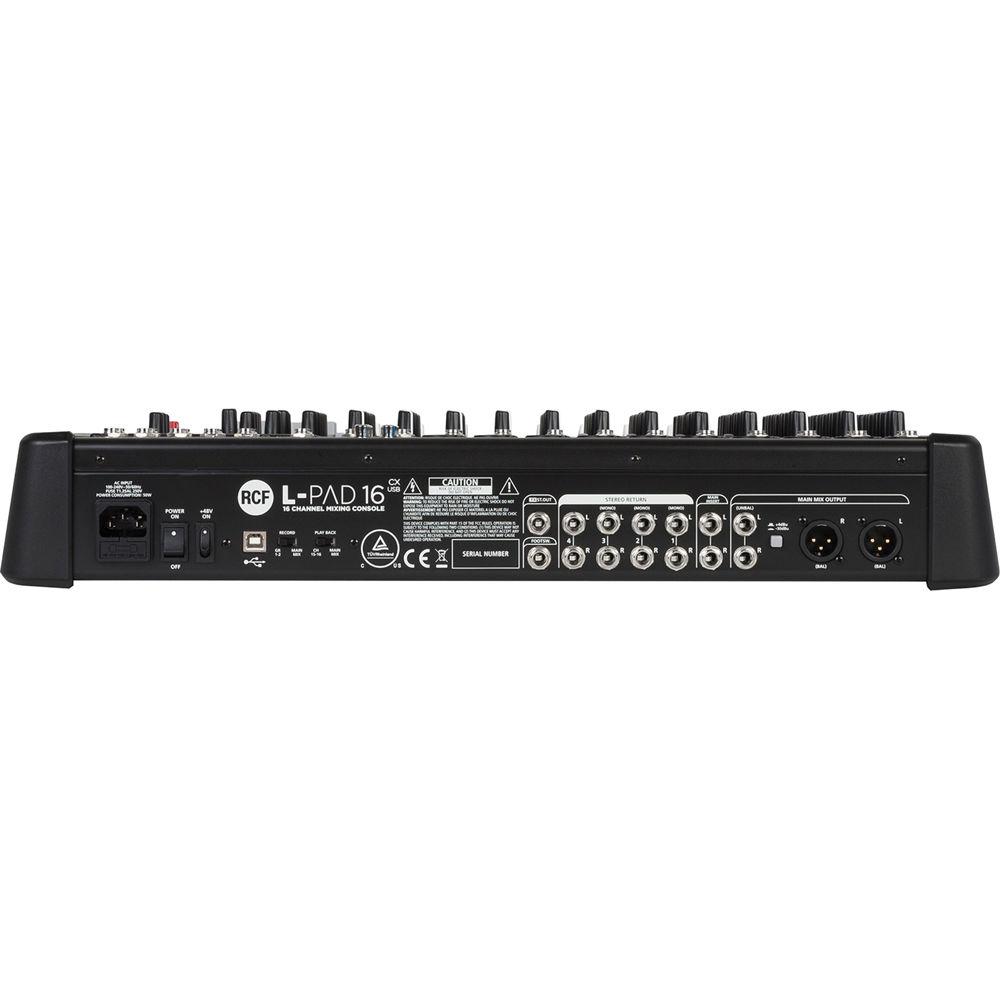

Product description The L-PAD 16CX USB 16-Channel Mixing Console with Effects from RCF is a 16-channel, 4-bus mixer with 10 mic/line inputs, 4 stereo inputs, 4 group outs, EQ, 6 single-control compressors and internal effects, for any live performance reinforcement. It features 10 transparent sound ultralow noise microphone inputs with balanced XLR connector, or alternatively 8 mono line inputs with insert send/return, a three-band EQ with a sweepable mid frequency on 8 channels, 4 channels of stereo inputs with 4-band fixed EQs, and 4-group assignable sub mixes, 60mm long-live extra smooth faders and four AUX sends per channel (2 Pre/Post switchable pots). The L-PAD 16CX USB gives you the all the features you need to mix any live performance, reinforcement, bands, conferences, or music events. - 10 mic/line inputs, 4 stereo inputs
- 6 single-control dynamic compressors (Channels 1-8)
- 3-band EQ with sweepable MID Frequency on microphone channels
- 4-band fixed EQ on stereo line channels
- 4 Aux sends per channel: 2 pre/post faders switchable
- 24-bit DSP effects for 99 presets
- USB port for PC audio recording and playback
- For use in live performance, reinforcement, bands, conferences, or music events
In the Box RCF L-PAD 16CX USB 16-Channel Mixing Console with Effects (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF L-PAD 16CX USB 16-Channel Mixing Console with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF LPAD Specs | | | Frequency Response | 20 Hz to 20 kHz | | Total Harmonic Distortion (THD) + N | 0.03% | | | | Mic | 10 | | Gain Range | 0 to -50 dB | | Low Cut Frequency | 75 Hz | | Phantom Power | +48 V | | # Of Mono Inputs & Type | 8 | | Gain Range | 20 to -30 dB | | Stereo Line Inputs | 4 | | Track Configuration | 2 | | Stereo Return | 4 | | | | Main Mix | 1 | | Control Room Outputs | 1 | | Aux Sends | 4 | | FX Range | 1 | | Groups | Group output: 4 | | Phones | 2 | | Track Configuration | 2 | | | | Control | 6; single control | | | | Bands | MONO channels: 3
Sweepable mid frequency 100 Hz - 8 kHz
STEREO channels: 4
+/-15 dB @ 12 kHz - Shelving, +/-15 dB @ 3 kHz, +/-15 dB @ 500 Hz, +/-15 dB @ 80 Hz - shelving | | | | Auxiliary Sends | AUX: 2 Pre/Post, 1 + 1 FX Post
FX: 1 Post | | | | Tracks | Play track: 2
Rec track: 2 | | | | Power Supply | Internal | | Power Requirements | 100-240 VAC, 50 - 60 Hz | | Power Consumption | 50 W | | | | Dimensions (W x H x D) | 20.27 x 3.34 x 18.11" (515 x 85 x 460 mm) | | Weight | 15.36 lb (6.97 kg) | | | | Box Dimensions (LxWxH) | 24.0 x 22.0 x 6.0" |
