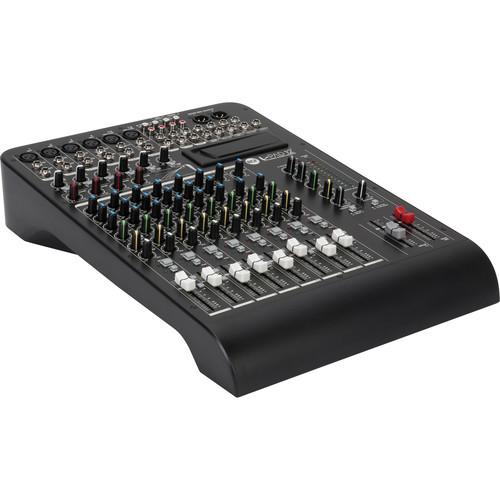

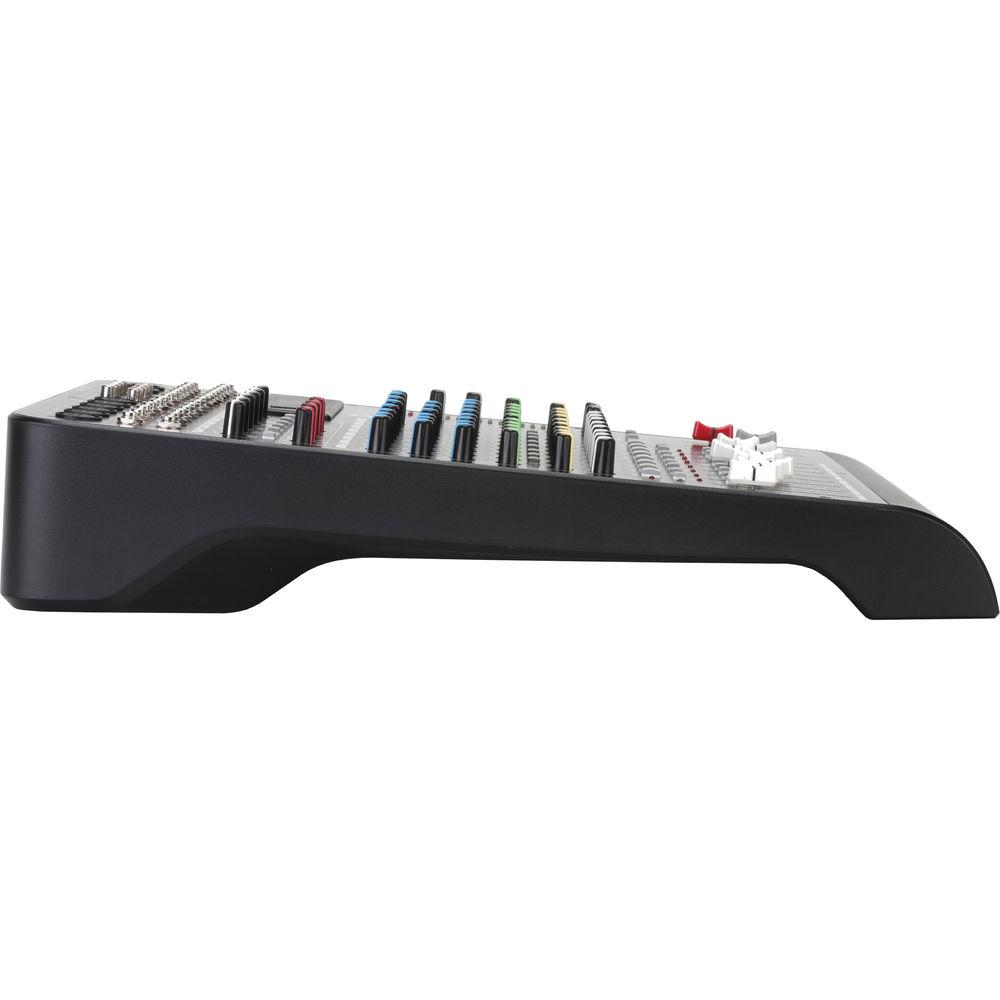

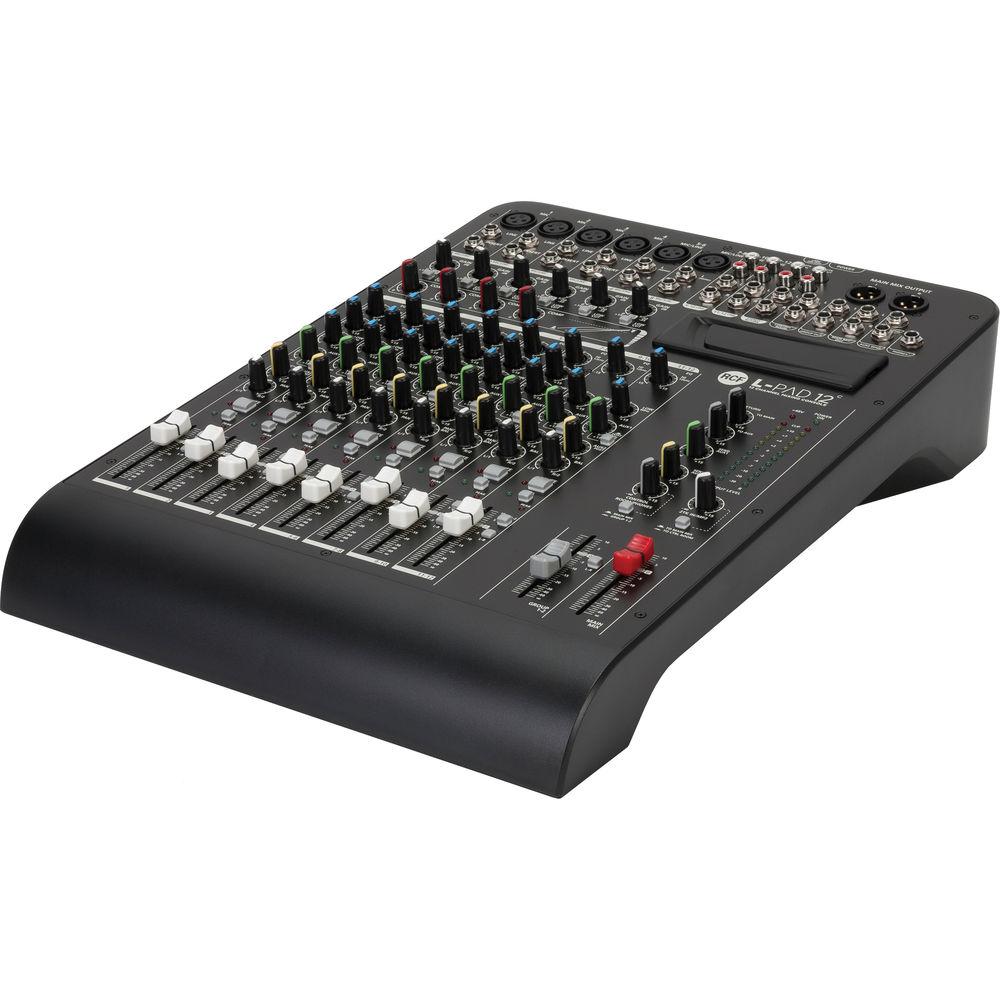

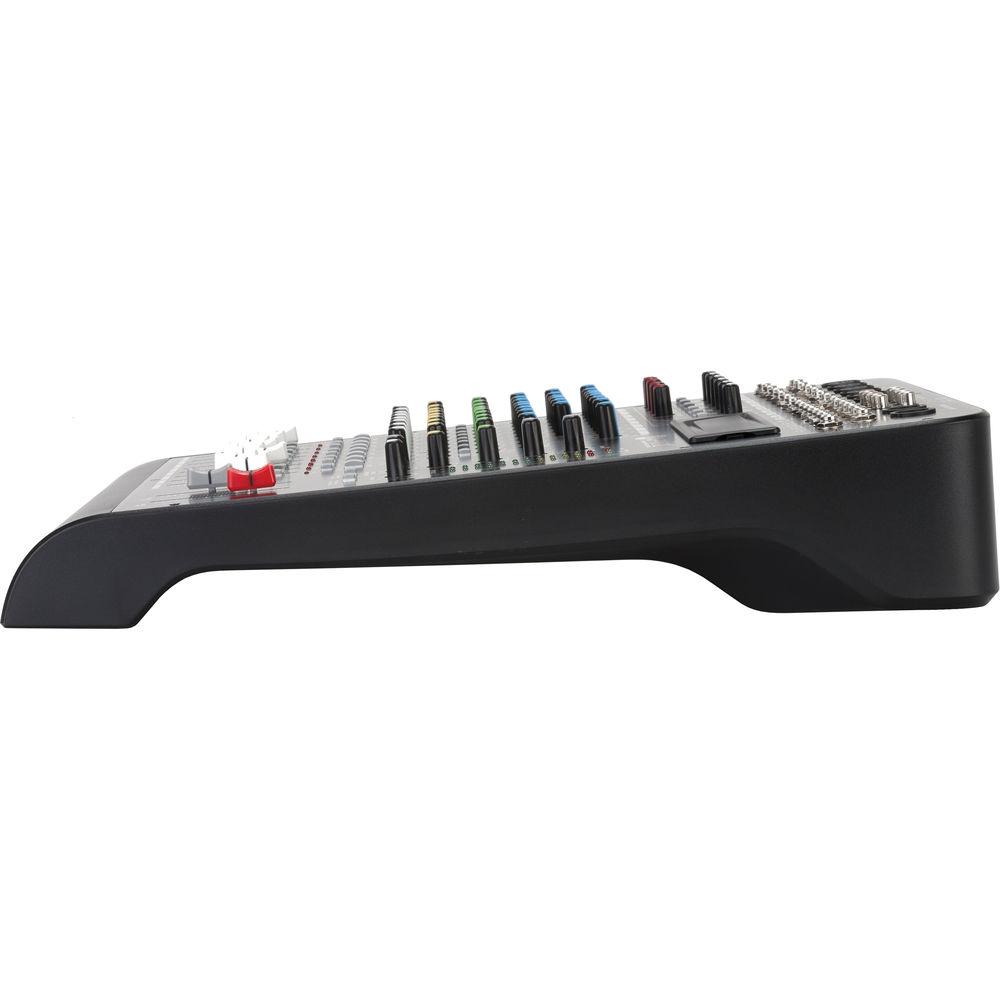

Product description The L-PAD L-PAD 12C 12-Channel Mixing Console from RCF is a big on features, compact, audio mixer designed to offer the user enhanced flexibility. RCF Italian engineering has created this mixing tool designed specifically for live audio applications - from the performance of a Rock band or a Jazz quartet, to supporting a conference room or a media center, and almost anything in between.

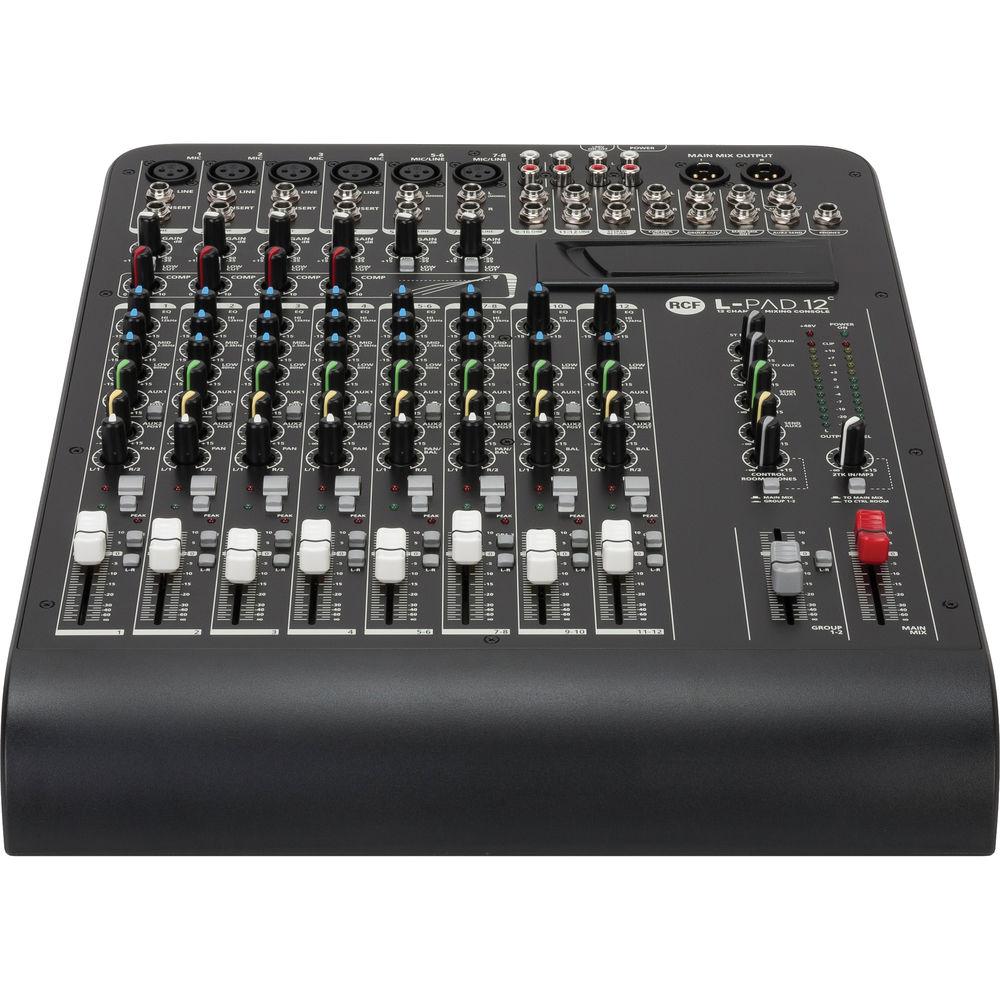

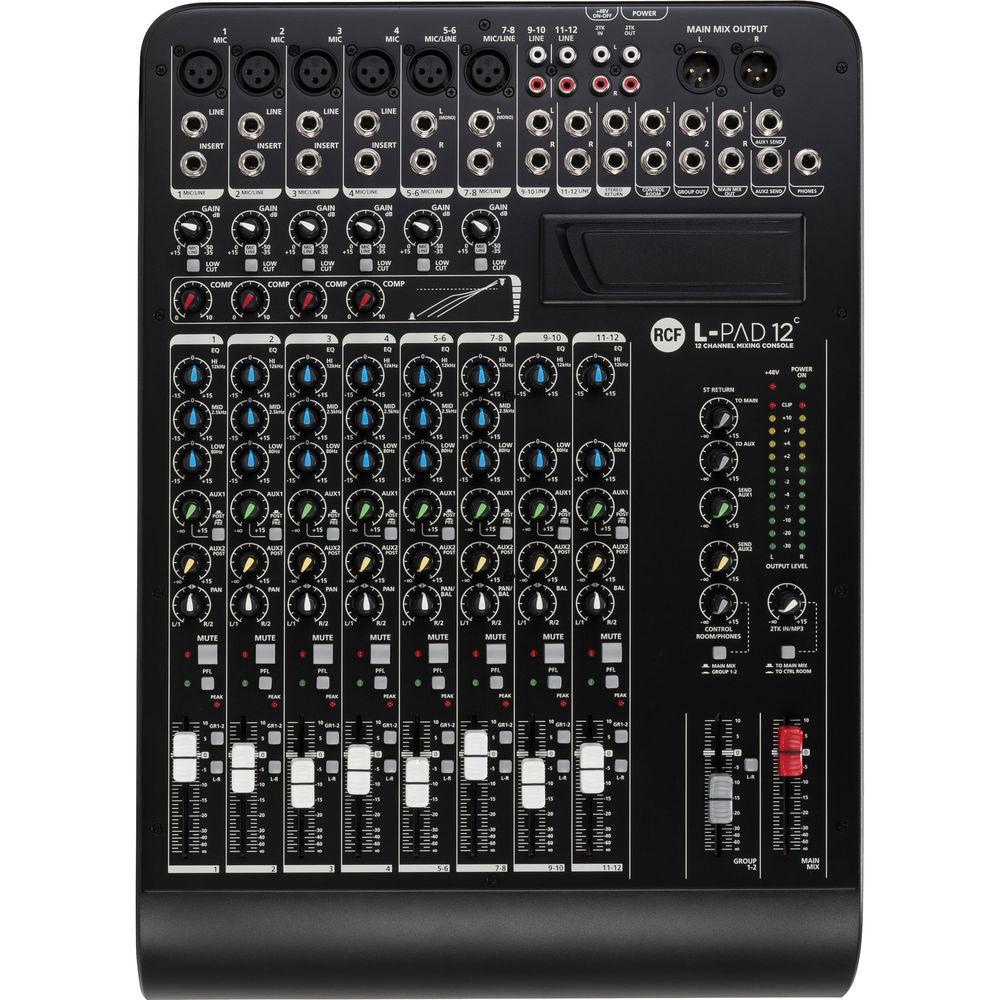

The L-PAD 12C mixer features 60 mm linear faders, and includes six microphone inputs, each with low, mid and high equalization, four stereo line inputs, with two bands of EQ on each, and a 2-track in and out section with RCA connectors. The AUX sends allow small stage control, with the appropriate wedge monitors. There's even phantom mic powering. Additionally, four single-control compressors on mic channels 1 through 4 help with the handling of dynamics and complex sonic signals.
The L-PAD 12C also features a very versatile L-PAD slot where an optional L-PAD card can be installed to play your favorite music generating device, such as an MP3 player or recorder or Bluetooth device using one of RCF's many connection cards. These will surely expand your repertoire, allowing you to connect with your devices to reproduce your favorite playlist.
This setup is designed to work well for duo / trio groups, speech, background music, and parties. All of this in a small, easy-to-carry and handle unit.

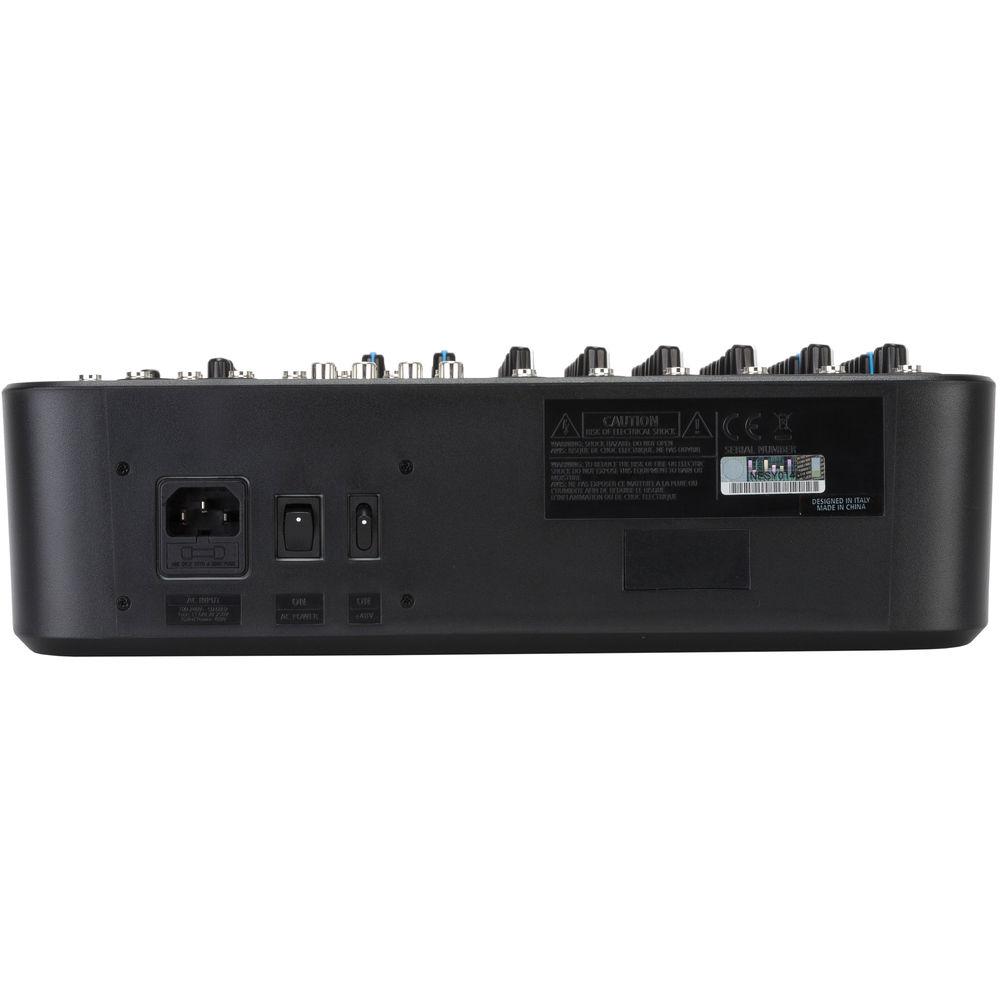

The L-PAD 12C can be powered by 100 to 240 VAC, at 50 to 60 Hz, and is rack mountable with the optionally purchased rack ears. - Compact with lots of features
- Switchable phantom powering
- 3-Band EQ on mic channels
- 2-Band EQ on stereo input channels
- 4 Mic channels of single control dynamic compression
- L-PAD Slot allows you to use optional L-PAD cards to use your favorite smart device to play your favorite playlists
Cards include:
MP3 player
MP3 player/recorder
Bluetooth - Balanced / unbalanced Inputs and Outputs
- Optional rackmount available as an additional purchase
In the Box RCF L-PAD L-PAD 12C 12-Channel Mixing Console Limited 2-Year Warranty, Extends to 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF L-PAD L-PAD 12C 12-Channel Mixing Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF LIVEPAD 12C Specs | Mic/Line Inputs | 6 x XLR, balanced
Frequency response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD + N): <0.03% @ +0 dB, 22 Hz to 22 kHz, A-weighted
Gain range: 0 to -50 dB
Max input: +15 dB
Low cut: 75 Hz
SNR: < -100 dBr, A-weighted
Phantom power: +48 V with switch control
Compressors: 4, On channels 1 through 4
Gain: 0 to 9 dB
Threshold: 20 to 5 dB | | Line Inputs | 4 x Pair, 1/4" TRS, balanced
Frequency response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD + N): < 0.03% @ +0 dB, 22 Hz to 22 kHz, A-weighted
Sensitivity range: +15 to -35 dB | | Stereo Input Channels | Mic input: XLR, balanced
Low cut: 75 Hz
Line in/out: 1/4" TRS or TRS / RCA, unbalanced
Frequency response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD + N): < 0.03% @ +0 dB, 22 Hz to 22 kHz, A-weighted
Sensitivity range: +15 to 35 dBu
SNR: < -100 dBr, A-weighted | | Mono Channel Input EQ | High: +/-15 dB @ 12 kHz
Mid: +/-15 dB @ 2.5 kHz
Low: +/-15 dB @ 80 Hz | | Stereo Input Channel Equalization | High: +/-15 dB @ 12 kHz
Low: +/-15 dB @ 80 Hz | | Stereo Return | Input: 1/4" TRS, unbalanced
Frequency response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD + N): < 0.03% @ +0 dB, 22 Hz to 22 kHz, A-weighted
Gain Range: OFF to +15 dB
SNR: < -100 dBr, A-weighted | | Two-Track In | Tape inputs: RCA jack
Frequency response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD + N): < 0.03% @ +0 dB, 22 Hz to 22 kHz, A-weighted
Gain Range: OFF to + 15 dB | | Input Impedances | Microphone: 1.8 kOhms
All other: 10 kOhms or greater | | Output Impedances | Tape out: 1 kOhms
All other: 120 Ohms | | DSP Section | None available | | Main Mix | Max. Main Mix output: +22 dBu XLR balanced (16 dBu unbalanced)
Aux range: OFF to +15 dB
Fader range: OFF to +15 dB
Phones/Control Room range: OFF to +15 dB
Hum & Noise: < -80 dB @ 20 Hz to 22 kHz, A-weighted, 1 channel & MAIN level: 0 dB, other channels: minimum
Crosstalk: < -80 dB @ 20 Hz to 22 kHz, A-weighted, 1 channel & MAIN level: 0 dB, other channels: minimum | | Power Supply | 100 to 240 VAC, 50 to 60 Hz
Fuse: T1.6AL AC250V
Power consumption: 40 W | | Dimensions (L x W x H) | 18.9 x 13.4 x 3.9" (480 x 340 x 100 mm) | | Weight | 8.8 lb (3.85 kg) |
