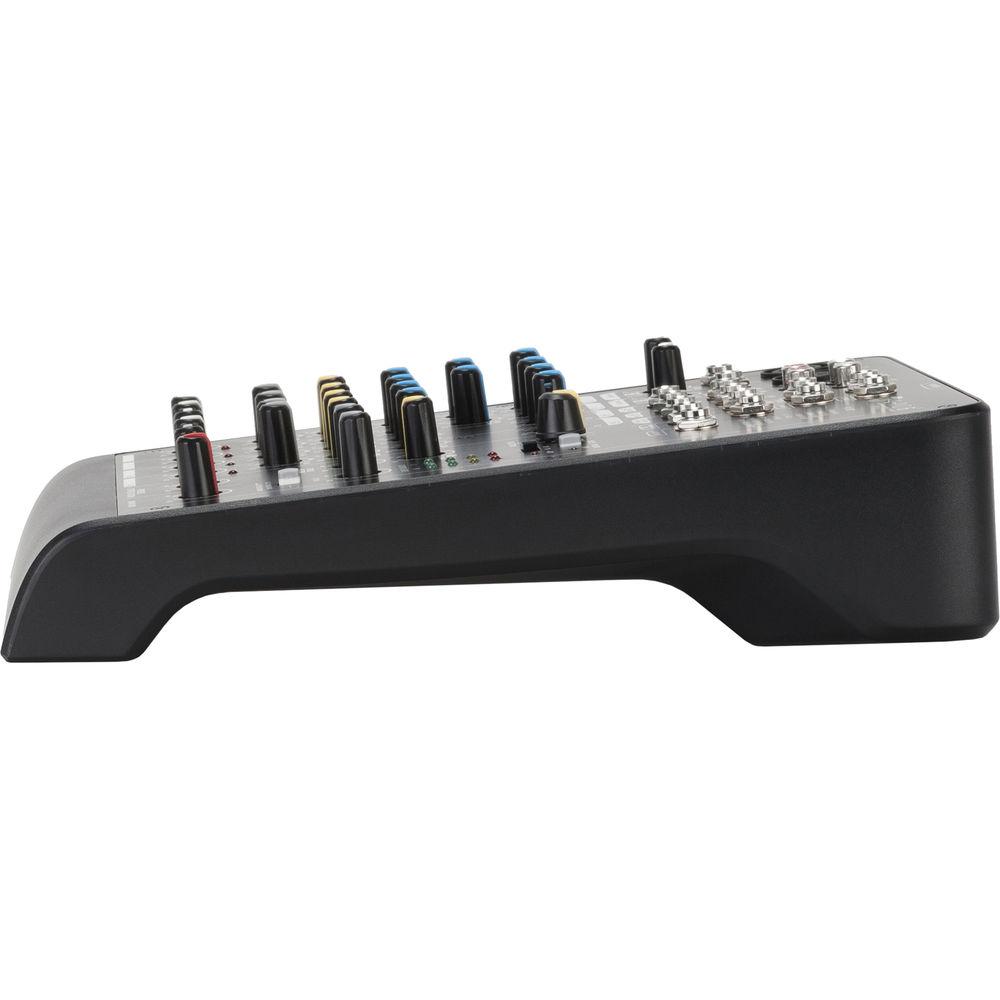

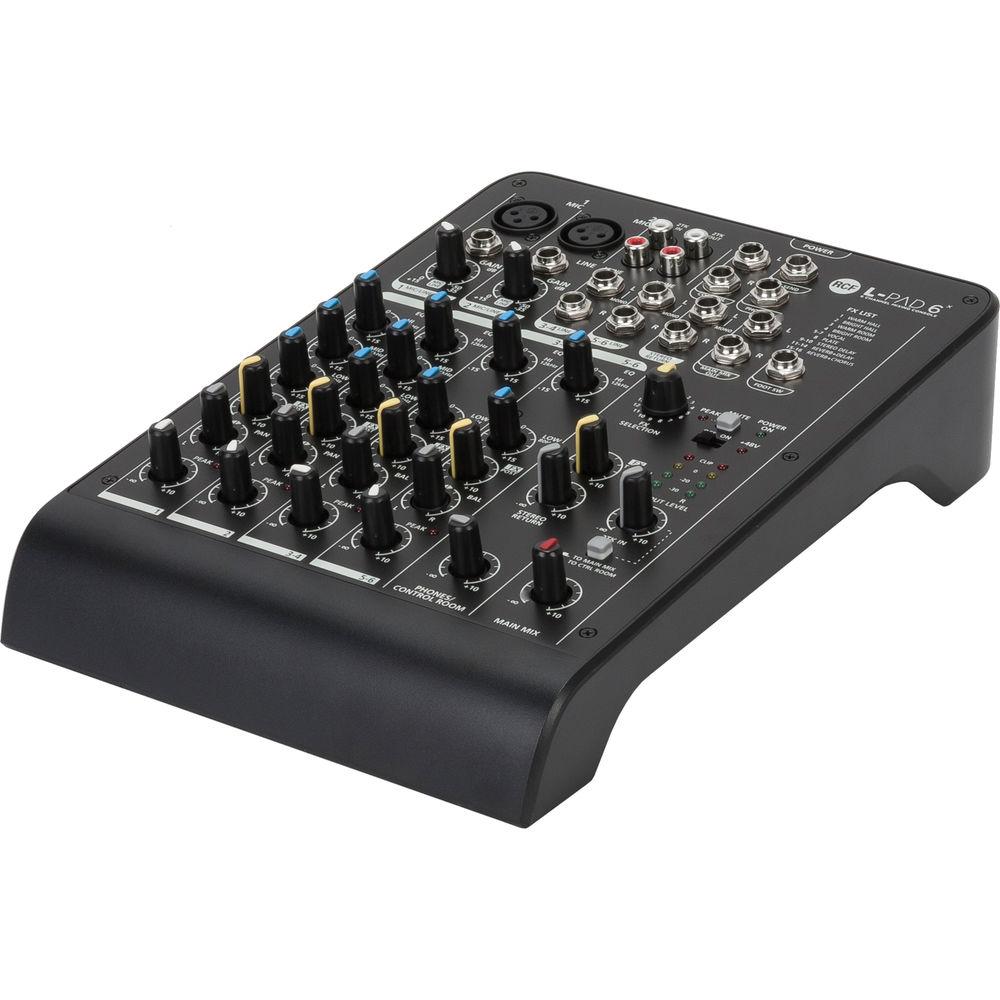

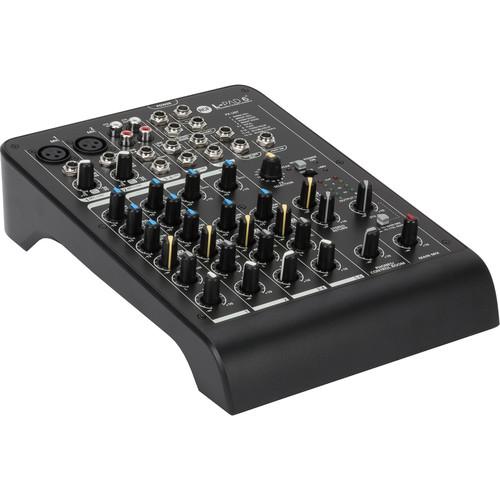

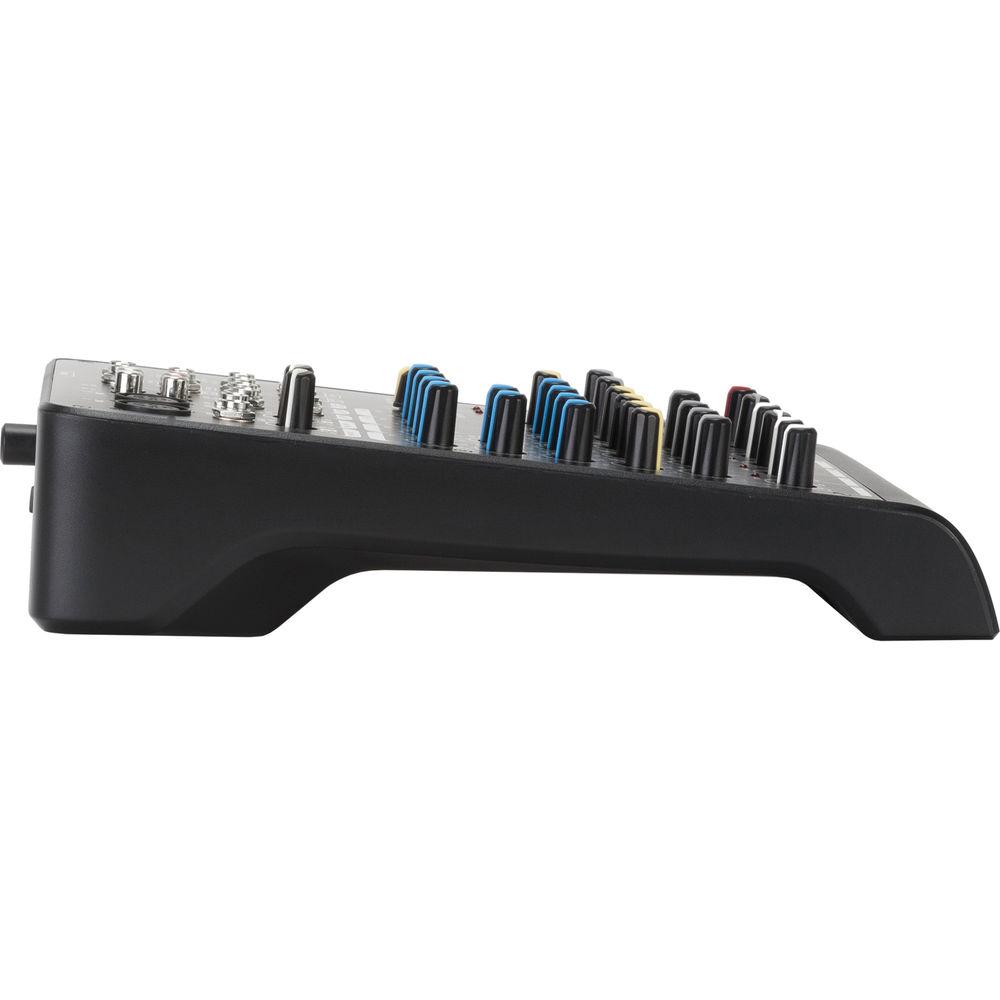

Product description The LIVEPAD L-PAD 6X 6-Channel Mixing Console with Effects from RCF is a compact audio mixer designed to offer the user enhanced flexibility. RCF Italian engineering has created this mixing tool designed specifically for live audio applications - from the performance of a Rock band or a Jazz quartet, to supporting a conference room or a media center, and almost anything in between.

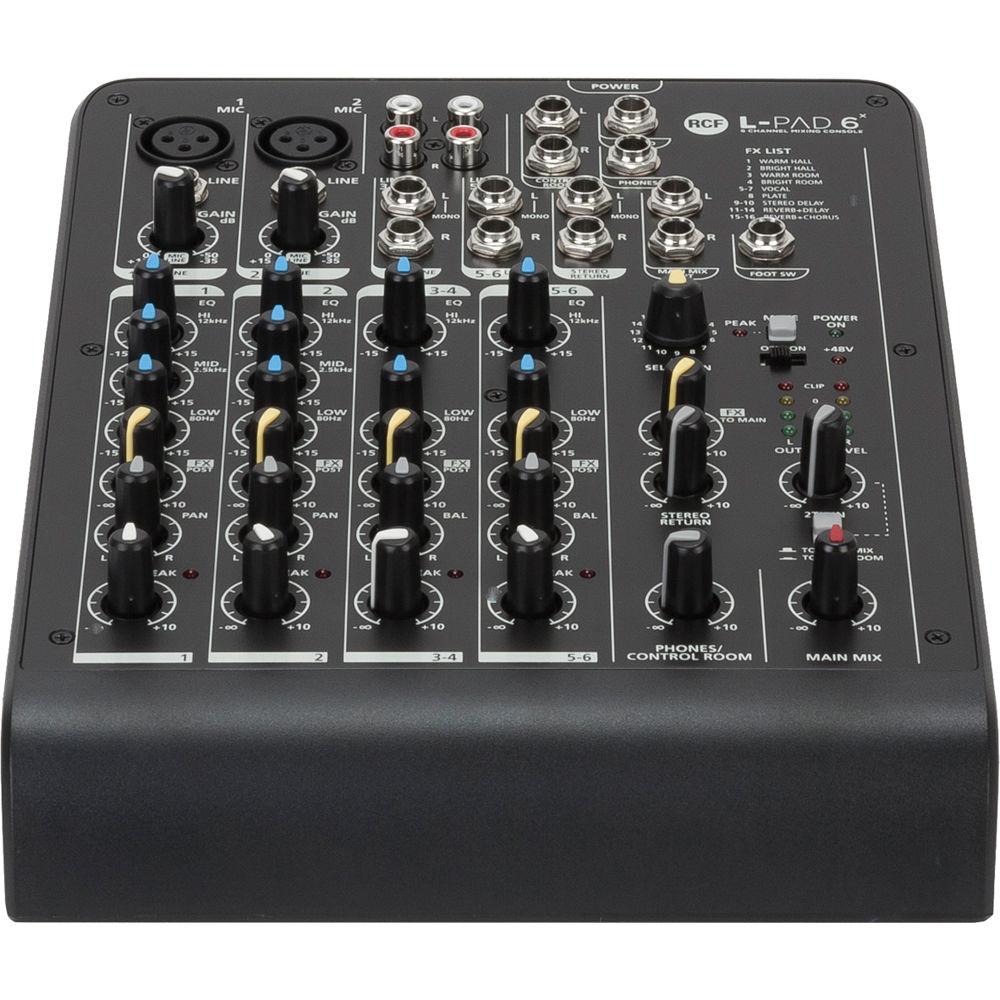

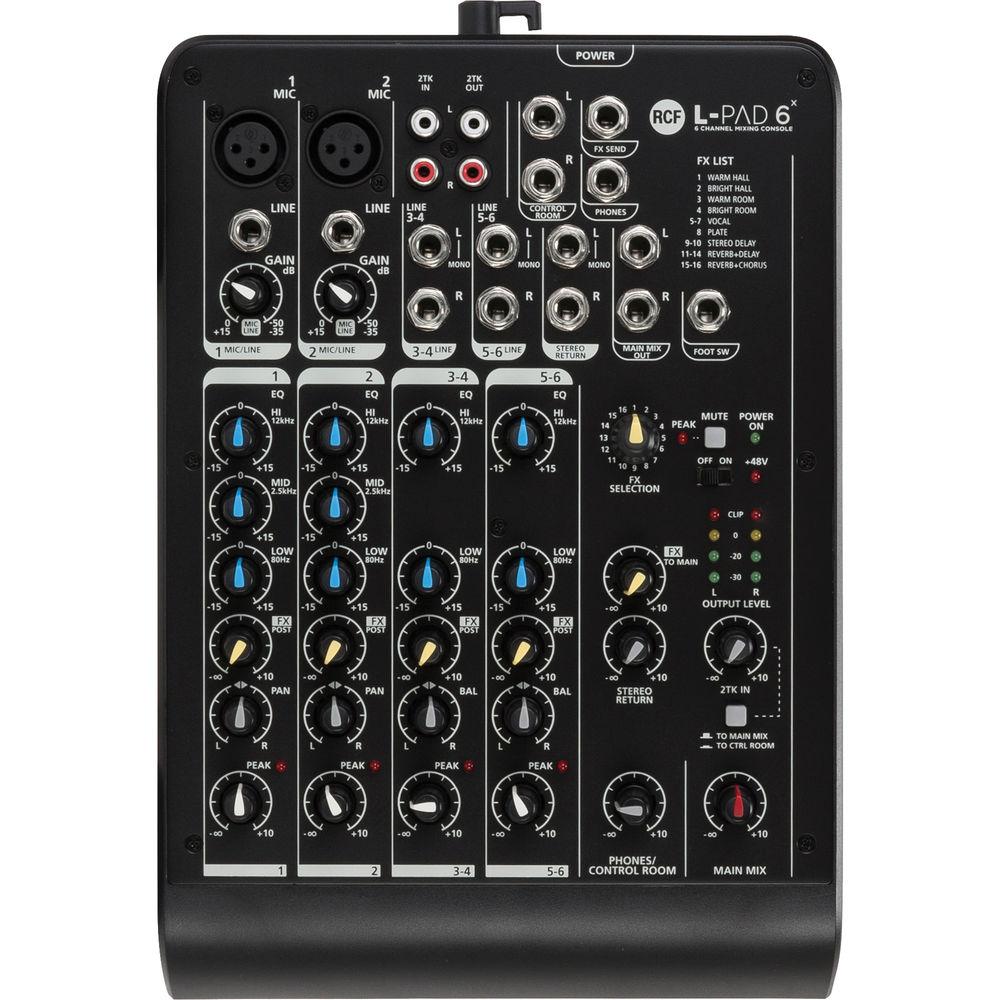

The L-PAD 6X mixer includes two mic inputs, each with low, mid and high equalization, two stereo line inputs, with two bands of EQ, and a 2-track in and out section with RCA connectors. There's even aux send circuitry and phantom mic powering. The 6X mixer includes a powerful internal DSP effects processor. The 16-preset selector allows you to choose between several effects.

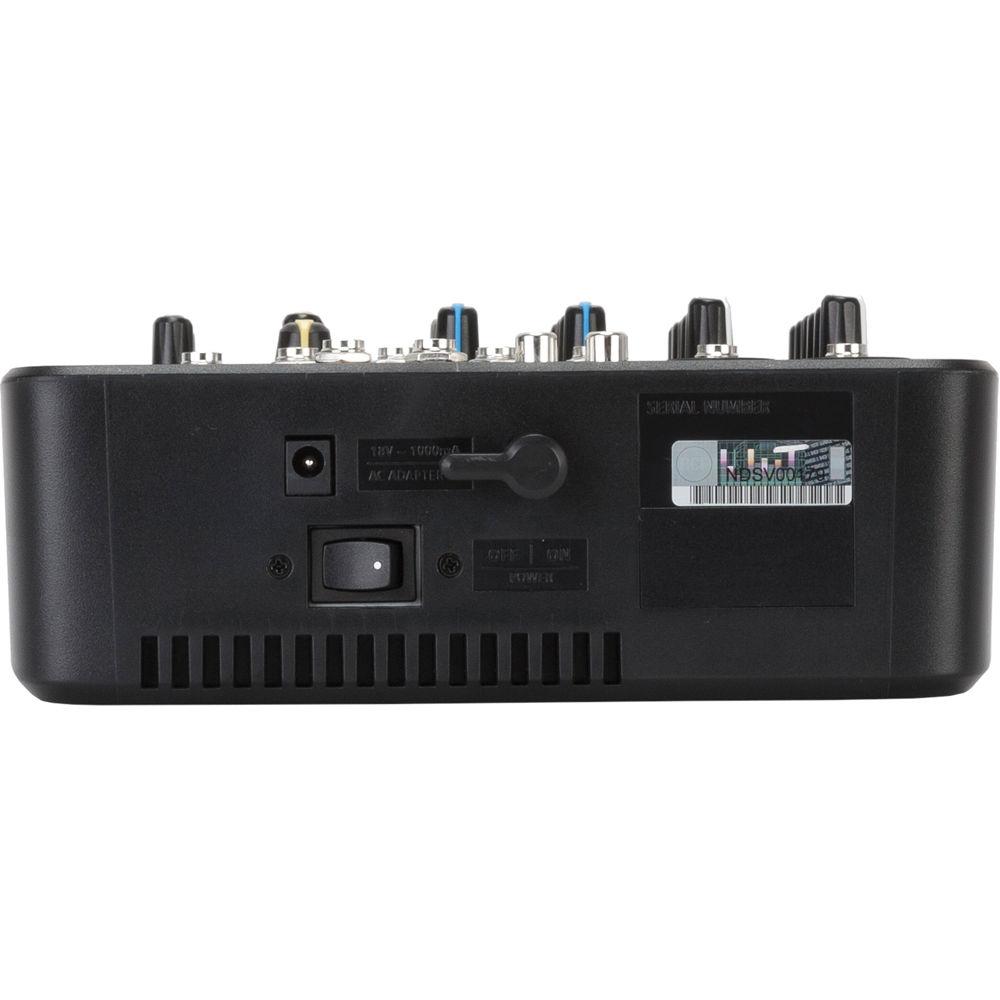

This setup is designed to work well for one man bands, speech, background music, DJs, and parties. All of this in a small, easy-to-carry unit. It's even possible to install the LIVEPAD on a mic stand with the optional dedicated accessories (sold separately). The L-PAD 6X is powered by an included, external PSU 18V, 1000 mA power supply. - Compact with lots of features
- Switchable phantom powering
- 3-Band EQ on mic channels
- 2-Band EQ on stereo input channels
- Balanced / unbalanced Inputs and Outputs
In the Box RCF LIVEPAD L-PAD 6X 6-Channel Mixing Console with Effects Power Supply Adapter: 18 VAC, 1000mA Limited 2-Year Warranty, Extends To 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF LIVEPAD L-PAD 6X 6-Channel Mixing Console with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF LIVEPAD 6X Specs | Mic/Line Inputs | 2 x XLR, balanced
Frequency response: 10 Hz to 55 kHz, +/-3 dB
Distortion (THD + N): <0.03% @ +0 dB, 22 Hz to 22 kHz, A-weighted
Gain range: 0 to -50 dB
Max input: +15 dB
SNR: <-100 dBr, A-weighted
Phantom power: +48 V with switch control | | Line Inputs | 1/4" TRS, balanced
Frequency response: 10 Hz to 55 kHz, +/-3 dB
Distortion (THD + N): <0.03% @ +0 dB, 22 Hz to 22 kHz, A-weighted
Sensitivity range: +15 to -35 dB | | Stereo Input Channels | 2 x Pair, 1/4" TRS, unbalanced
Frequency response: 10 Hz to 55 kHz, +/-3 dB
Distortion (THD + N): <0.03% @ +0 dB, 22 Hz to 22 kHz, A-weighted
Sensitivity range: +22 dB
SNR: <-100 dBr, A-weighted | | Mono Channel Input EQ | High: +/-15 dB @ 12 kHz
Mid: +/-15 dB @ 2.5 kHz
Low: +/-15 dB @ 80 Hz | | Stereo Input Channel Equalization | High: +/-15 dB @ 12 kHz
Low: +/-15 dB @ 80 Hz | | Two-Track In | Tape Inputs: RCA jack
Frequency response: 10 Hz to 55 kHz, +/-3 dB
Distortion (THD + N): <0.03% at +0 dB, 22 Hz to 22 kHz, A-weighted
Gain Range: OFF to +10 dB | | Stereo Return | Input: 1/4" TRS, unbalanced
Frequency response: 10 Hz to 55 kHz, +/-3 dB
Distortion (THD + N): <0.03% at +0 dB, 22 Hz to 22 kHz, A-weighted
Gain Range: OFF to +10 dB
SNR: <-100 dBr, A-weighted | | Input Impedances | Microphone: 3.6 kOhms
All other: 10 kOhms or greater | | Output Impedances | Tape out: 1 kOhms
All other: 120 Ohms | | DSP Section | A/D and D/A converters: 24-bit
Type of effects:
Warm hall
Bright hall
Warm room
Bright room
Vocal
Plate
Stereo delay
Rev+delay
Rev+chorus
Controls: 16-Position preset selector
Mute switching & foot switching with LED indicator | | Main Mix | Max. Main Mix output: +22 dBu, unbalanced
Aux range: OFF to +10 dB
Fader range: OFF to +10 dB
Phones/Control Room range: OFF to +10 dB
Hum & Noise: <-80 dB @ 20 Hz to 22 kHz, A-weighted, 1 channel & MAIN level: 0 dB, other channels: minimum
Crosstalk: <-80 dB @ 20 Hz to 22 kHz, A-weighted, 1 channel & MAIN level: 0 dB, other channels: minimum | | Power Supply | AC adapter, 18 VAC, 1000 mA
Power consumption: 17 W (all loaded) | | Dimensions (L x W x H) | 10.8 x 7.7 x 2.9" (275 x 195 x 75 mm) | | Weight | 2.9 lb (1.3 kg) | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 16.1 x 9.9 x 5.4" |
