User Manual for RCF M801 8" Two-Way Passive Speaker System Click to enlarge the picture
Contents of the user manual for the RCF M801 8" Two-Way Passive Speaker
- Product category: Installed Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Installed Speakers
 |
User manual for the RCF M801 8" Two-Way Passive Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

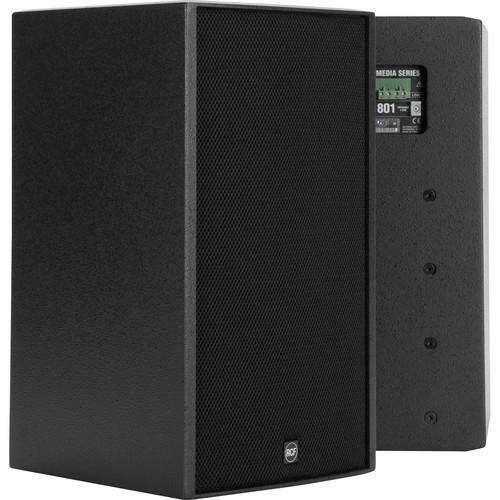

Product description The black RCF M801 8" Two-Way Passive Speaker System delivers high-output, high-definition sound for a wide variety of professional applications, despite its compact size. All system elements, including drivers, crossover/filter components, and the enclosures themselves are designed to meet rigorous standards for reliability and durability. The compact speaker system provides a punchy and sonically vibrant solution for small-scale performance sound reinforcement and more demanding A/V applications as well as high performance speech reproduction where clarity and vocal character are paramount. The system operates in fully passive mode with an internal passive crossover/filter network both dividing the signal and providing critical equalization functions. The system includes a high-level crossover network called Low Impedance Compensated Crossover (LICC) that features markedly lower induction values in series with the woofer. The LICC offers delay reduction, reduced phase shift and superior transient response. Dynamic high-frequency driver protection is accomplished with Active Mosfet Compression Driver Protection System (AMCDP) chosen to complement the power curve of the driver. Each M801 speaker includes a robust 8" woofer with 2" voice coil, mounted in an optimally vented enclosure and a 1" compression driver with a 1.5" voice coil, specifically designed to provide smooth, bright and clear high-frequency reproduction on a 90 x 90° CD horn. The steel front grilles are protected with robust double mesh polyester clothing. The front RCF logo is easily rotatable. The M801 is useful in conference rooms, performance arts spaces, theatres & auditoria, background and foreground business music, small scale PA, delay fill, houses of worship, theme parks and leisure venues, gymnasiums and small/medium sports arenas, portable corporate AV, bars, pubs and nightclubs. - High quality 2-way passive loudspeaker
- 1 x 1" in driver, on 90 x 90° CD horn
- High power handling 'Low Impedance Compensated Crossover', with electronic protection for the driver

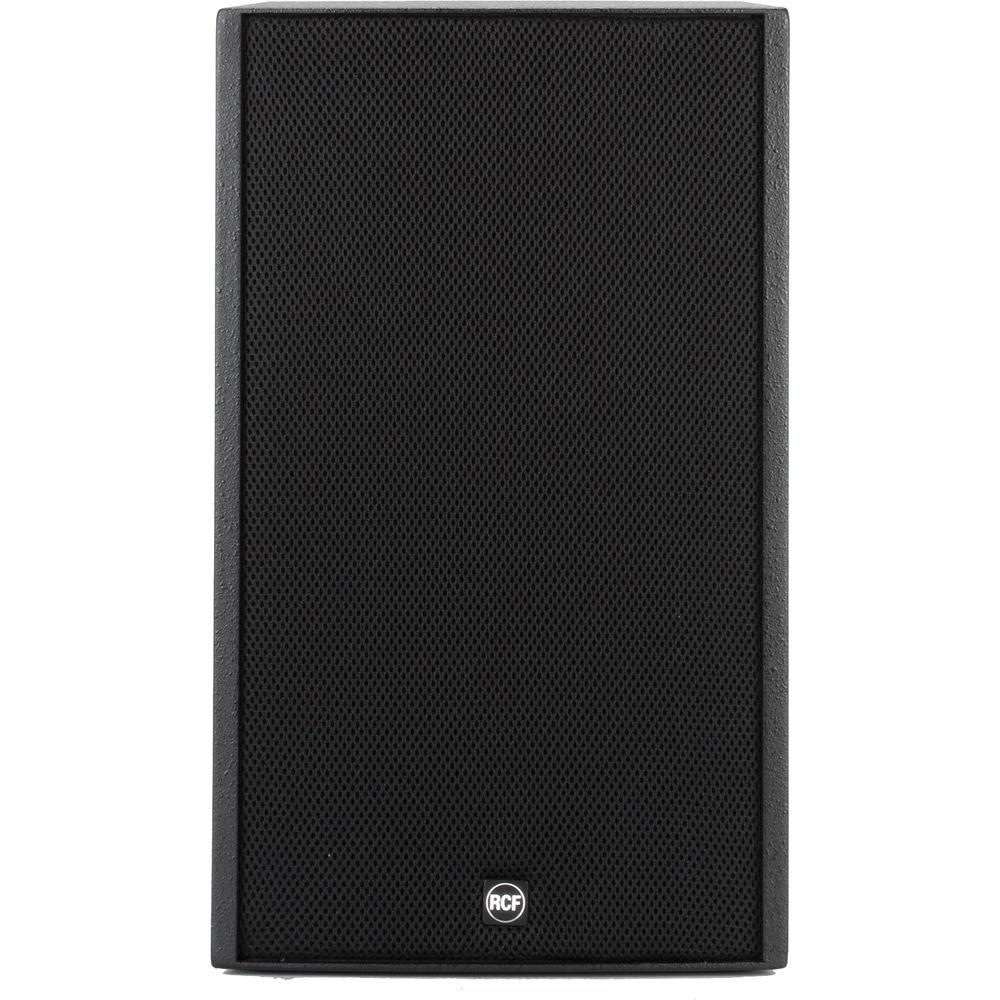

- Steel front grille with robust double mesh polyester clothing

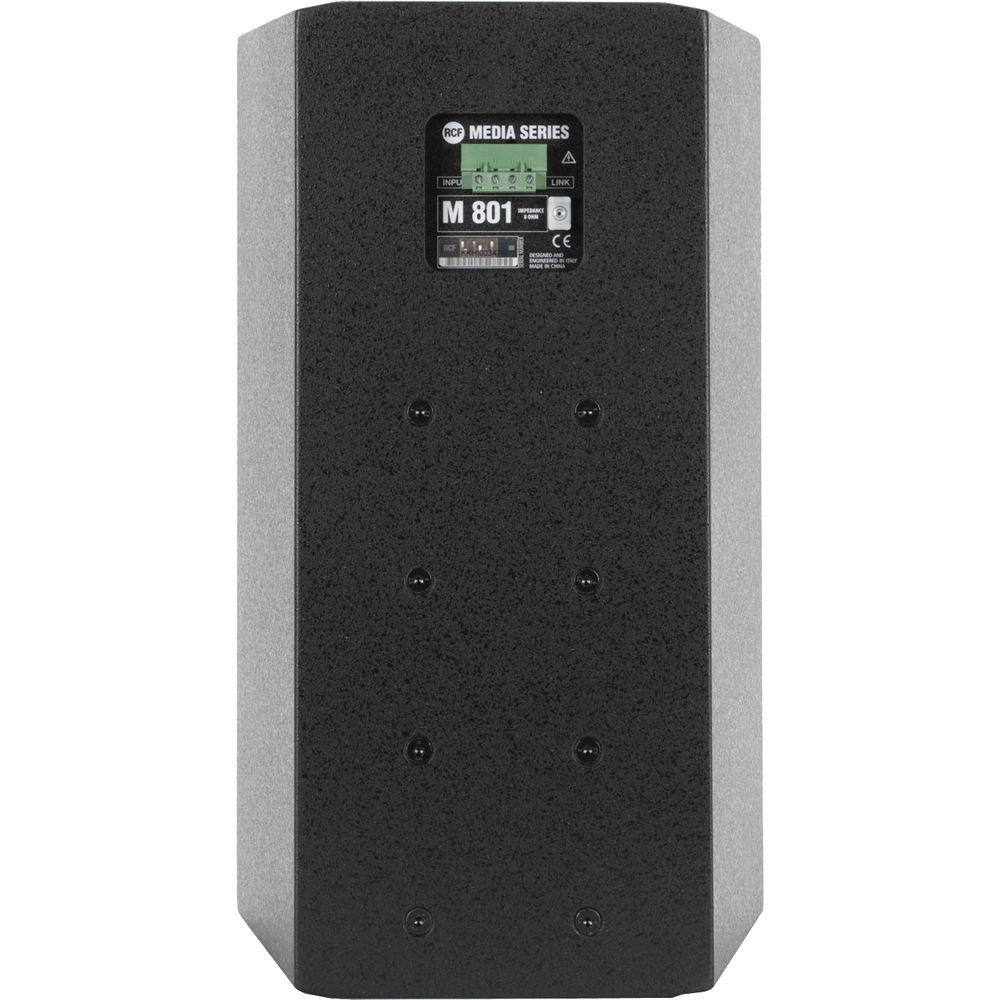

- Installation points are available on the rear panel, top and bottom
- 4-pin Euroblock connector (audio input and parallel link output)
- Useful in conference rooms, performance arts spaces, theatres & auditoria, background and foreground business music, small scale PA, delay fill, houses of worship, theme parks and leisure venues, gymnasiums and small/medium sports arenas, portable corporate AV, bars, pubs and nightclubs
In the Box RCF M801 8" Two-Way Passive Speaker System (Black) 8 x M6 Screw 2 x M10 Screw Wall Mount U-BRACKET H Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF M801 8" Two-Way Passive Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

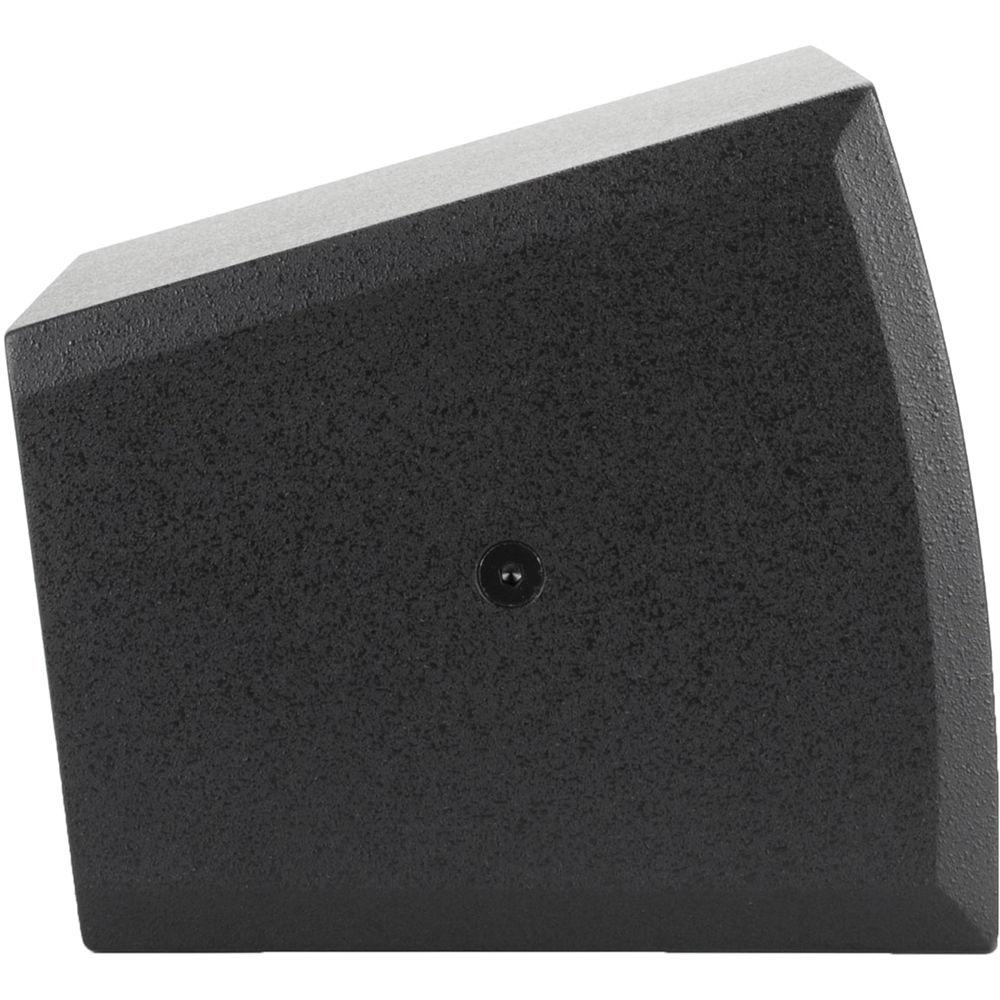

Technical parametersRCF M 801 Specs | | | Frequency Response | 65 Hz to 20 kHz | | Maximum SPL | 120 dB | | Sensitivity | 93 dB | | Coverage Angle | 90 x 60° | | Driver | 1", 1.5" voice coil | | Woofer | 8", 2" voice coil | | Power Handling | 150 W | | Peak Power | 600 W | | Recommended Amplifier Power | 300 W | | Protection | Dynamic | | | | Input Signal | 8 Ω impedance | | Connector | Input & Output: Removable screw terminal block | | | | Crossover Frequencies | 1800 Hz | | Protection | HF Driver Dynamic MOSFET | | | | Cabinet | Trapezoidal, 8° angle, 12 mm MDF | | Dimensions (H x W x D) | 17.40 x 10.27 x 11.10" (441.96 x 260.85 x 281.94 mm) | | Weight | 21.35 lb (9.68 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
