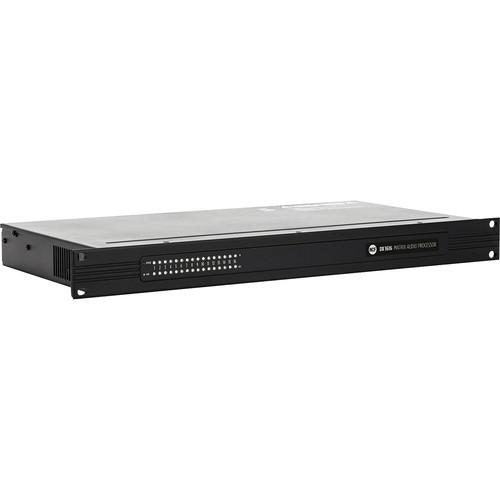

User Manual for RCF Matrix Audio Processor Click to enlarge the picture
Contents of the user manual for the RCF Matrix Audio Processor
- Product category: System Processors RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF System Processors
 |
User manual for the RCF Matrix Audio Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

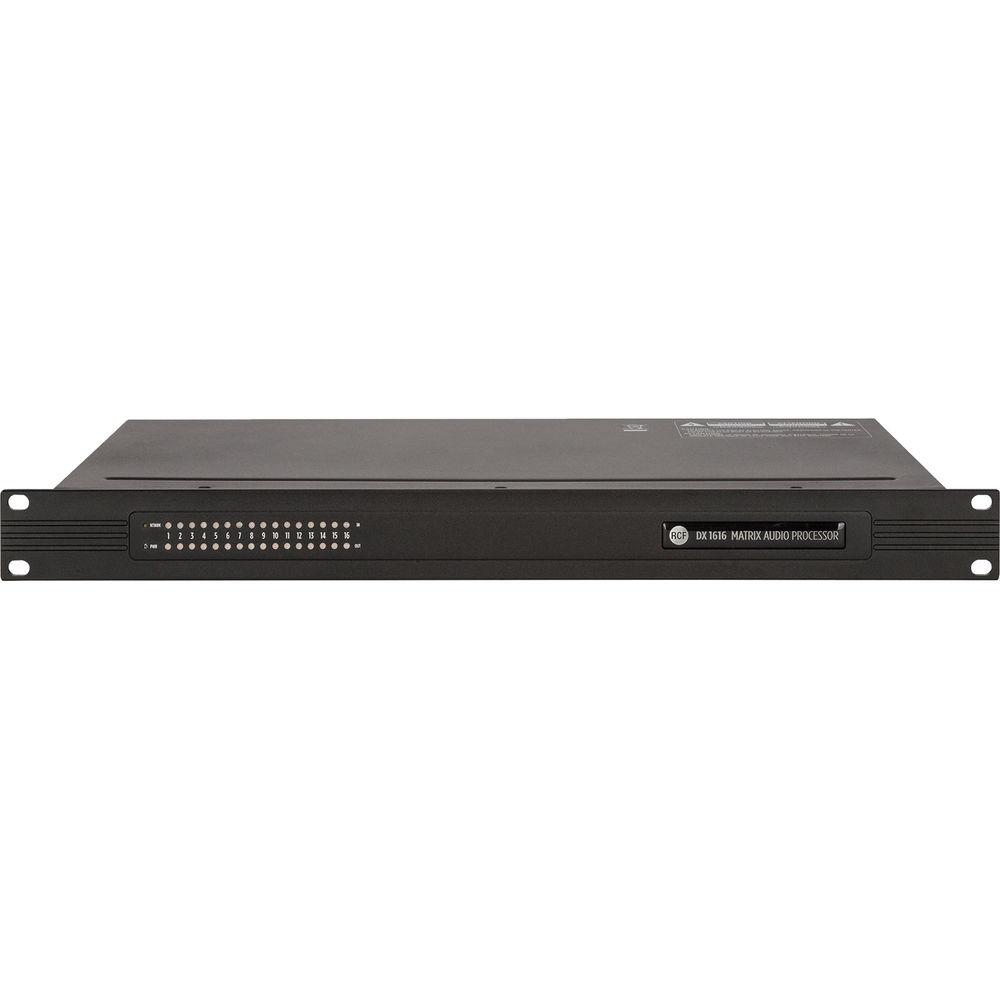

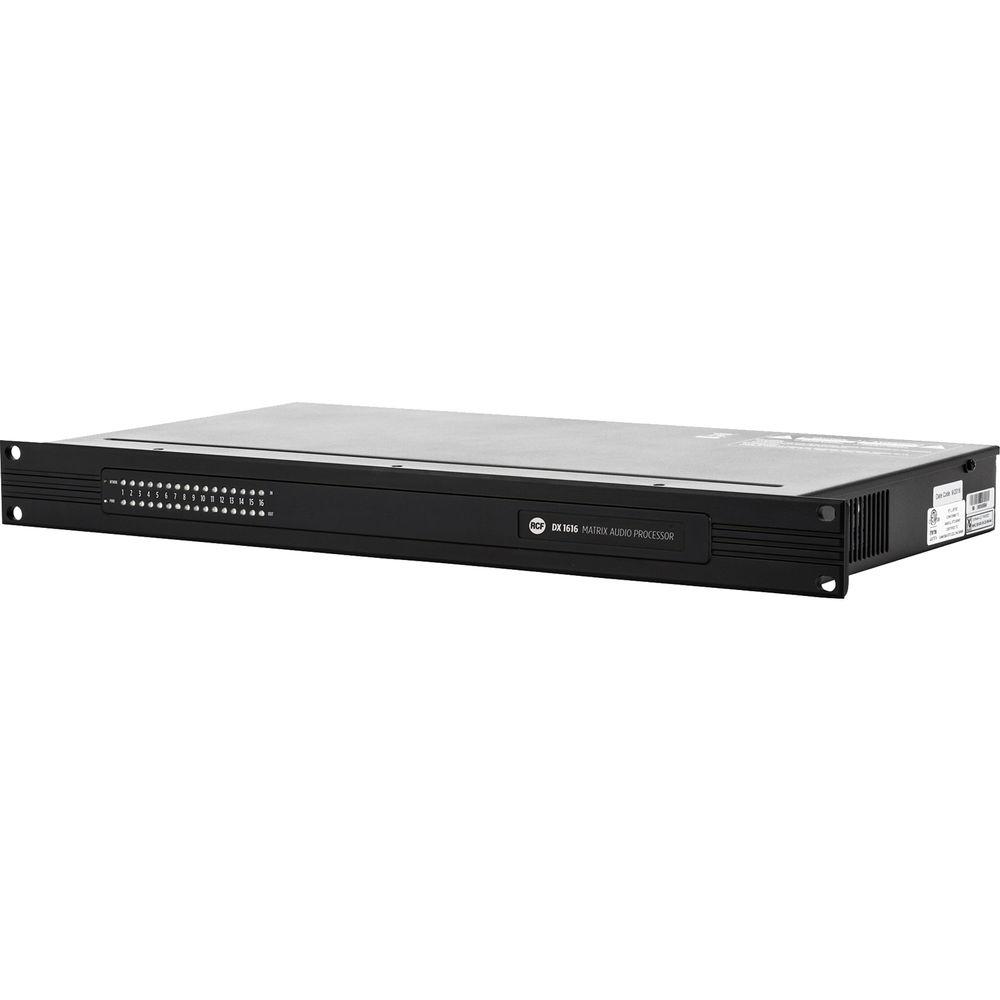

Product description The Matrix Audio Processor from RCF features a hybrid architecture processor and a 48 kHz sampling and 40-bit floating point engine. It comes equipped with a blue power-status LED, which blinks to notify you that the device is connected to a power source and switched to the "On" position. Each input and output channel has a dual-color LED signal indicator, where green indicates a signal present at R40 dBu, and red shows that the signal is beginning to clip (at 17 dBu). - 16 analog outputs for flexible routing possibilities
- Dante-enabled network audio transport
- Remote control software's home screen gives the system engineer important signal-flow information at a glance
- Useful groups of inputs allow easy setup and configuration for any large event application with several mixing desks or multiple sources
- Source-processing window allows the configuration of the input preamps (analog, AES/ EBU, mic/line), and Dante inputs
- For each source the user can adjust gain, polarity, input EQ, input compressor, and input delay
- Eight AES/EBU inputs and outputs each
- Ethernet connectivity and control
In the Box RCF Matrix Audio Processor USB Drive with Software Detachable IEC Socket Power Cable Detachable 3.5mm Euro Terminal Block Connectors Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF Matrix Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF DX-1616 Specs | | | Input Impedance | >10k Ohms | | Phantom Power | Open Circuit: 44 V
Loaded Circuit: 21 V | | Output Impedance | <120 Ohms | | Maximum Level | 20 dBu (mic gain 0 dB/40 dB steps) | | Type | Electronically balanced | | | | Frequency Response | ±0.1 dB (20 Hz to 22 kHz) | | Dynamic Range | 110 dB typical | | CMMR | >100 dB (50 to 10 kHz) | | Crosstalk | <-100 dB | | Distortion | <0.001% (1 kHz @ -1 dBFS) | | | | Processor | 40-bit floating point | | Input Range | AES/EBU: 16 kHz to 96 kHz with switchable independent SRCs | | Converters | Analog: High-performance, 24-bit | | Propagation Delay | 3.2 ms (analog in to analog out), 4.2 ms (AES/EBU to analog out) | | Sampling Rate | Output: 48 kHz Dante: 48 kHz | | Encoding | PCM32 | | | | LEDs | Signal: 1 per input and output channel (multicolor LED)

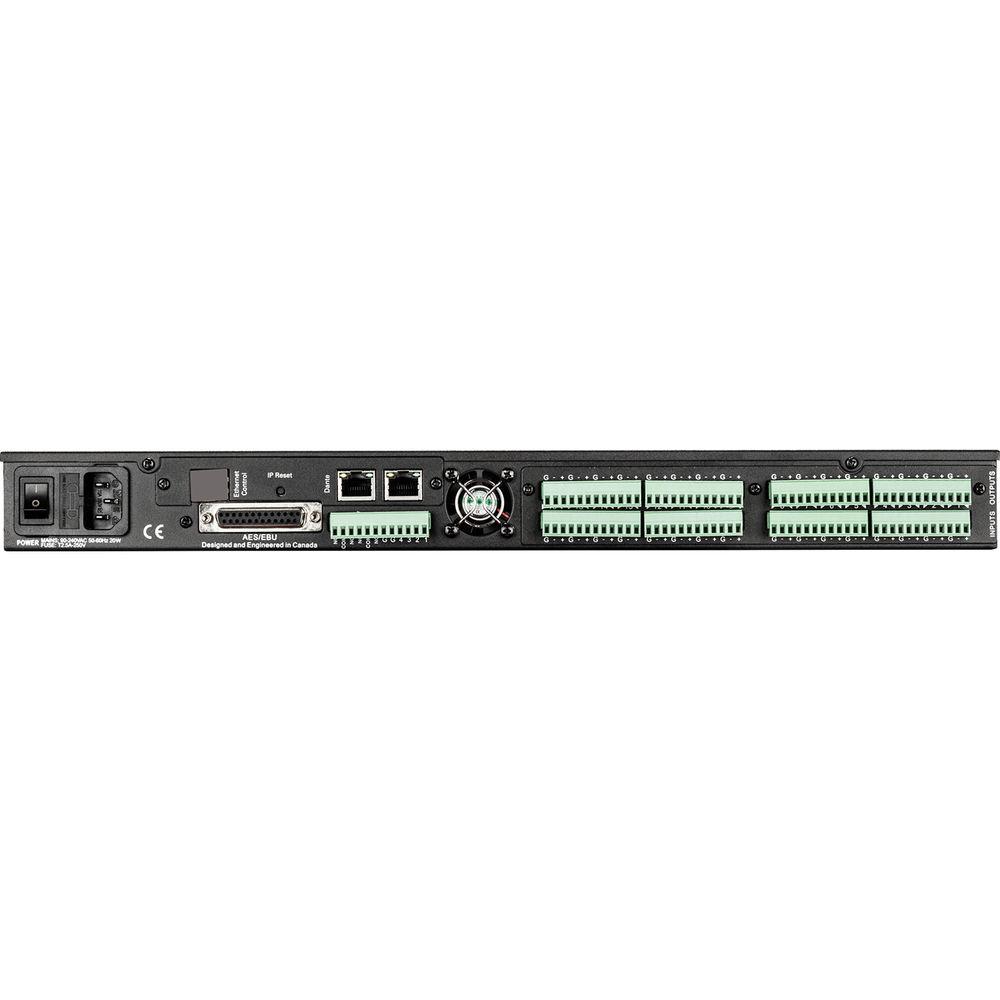

Status: Power and network | | | | Analog I/O | Phoenix 3.5 mm | | Digital I/O | DB25 (AES/EBU) Tascam compatible format | | Output | Logic In-Relay Out: Phoenix 3.5 mm (included) | | TCP/IP | RJ45 | | Audio Input / Output | RJ45 for Dante A, Dante B | | | | Power Socket | Standard IEC socket, VDE | | Power | 90 to 240 VAC, 50 to 60 Hz | | Rack Mount | 1 RU vent between units | | Dimensions | 19.01 x 1.73 x 9.01" (48.3 x 4.4 x 22.9 cm) | | Weight | 11.02 lb (5 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
