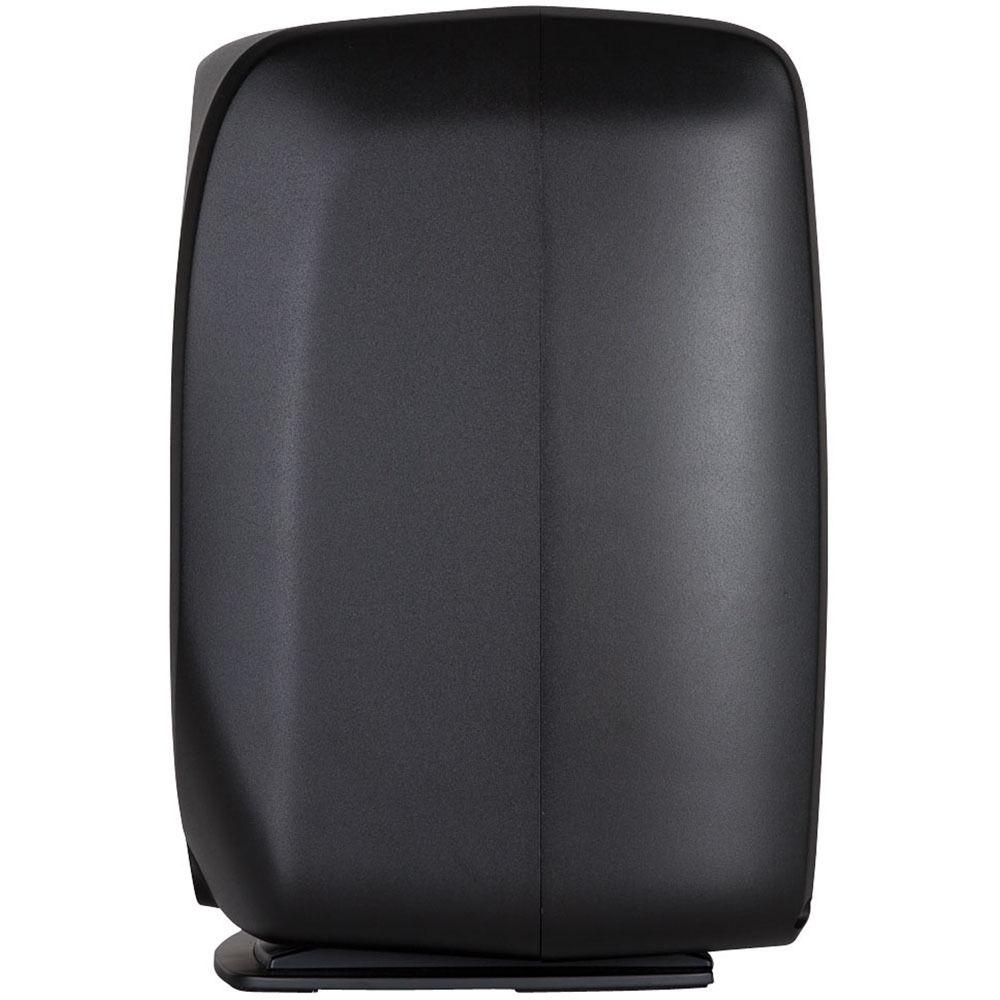

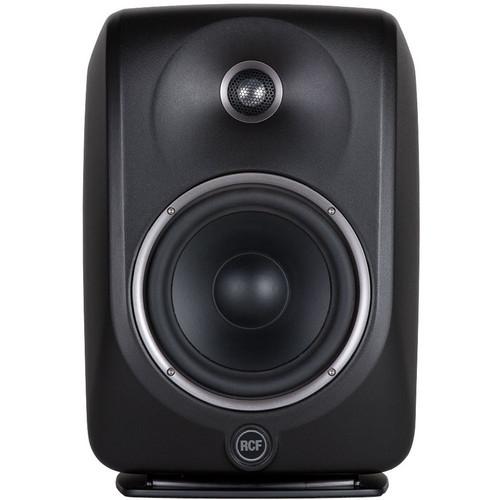

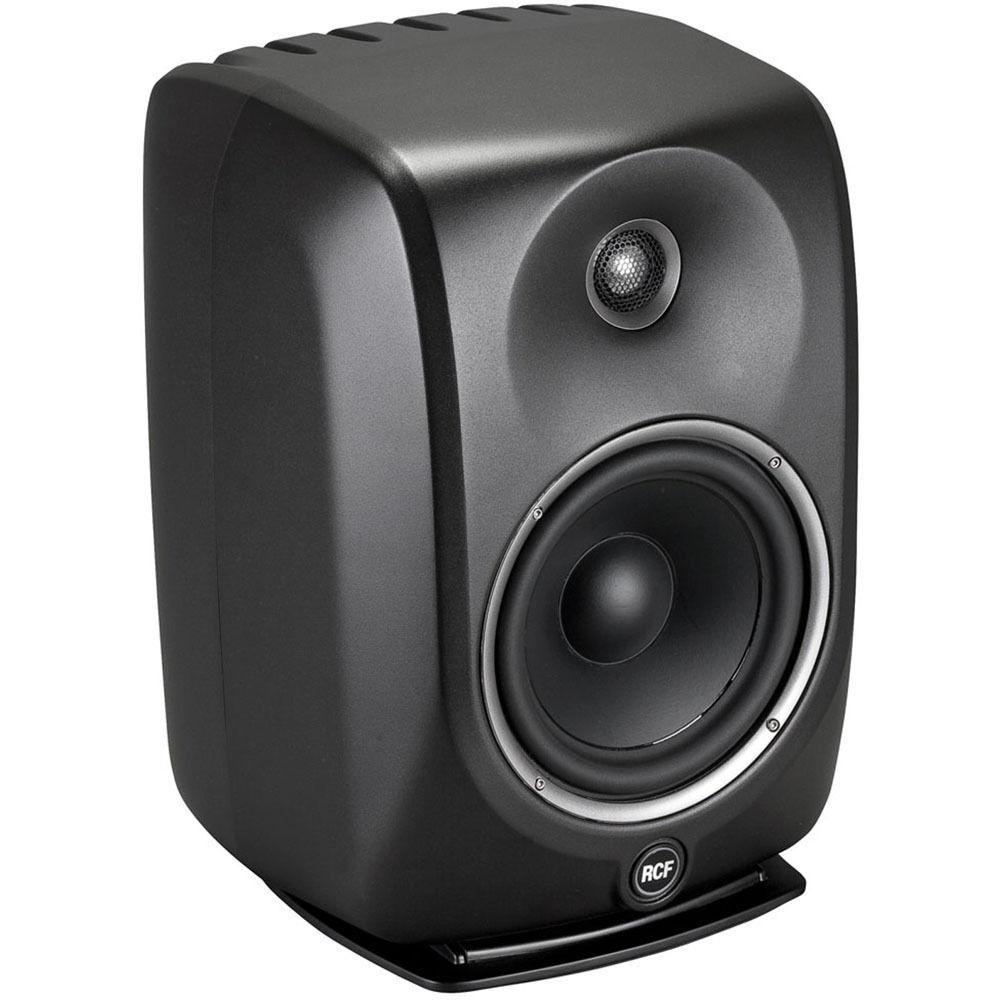

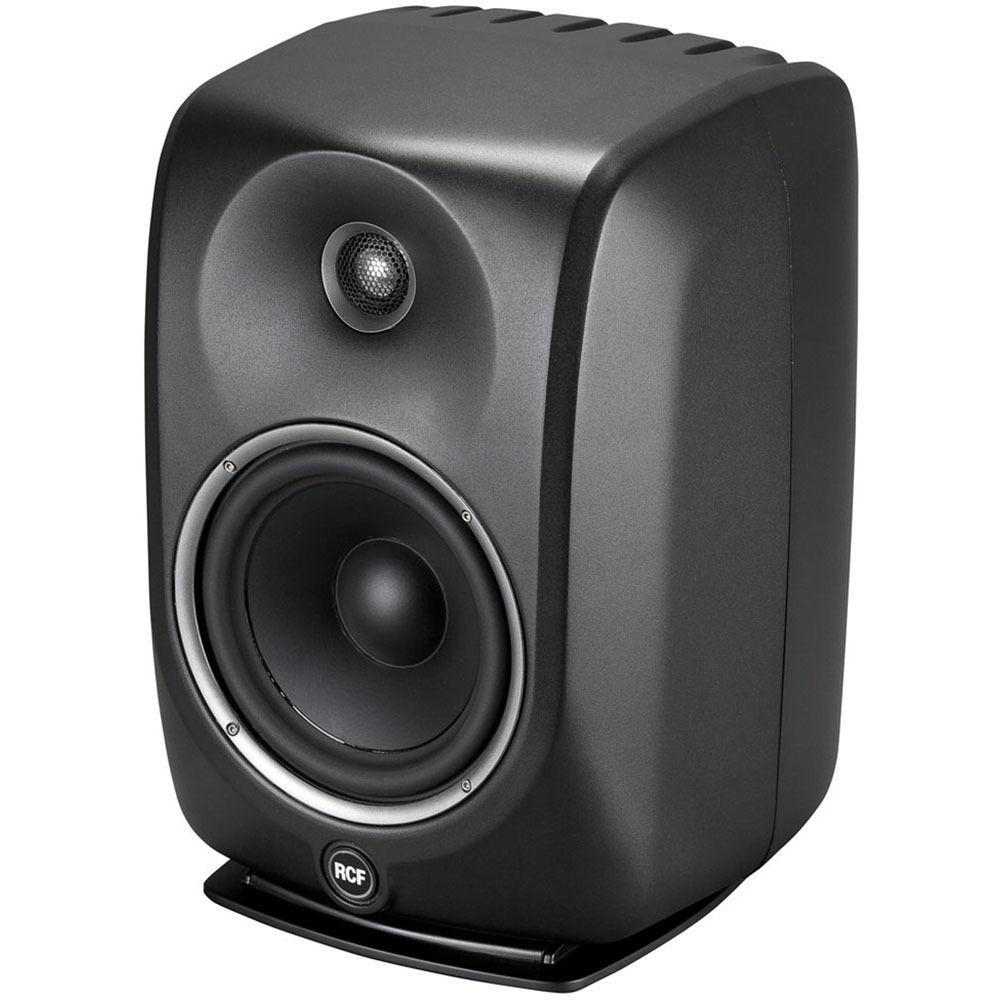

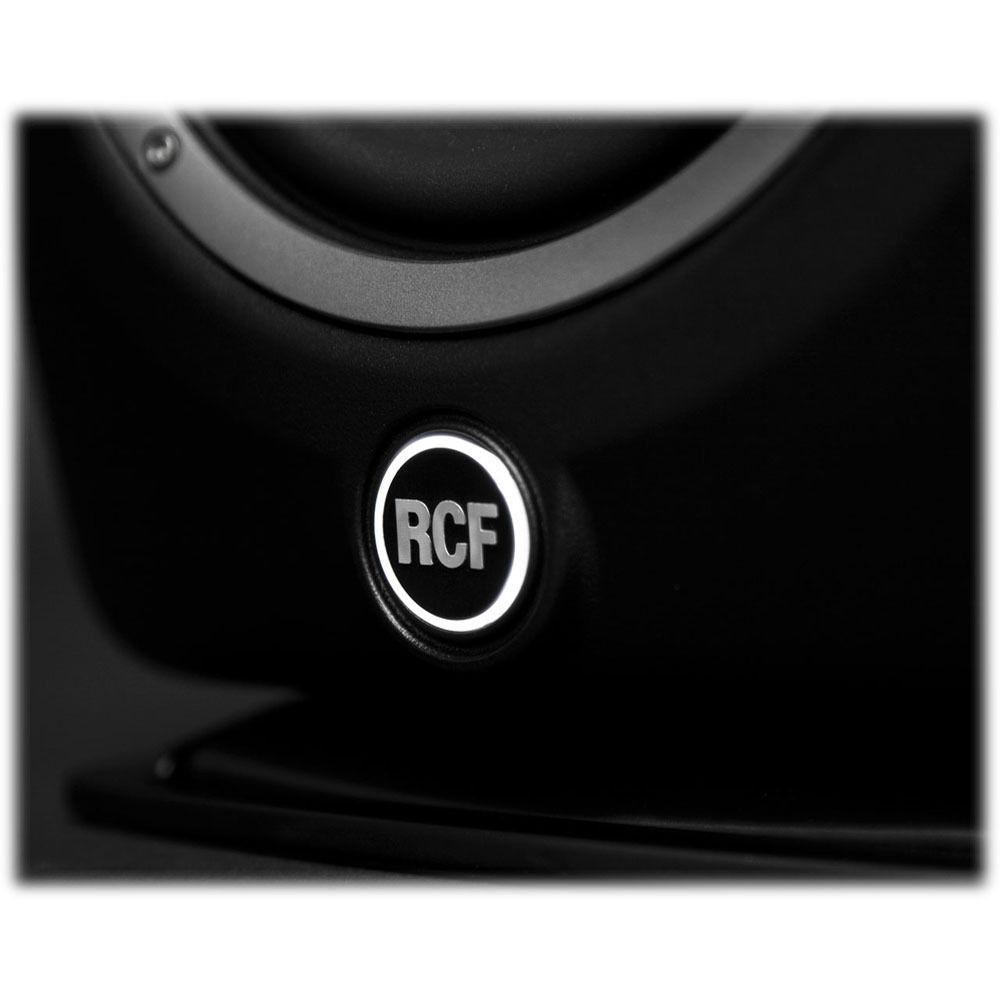

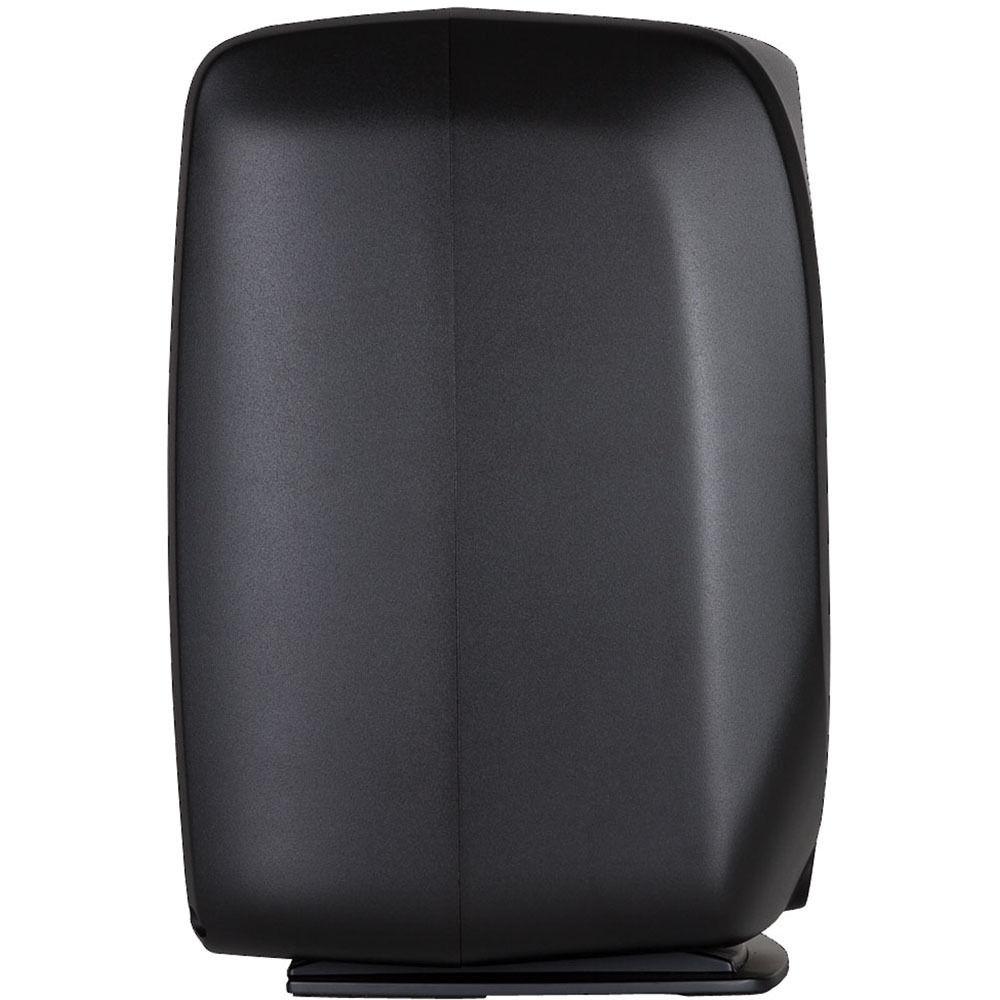

User Manual for RCF MYTHO 8 300W 8" Active 2-Way Studio Monitor Click to enlarge the picture
Contents of the user manual for the RCF MYTHO 8 300W 8" Active
- Product category: Studio Monitors RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Studio Monitors
 |
User manual for the RCF MYTHO 8 300W 8" Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The MYTHO 8 from RCF is an active 2-way reference studio monitor, ideal for medium to large professional studios. The die-cast aluminum cabinet houses an 8" neodymium woofer and a 1" aluminum dome tweeter to provide crisp, detailed sound with a wide frequency response. Internal Class-AB amplifiers provide a total power of 300W for a strong performance with low distortion. The cabinet has a reflection-free design, a low-distortion reflex port for extended bass, and a constant directivity waveguide to provide a wide "sweet spot".

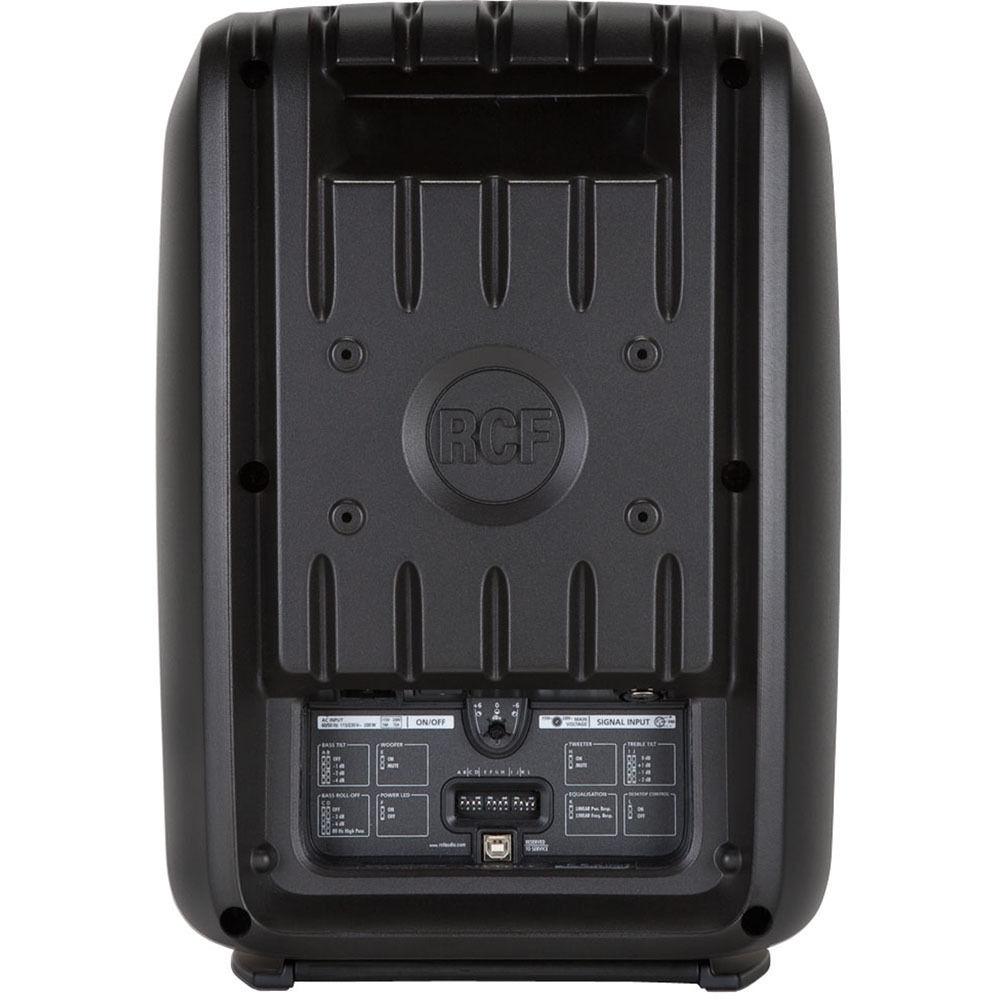

The speaker's rear panel has an XLR/TRS combo input, allowing you to connect to a wide variety of systems and devices. The MYTHO 8 also features DSP technology that provides fine crossover tuning, accurate EQ, soft signal clipping, and transducer protection. A set of DIP-switches lets you adjust bass and treble settings, EQ, woofer/tweeter muting, and more. The speaker also has a selectable operating voltage for worldwide use. - Die-cast aluminum cabinet features a reflection-free design
- 8" neodymium woofer and a 1" aluminum dome tweeter to provide crisp, detailed sound with a wide frequency response
- Internal Class-AB amplifiers provide a total power of 300W for a strong performance with low distortion
- Low-distortion reflex port for extended bass
- Constant directivity waveguide provides a wide "sweet spot"
- Rear panel features an XLR/TRS combo input, allowing you to connect to a wide variety of systems and devices
- DSP technology provides fine crossover tuning, accurate EQ, soft signal clipping, and transducer protection
- A set of DIP-switches lets you adjust bass and treble settings, EQ, woofer/tweeter muting, and more
- Selectable operating voltage for worldwide use
In the Box RCF MYTHO 8 300W 8" Active 2-Way Studio Monitor Power Cable Adjustable Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF MYTHO 8 300W 8" Active 2-Way Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF MYTHO 8 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Aluminum Dome Tweeter
LF Driver: 1 x 8" / 203 mm Woofer | | Amplification | HF Amplifier: Rated at 100 W
LF Amplifier: Rated at 200 W | | | | Frequency Range | 35 Hz to 20 kHz | | Maximum Sound Pressure Level (SPL) | 116 dB | | | | Crossover Frequency | 1.8 kHz | | | | I/O | 1 x Combo XLR / 1/4" Balanced Analog Input | | | | Dimensions (W x H x D) | 12.2 x 17.0 x 11.8" / 310.0 x 430.0 x 300.0 mm | | Weight | 35.6 lb / 16.1 kg |
