User Manual for RCF NX 12-SMA Active Coaxial Stage Monitor Click to enlarge the picture
Contents of the user manual for the RCF NX 12-SMA Active Coaxial Stage
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF NX 12-SMA Active Coaxial Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

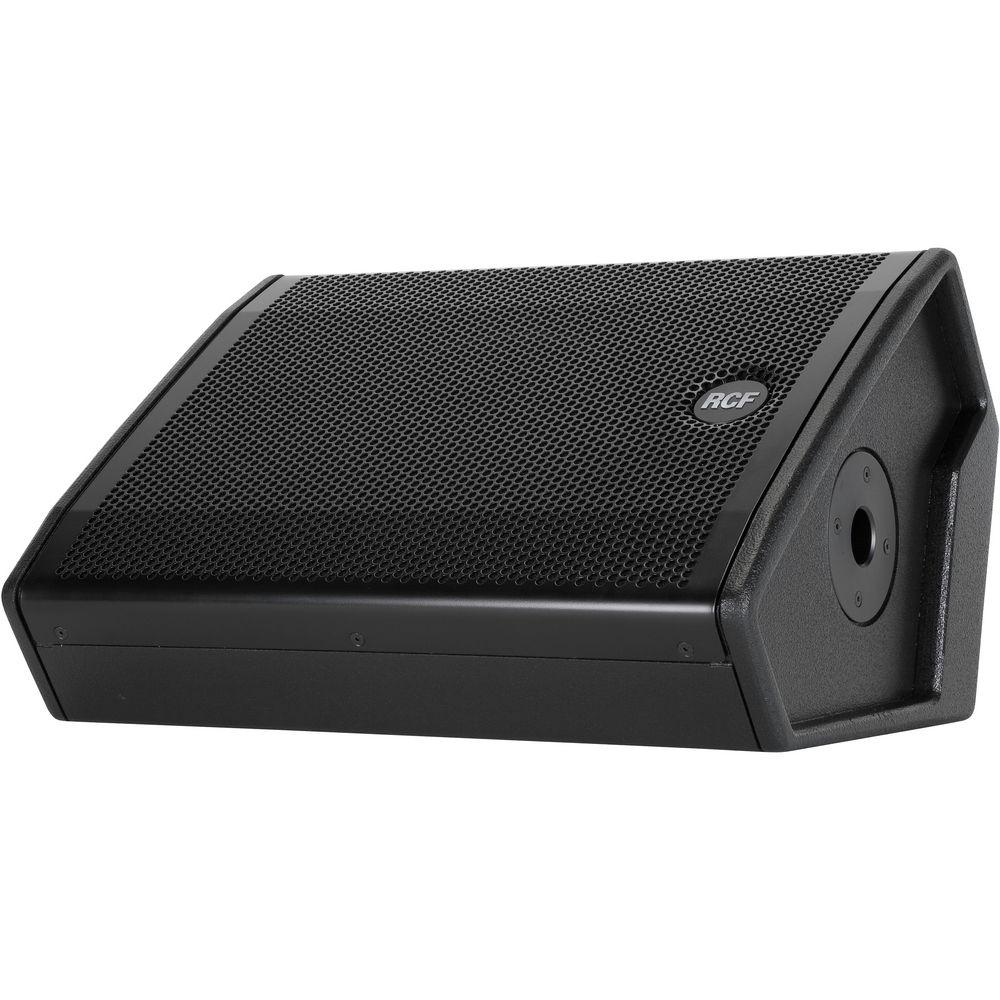

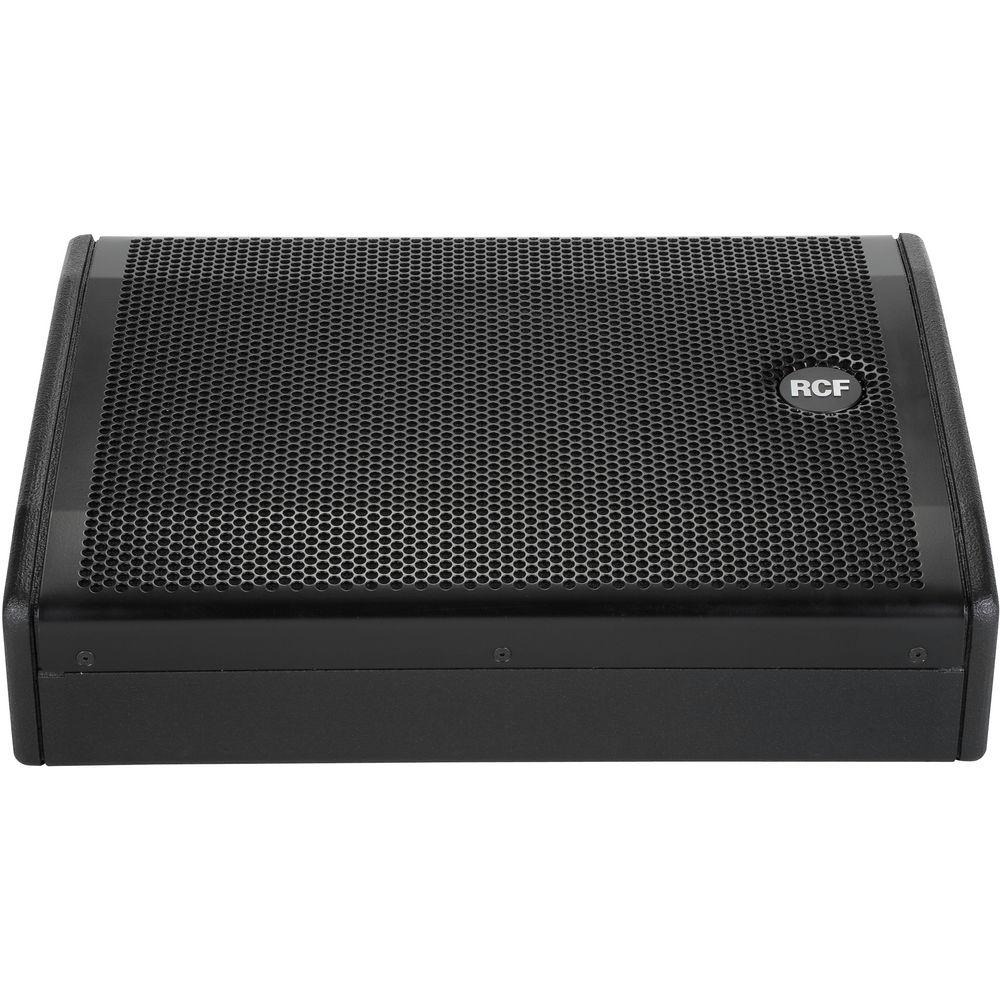

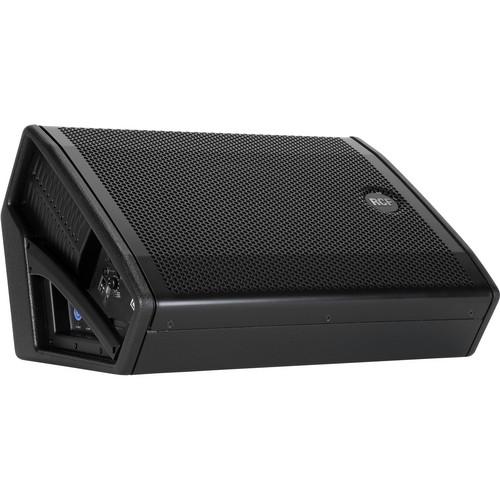

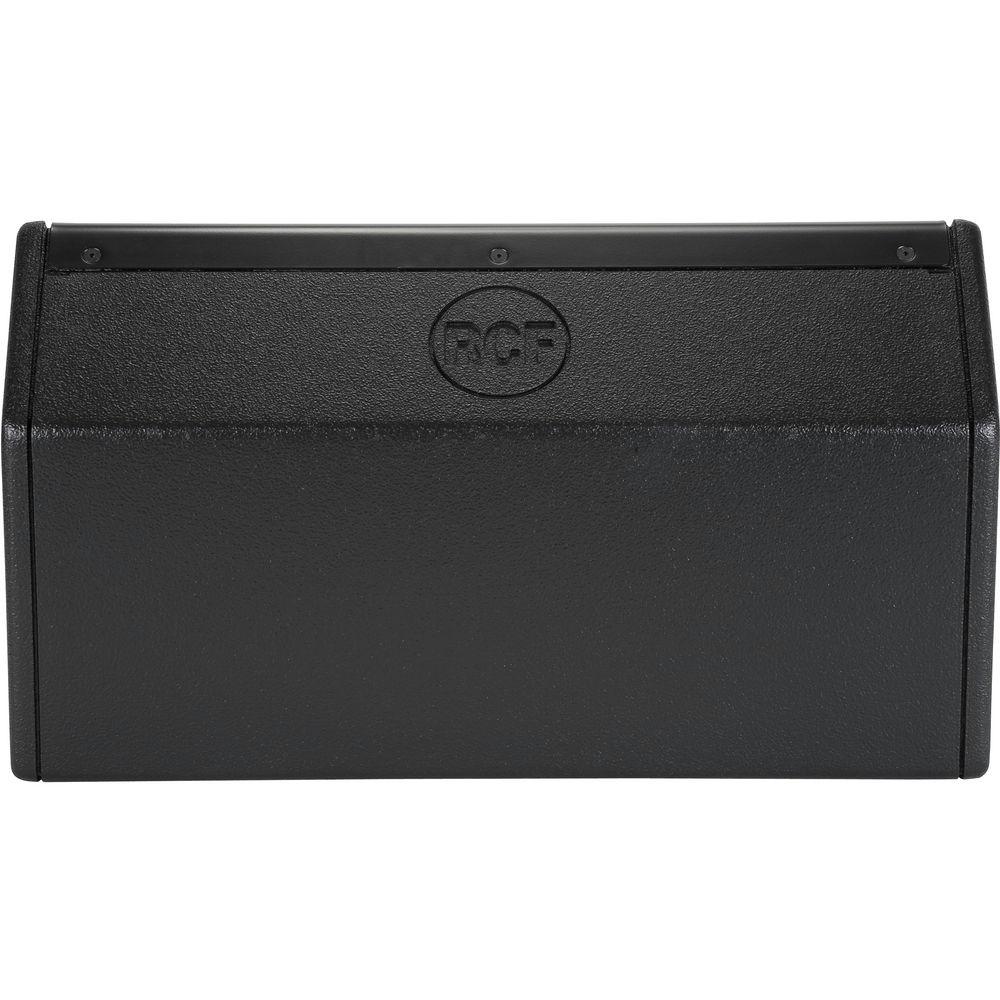

Product description The NX 12-SMA Active Coaxial Stage Monitor from RCF is a powered monitor that can be used as either a floor monitor or mounted for use as a stand-alone PA for small venues. It is capable of up to 800-watts peak performance, providing output up to 129 dB SPL. The monitor has integrated DSP for limiting functions as well as a switchable EQ mode that provides optimized performance for stage monitoring or PA applications. - Coaxial Neodymium Transducers
- The coaxial neodymium transducers are designed for audio quality and definition as well as a lightweight final system
- Absence of Feedback
- The advantage of coaxial transducers is the absence of feedback, and thanks to the coherent single spherical wave front with dispersion control, a wide ideal listening position
- Single Neodymium Ring
- The single neodymium ring magnet provides a high flux density and BL factor
- Hyper-Vented Basket
- Both of the transducers are equipped with a hyper-vented basket and magnetic assembly that provide heat dissipation and lower power compression
- Amplification
- The NX Coaxial Stage Monitors are provided with digital amplifiers with DSP processing
- Input Board
- The input board is equipped to configure the stage monitors for most stage situations, and includes:
- XLR input and output
- Jack input
- Input sensitivity switch
- Free field - floor switch
- Status LEDs
- Powercon AC input and output
- Ergonomic Handle
- Cabinets are made with Baltic Birch plywood and finished with a resistant paint for extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport
- EQ
- In order to control the response of the speaker in different applications, RCF has incorporated two Equalization Modes:
- Floor, for stage monitoring
- Free Field, for the use of the speakers as a stand-alone PA
- 1,400 Watt peak, 700 Watt RMS digital bi-amplification
- 60° x 60° constant directivity horn
- 12" High power neodymium woofer, 2.5" voice coil
- 1.7 kapton dome, 1" exit, neodymium high frequency driver
- DSP processing, floor field equalization, soft limiter and protection
In the Box RCF NX 12-SMA Active Coaxial Stage Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF NX 12-SMA Active Coaxial Stage Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF NX 12-SMA Specs | | | Configuration | Active | | Total Power Capacity | 1400 W Peak
700 W RMS | | Amplifier Power Rating | HF:
400 W Peak
200 W RMS
LF:
1000 W Peak
500 W RMS | | | | HF Driver | 1 x 1.7" / 43 mm Polyimide Dome Compression Driver with 1" / 25 mm Throat | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 2.5" / 63.5 mm | | Magnet | HF:
Neodymium
LF:
Neodymium | | | | Frequency Response | 50 Hz to 20 kHz -3 dB | | Maximum SPL | 129 dB | | Coverage Angle | 60° H x 60° V | | | | Audio I/O | 1 x XLR Input
1 x 1/4" Input
1 x XLR Output | | | | Dynamic Processing | Soft Limiter | | | | Mounting | 1 x Pole Socket | | Handles | 1 x Side | | Construction Material | Metal Grille, Wood | | Dimensions | 12.7 x 21.6 x 16.4" / 324.0 x 550.0 x 417.0 mm | | Weight | 36.3 lb / 16.5 kg | | | | Box Dimensions (LxWxH) | 24.0 x 20.0 x 17.0" |
