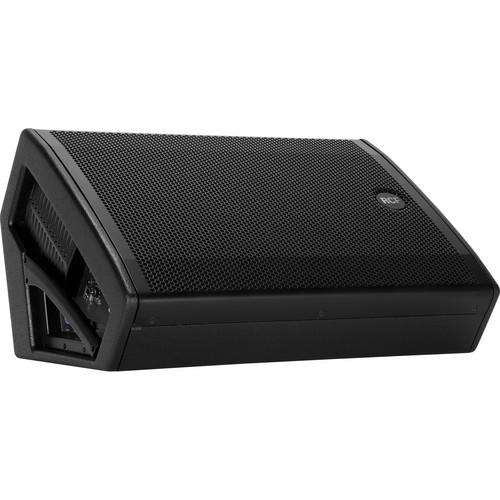

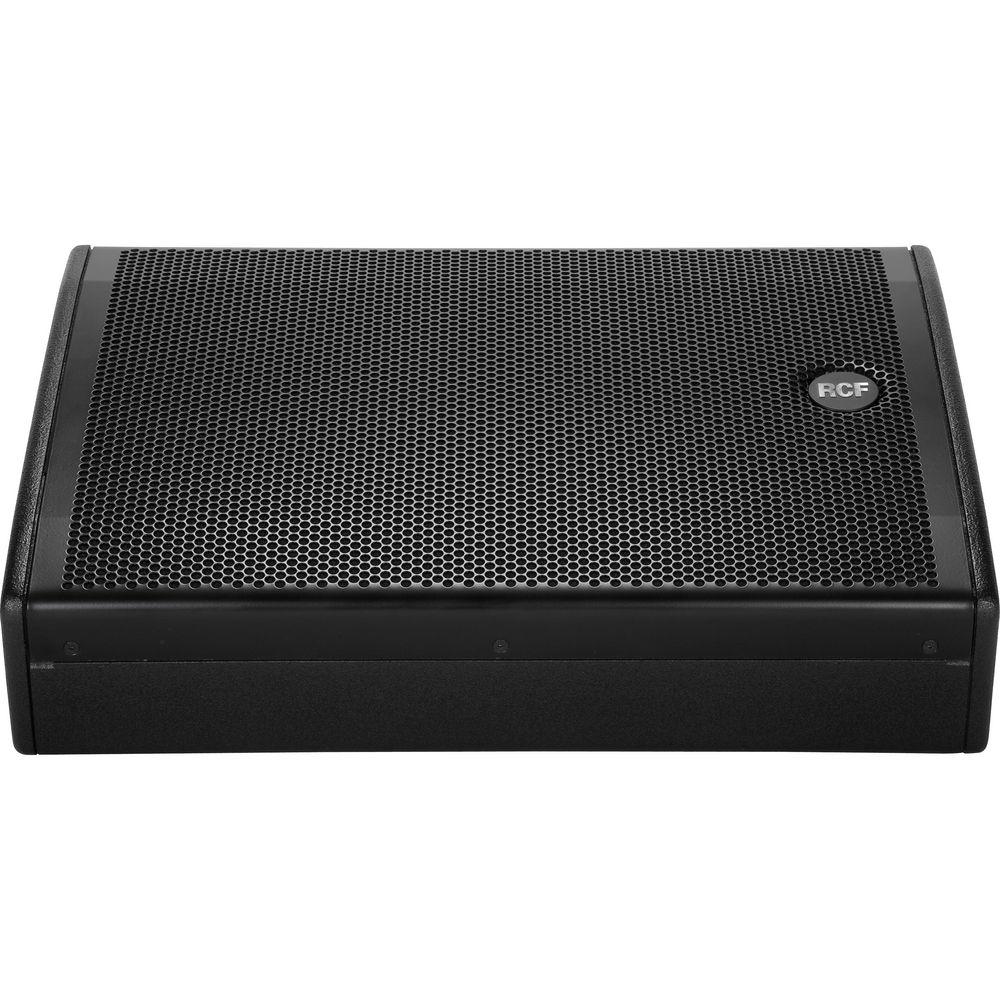

Product description The NX 15-SMA Active 15" 2-Way Stage Monitor Speaker from RCF provides high-quality audio ideal for a variety of live sound applications, such as stage monitoring, PA, and live music. The speaker has a 15" neodymium woofer and a 1" Kapton dome neodymium tweeter to deliver a wide, linear frequency response with precise low frequencies, transparent midrange, and high-fidelity high frequencies. The coaxial driver design helps to reduce feedback and keeps speaker weight to a minimum. The speaker has a 60 x 60° dispersion pattern, providing a wide sweet spot for monitoring or PA use.
The speaker has a 700W digital amplifier to provide plenty of power with low distortion. DSP processing allows you to choose the optimal EQ setting for floor or free field use, and also lets you enable the soft limiter and protection circuitry for long-term reliability. The connector/control panel has XLR and 1/4" inputs, as well as an XLR output for wide compatibility with a variety of systems. There are also AC Powercon input and output connectors for ultimate flexibility. An integrated handle provides convenient portability, while a standard pole socket allows you to mount the speaker on a stand or on top of a subwoofer. - The unique cabinet shape allows the speaker to be used vertically or horizontally for stage monitoring, PA, and other applications in a variety of venues
- The 15" neodymium woofer and 1" Kapton dome neodymium tweeter deliver a wide, linear frequency response with precise low frequencies, transparent midrange, and high-fidelity high frequencies. The coaxial driver design helps to reduce feedback and keeps speaker weight to a minimum
- The speaker has a 60 x 60° dispersion pattern, providing a wide sweet spot for monitoring or PA use
- The speaker has a 700W digital amplifier to provide plenty of power with low distortion
- DSP processing allows you to choose the optimal EQ setting for floor or free field use
- A soft limiter plus thermal and RMS protection circuitry offer smooth, reliable operation

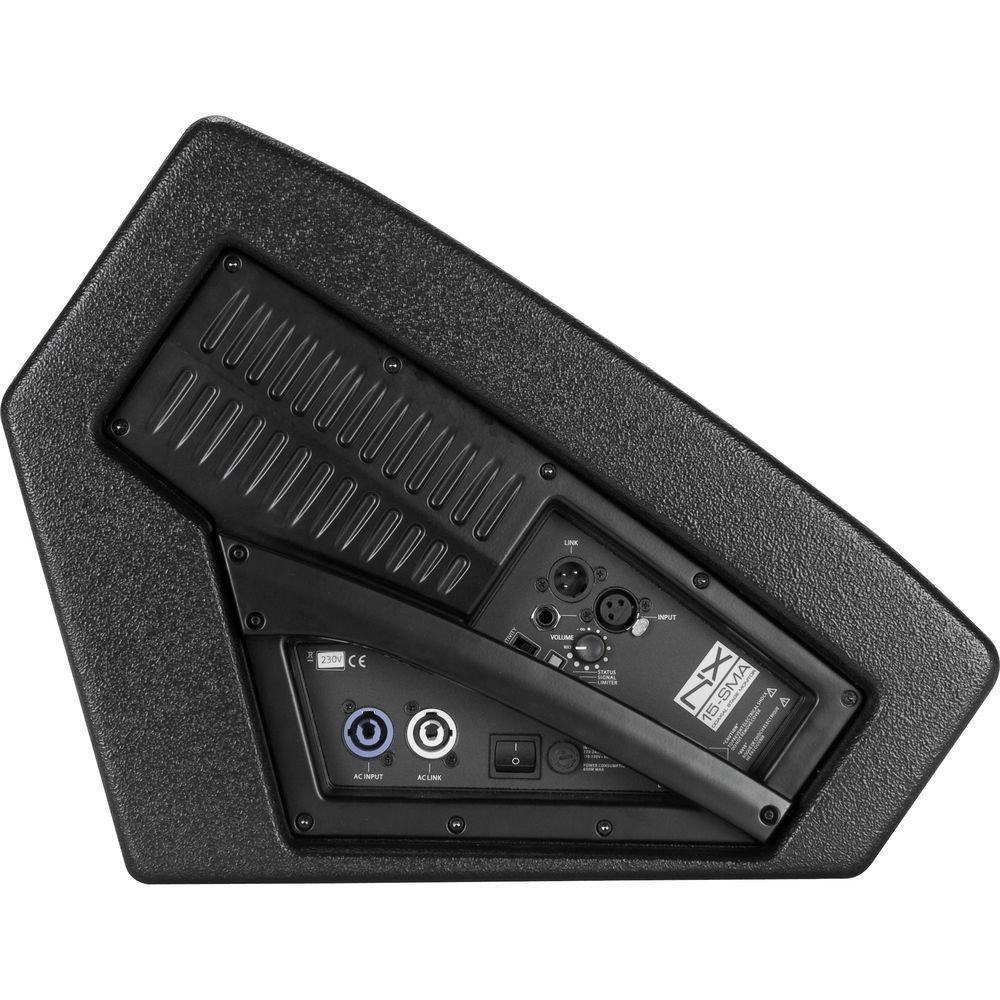

- The connector/control panel has XLR and 1/4" inputs, as well as an XLR output for wide compatibility with a variety of systems. There are also AC Powercon input and output connectors for ultimate flexibility

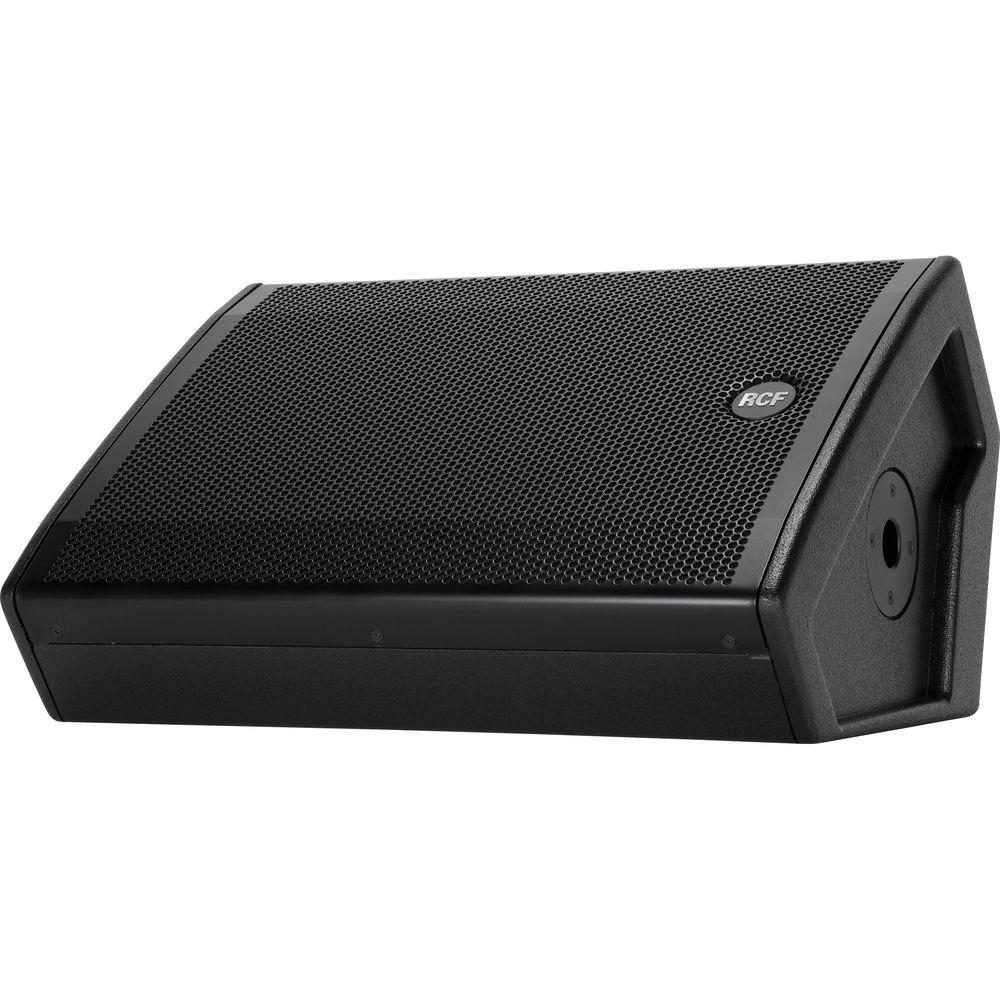

- An integrated handle provides convenient portability, while a standard pole socket allows you to mount the speaker on a stand or on top of a subwoofer
In the Box RCF NX 15-SMA Active 15" 2-Way Stage Monitor Speaker Power Cord 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF NX 15-SMA Active 15" 2-Way Stage Monitor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF NX 15-SMA Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 700 W | | Amplifier Power Rating | LF:
500 W
HF:
200 W | | | | HF Driver | 1 x 1" / 51 mm Polyimide Dome Tweeter | | HF Voice Coil | 1.7" / 44 mm | | LF Driver | 1 x 15" / 381 mm Woofer | | LF Voice Coil | 2.5" / 6.35 cm | | Magnet | HF:
Neodymium
LF:
Neodymium | | | | Frequency Response | 50 Hz to 20 kHz -3 dB | | Maximum SPL | 130 dB | | Coverage Angle | 60° H x 60° V | | Input Sensitivity | +4 dBu | | Protections | RMS, Thermal | | | | Audio I/O | 1 x XLR Input
1 x 1/4" Input
1 x XLR Output | | | | Crossover | 1.7 kHz | | Dynamic Processing | Soft Limiter | | | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | | | Mounting | 1 x 1.38" / 35 mm Pole Socket | | Cooling | Convection | | Construction Material | Metal Grille, Wood | | Dimensions | 14.2 x 25.6 x 18.4" / 362.0 x 650.0 x 468.0 mm | | Weight | 43.6 lb / 19.8 kg | | | | Box Dimensions (LxWxH) | 28.0 x 22.0 x 18.0" |
