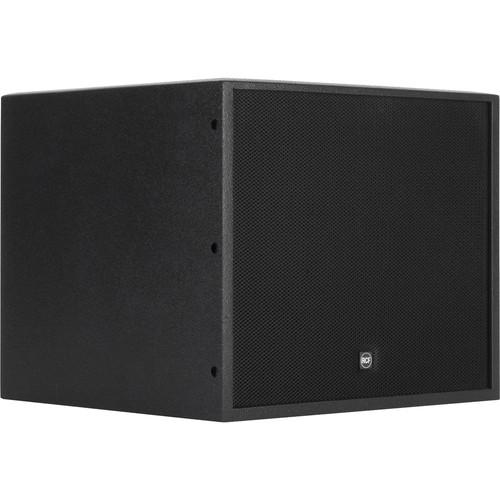

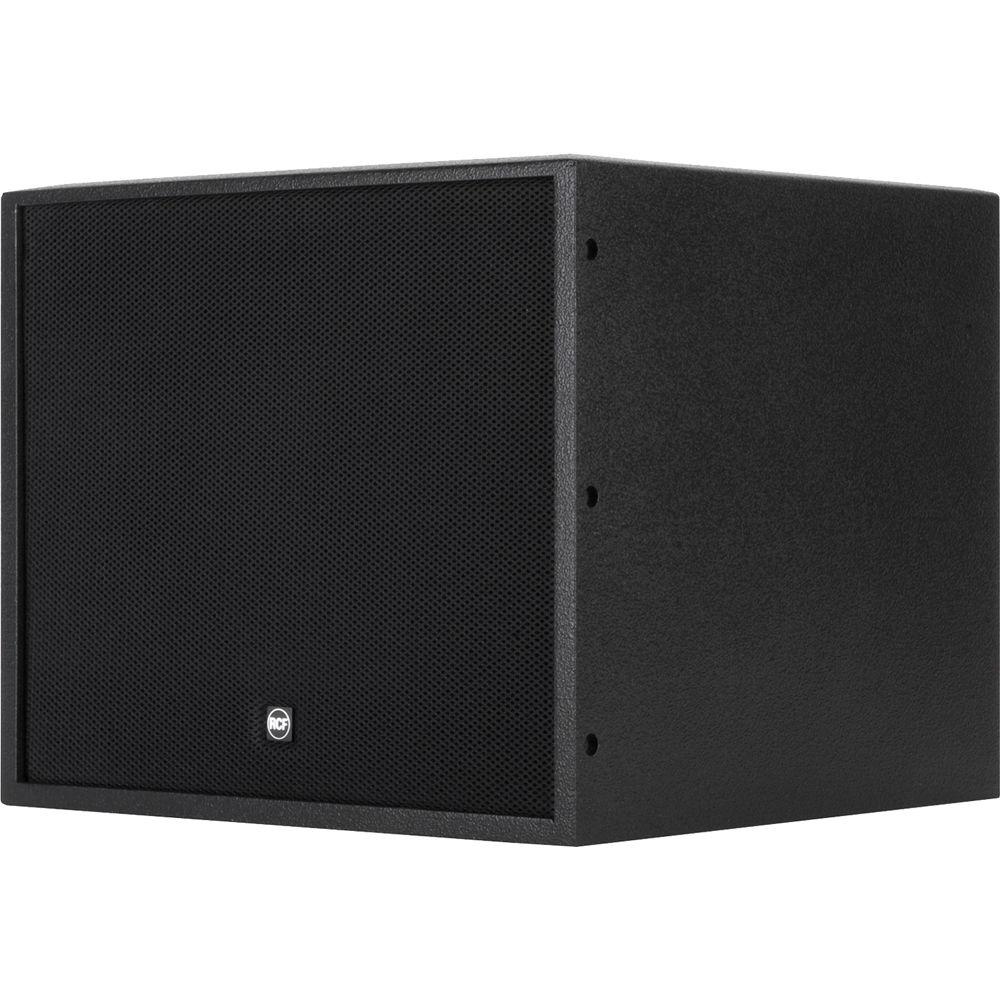

Product description The S 5012 Compact Bass Reflex Subwoofer from RCF is a vented, high output, compact subwoofer system where the physically small size and impact of a 12-inch driver is desired, and works equally well for portable or install situations. Extending the frequency response of these systems to below 40Hz, this highly efficient design is capable of providing output levels normally associated with considerably larger enclosures.

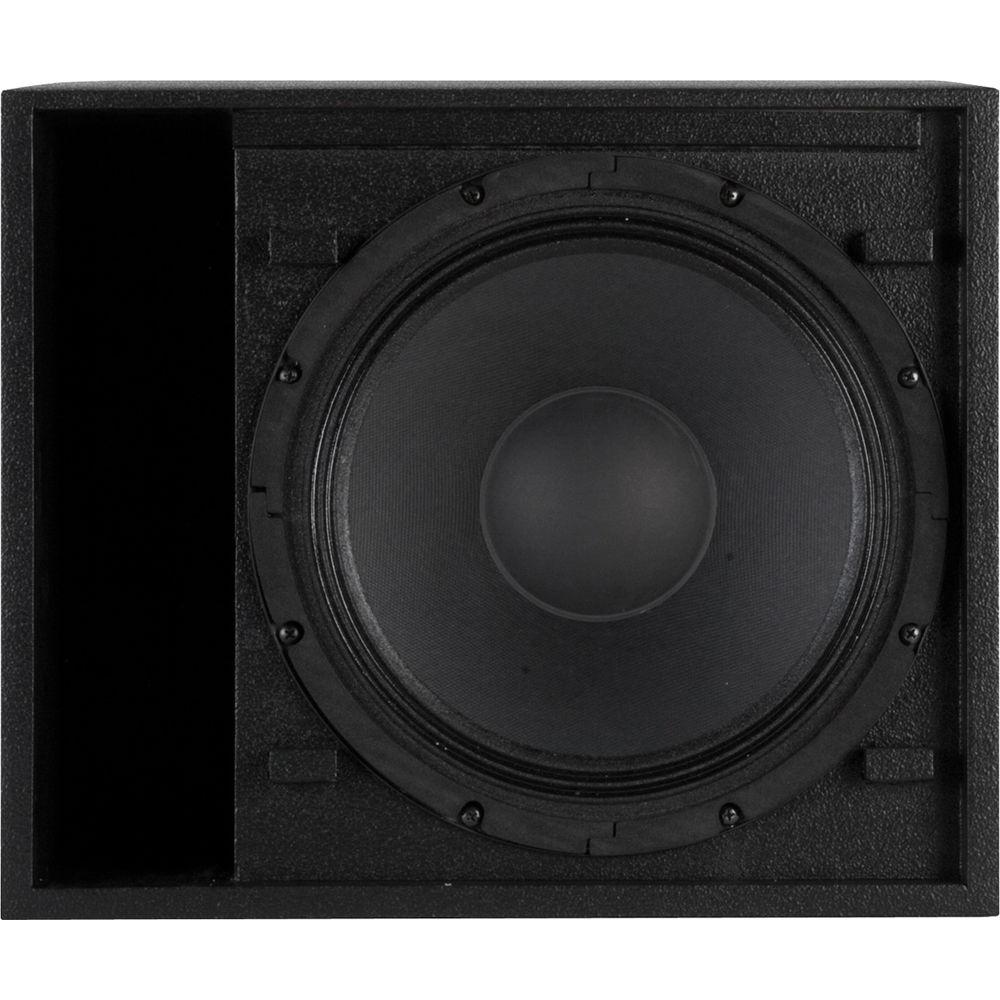

The low-frequency transducer is a 12" woofer with a 2.5" voice coil. This new woofer design is the result of the latest refinements in RCF experiences in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range. The S 5012 is engineered to complement MEDIA series full-range loudspeakers and is particularly well-suited in high-quality multimedia applications. - 12" (30.5 cm) high-efficiency 2.5" (6.4 cm) voice-coil woofer
- 127 dB maximum sound pressure level
- System Power rating 300W RMS

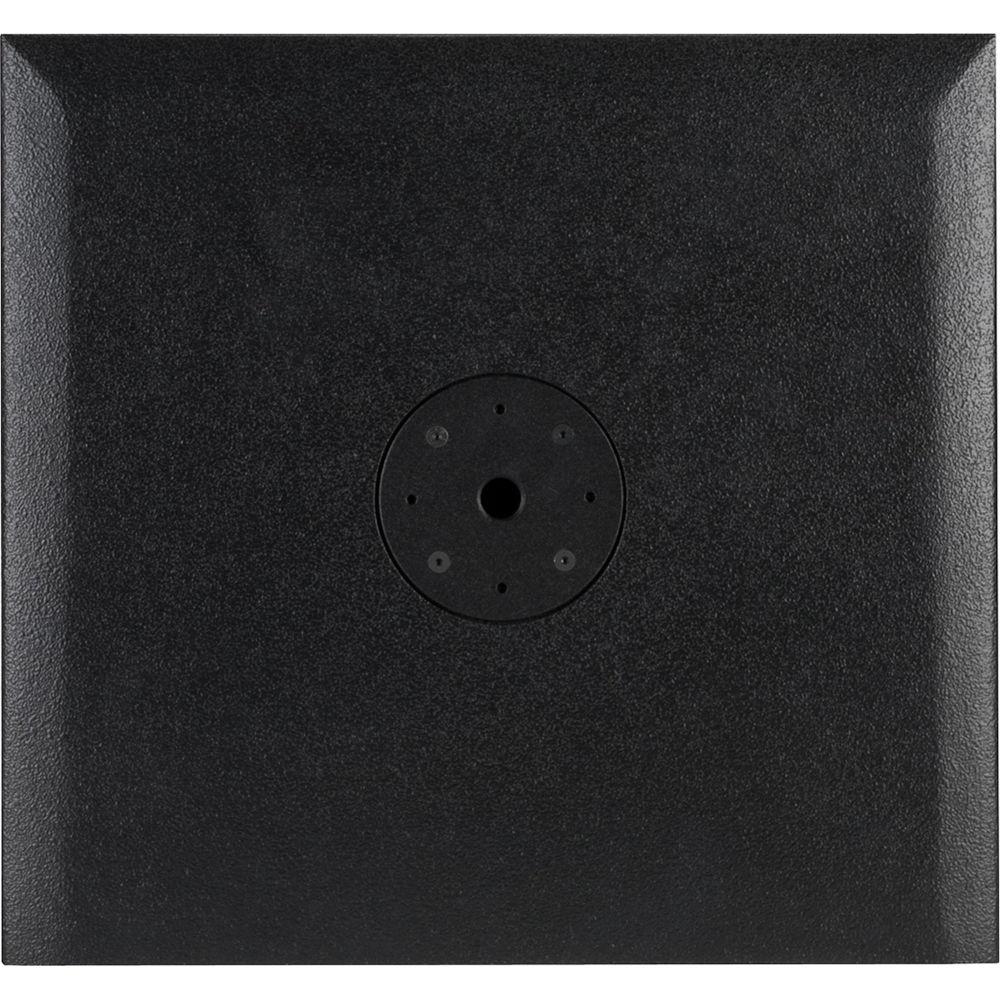

- M20 standard pole mount in top section of cabinet

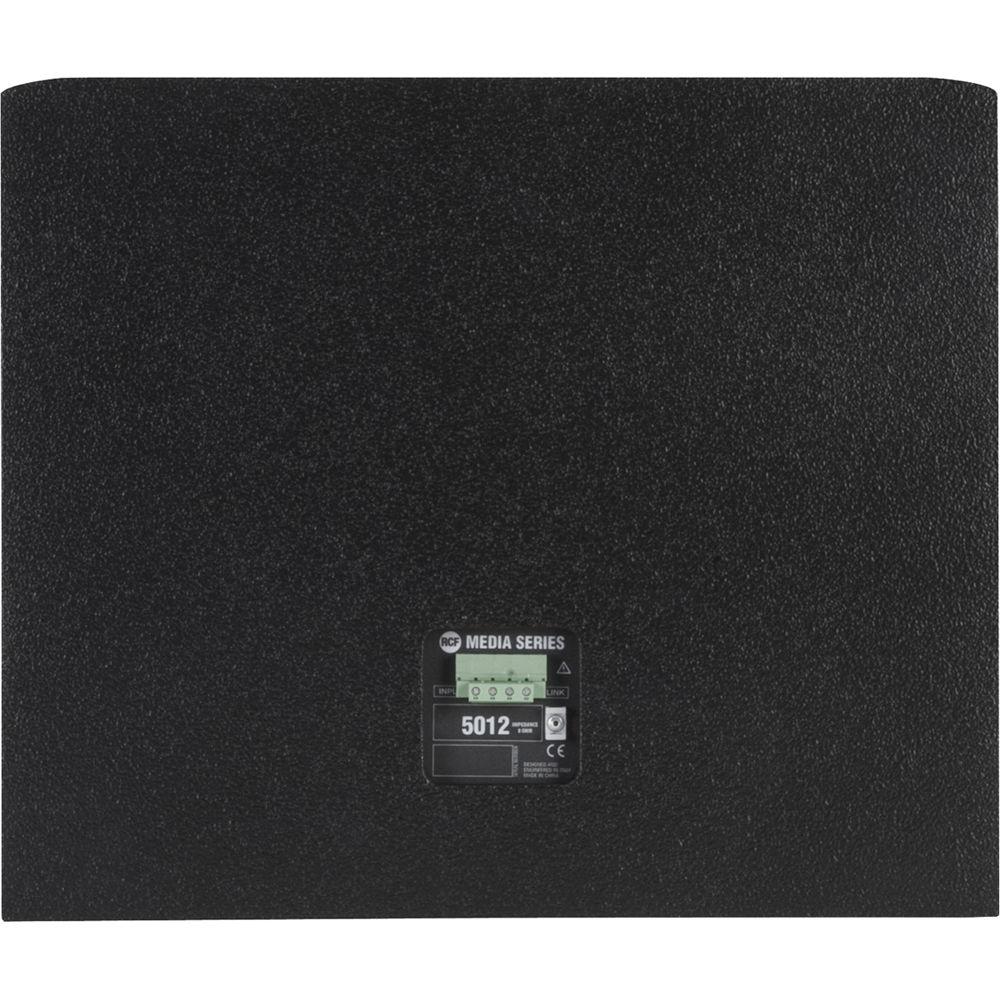

- Recessed Euroblock Input-Output connectors

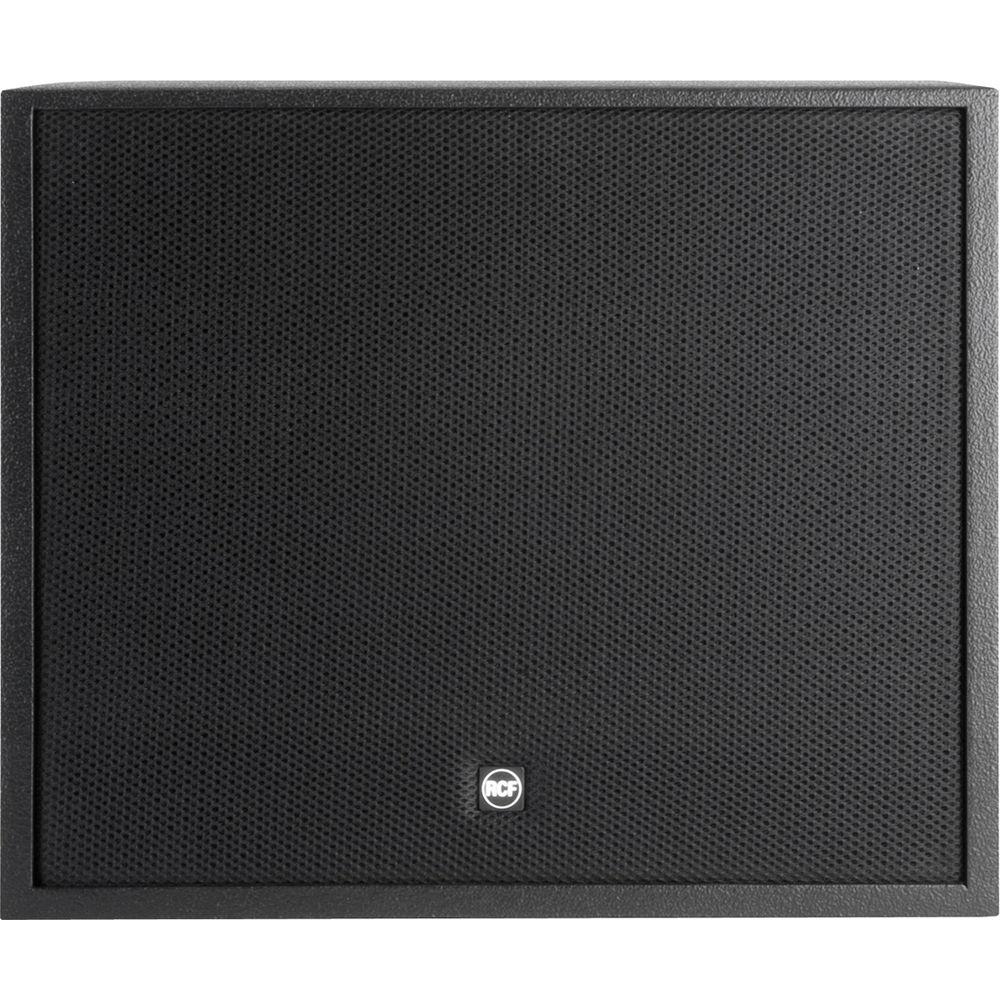

- Protective metal grille, polyester fabric coated
- Integrated recessed hand carry points
- Suited for use at clubs, bars, cafes, theatres, and AV presentations
In the Box RCF S 5012 Compact Bass Reflex Subwoofer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF S 5012 Compact Bass Reflex Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF S5012 Specs | | | Frequency Response | 50 Hz - 200 Hz @ -10 dB | | Maximum SPL | 127 dB @ 1m | | Sensitivity | 96 dB | | Nominal Impedance | 8 ohms | | Power Handling | 300 W | | Peak Power | 1200 W | | Recommended Amplifier Power | 600 W | | | | Woofer | 12" (30.5 cm) woofer, 2.5" (6.4 cm) voice coil | | Nominal Impedance | 8 ohms | | Input Power | 300 W AES | | Sensitivity | 96 dB | | | | Input Connector | 4-pin Euroblock | | | | Material | Rectangular, 15 mm MDF | | Hardware | Pole mount | | Pole Mount/Cap | Yes | | Grille | Steel and double mesh polyester clothing | | Color | Black | | | | Dimensions | 14.96 x 17.72 x 16.53" (38.00 x 45.01 x 41.99 cm) | | Weight | 40.01 lb (18.15 kg) |
