User Manual for RCF ST Series 15-SMA 2-Way Active Stage Monitor Speaker Click to enlarge the picture
Contents of the user manual for the RCF ST Series 15-SMA 2-Way Active
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF ST Series 15-SMA 2-Way Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

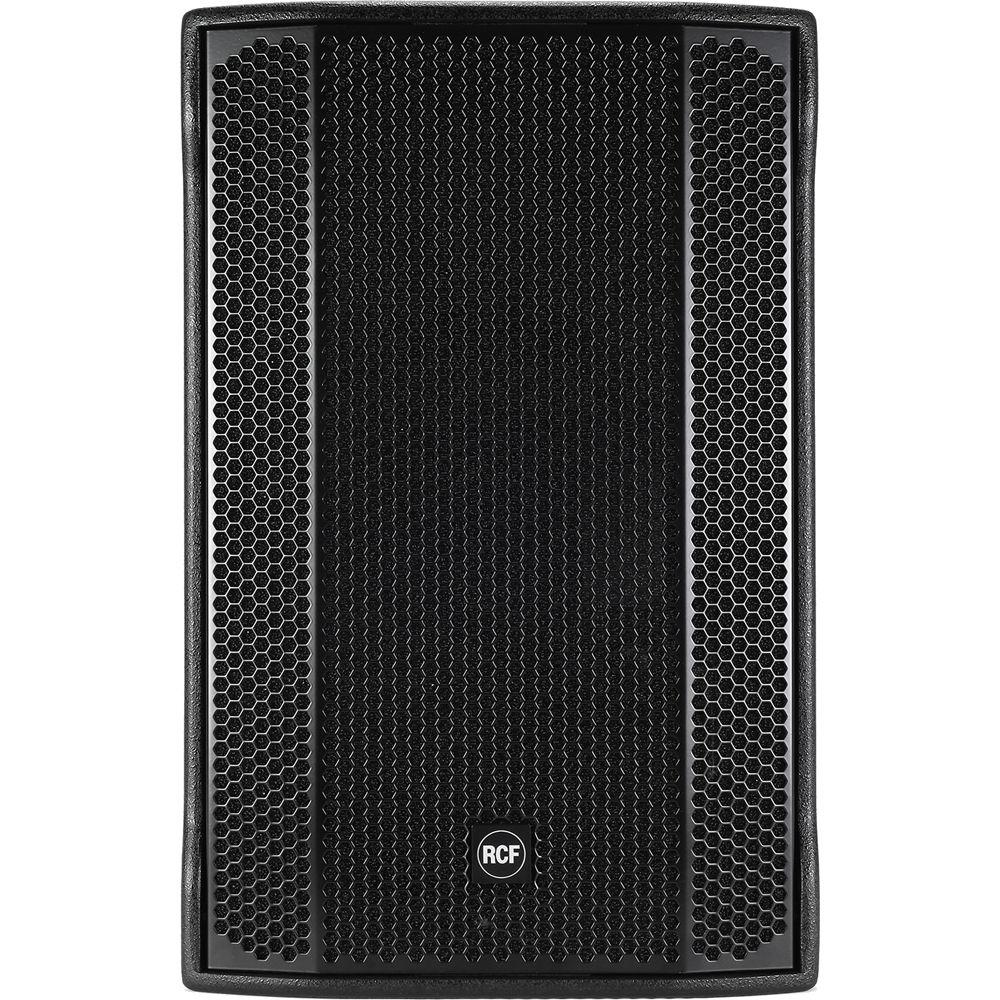

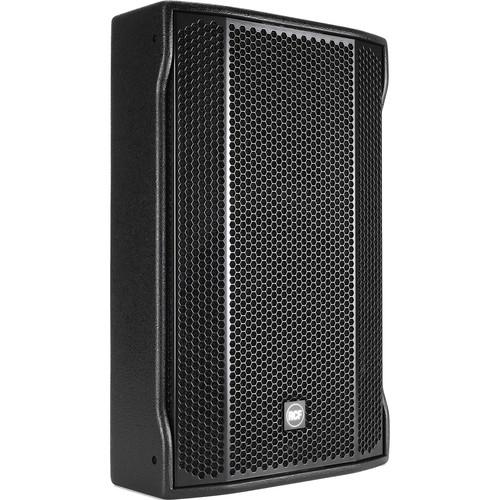

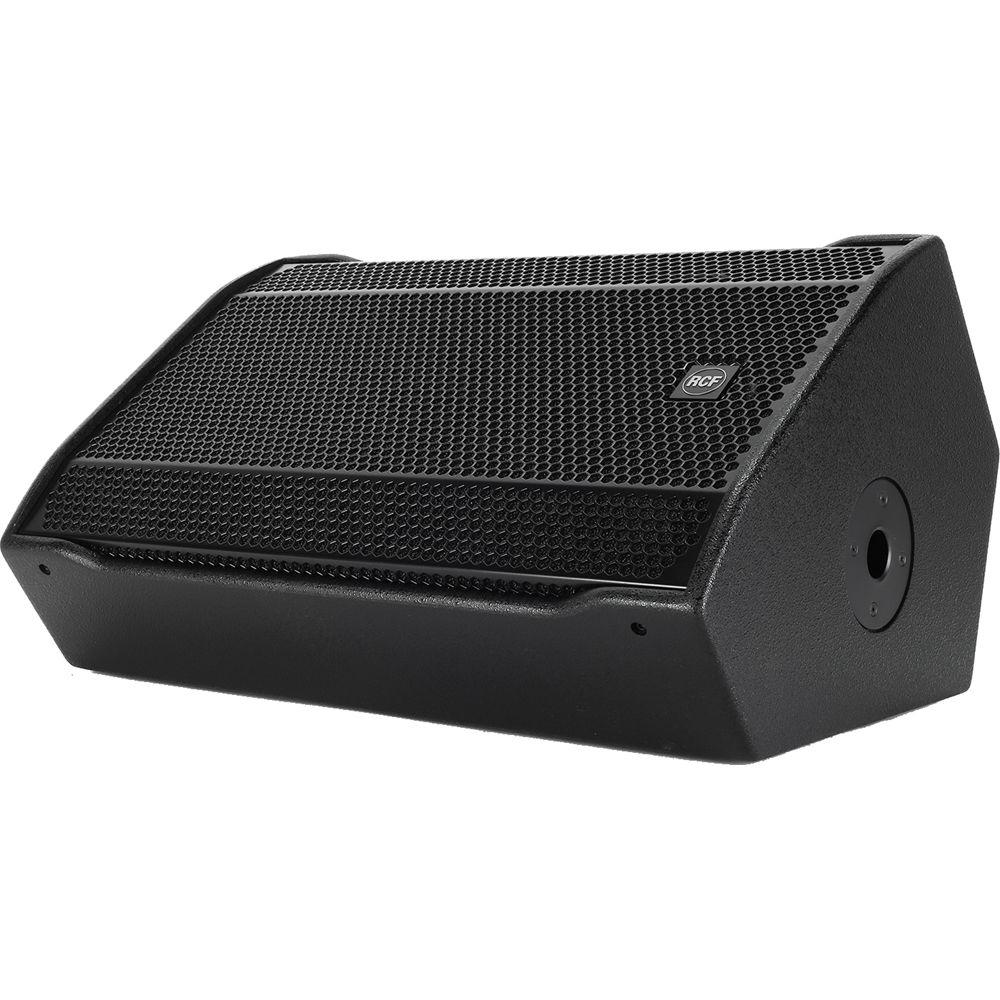

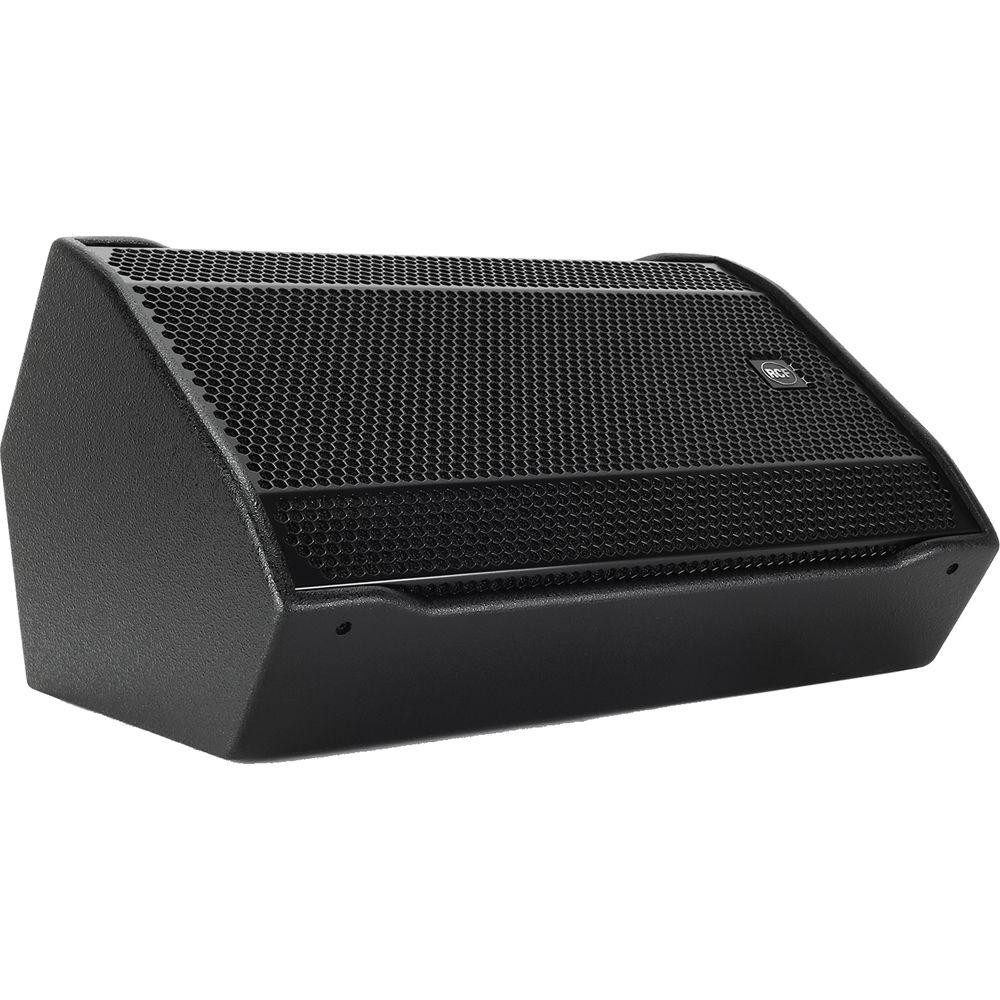

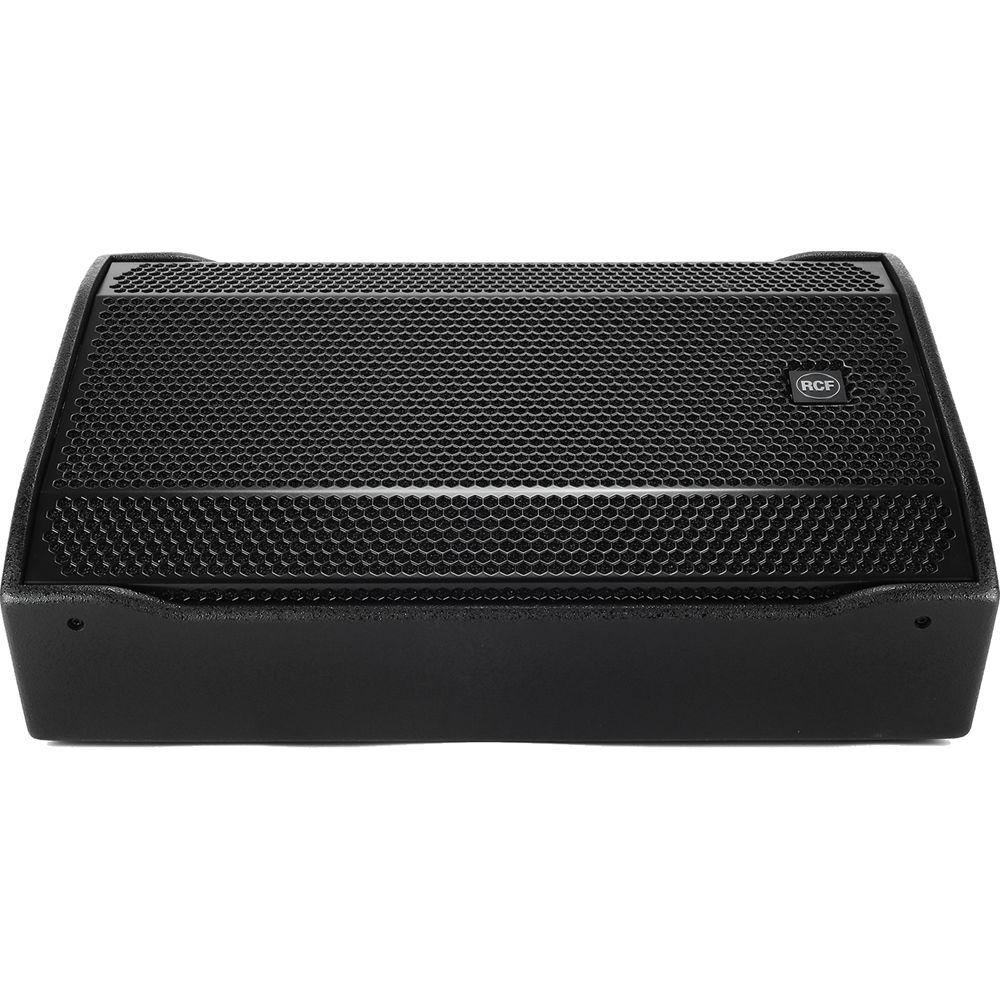

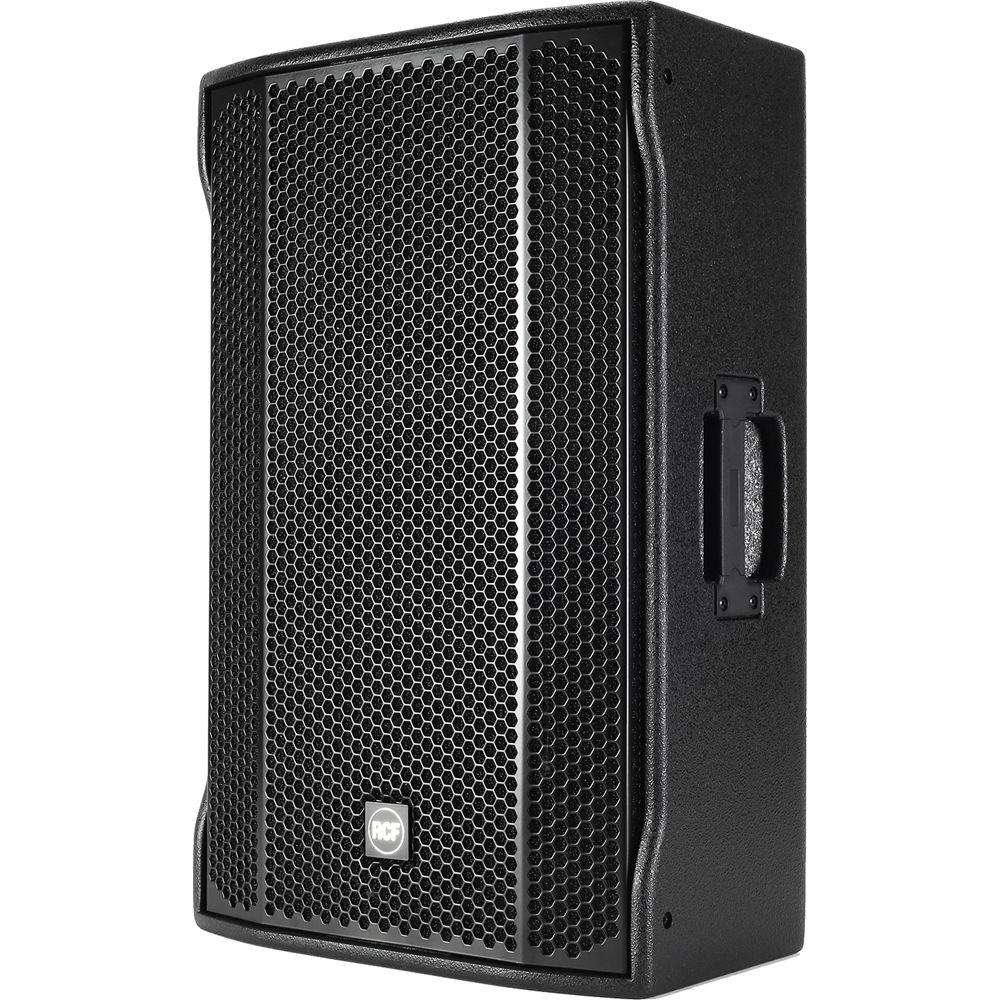

Product description The black ST Series 15-SMA 2-Way Active Stage Monitor Speaker from RCF is a practical solution for high-intelligibility speech and audio applications, covering infill or delay, production studios, presentations, and high-power music sound reinforcement with or without subwoofers.
The speaker features a 15" high-power woofer, 2.5’’ voice coil, delivering accurate bass and precise low-frequency control, making it a suitable stage monitor/speaker for personal use and small bands. The custom-made compression driver ensures a transparent midrange and extreme accuracy. It features a high-performance 1” exit throat and 1.4’’ voice coil, with a frequency range up to 20 kHz. A particularly resistant kind of polyimide is used for the diaphragm and suspension, in order to increase the driver’s mechanical strength and stability.
The two-way speakers are equipped with a digital amplifier, resulting in very high output, extremely low distortion, and natural sound. The amplifier section features an 800W switching power-supply module that can be distributed to the two final amplifier sections. Each amplifier section has a maximum output power capability in order to provide, when necessary, maximum output bursts in a specific frequency range.

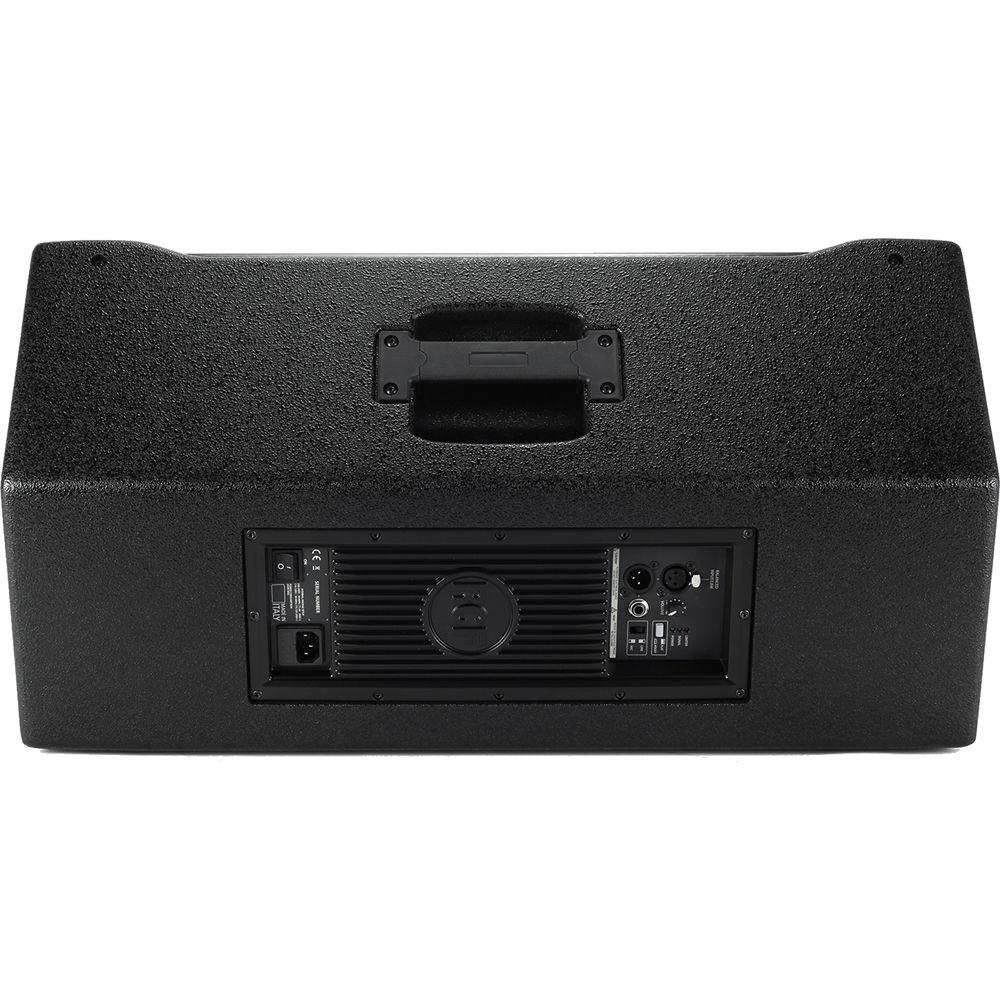

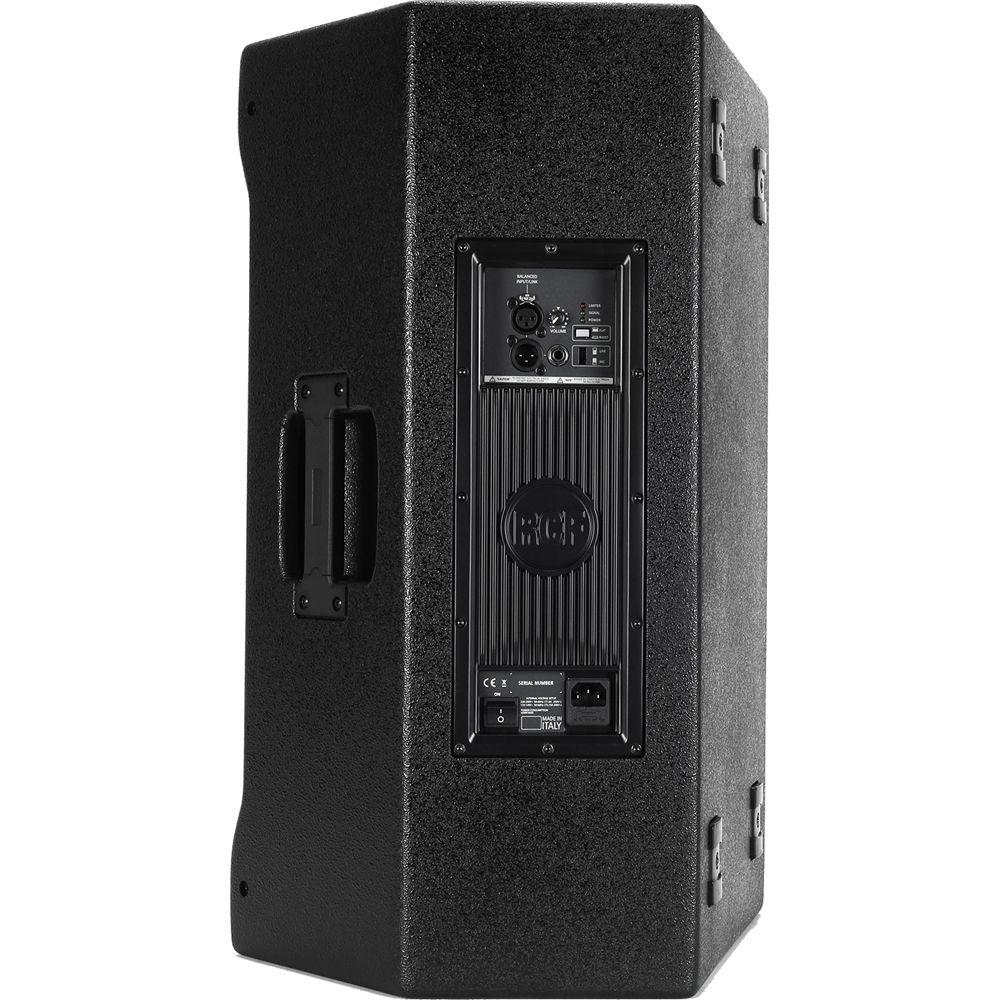

The amplifier consists of XLR and jack inputs, XLR output link, volume, EQ mode (flat/boost), mic/line sensitivity switch, and VDE input connector. It features a solid mechanical aluminum structure which not only increases the amplifier’s stability during transportation, but also helps in heat dissipation. The integrated DSP manages crossover, equalization, soft limiter, compressor, and dynamic bass boost. With an easy 90° rotation and a simple click on the flat/boost switch, the ST 15-SMA turns into a loudspeaker, with the equalization settings in boost mode. - 45 Hz to 20 kHz frequency response
- 15" woofer, 2.5" voice coil
- 1" driver, 1.4" voice coil
- Provides a clear reproduction of midrange frequencies, with a specific focus on the voice
- Features RCF transducers that ensure vocal reproduction
- Main Applications
- Main vocal stage monitor, high-output drum or keyboard monitor, sidefill monitor for small- to medium-scale applications, rental companies, and professional musicians
In the Box RCF ST Series 15-SMA 2-Way Active Stage Monitor Speaker (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF ST Series 15-SMA 2-Way Active Stage Monitor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF ST15-SMA Specs | | | Frequency Response | -3 dB: 45 to 20 Hz | | Maximum SPL | 131 dB | | Angle | Horizontal: 90°
Vertical: 60° | | Compression Driver | 1", 1.4" voice coil | | Woofer | 15", 2.5" voice coil | | | | Input Signal | Balanced/unbalanced | | Input Connectors | Jack-XLR male | | Output Connectors | XLR female | | | | Crossover Frequencies | 1400 Hz | | Protections | RMS limiter, HF | | Limiter | Fast limiter | | | | Total Power | 1200 W peak | | Frequencies | High: 400 W peak
Low: 800 W peak | | Total Power | 600 W RMS | | Frequencies | High: 200 W RMS
Low: 400 W RMS | | | | Material | Baltic birch | | Handles | 1 side | | Pole Mount/Cap | Yes | | | | Dimensions (H x W x D) | 14.3 x 26.5 x 19.0" (36.3 x 67.3 x 48.3 cm) | | Weight | 46 lb (21 kg) | | | | Package Weight | 54.0 lb | | Box Dimensions (LxWxH) | 28.4 x 19.0 x 15.5" |
