User Manual for RCF SUB 708-AS MKII 18" Active Subwoofer Click to enlarge the picture
Contents of the user manual for the RCF SUB 708-AS MKII 18" Active
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF SUB 708-AS MKII 18" Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

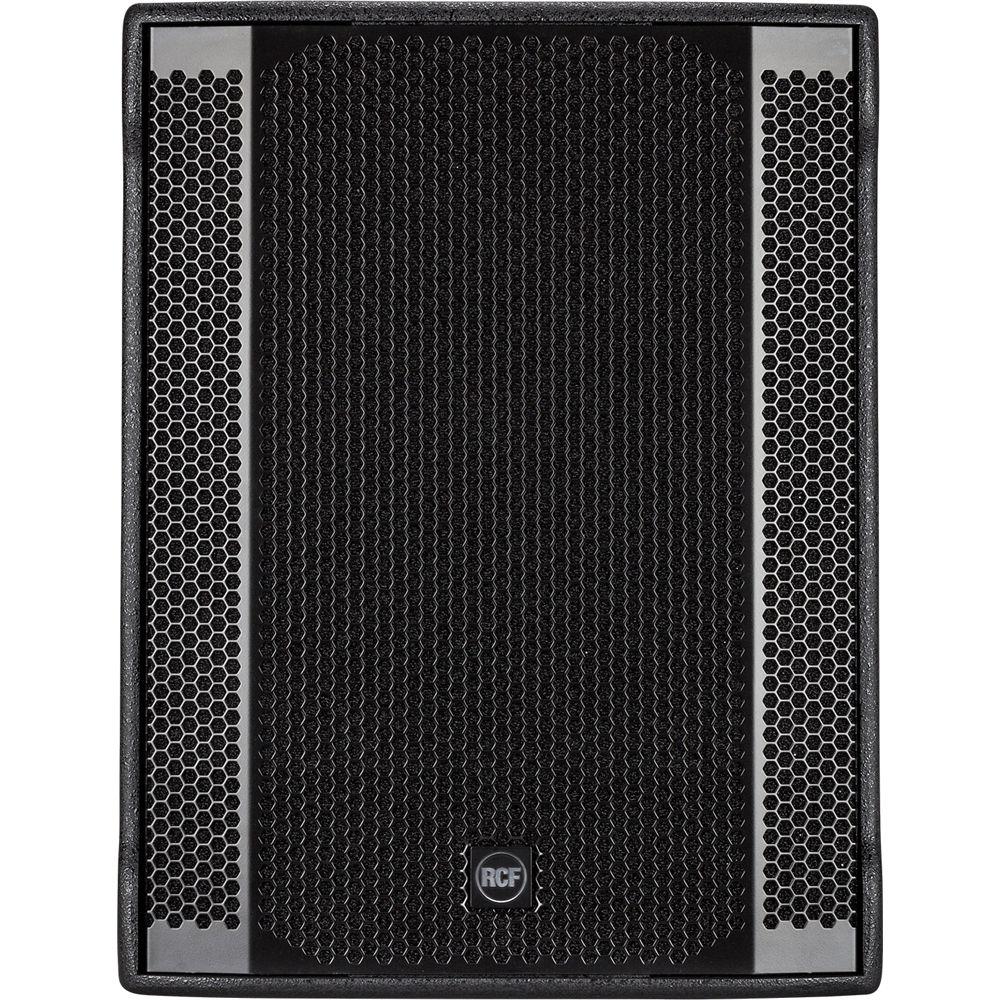

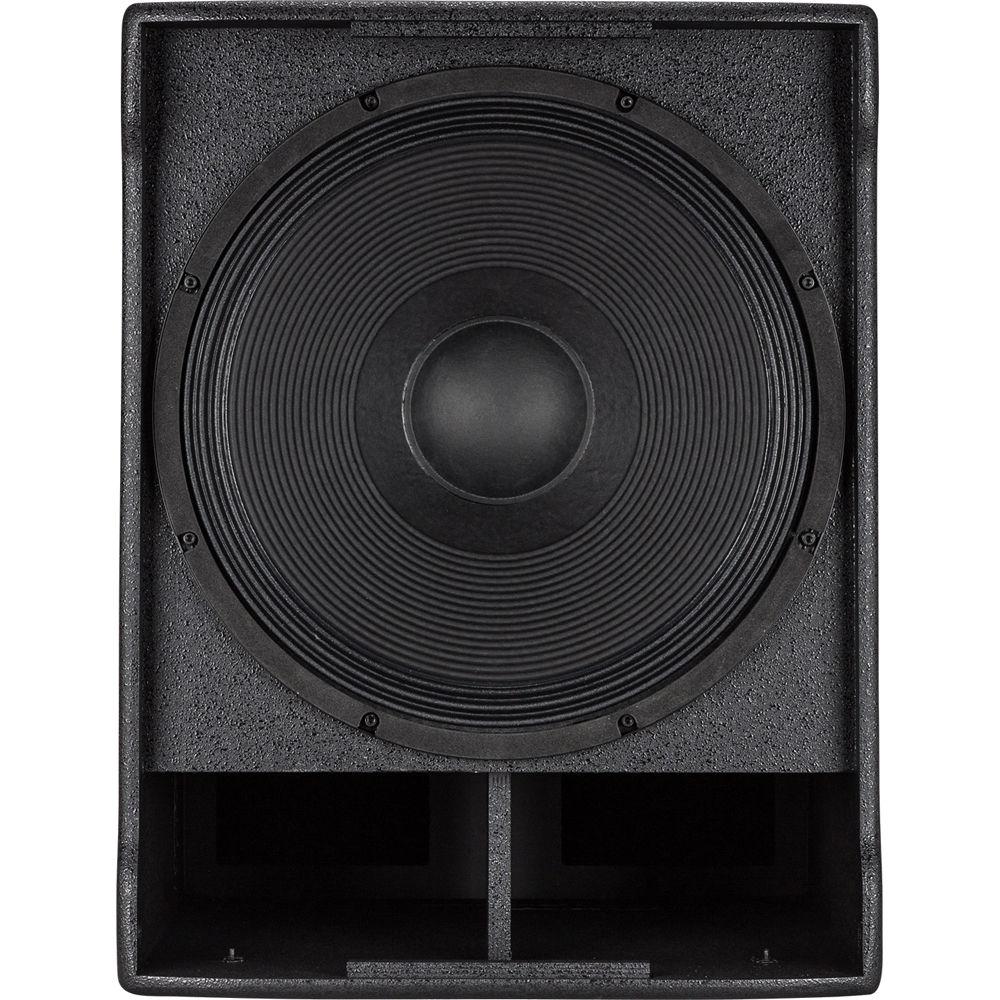

Product description The SUB 708-AS MKII 18" Active Subwoofer from RCF is a compact and powerful bass reflex subwoofer. It is equipped with a 18" high power woofer with 3" voice coil, powered by a 1400W digital amplifier in robust plywood housing for a powerful bass. Thanks to the built-in DSP digital stereo crossover with adjustable crossover frequency, it can be easily set up with a satellite speaker.

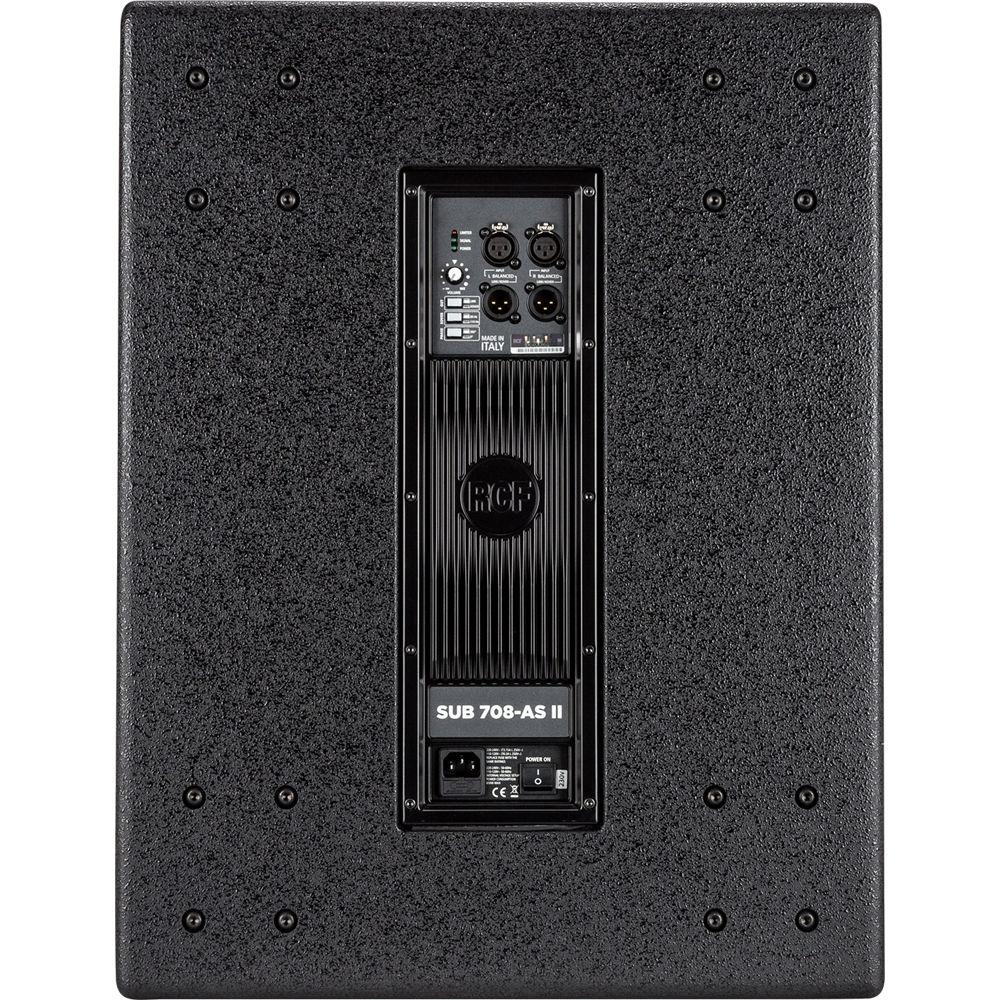

The subwoofer is equipped with 1400W digital amplifier that produces a very high output, low distortion, and natural sound. The amplifier features a solid mechanical aluminum structure which not only stabilizes the amplifier during transportation but also assist in the heat dissipation. The input board includes stereo XLR Inputs (balanced/unbalanced), stereo XLR Link/Xover outputs, volume control, Xover switch, phase switch. The 3 status LEDs – limiter / signal / status are provided for monitoring the system.

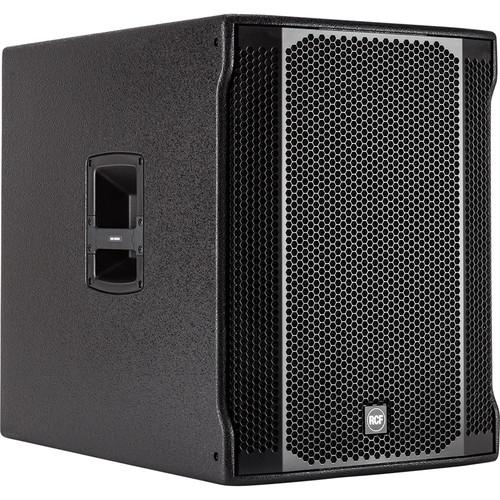

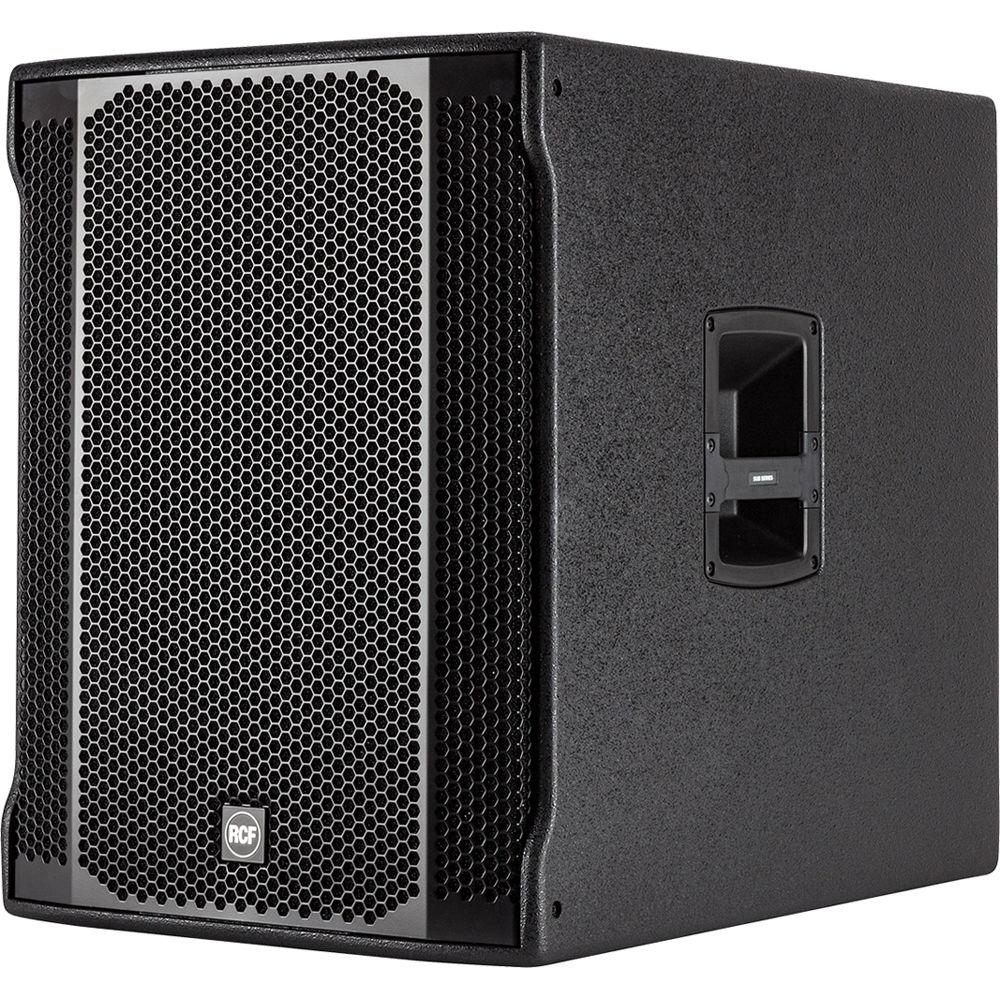

Two ergonomic recessed handles are positioned on the sides of the speaker. Thanks to the integrated steel pole mount, the subwoofer can be easily combined with another speaker. The use of steel instead of plastic makes the whole system particularly reliable and robust, thus allowing to choose a heavier monitor without the risk of damage. - 18" woofer, bass reflex housing
- Switchable crossover frequencies
- Electronic equalization, soft limiter, and protection
- Stereo XLR input, Stereo XLR signal output
- Applications: Club sound, DJs, portable PA, rental, small theatre
In the Box RCF SUB 708-AS MKII 18" Active Subwoofer Power Cable Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF SUB 708-AS MKII 18" Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF SUB-708AS-MK2 Specs | | | Frequency Response | 35 Hz to 120 Hz | | Maximum SPL | 133 dB | | Woofer | 18", 3" voice coil | | | | Input Signal | Balanced / unbalanced | | Input / Output Connectors | Stereo XLR | | Input Sensitivity | -2 dBu / 4 dBu | | | | Crossover Frequencies | 80 to 110 Hz | | Protections | Thermal, rms | | Sensitivity | Control: Yes | | Limiter | Soft limiter | | Controls | Volume, EQ, phase, xover | | | | Power Supply | Total Power: 1400 W peak, 700 W RMS | | Frequencies | 1400 W peak, 700 W RMS | | Cooling | Convection | | Connection | VDE connector | | | | Material | Baltic birch plywood | | Handles | 2 side | | Pole Mount/Cap | Yes | | | | Dimensions (H x W x D) | 26.2 x 20 x 27.5" (66.5 x 51 x 70 cm) | | Weight | 84 lb (38 kg) |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
