User Manual for RCF SUB 8003-AS II Active Subwoofer Click to enlarge the picture
Contents of the user manual for the RCF SUB 8003-AS II Active Subwoofer
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF SUB 8003-AS II Active Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

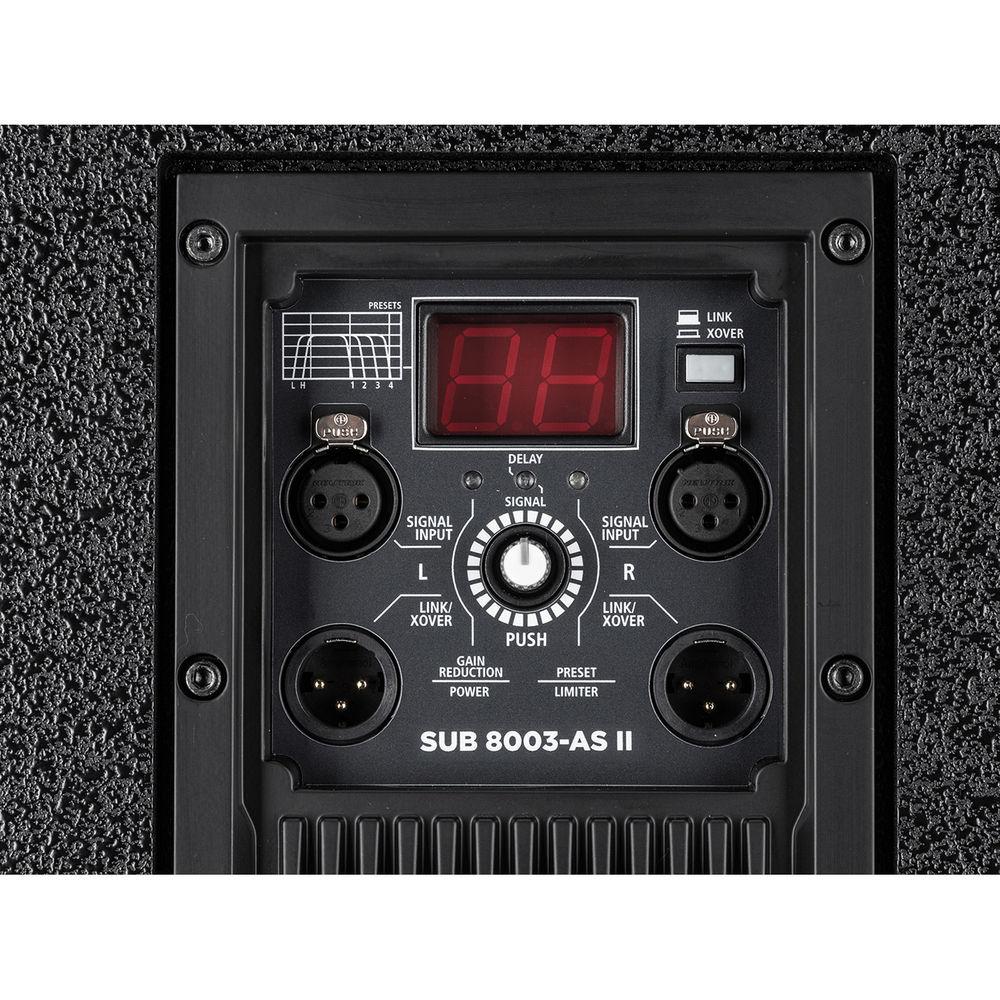

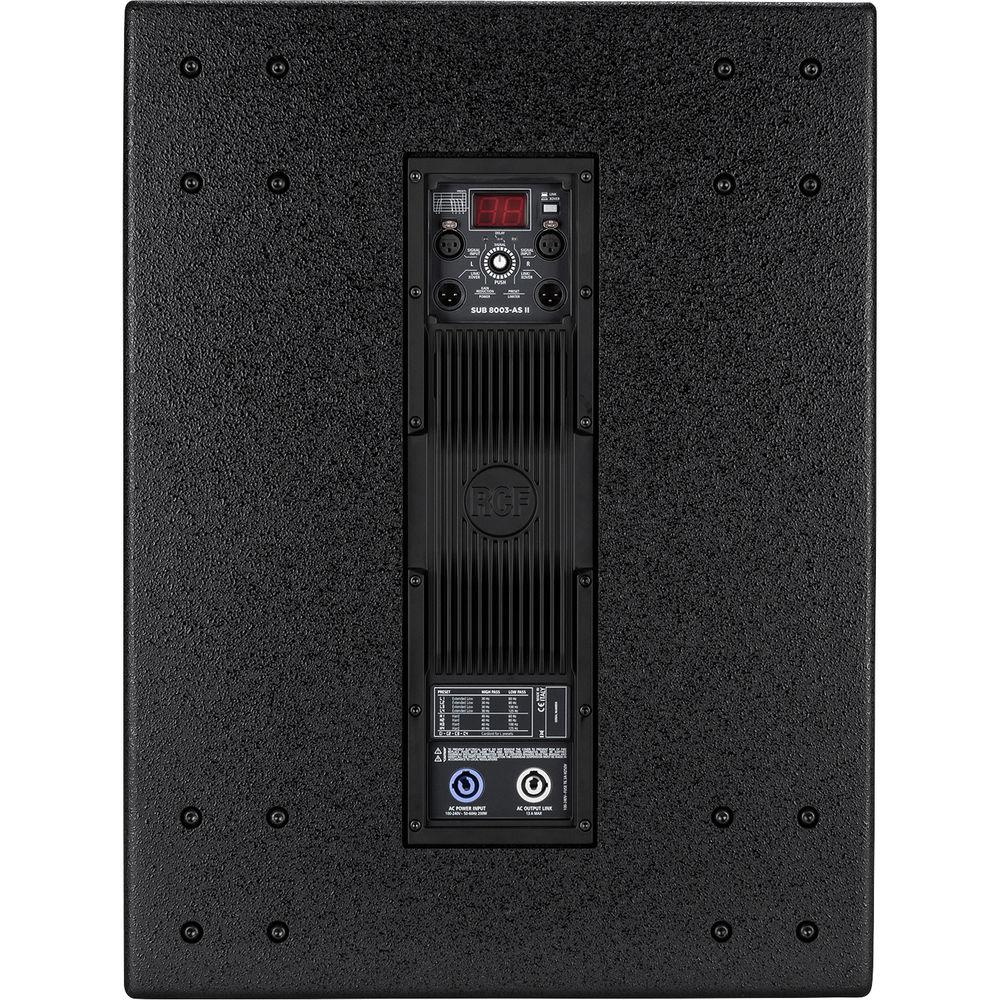

Product description The SUB 8003-AS II Active Subwoofer from RCF is equipped with a 2200W digital amplifier that has an aluminum structure and assists in heat dissipation. It has an input board that features stereo XLR inputs and stereo XLR link-crossover outputs with switchable crossover frequencies for satellite systems. The system has a built-in DSP with selectable presets that adapts to RCF's active 2-way speakers. It is suitable for 12" or 15" active speakers in the Live Sound series such as ART 7 and 4PRO, as well as D-Line series. The system accepts female XLR input connectors and line-level signals from a mixing console or other signal source.
With control range from 99 dB gain reduction (maximum attenuation) to 0 dB gain reduction (maximum input gain), the encoder controls the overall signal level at the input to the power amplifier and provides a time delay setting expressed in meters. It provides 24 dB/octave low-pass filters with four choices (60 Hz, 80 Hz, 100 Hz, 125 Hz) and high-pass filters with two choices (30 Hz or 40 Hz) for eight preset combinations. The cardioid presets are available for all 30 Hz high-pass presets. You can change the two XLR output to XOVER output by pressing the LINK/XOVER button. You can create subwoofer cardioid systems using groups of two or three modules. - Rear encoder to select two groups of low-pass filter presets, one with 30 Hz high pass and one with 40 Hz high pass
- Former with triple thickness transfers the sound to the cone accurately
- Bass-reflex design that produces high SPL by reducing distortion
In the Box RCF SUB 8003-AS II Active Subwoofer PowerCON Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF SUB 8003-AS II Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

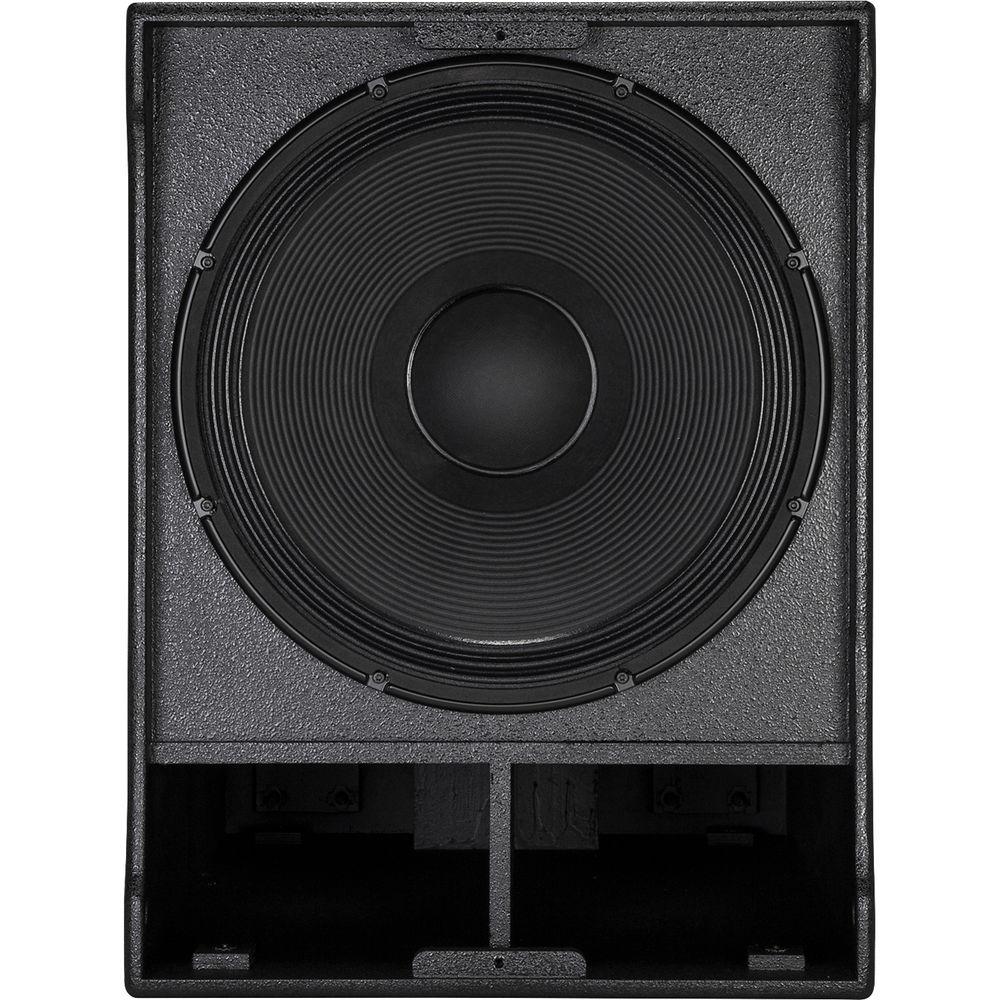

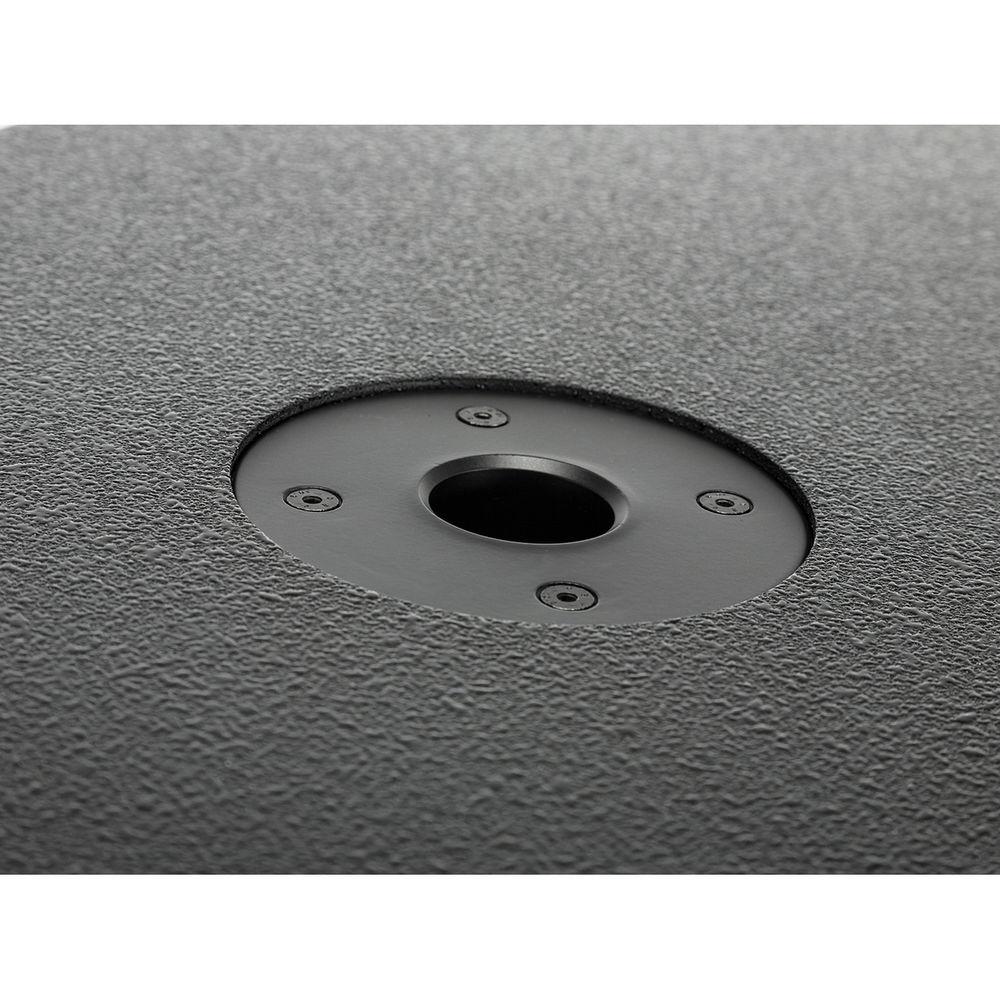

Technical parametersRCF SUB-8003-AS-MK2 Specs | | | Frequency Response | 35 to 120 Hz | | Maximum SPL | 135 dB | | Woofer | 18", 4" voice coil | | | | Input / Output Connectors | Stereo XLR | | Input Sensitivity | -2 dBu / 4 dBu | | | | Crossover Frequencies | Selectable | | Protections | Thermal, RMS | | Limiter | Dynamic limiter | | Controls | Gain, EQ, phase, xover, delay, cardioid | | | | Power | Total Power: 2200 W peak, 1100 W RMS | | Cooling | Convection | | Connection | PowerCON in/out | | | | Material | Baltic birch | | Handles | 2/side | | Pole Mount/Cap | Yes | | Grille | Steel | | | | Dimensions | 27.3 x 20.6 x 27.6" / 69.4 x 52.3 x 70 cm | | Weight | 95.9 lb / 43.5 kg |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to RCF SUB 8003-AS II Active Subwoofer
| Subject: RCF 8003 | | Date: 28.05.2023 15:55:47 | Name: RICARDO DE JESUS | | Hi, im looking if the 8003 sub has a fuse or something. Im connected the sub last night i heard a click an now No power on. Thanks | | Post reply |
