User Manual for RCF SUB 8005-AS Active High Power Subwoofer Click to enlarge the picture
Contents of the user manual for the RCF SUB 8005-AS Active High Power
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF SUB 8005-AS Active High Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

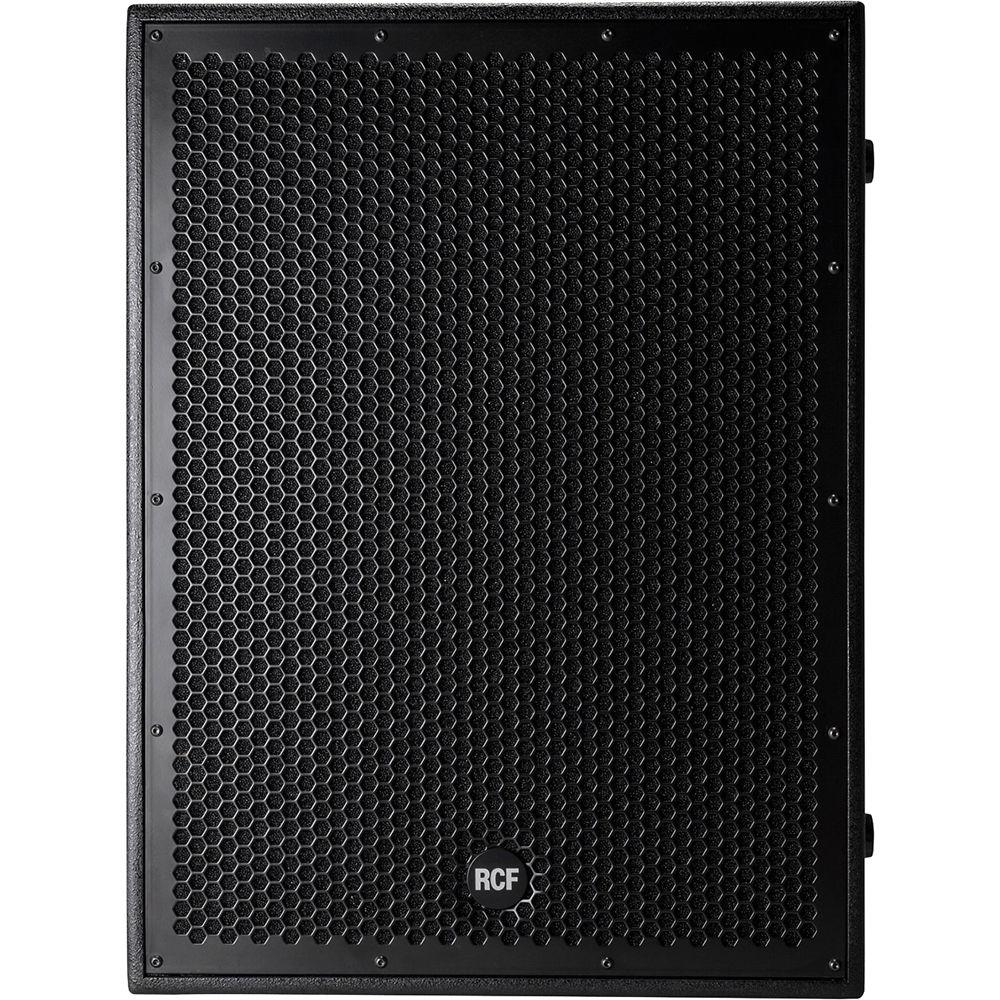

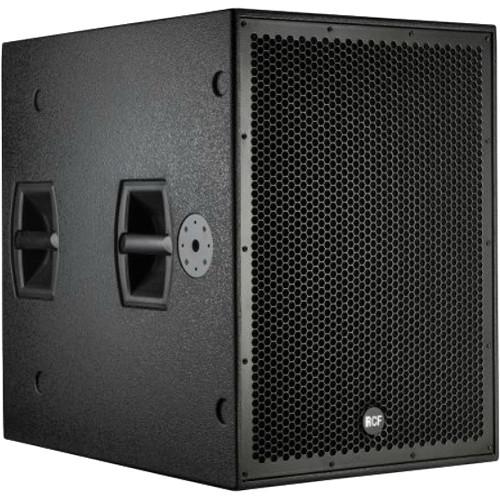

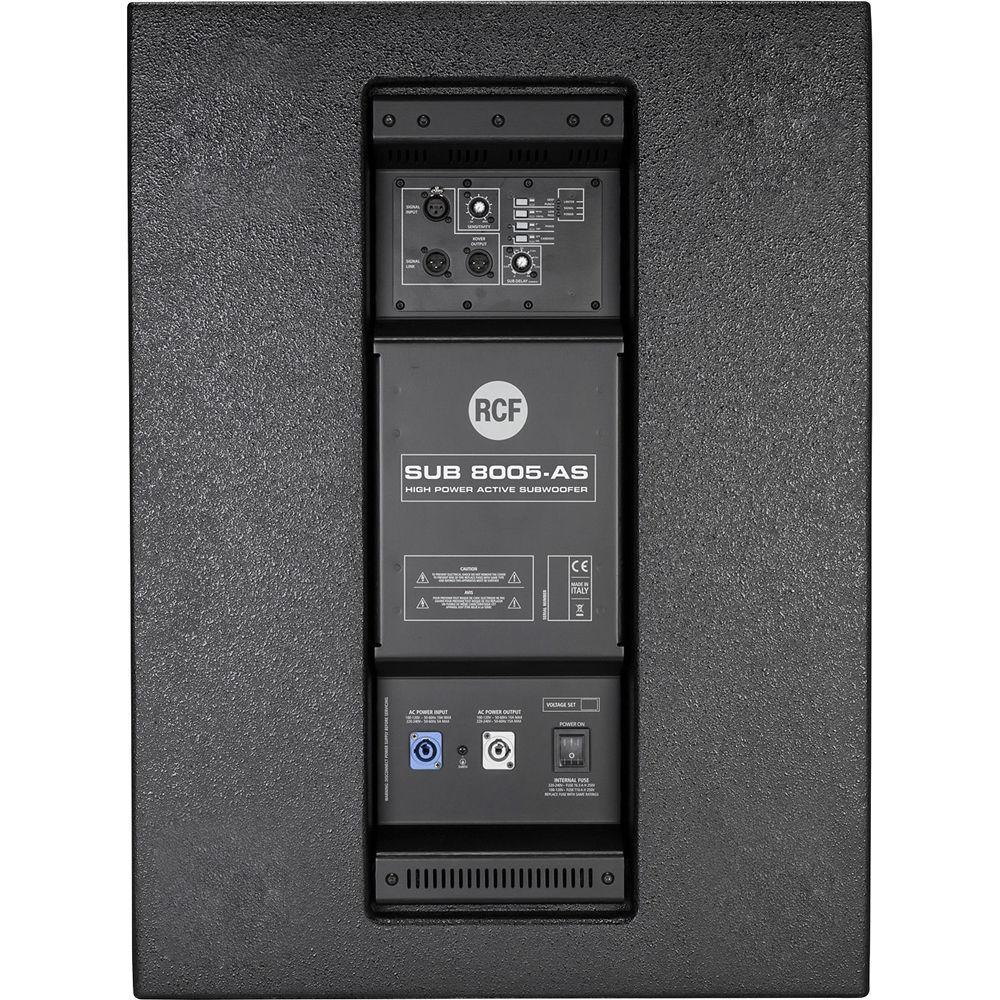

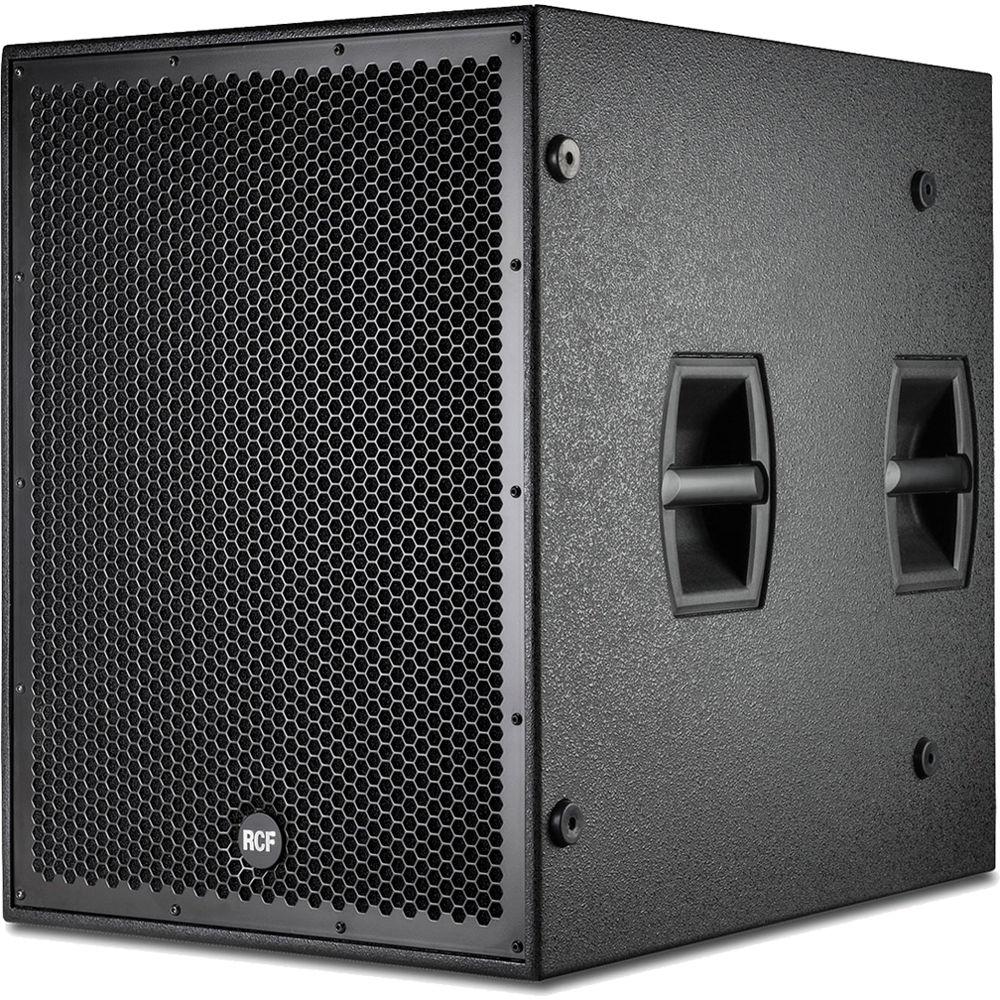

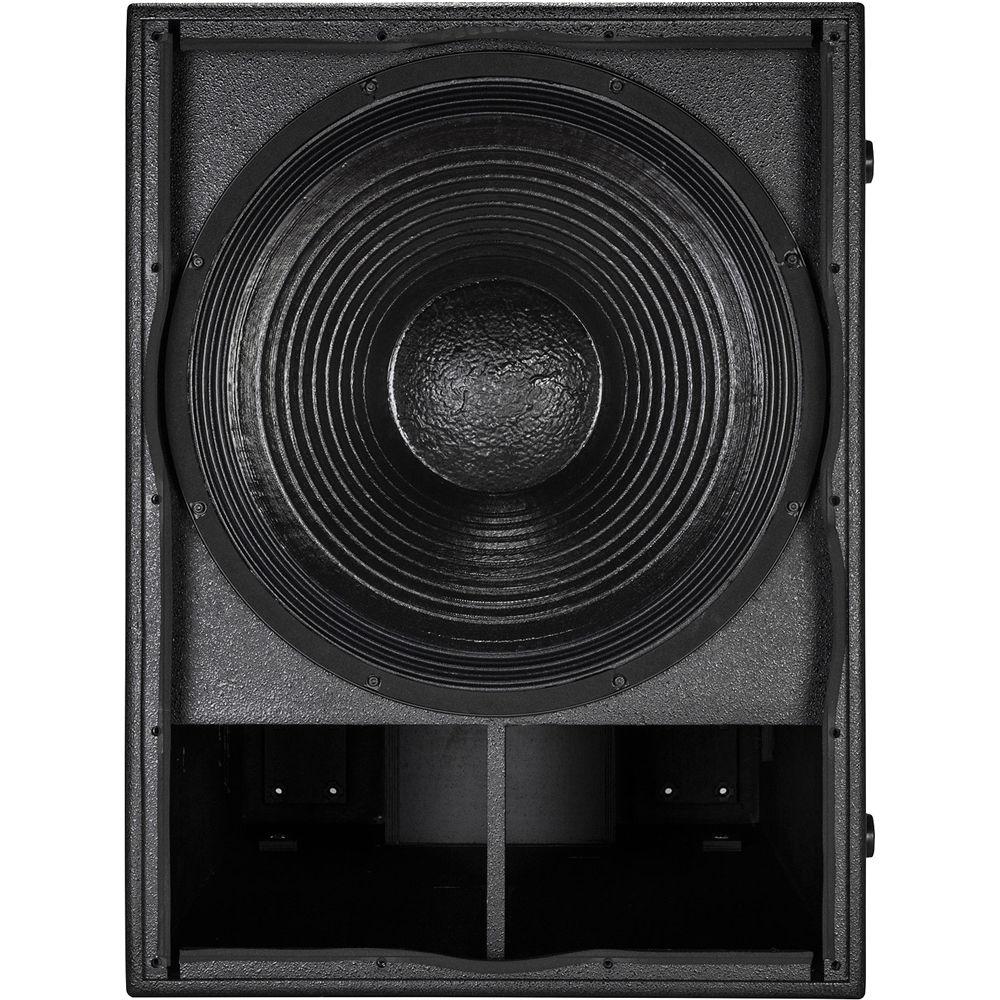

Product description The SUB 8005-AS Active High Power Subwoofer from RCF is a high power 21" subwoofer with a 4.5" inside/outside voice coils. This cabinet is designed to deliver low frequency and is powered by a 2500W digital amplifier module. The input board includes volume control, a deep/punch switch, a high pass switch, a phase switch, a cardioid, and time delay. - 21" Woofer, 4.5" voice coil vented woofer
- 2500 Watt peak, 1250 Watt RMS
- DSP controlled input section with selectable presets
- Baltic birch tour grade cabinet
- Multiple configurations with HDL 10-A and HDL 20-A
In the Box RCF SUB 8005-AS Active High Power Subwoofer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF SUB 8005-AS Active High Power Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF SUB-8005AS Specs | Compatible | NXL23-A (stacking)
NXL24-A (stacking) | | Frequency Response | 27 to 120 Hz @ -3 dB | | SPL | 137 dB | | Woofer | 21", 4.5" voice coil | | Input Signal | Balance/unbalanced | | Input and Output Connectors | XLR | | Input Sensitivity | -2 / +4 dBu | | Crossover Frequencies | 90 to 120 Hz | | Protections | Thermal, RMS | | Limiter | Fast limiter | | Controls | Xover, Phase switch, Deep/Punch, Output Delay settings, Cardioid | | Amplifier | Total power: 2500 W peak
Low frequencies: 2500 W peak
Total power: 1250 W RMS
Low frequencies: 1250 W RMS
Cooling: Convection
Connections: Powercon in-out | | Cabinet | Material: Baltic birch

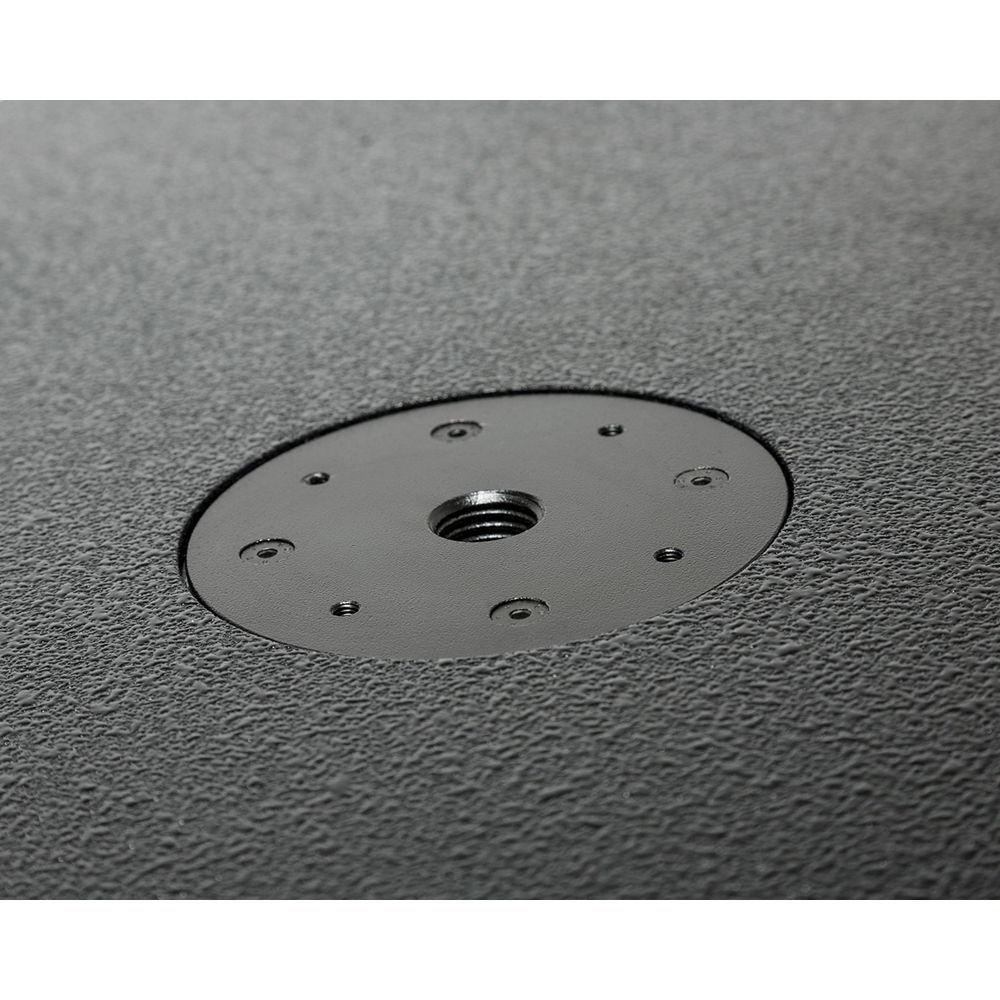

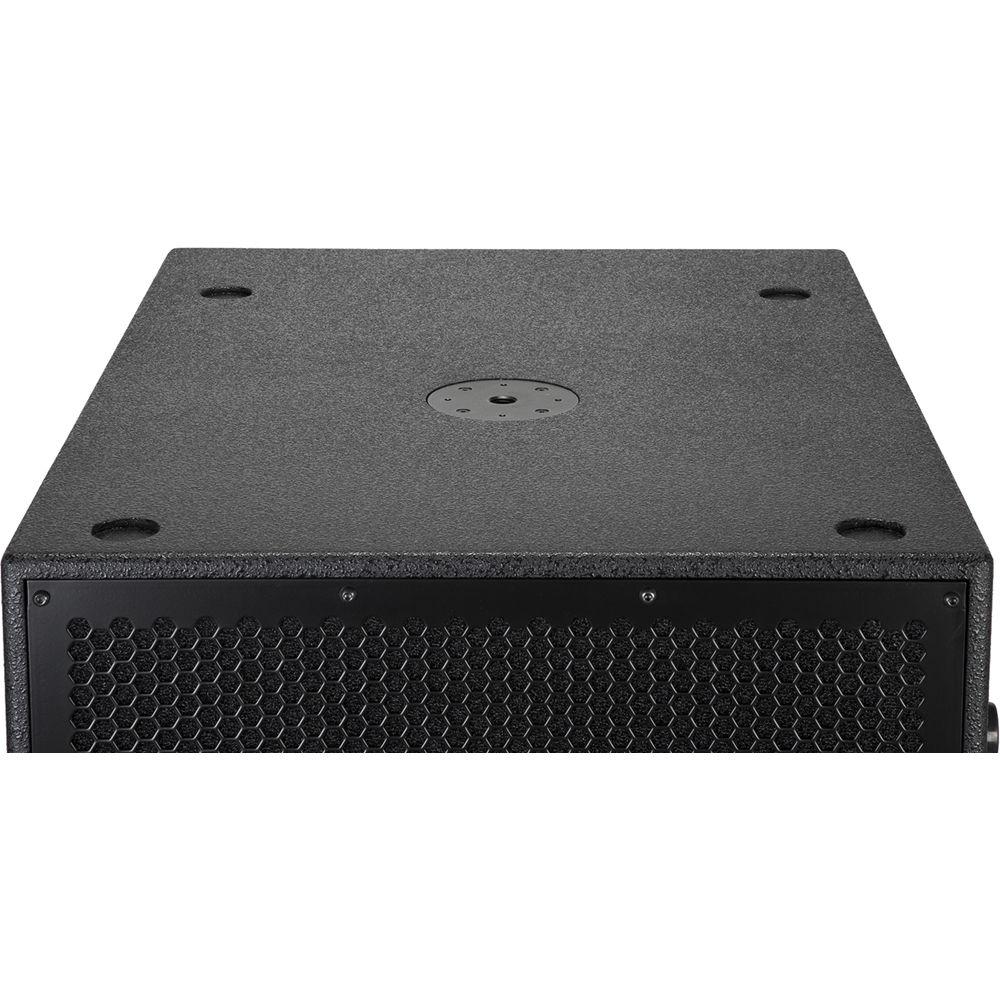

Hardware: 2 x M20, 4 x wheels mounting points
Handles: 2
Color: Black | | Dimensions | Height: 32.48" (825 mm)
Width: 23.62" (600 mm)
Depth: 31.69" (805 mm) | | Weight | 146.8 lb (66.6 kg) |
