User Manual for RCF SUB 8006-AS Professional Series Active Subwoofer Click to enlarge the picture
Contents of the user manual for the RCF SUB 8006-AS Professional Series Active
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF SUB 8006-AS Professional Series Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

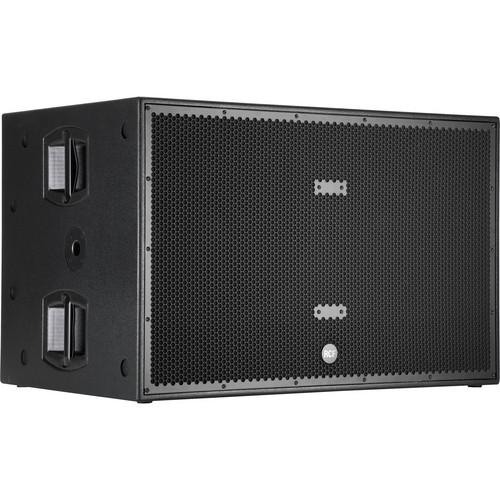

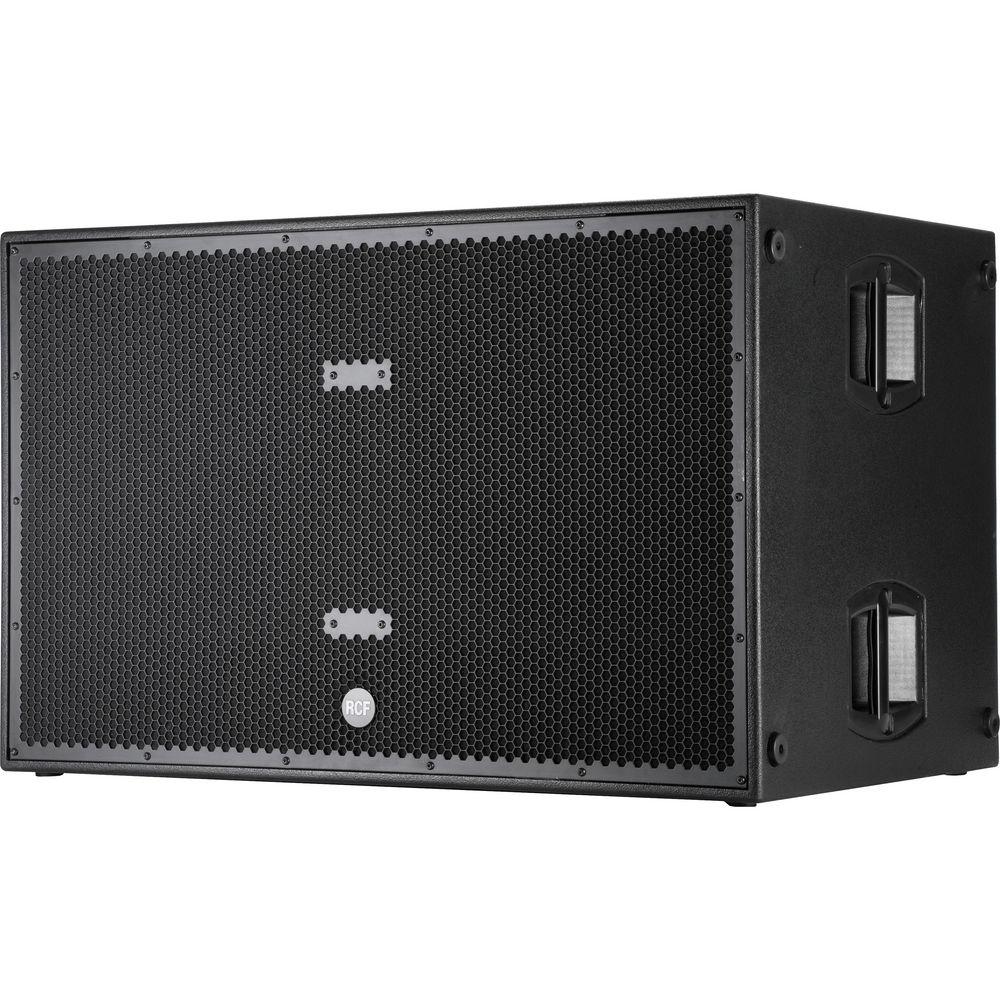

Product description The black SUB 8006-AS Professional Series Active Subwoofer from RCF features two 18” transducers with 4” inside/outside voice coils, designed to deliver a strong low frequency response. This direct radiating, high output, large-format subwoofer system is designed to compliment full-range loudspeakers. Driver mounting maximizes cone area and minimizes frontal area, providing acoustical performance and physical configuration well suited for creating large subwoofer arrays.
This subwoofer has been designed to extract efficiency from every part of the system, allowing for accurate low frequency transient response. As a self-powered system, the transducers, amplification, and DSP are designed to optimize performance, and maximize power.
This subwoofer’s efficiently tuned cabinet houses 2 precision backvented, long-excursion, high-power 18” cone drivers, providing controlled reproduction of the bass frequency range. It also has a 4” inside/outside voice coil to minimize power compression and extend the life of the speaker.
The drivers have also been engineered using high gauss ferrite magnets for powerful magnetic field strength. High magnetic field strength increases the driver’s sensitivity, which yields high output while keeping heat dissipation requirements within operational tolerances.
This subwoofer is powered by a 2,500W digital amplifier module with Class-D technology that is designed for performance and high efficiency in a lightweight solution. The amplifier also features a solid mechanical aluminum structure, which not only stabilizes the amplifier during transportation but also assists it in heat dissipation. The integrated DSP offers equalization, soft limiter, compressor, and user adjustable settings such as deep/boost EQ, low pass, phase reverse, and a preset for a cardioid setup.

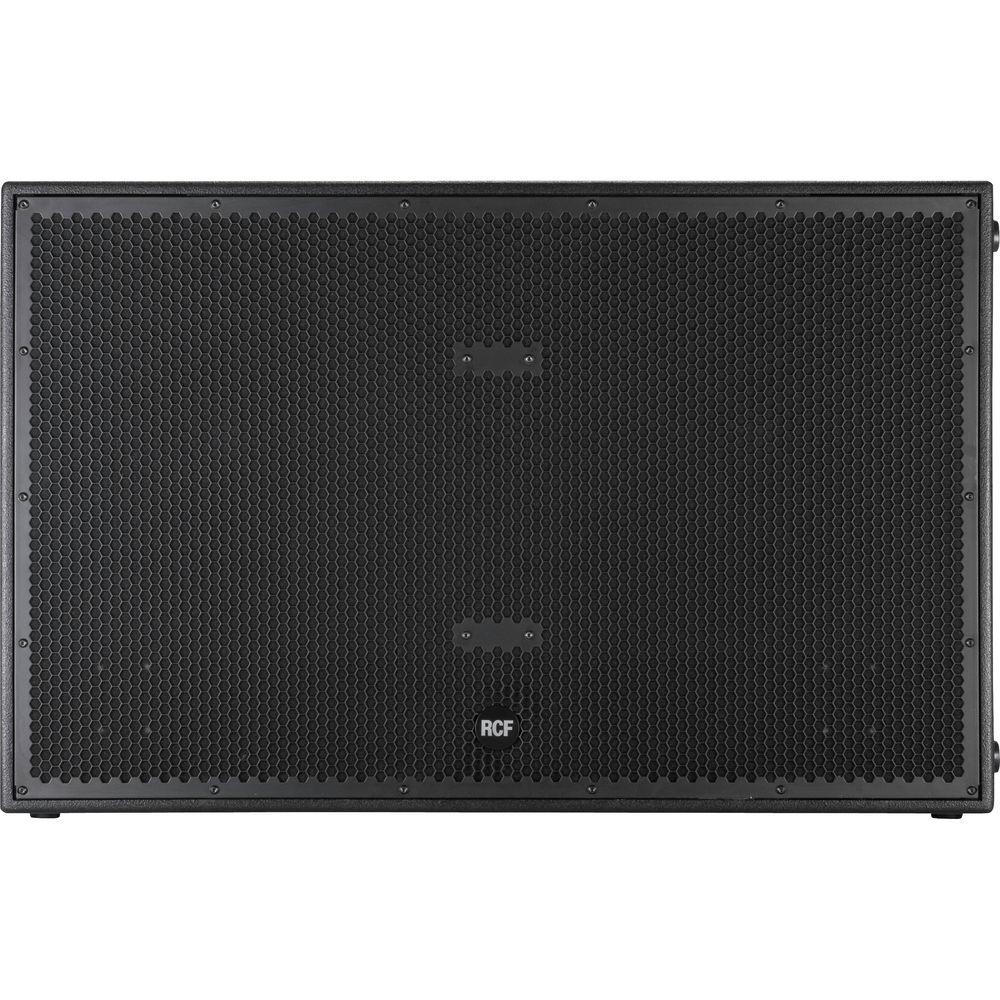

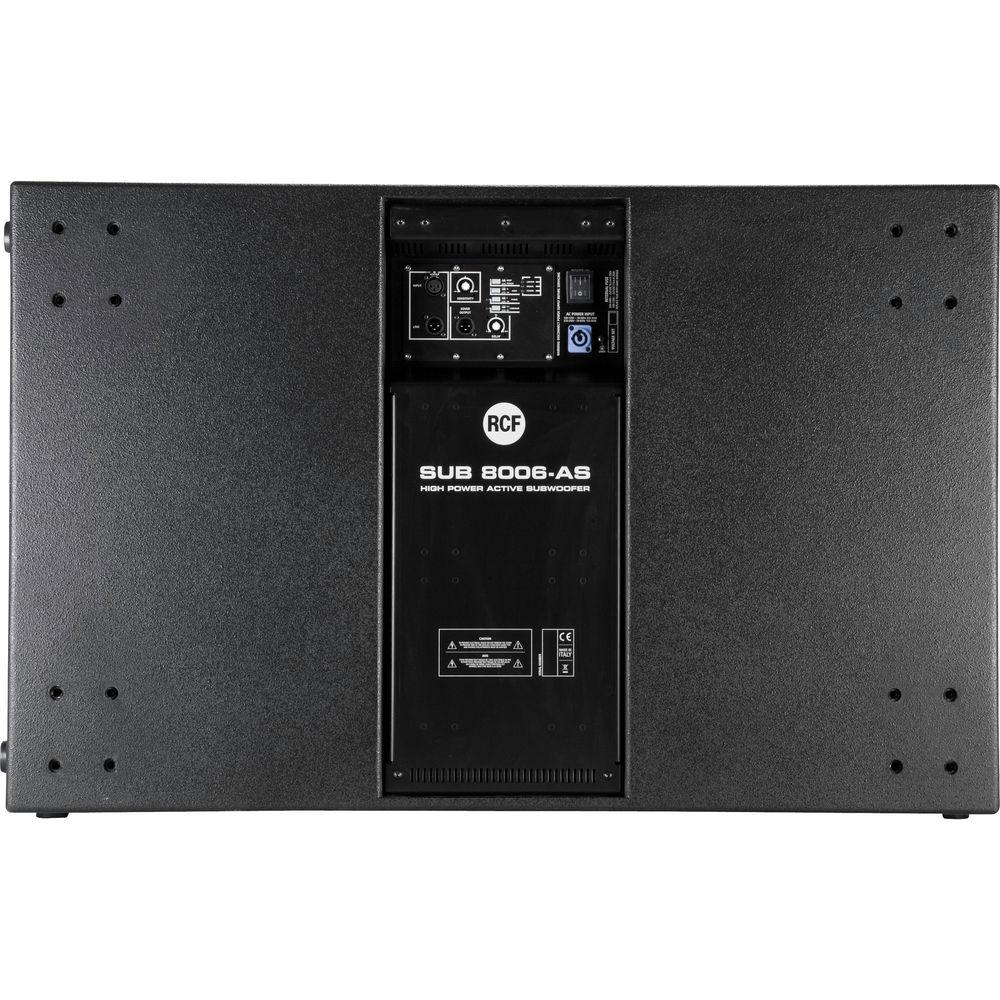

An easy to reach delay knob on the back allows you to set the overall delay of the speaker in meters, according to its application. Three status LEDs for Power / Signal / Status are provided for monitoring the system. The DSP control electronics and power supply is integrated into a single, field-replaceable module mounted in the rear of the cabinet. The cabinet is constructed of multi-ply hardwood and coated with a textured black finish. Integral metal grilles lined with acoustical black mesh protect the cone drivers. Integrated mechanics are for multiple configuration with HDL 20-A Active Line Array Module. - 5,000W peak power; 2,500W RMS
- 30 Hz to 120 kHz frequency response
- DSP controlled input section with selectable presets
- Integrated mechanics for multiple configuration with HDL 20-A Active Line Array Module
- Baltic birch tour-grade cabinet
- Applications: Live sound, rental, portable PA, clubs, ballrooms, live theatres, houses of worship, theme parks, music playback and sound reinforcement in small- and mid-size venues, and corporate A/V professionals and sound system hire companies
In the Box RCF SUB 8006-AS Professional Series Active Subwoofer (Black) Limited 2-Year Warranty Note: Extended 1-Year Warranty on Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF SUB 8006-AS Professional Series Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF SUB 8006-AS Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 2000 W | | | | LF Driver | 2 x 18" / 457.2 mm Woofer | | LF Voice Coil | 4" / 101.6 mm | | | | Frequency Response | 30 Hz to 120 Hz | | Maximum SPL | 141 dB | | Input Sensitivity | +4 dBu / -2 dBu | | Protections | RMS, Thermal | | | | Crossover | 1.2 kHz | | Dynamic Processing | Soft Limiter | | Alignment Delay | Yes | | Phase Adjustment | 0 / 180° | | | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | | | Handles | 4 x Side | | Cooling | Convection | | Construction Material | Wood | | Dimensions | 27.9 x 27.5 x 43.7" / 709.0 x 700.0 x 1109.0 mm | | Weight | 198.4 lb / 90 kg |
