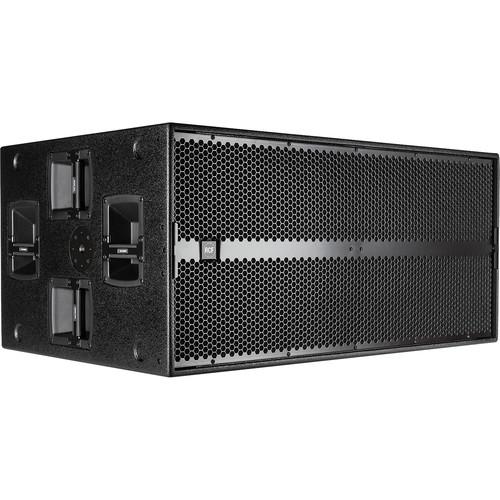

User Manual for RCF SUB 9006-AS Active 2x18" Subwoofer with RDNet Control Click to enlarge the picture
Contents of the user manual for the RCF SUB 9006-AS Active 2x18" Subwoofer
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF SUB 9006-AS Active 2x18" Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

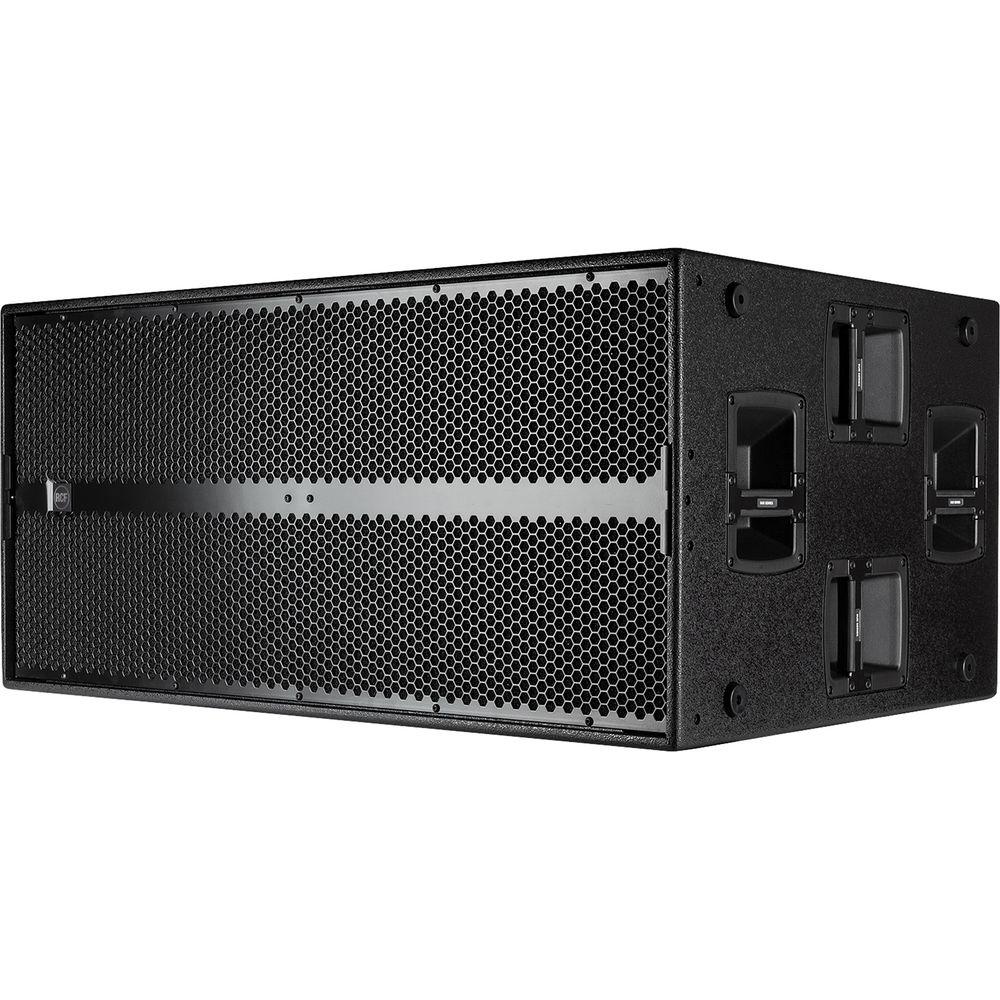

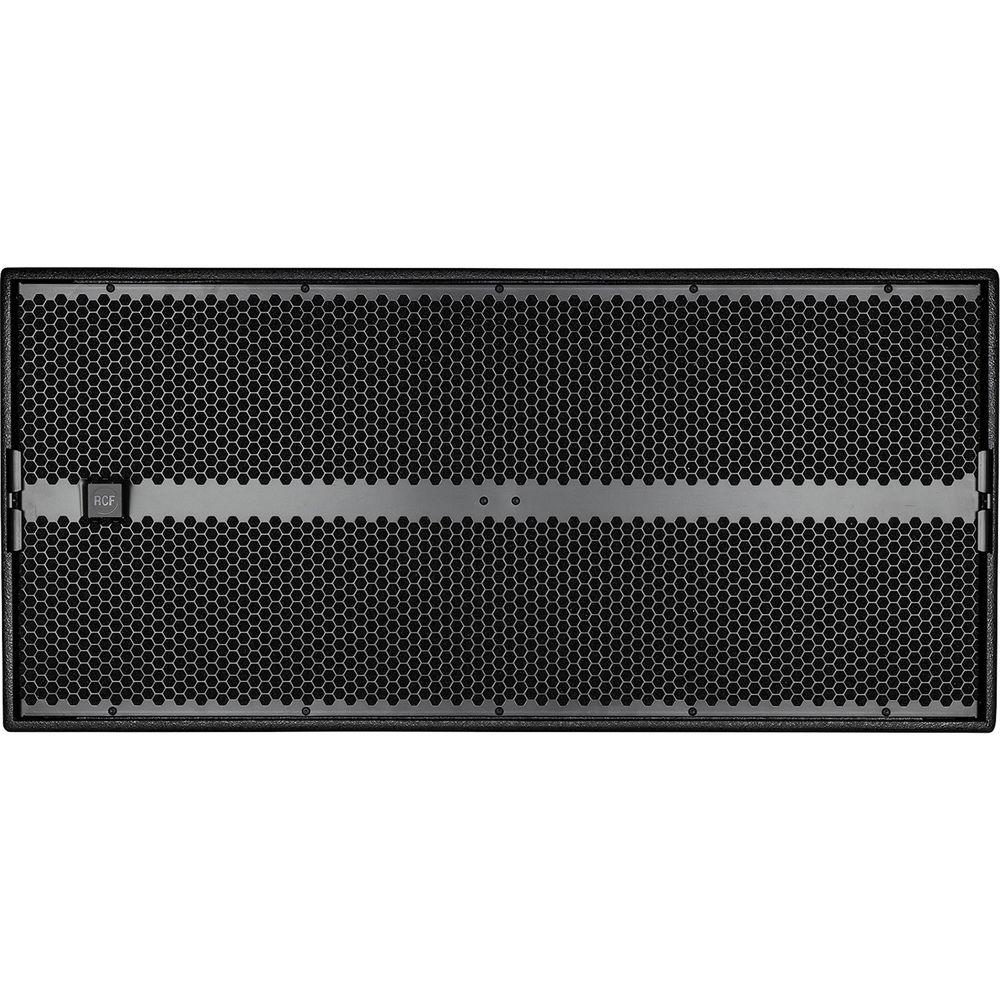

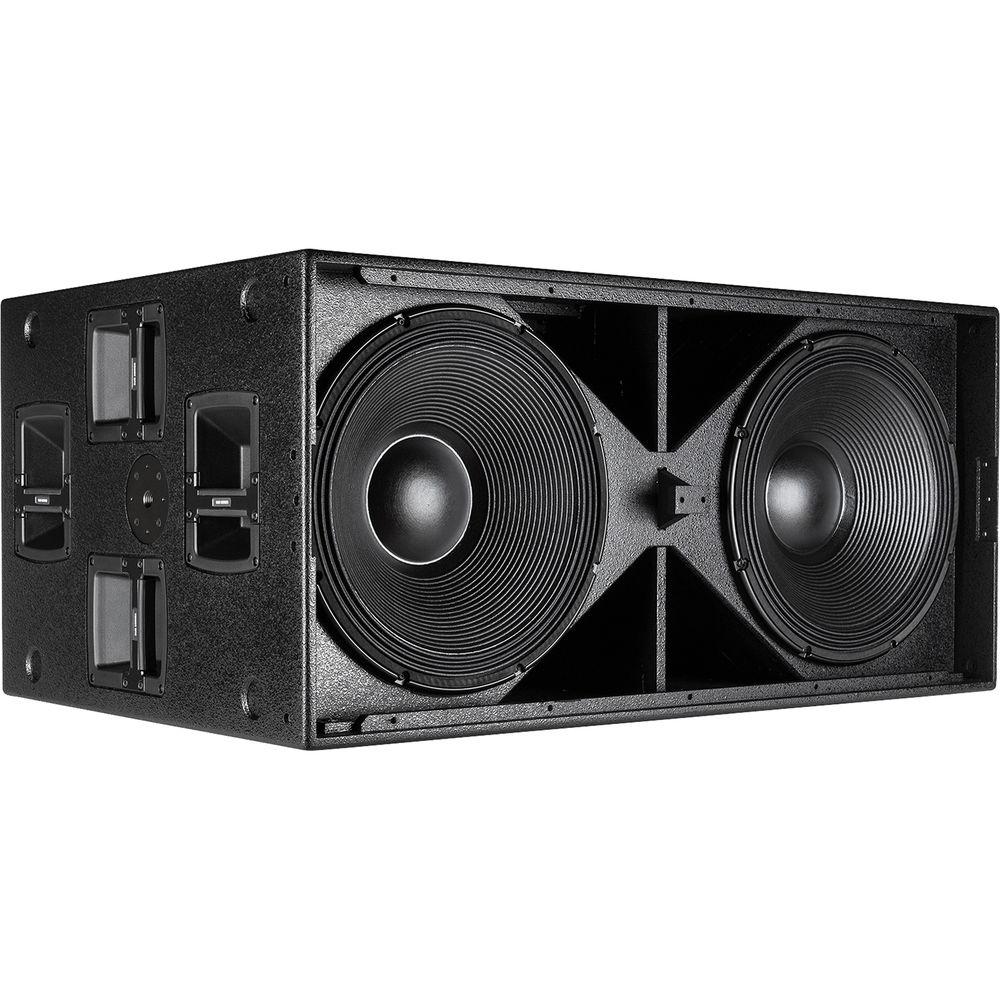

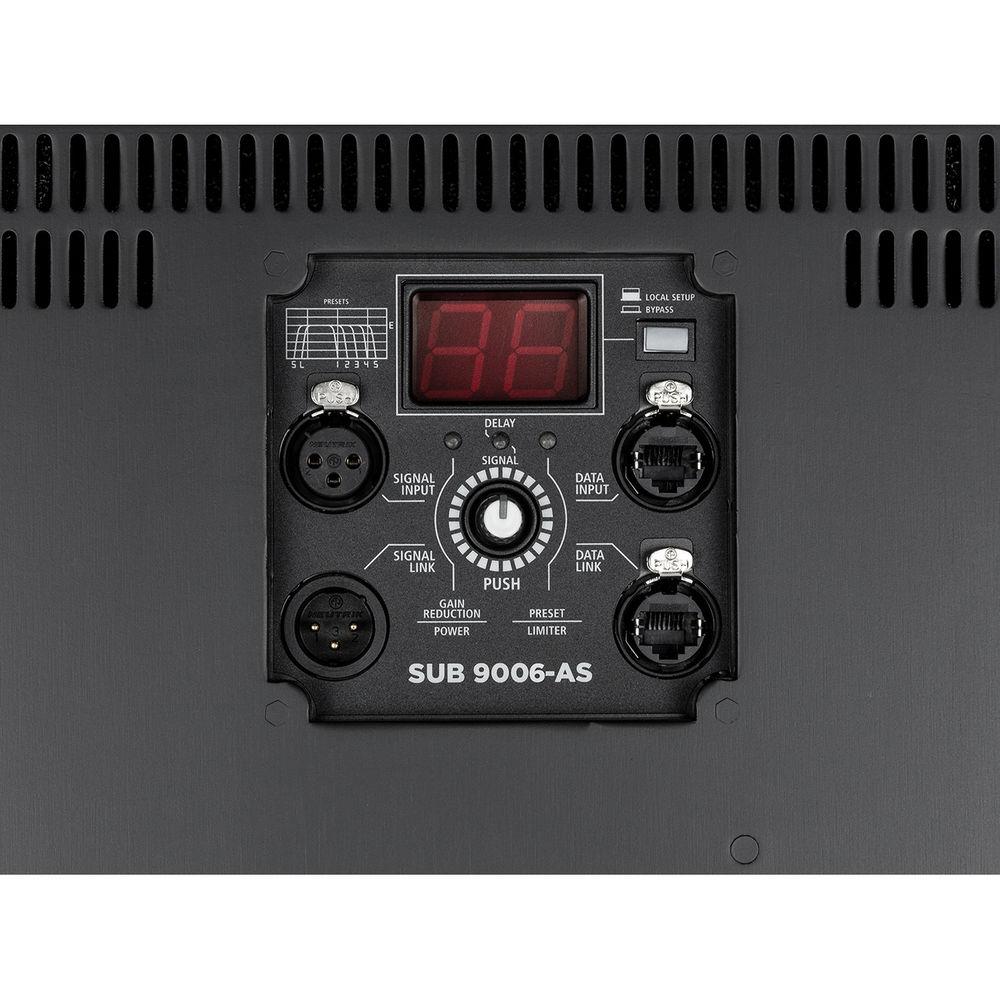

Product description Capable of delivering 3600W RMS—and 7200W peak—the RCF SUB 9006-AS is an active subwoofer with two 18" neodymium woofers and 4.0" inside-out voice coils. As such, it can deliver plenty of heft and weight in the low frequencies, making it suitable for live sound applications, from clubs to ballrooms to houses of worship.The unit puts out sound between 30 and 400 Hz, giving you a DSP-controlled input section. Here you'll find the ability to choose among presets and manipulate delay settings. The subwoofer can handle a maximum SPL of 142 dB, rendering it suitable for reasonably loud environs. XLR connections are provided, and input signals can be either balanced or unbalanced, further expanding the unit's versatility. To interface with RCF's RDnet monitor and control system, the SUB 9006-AS sports Ethercon ports. Controls are offered for Gain, EQ, Preset, Phase Switch, and Output Delay. The SUB 9006-AS' cabinet is fashioned out of Baltic birch and capped with a steel grille. This unit pairs well with RCF D-Line HDL50-A and HDL-10A array systems. - Key Features at a Glance
-
- 7200W peak power
- 3600W RMS
- 142 dB max SPL
- 30 to 400 Hz frequency response
- 2 x 18" woofers
- DSP-controlled input section with selectable presets
- RDNet remote control
- Delay control
- Baltic birch cabinet

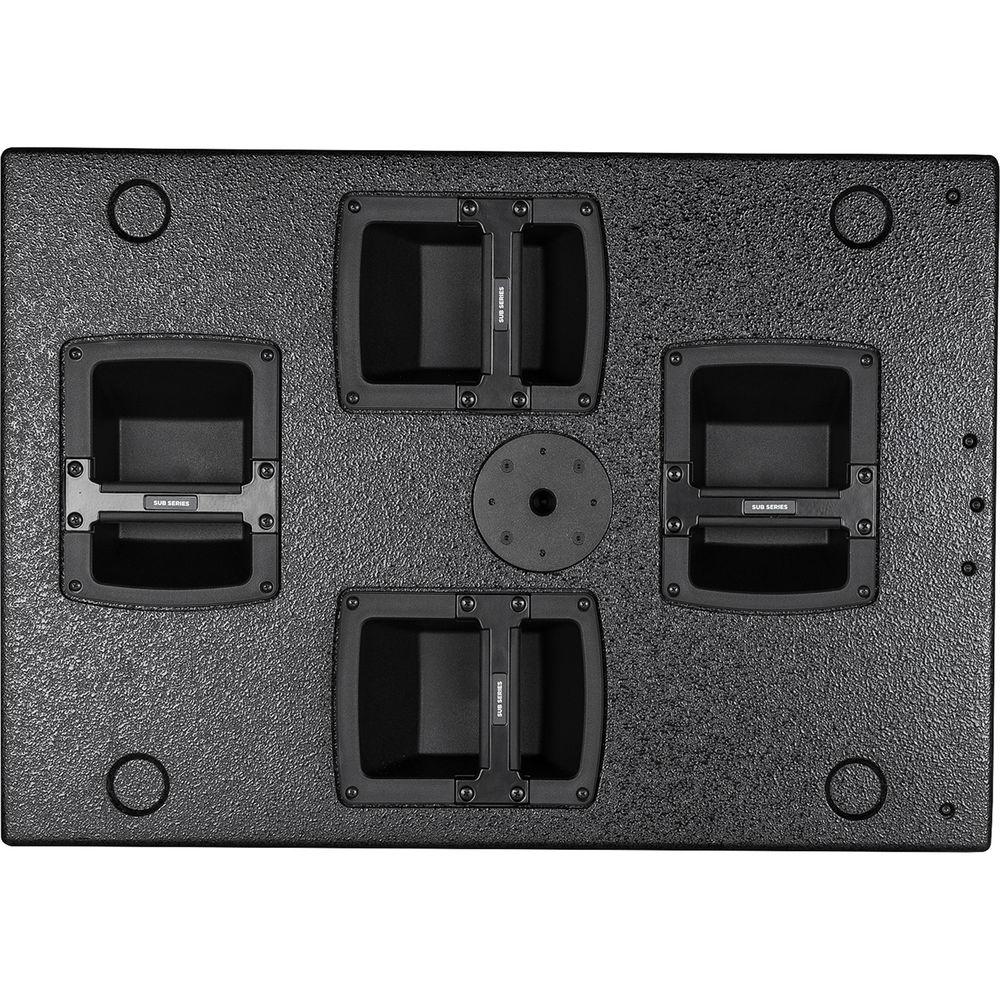

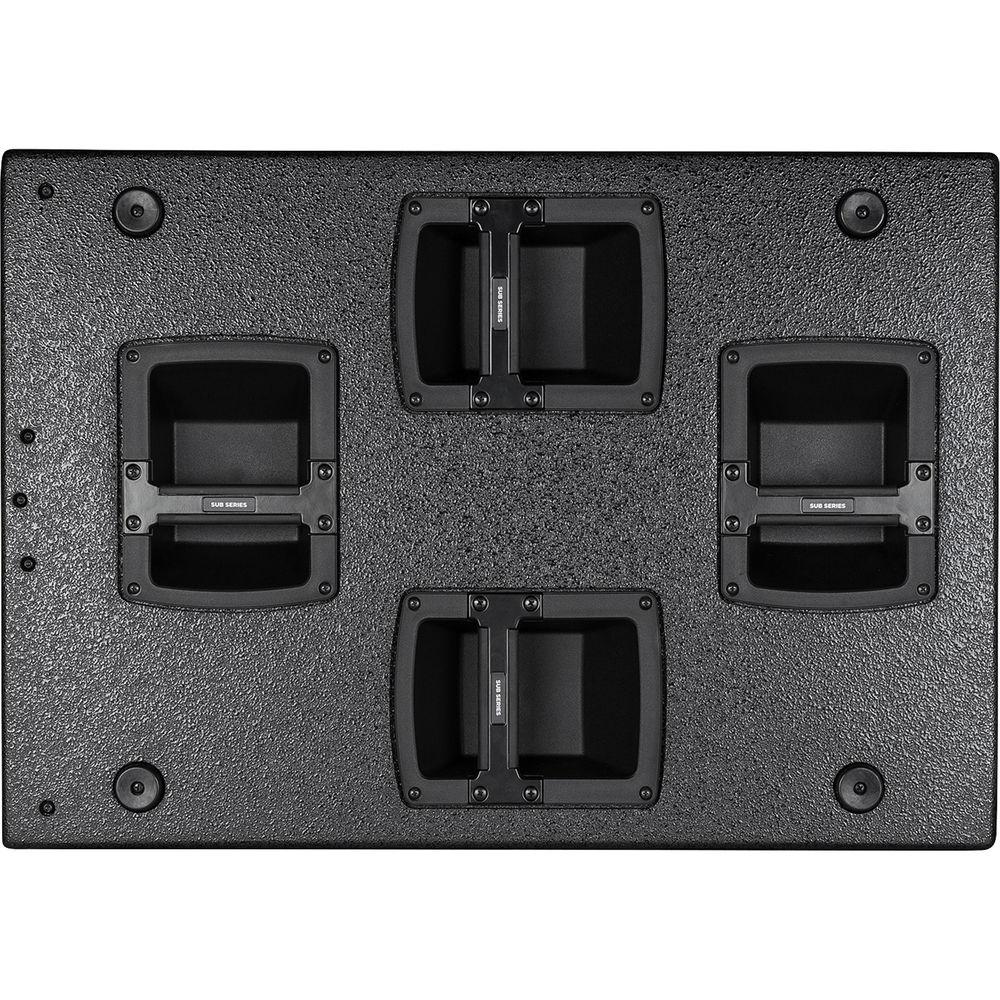

- 8 side-mounted handles
- Main Applications
-
- Live sound
- Rental
- Portable PA
- Clubs
- Ballrooms
- Live theatre
- Houses of worship
- Club sound, DJs
In the Box RCF SUB 9006-AS Active 2x18" Subwoofer with RDNet Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF SUB 9006-AS Active 2x18" Subwoofer with RDNet Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF SUB 9006 Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 7200 W Peak
3600 W RMS | | | | LF Driver | 2 x 18" / 45.7 cm Woofer | | LF Voice Coil | 4" / 10.2 cm | | Magnet | Neodymium | | | | Frequency Response | 30 Hz to 400 Hz | | Maximum SPL | 142 dB | | Input Sensitivity | +4 dBu | | Protections | RMS, Thermal | | | | Audio I/O | XLR | | Network I/O | 1 x etherCON (RDNet) Input
1 x etherCON (RDNet) Output | | | | EQ | Yes | | Dynamic Processing | Fast Limiter | | Alignment Delay | Yes | | Phase Adjustment | Yes | | | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | | | Cooling | Forced Convection | | Dimensions | 22.0 x 46.8 x 30.9" / 55.8 x 118.8 x 78.5 cm | | Weight | 189.6 lb / 86 kg |
