User Manual for RCF SUB 9007-AS Active 2 x 21" Subwoofer with RDNet Control Click to enlarge the picture
Contents of the user manual for the RCF SUB 9007-AS Active 2 x
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF SUB 9007-AS Active 2 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

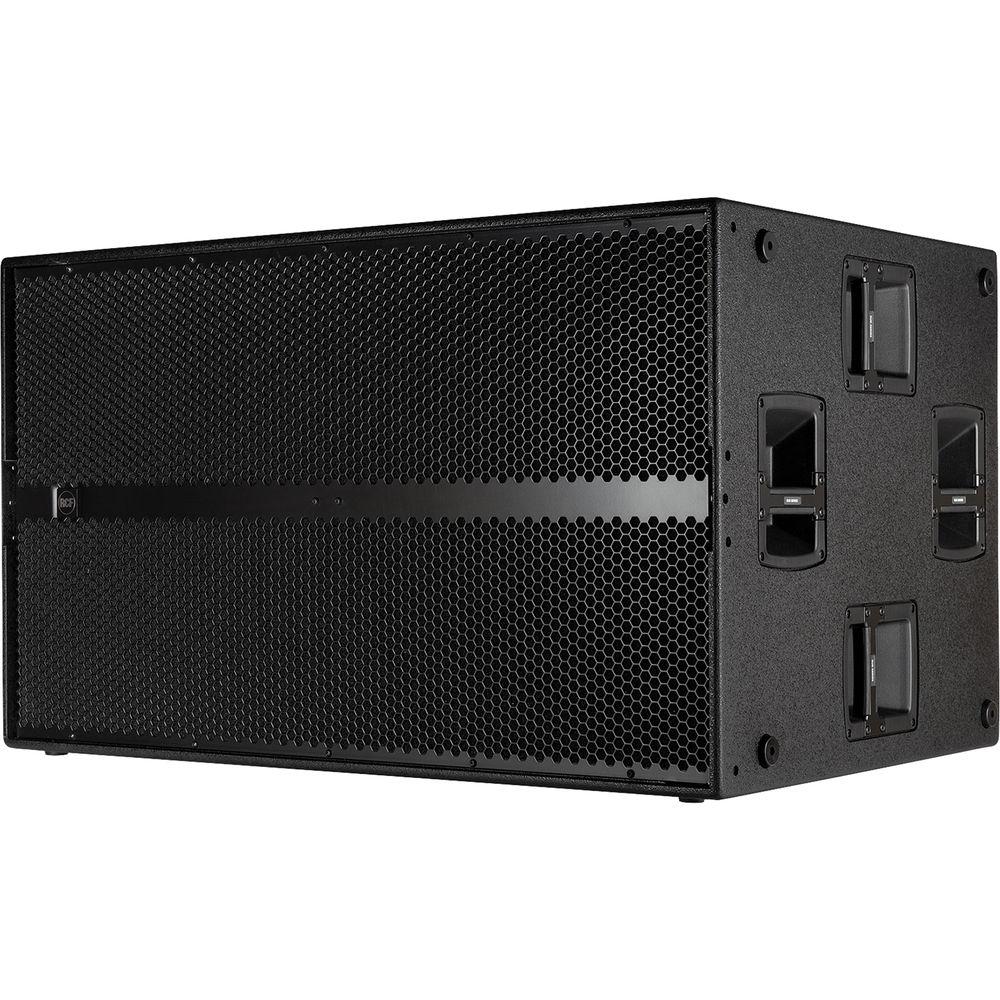

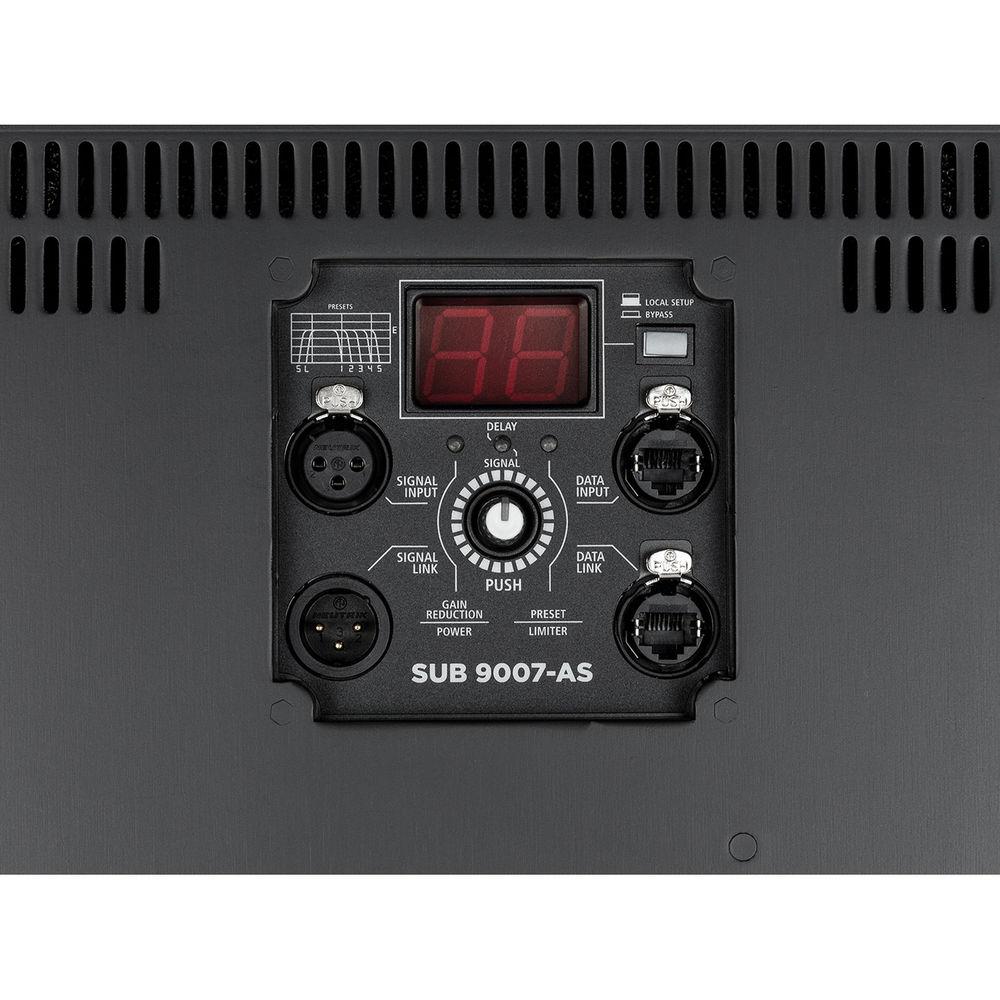

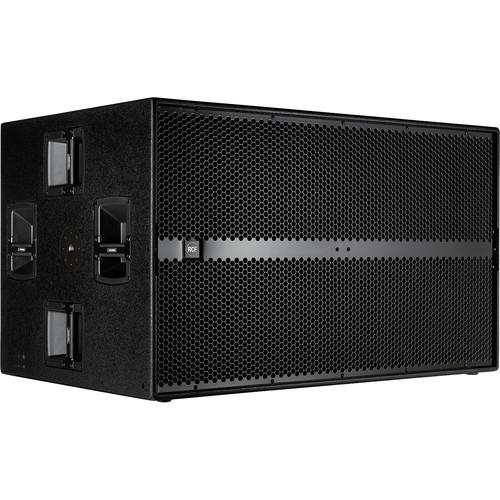

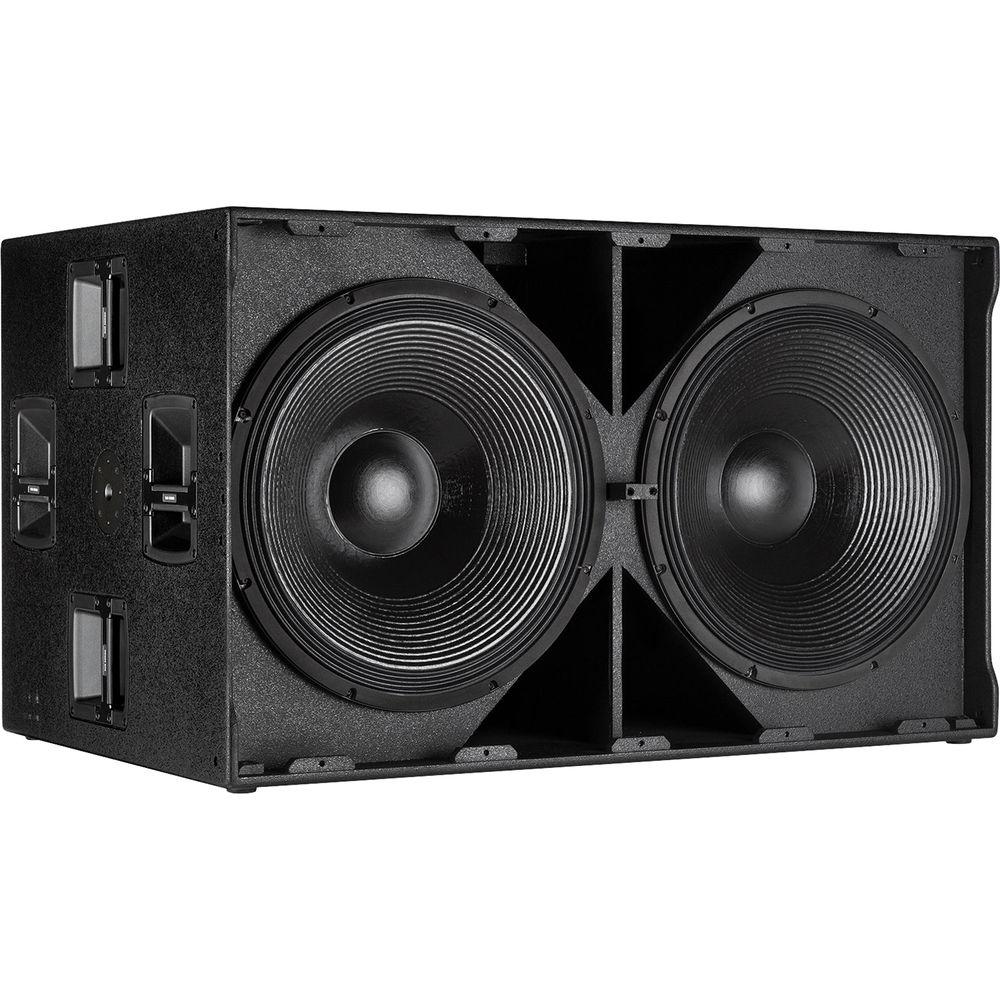

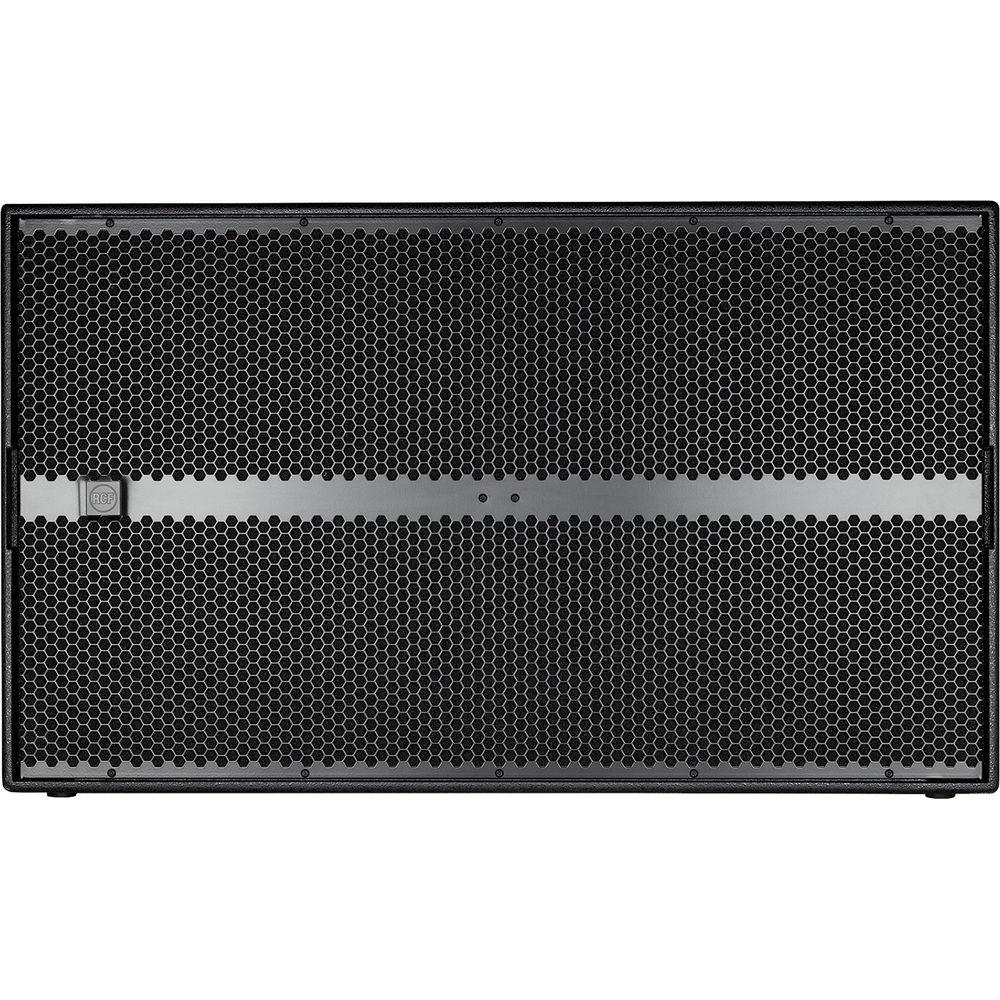

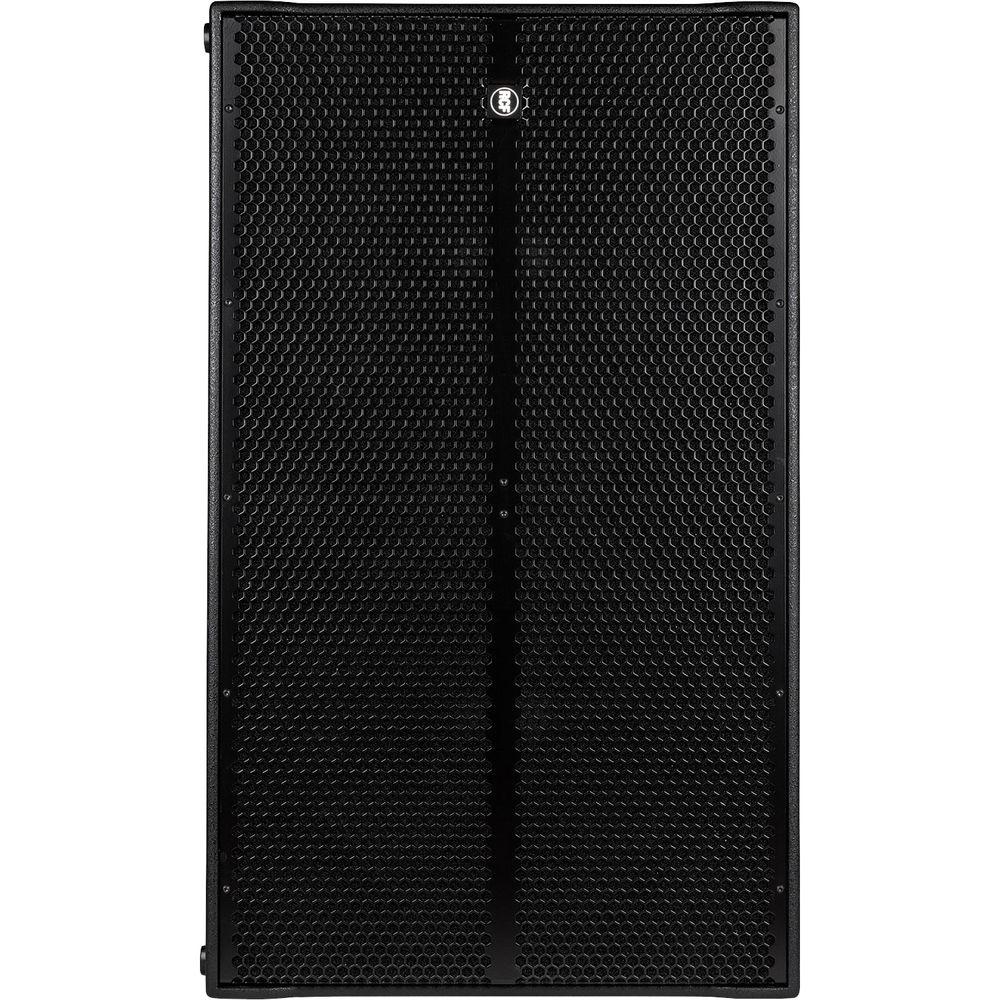

Product description Capable of delivering 3600W RMS—and 7200W peak—the RCF SUB 9007-AS is an active subwoofer. It provides two 21" neodymium woofers with 4.0" inside-out voice coils, and as such, can deliver low frequencies within live sound applications, such as clubs, ballrooms, and houses of worship.The unit operates between 25 and 400 Hz, giving you a DSP-controlled input section that allows you to choose among presets and modify delay settings. It can handle over 141 dB SPL, making it an apt choice for reasonably loud environs. XLR connections are provided, and input signals can be either balanced or unbalanced, further expanding the unit's versatility. Ethercon connections allow it to integrate within RCF's RDNet remote control system, allowing you to change settings over a network. Controls are offered for Gain, EQ, Crossover, Phase Switch, Cardioid, and Output Delay. The SUB 9007-AS' cabinet is fashioned out of Baltic birch and capped with a steel grille. This unit pairs well with RCF D-Line HDL50-A and HDL-20A array systems. - Key Features at a Glance
-
- 7200W peak power
- 3600W RMS
- Over 141 dB SPL
- 25 to 400 Hz frequency response
- 2 x 21" woofers
- DSP-controlled input section with selectable presets
- Adjustable crossover
- Delay control
- Baltic birch cabinet

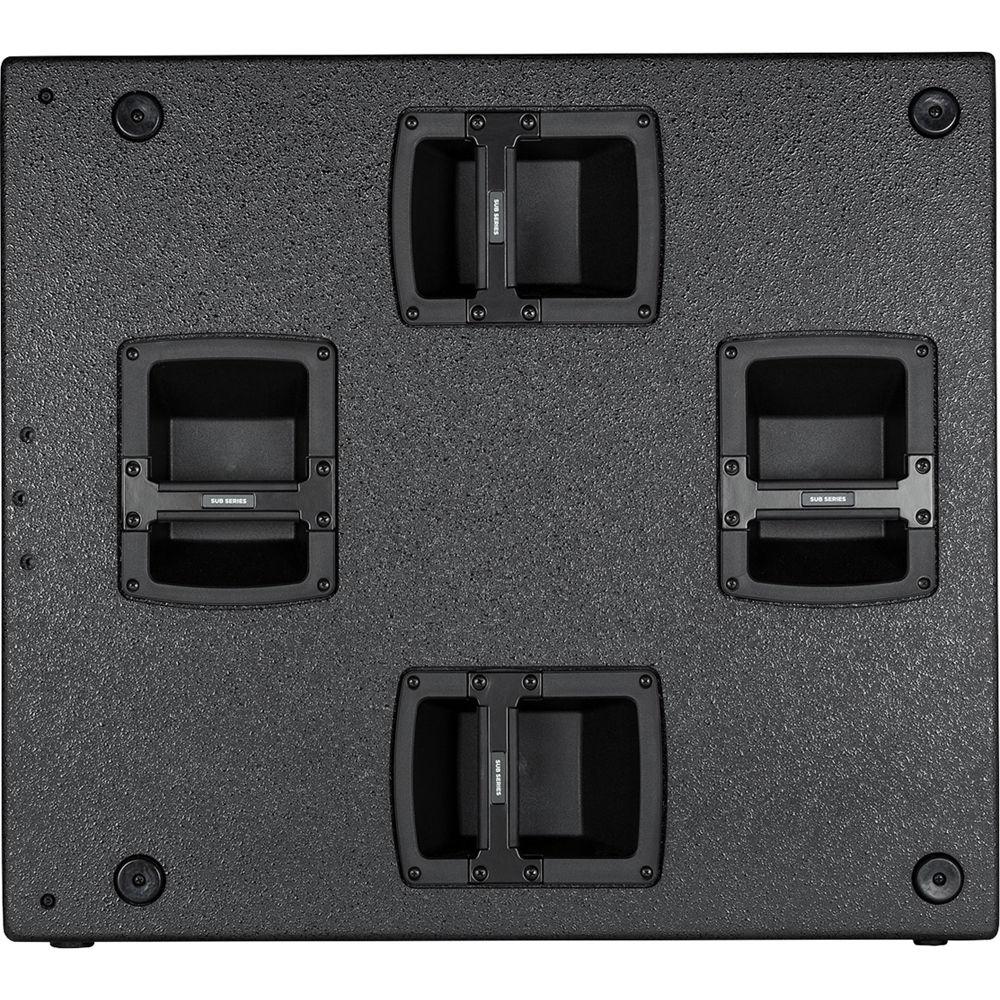

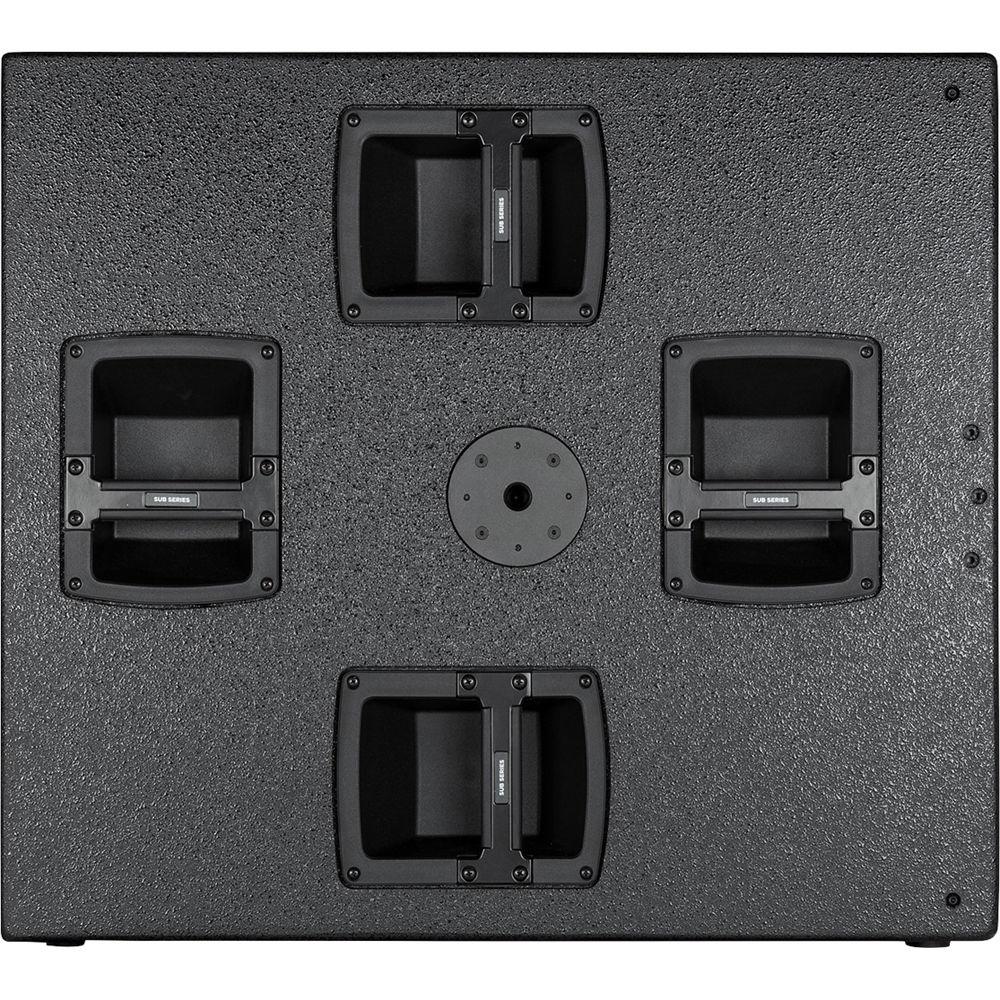

- 8 side-mounted handles
- Main Applications
-
- Live sound
- Rental
- Portable PA
- Clubs
- Ballrooms
- Live theater
- Houses of worship
- Club sound, DJs
In the Box RCF SUB 9007-AS Active 2 x 21" Subwoofer with RDNet Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF SUB 9007-AS Active 2 x 21" Subwoofer with RDNet Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF SUB 9007-AS Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 7200 W Peak
3600 W RMS | | | | LF Driver | 2 x 18" / 53.4 cm Woofer | | LF Voice Coil | 4" / 10.2 cm | | Magnet | Neodymium | | | | Frequency Response | 25 Hz to 400 Hz | | Maximum SPL | 141 dB | | Input Sensitivity | +4 dBu | | Protections | RMS, Thermal | | | | Audio I/O | 1 x XLR Input
1 x XLR Output | | Network I/O | 1 x etherCON Input
1 x etherCON Output | | | | EQ | Yes | | Dynamic Processing | Fast Limiter | | Alignment Delay | Yes | | Phase Adjustment | Yes | | | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | | | Cooling | Convection | | Dimensions | 27.9 x 46.8 x 30.7" / 70.8 x 118.8 x 78.0 cm | | Weight | 216.1 lb / 98 kg |
