Product description

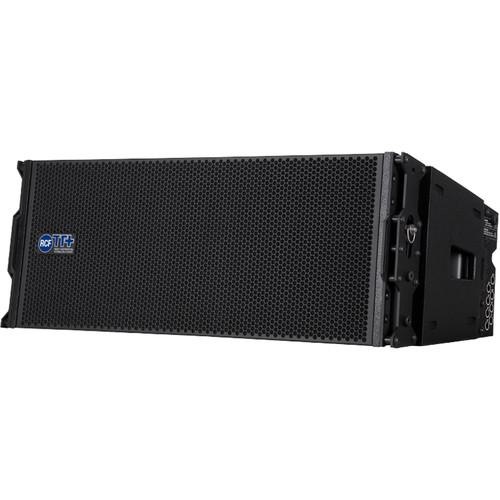

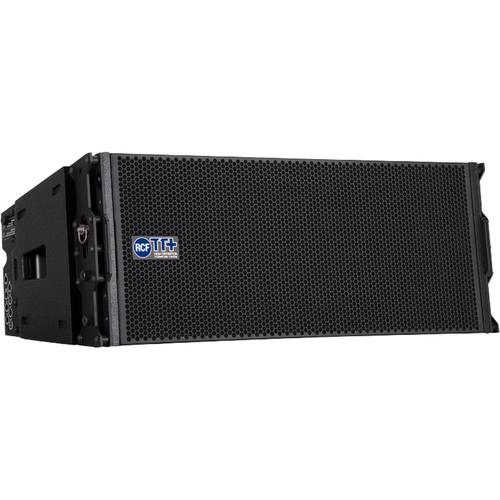

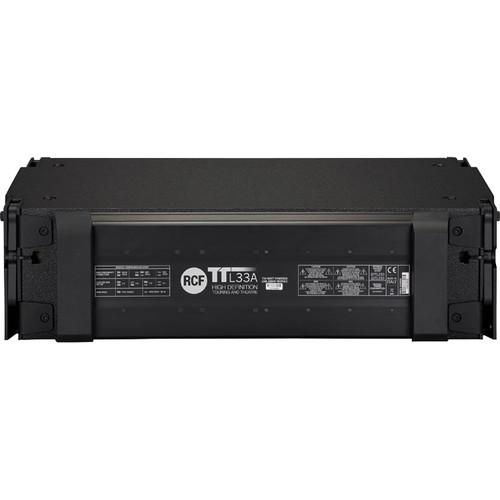

The TTL33-A II Active Three-Way Line Array Module from RCF is a full-range compact wide-dispersion line array. TTL33-A II is a three-way active system featuring a 2 x 8" neodymium woofer with a 64mm voice coil in a band-pass low-frequency configuration, a 1 x 8" neodymium midrange with a 64mm voice coil in horn-loaded configuration, and a 3 x 1" neodymium compression driver with a 37mm titanium dome voice coil in horn-array configuration.

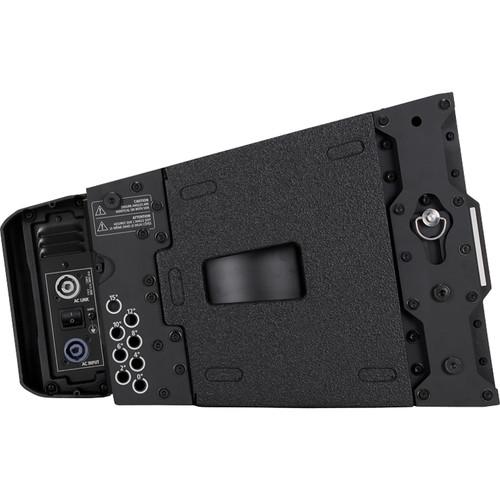

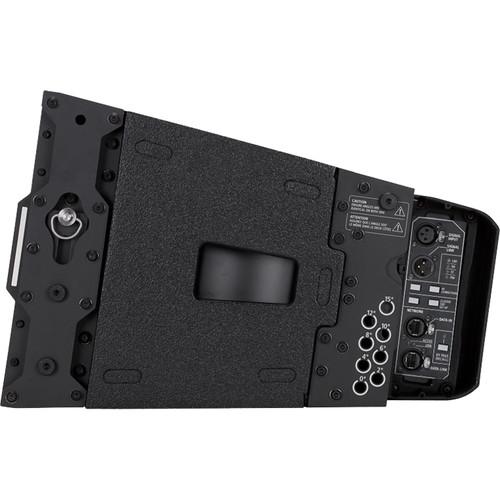

The woofer provides large excursion and is lightweight, the midrange has a high BL for vocal presence, and the compression driver design offers minimum spacing between throats to avoid HF cancellation. The TTL33-A II amplifier has a DSP controlled multiway digital amplification. The cabinet is marine Baltic birch plywood, coated with high-resistance epoxy paint. The mechanical suspension & orientation system is made of high quality steel, and is precise and easy to use. The suspension system is directly connected to the sides of the cabinet.
  • 750 W switching amplifiers
  • Wide, constant directivity coverage angle
  • Six high power neodymium transducers
  • High quality analogue input board
  • 96 kHz, 32 bit DSP processing
  • Soft limiter and RMS protection
  • Maximum output per size
  • RDNet on board
In the Box RCF TTL33-A II Active Three-Way Line Array Module
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the RCF TTL33-A II Active Three-Way Line Array Module in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    RCF TTL33 Specs

    Frequency Response 60 Hz - 20 kHz @ -3 dB
    Maximum Sound Pressure Level (SPL) 135 dB
    Coverage Angle Horizontal: 100°
    Vertical: 15°
    Compression Driver 3 x 1.0" neodymium, 1.5" (37 mm) voice coil
    Midrange 8" neodymium, 2.5" (64 mm) voice coil
    Woofer 2 x 8" neodymium, 2.5" (64 mm) voice coil
    Input / Output Connectors XLR, RDNet Ethercon
    Input Sensitivity -2 dBu / + 4 dBu
    Crossover Frequencies 400 Hz / 1800 Hz
    Protections Thermal, HF
    Limiter RMS, fast limiter
    Controls HF correction
    Cluster size
    HPF
    Total Power 750 W RMS
    Frequency High: D/250 W RMS
    Mid: D/500 W RMS
    Low: D/500 W RMS
    Cooling Convection
    Material Baltic birch
    Hardware Array side fittings
    Handles 2
    Dimensions 11.8 x 29.9 x 17.7" (300 x 760 x 450 mm)
    Weight 71.5 lb (32.5 kg)
