RCF TTL36-AS Active Line Array Subwoofer

Search your instruction manual in PDF to download

User Manual for RCF TTL36-AS Active Line Array Subwoofer Module

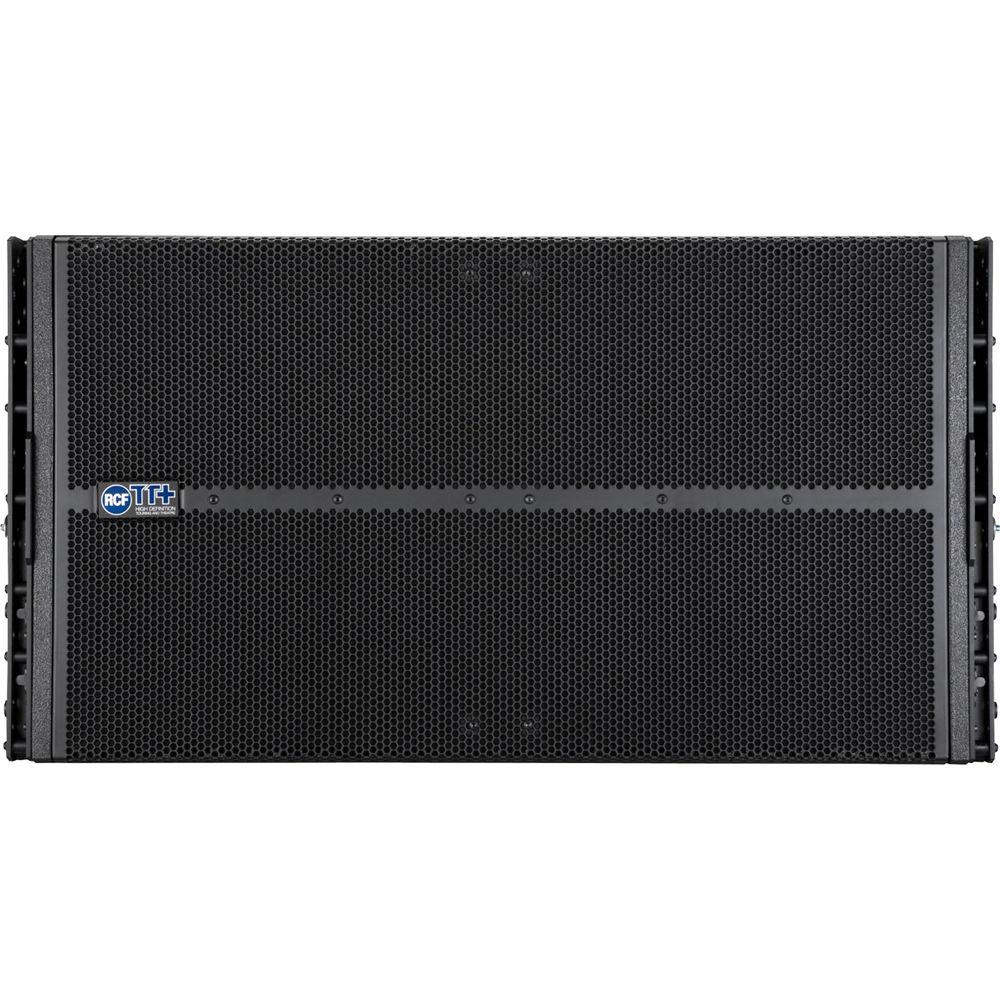

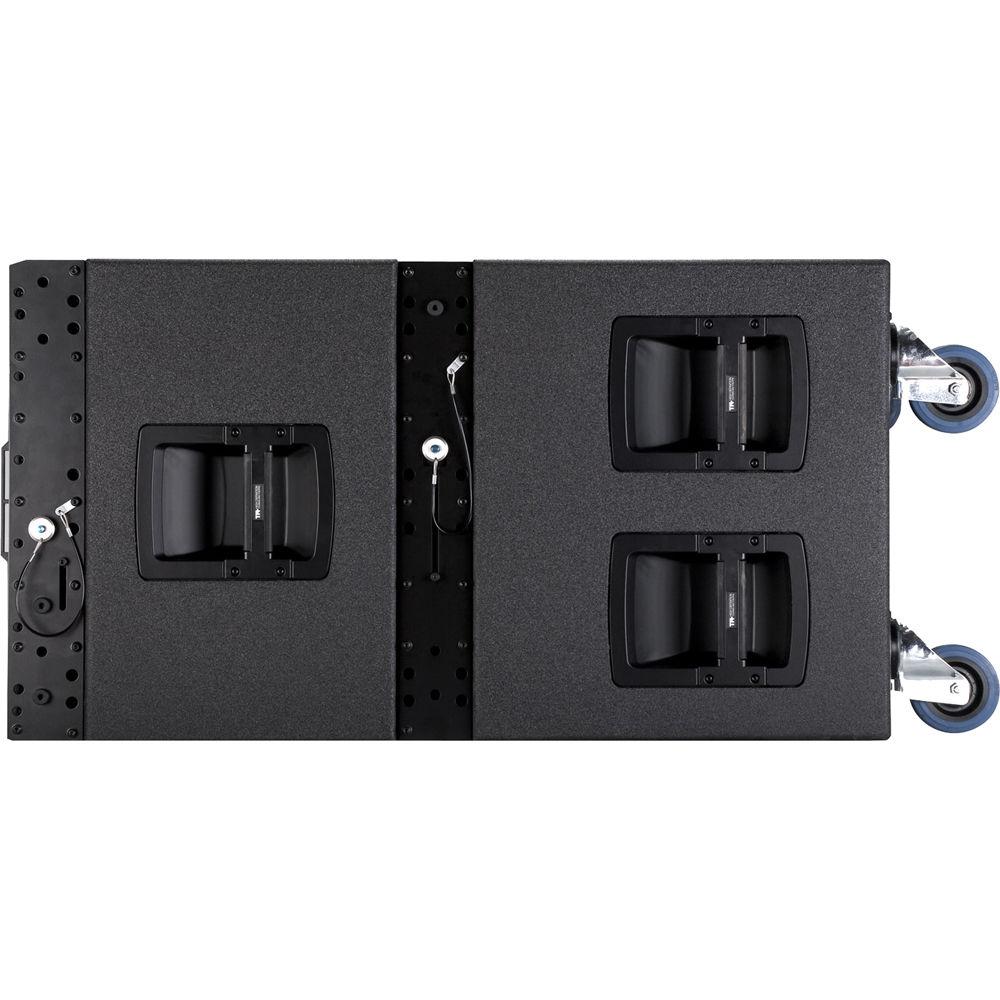

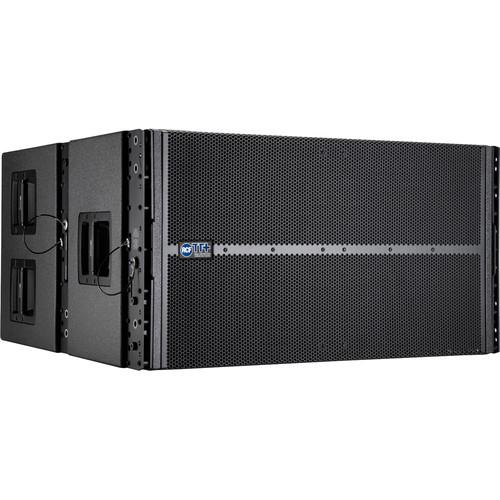

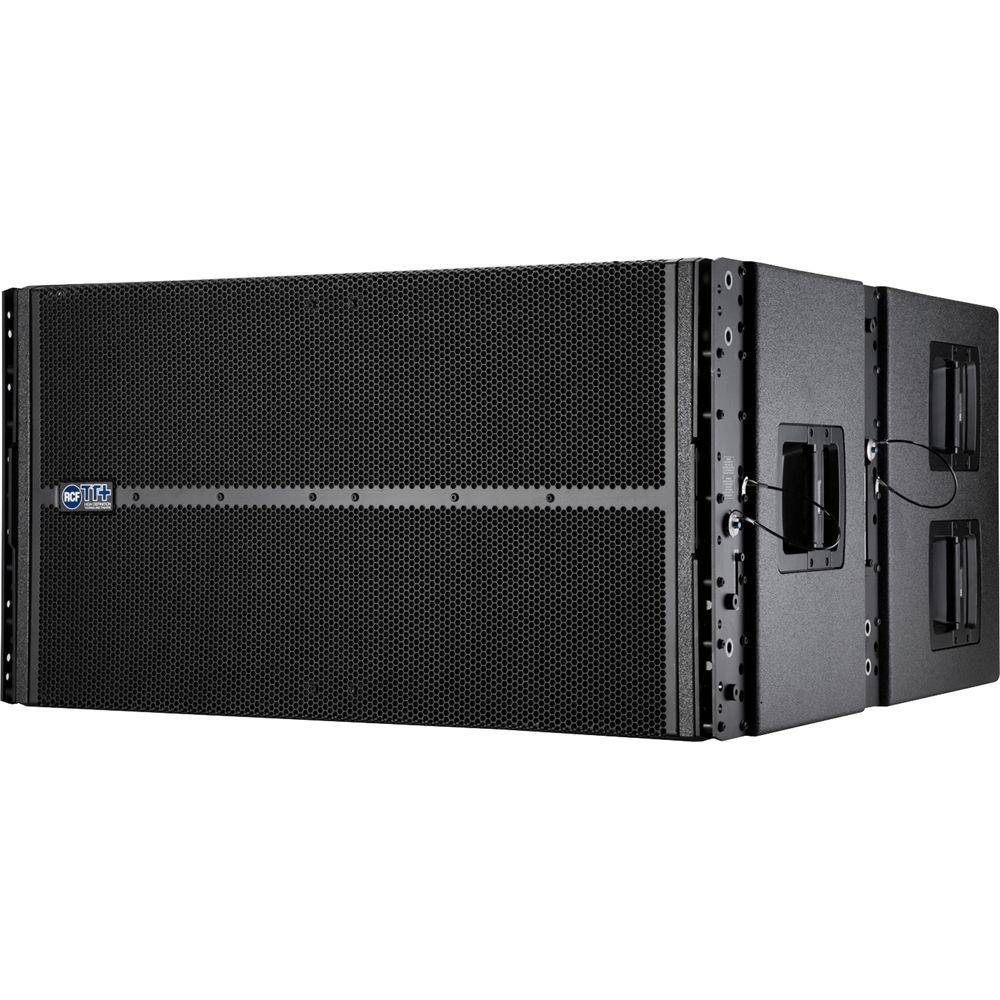

Click to enlarge the picture
RCF TTL36-AS Active Line Array Subwoofer Module Contents of the user manual for the RCF TTL36-AS Active Line Array Subwoofer
  • Product category: PA Speakers RCF
  • Brand: RCF
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for RCF PA Speakers

RCF TTL36-AS Active Line Array Subwoofer Module RCF TTL36-AS Active Line Array Subwoofer Module RCF TTL36-AS Active Line Array Subwoofer Module RCF TTL36-AS Active Line Array Subwoofer Module
User manual for the RCF TTL36-AS Active Line Array Subwoofer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any RCF product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!



Product description

The TTL36-AS Active Line Array Subwoofer Module from RCF is a powered subwoofer with dual 2000W digital amplifier modules. This is a flyable bass complement for the TTL55-A array system. The 2 x 4.5" voice coil vented 18" woofer design offers the minimum of power compression. The TTL36-AS is perfect allows you to create flown systems for theatrical and indoor requirements. It can also be used for very large outdoor systems as a complement to reinforce the TTL55-A bass performance in combination to the TTS56-A subwoofers. The low-frequency transducers are 18" woofers with a 4.5" inside/outside voice coil to minimize power compression. The TTS36-A amplifier section features 2 x 2000W digital amplifier modules. The power amplifiers and the input board are housed on a heavy duty aluminum panel suspended from the main cabinet with flexible mounts.

Each module features Power Factor Correction (PFC), separated power supply and amplification, two "on board" ventilation fans and thermal, overcurrent, and non-audio signals protection features. The TTS36-AS is equipped with a dedicated RDnet networking board. It is possible to monitor all the system parameters, form the input to the status of each amplifier, to address to single cabinets or groups of cabinets specific presets or modifications of parameters like gain, equalization or delay. The DSP power available on every cabinet allows you to apply variable delays to single cabinets and create virtual tilting and curvature of TTL36-AS subwoofers clusters through RDNet. The TTL36-AS subwoofer can be rigged on top of the TTL55-A using the same fly-bar or on the side of the TTL55-A cluster on a separate fly-bar. The TTL36-AS cabinet is built in Baltic birch plywood and protected with a heavy-duty coating.
  • 4000 W (2 x 2000 W digital switching amplifiers)
  • 2 x 18" high power neodymium woofer, 4.5" voice coil
  • 96 kHz, 32-bit DSP processing
  • Remote monitoring and control
  • Time delay alignment
  • Cardioid preset for stacking groups of 3
  • Tour grade Baltic birch cabinet, integrated rigging
  • RDNet on board
In the Box RCF TTL36-AS Active Line Array Subwoofer Module
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the RCF TTL36-AS Active Line Array Subwoofer Module in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    RCF TTL36-AS Specs

    Active or Passive Active
    Frequency Response 35 - 120 Hz @ -3 dB
    Maximum Sound Pressure Level (SPL) 142 dB
    Woofer 2 x 18" (45.72 cm) neo
    4.5" (11.43 cm) voice coil

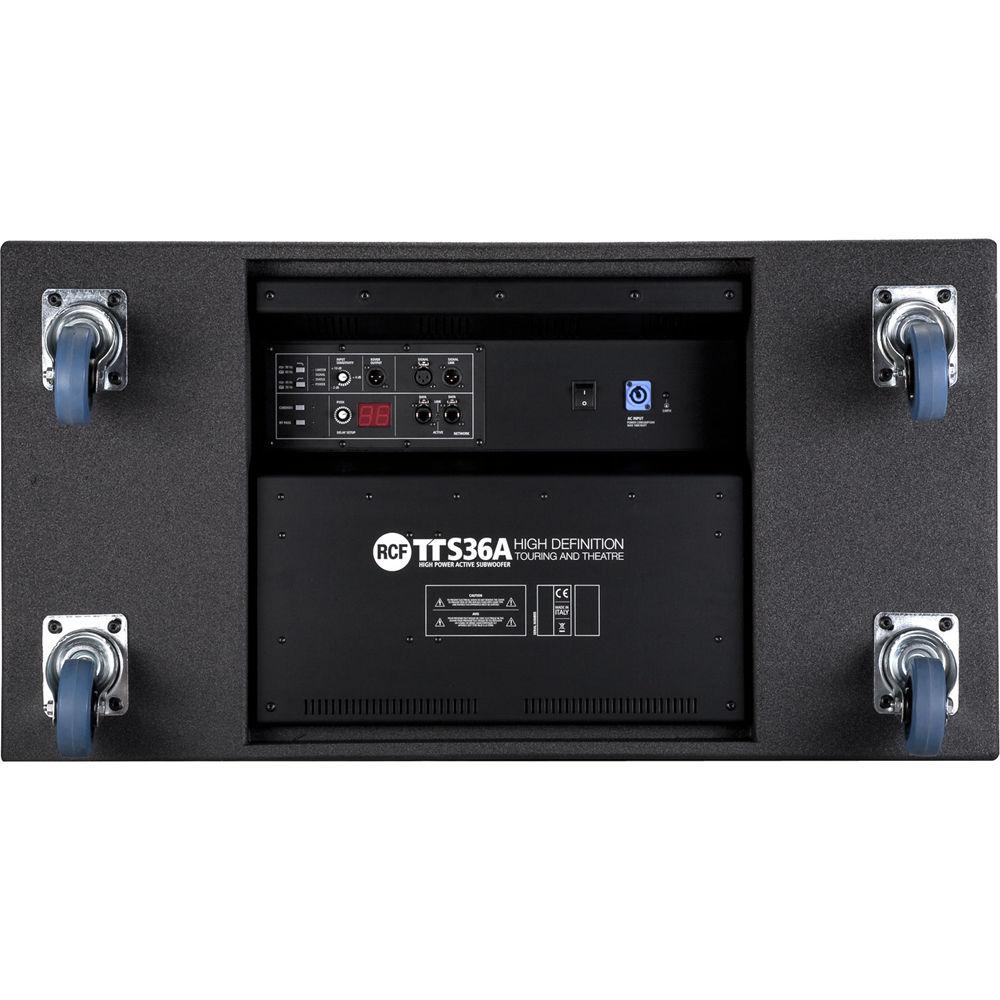

    Connectors XLR, RDNet Ethercon input
    XLR, RDNet Ethercon output
    PowerCON, power
    Input Signal Balanced/unbalanced
    Input Sensitivity -2 dBu / + 10 dBu
    Crossover Frequencies 80 Hz/100 Hz
    Protections Thermal, Excurs, RMS
    Limiter Soft limiter
    Controls DSP controlled
    Amplifier Power 2 x 2000 W RMS
    Low Frequencies: 2 x 2000 W RMS
    Cooling Convection/Forced
    Cabinet Material: Baltic birch
    Hardware: Array fly-ware
    Handles: 6 on side
    Dimensions 21.1 x 40.23 x 38.18" (53.6 x 102.2 x 97.0 cm)
    Weight 264.55 lb (120 kg)
