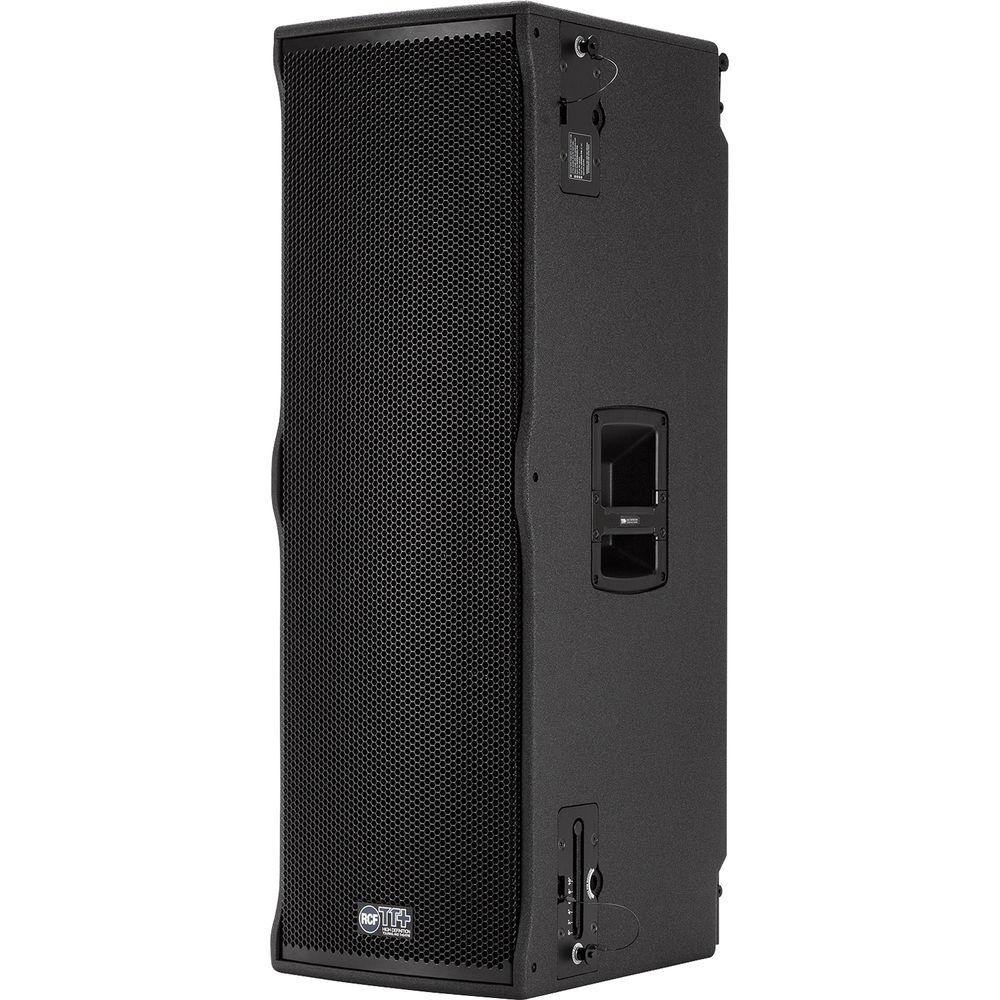

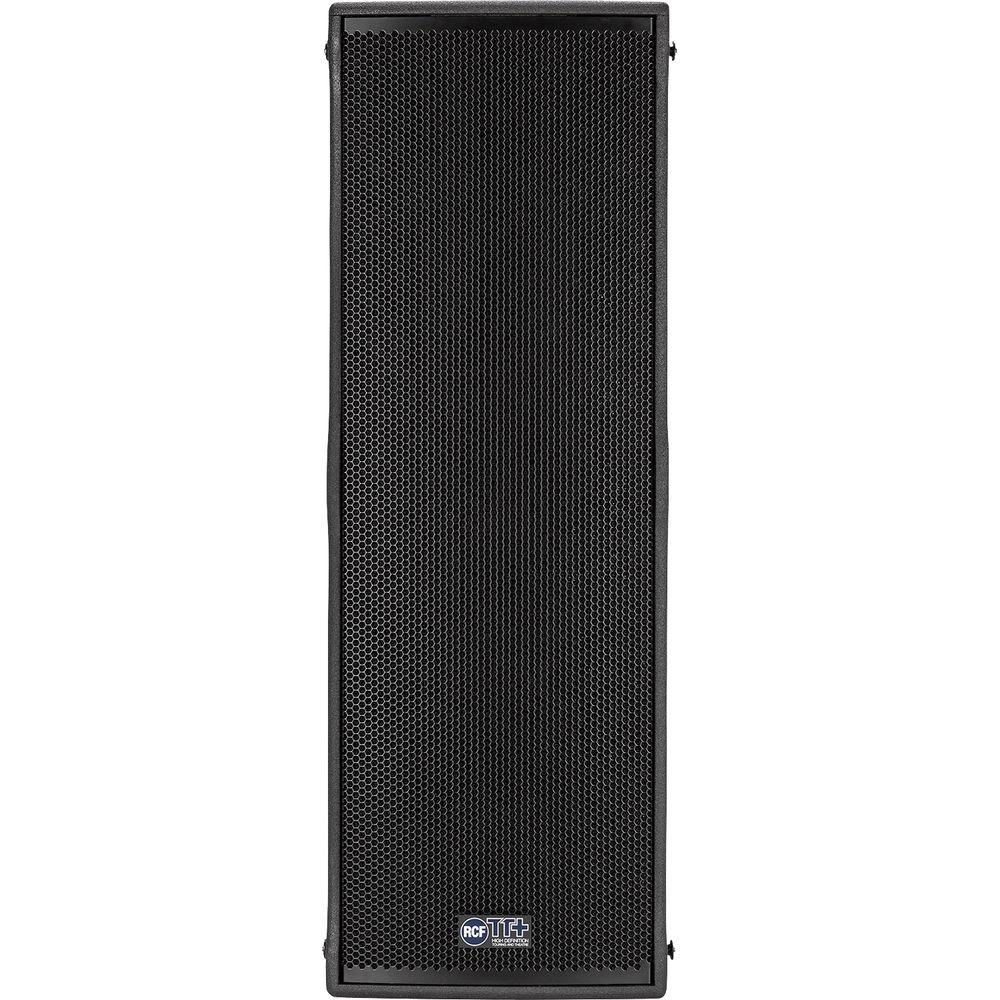

User Manual for RCF TTL6-AS Active Line Array Bass Module for TTL6-A 3-Way System Click to enlarge the picture
Contents of the user manual for the RCF TTL6-AS Active Line Array Bass
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF TTL6-AS Active Line Array Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

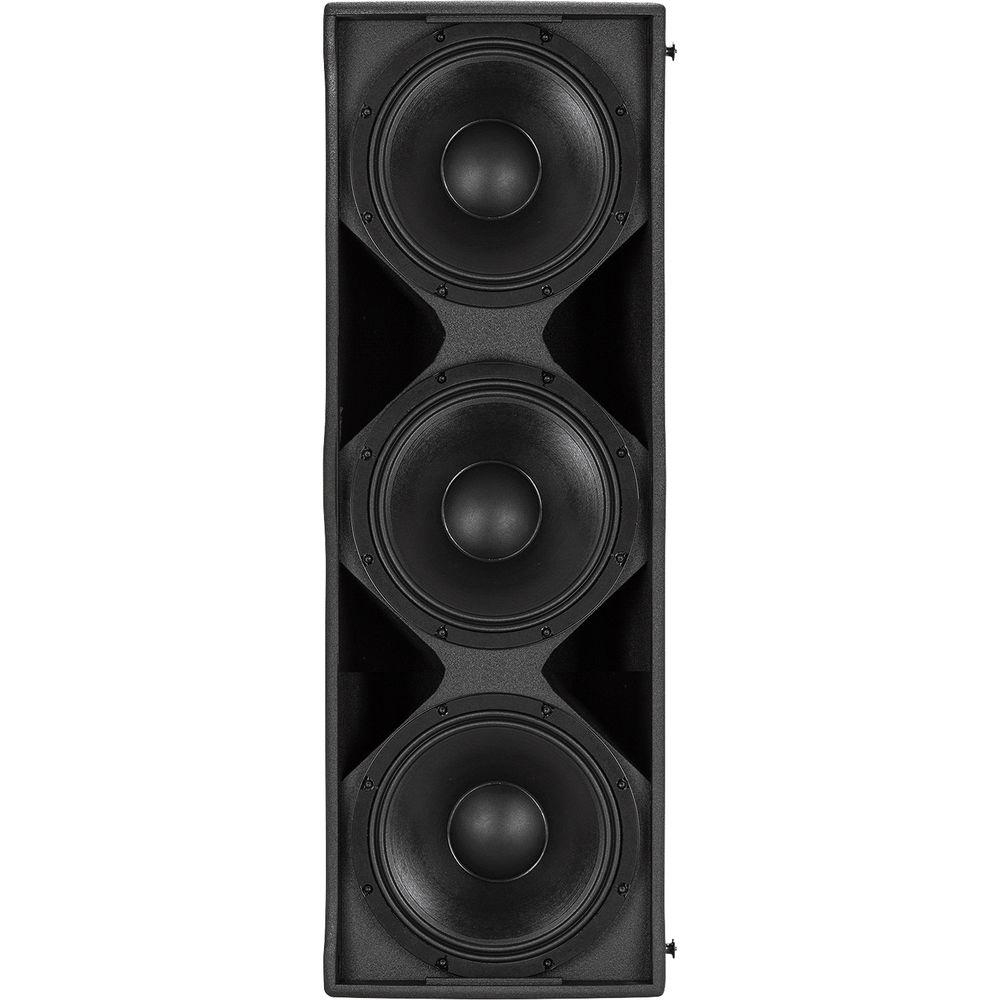

Product description Designed for use with the TTL6-A Line Array, the RCF TTL6-AS is an active subwoofer ready to use out of the gate, giving you 1650W of class-D digital amplification and three 12" woofers. With fixing points for the TTL6-A, setting up is quick and simple. The unit is relatively compact at 43.3 x 14.9 x 18.4", and is suitable for live gigs and installations, be they indoor or outdoor in space.The TTL6-AS' three 12" neodymium woofers sport 3.0" inside-out voice coils. With features such as a hyper-vented magnetic structure and a water-resistant fiber doped cone, the unit's woofers have been crafted to promote durability and versatility. Class-D amplifiers have been employed, making the sub highly efficient on power, yet low on distortion and noise. The unit delivers frequency responses of 35 to 400 Hz at a maximum SPL of 139 dB. On the rear of the TTL6-AS you'll find a rotary encoder to control all built-in functions. Additionally, a seven-segment display gives you a readout of your current settings. 32-bit DSP processing operating at 48 kHz digitally manages the crossover, transducer alignment, equalization, input sensitivity, limiting, and other facets of the device.In addition to its XLR connections, the TTL6-AS sports Ethercon ports for RDNet control; this allows you to slave, manage, and control multiple RCF systems from a single point of access. The ability to solo, mute, apply high-pass filtering, low-pass filtering, delay modification, and more are controllable through this system of networked control.Within the cabinet itself, you'll find ten different presets for a variety of applications, some of which give you low-pass filtering at various frequencies. A modicum of control over delay settings and gain-reduction is also possible via the rotary encoder. Furthermore, the construction of this module allows for wide, horizontal, and constant dispersion, making sure that the majority of your crowd will feel the bass. - Key Features at a Glance
-
- Suitable for theaters, houses of worship, and more
- Relatively compact at 43.3 x 14.9 x 18.4"
- 10 internal presets
- Ethercon connections for RDNet control and management
- Wide horizontal dispersion
- Durable, water-resistant components used throughout construction
- 1650W of Class-D amplification
- Simple rigging
- Suitable for use with TTL-6A Line Arrays
- Top, bottom, and side handles
In the Box RCF TTL6-AS Active Line Array Bass Module for TTL6-A 3-Way System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF TTL6-AS Active Line Array Bass Module for TTL6-A 3-Way System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF TTL6-AS Specs | | | Configuration | Active 3-Way | | Total Power Capacity | 1650 W RMS | | | | LF Driver | 3 x 12" / 30.5 cm Woofer | | LF Voice Coil | 3" / 7.6 cm | | Magnet | LF:
Neodymium | | | | Frequency Response | 35 Hz to 400 Hz -3 dB | | Maximum SPL | 139 dB | | Input Sensitivity | +4 dBu | | Protections | RMS, Thermal | | | | Audio I/O | 1 x XLR Input
1 x XLR Output | | Network I/O | 1 x etherCON (RDNet) Input
1 x etherCON (RDNet) Output | | | | EQ | Yes | | Dynamic Processing | Fast Limiter | | Alignment Delay | Yes | | Phase Adjustment | Yes | | | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | | | Mounting | Fly Point | | Handles | 2 x Side
1 x Top
1 x Bottom | | Cooling | Forced Convection | | Construction Material | Metal Grille, Plywood | | Dimensions | 43.3 x 14.9 x 18.4" / cm | | Weight | 99.2 lb / 45 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
