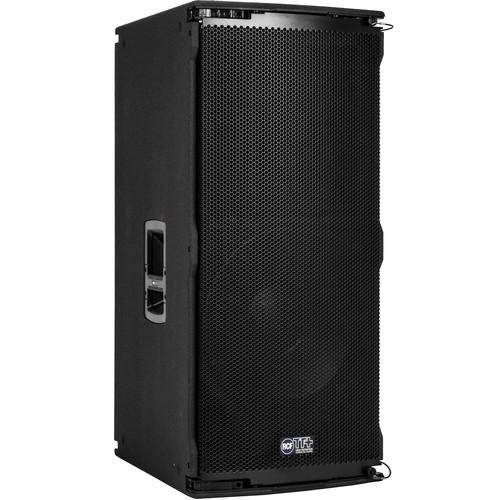

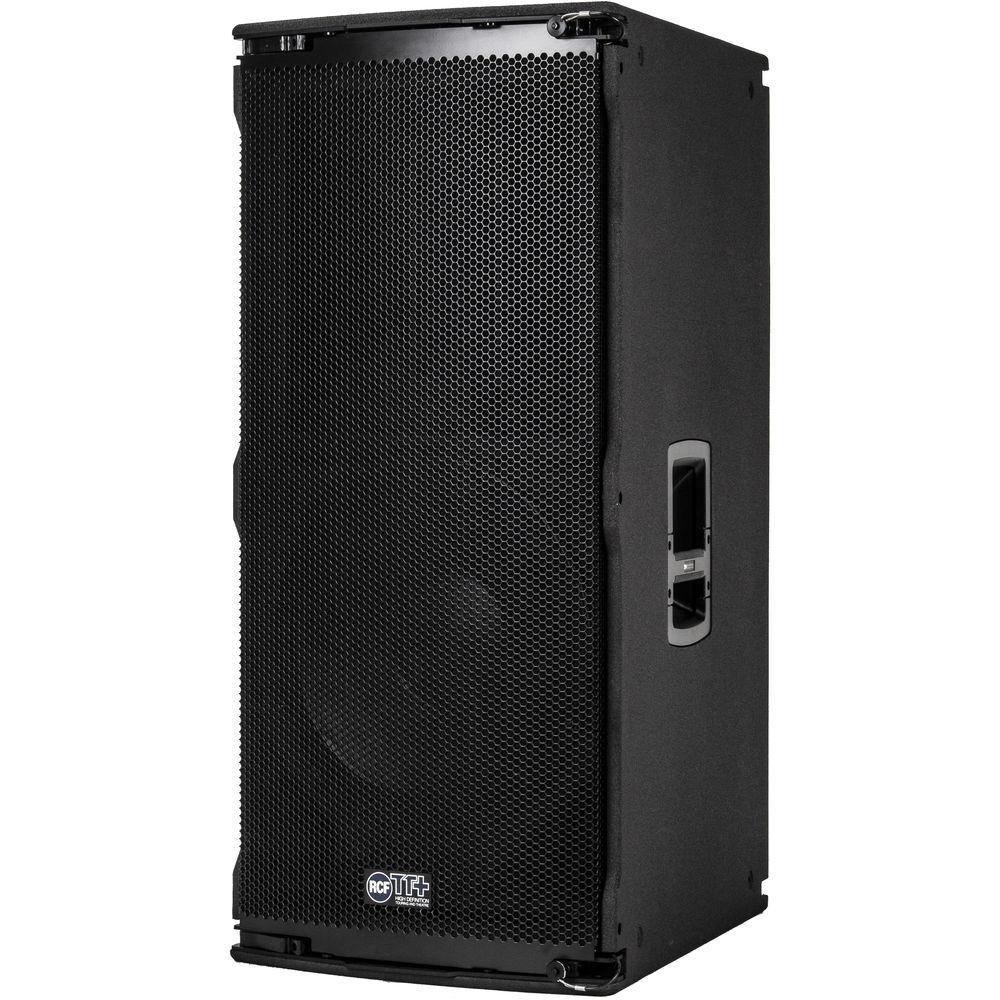

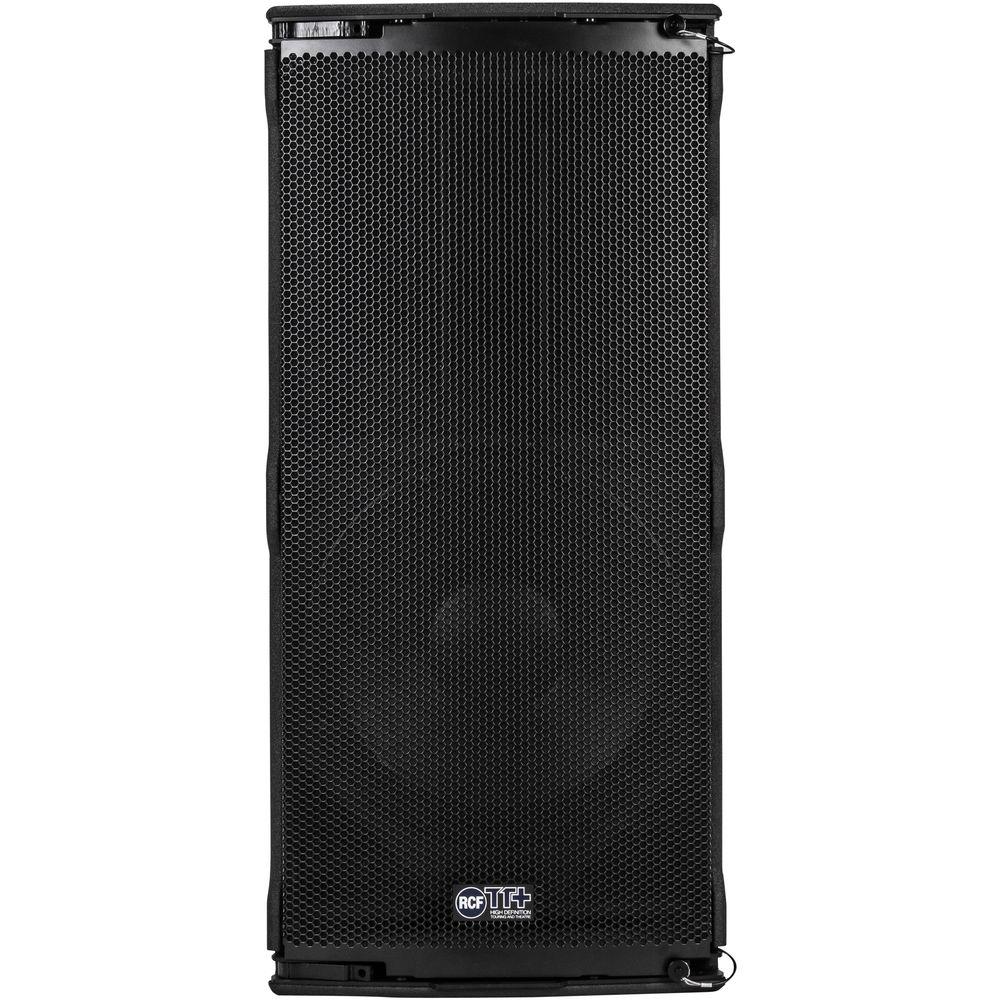

Product description The TTP5-A 15" 2-Way Point Source Array Speaker from RCF is a high power, bi-amped, active array speaker module engineered to deliver high fidelity output for use in indoor and outdoor medium and large spaces. The 15" neo woofer is outfitted with a 4" voice coil, as is its 2" titanium dome neo c.tweeter driver. The system is designed to create horizontal or vertical arrays with a constant curvature, for medium to small theaters, up to very large outdoor stadiums and public spaces.
The RCF newly designed 4" compression driver is designed to project a pattern control of 22.5° x 60° thanks to its waveguide horn. The high powered 15" neodymium woofer with its 4" voice coil is designed to create a very controlled and precise bass response for indoor applications such as theaters. A T-pole design generates minimized amounts of flux modulation, while a dual-forced air venting system assists in voice coil ventilation for minimum power compression and higher power handling and longer speaker life. The integration of the 1600 Watt, 2-way digital amplification and the digital processing minimizes distortion, noise and increases thermal efficiency.

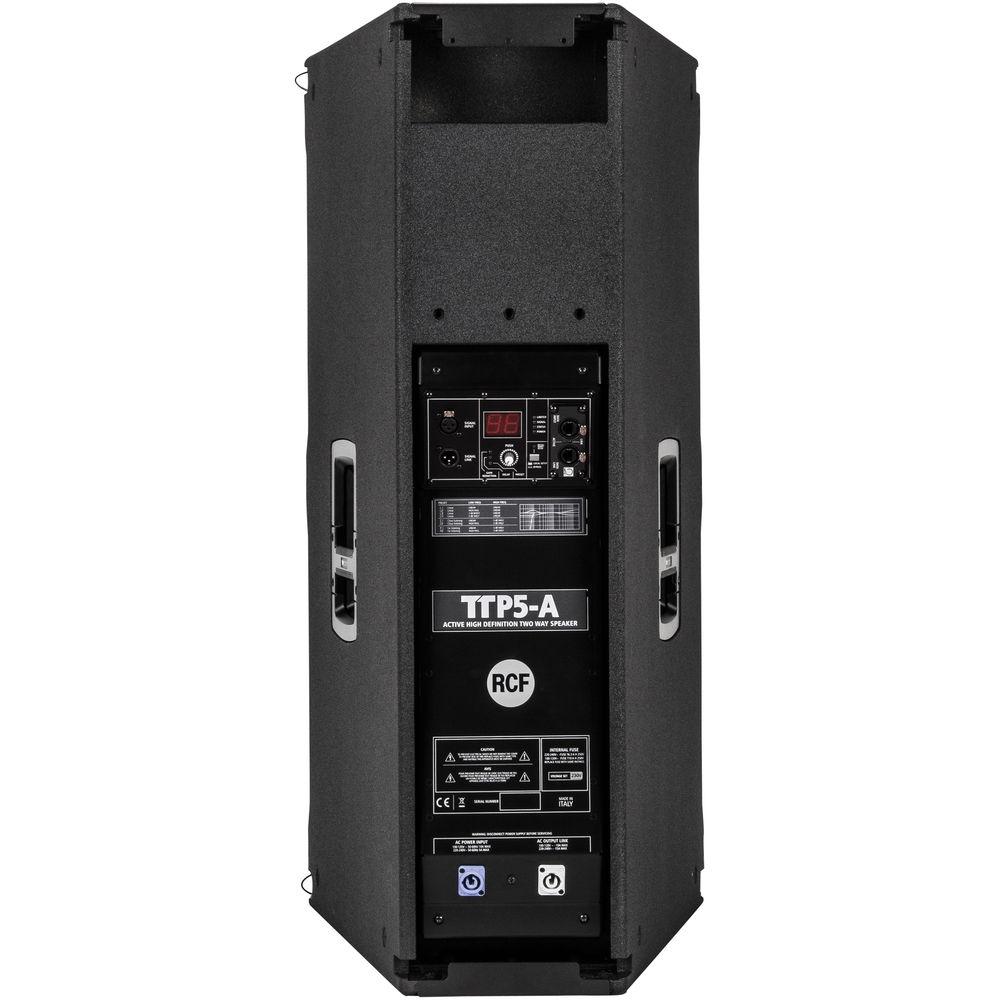

The TT5-A is equipped with an input board which features XLR In/Out, Gain reduction, Time Delay, Speaker presets, an RDNet ready option, a RDNet bypass switch, 4 status LEDs, and a Powercon In/Out. The TT5-A also features 96 Khz, 32 bit DSP processing and a dedicated networking board. Using our proprietary RDNet protocol, it is possible to monitor all the system parameters, from the input to the status of each single amplifier.
Having a DSP on board of each cabinet, it is possible to address to single cabinets or groups of cabinets, specific presets or modifications of parameters, like gain, equalisation or delay. The RDNet protocol is based on RS-485 communication protocol, and is stable. It is also possible to send and receive data on a simple XLR cable.
All new TT+ Two-Way Systems feature a multifunctional rear encoder to control all the speaker functions (Gain reduction, Delay, Speaker presets), even without network connection.

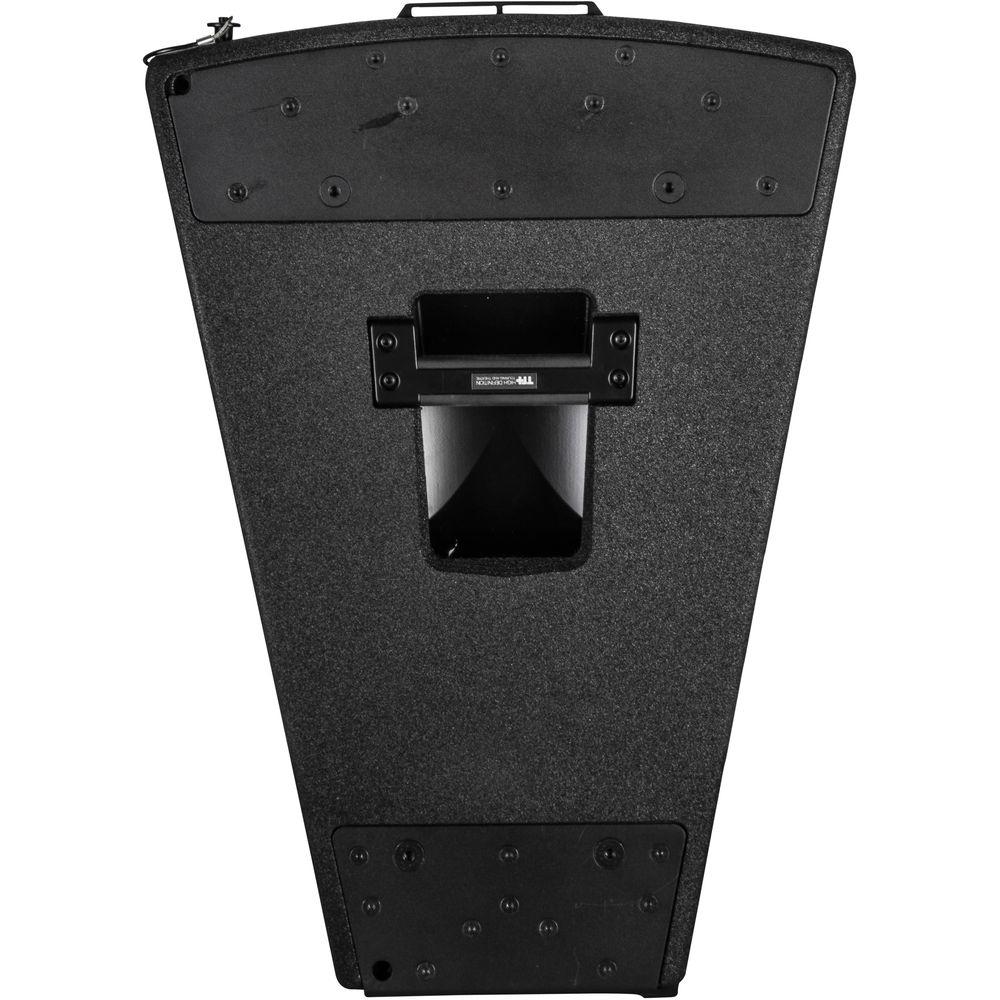

The TTP5-A is a flexible modular system, and as it is modular, is more easily array-able depending on the size of the event and the required coverage. High quality mechanics with a smart locking system make the set up of the system fast and almost effortless. - Applications
- Theaters Stadiums
Arenas
Auditoriums
Lecture halls
Theme parks
Conference centers
Ballrooms
Houses of worship
Large railway stations - 1600 Watt bi-amplified active speaker
- 22.5 x 60° precision waveguide
- 96 Khz, 32 bit DSP processing
- Foam-backed grilles hide the drivers from view for pleasing aesthetics
- Tour grade cabinet and mechanics
In the Box RCF TTP5-A 15" 2-Way Point Source Array Speaker Limited 2-Year Warranty with 1 year additional after registraition of product Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF TTP5-A 15" 2-Way Point Source Array Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF TTP5-A Specs | | | Frequency Response | 45 Hz to 20 kHz | | Maximum Sound Pressure Level (SPL) | 138 dB | | Horizontal Coverage Angle | 22.5° | | Vertical Coverage Angle | 60° | | Low Frequency Driver | 15.0" neo, 4.0" Voice Coil (38.1 neo, 10.2 cm VC) | | High Frequency Driver | 2.0" neo, 4.0" Voice Coil (5.1 neo, 10.2 cm VC)Me | | | | Input Signal | Balanced / unbalanced | | Input Connections | XLR, RDNet ready | | Input Sensitivity (Selectable) | +4 dBu | | Output Connectors | XLR | | | | Crossover Frequency | 550 Hz | | Protection Features | Thermal, RMS | | Limiter | Soft limiter, dynamic | | Controls | Gain reduction, RDNet local setup/bypass, Time Delay, Presets (Linear, Close, Far listening, High-pass), RDNet Ready | | | | Active or Passive | Active | | Total Power | 1600 Watts | | High Frequency Driver | 500 Watts | | Low Frequency Driver | 1100 Watts | | Cooling | Convection | | Connections | Powercon in/out | | | | Enclosure Material | Baltic Birch plywood | | Hardware | Installation/Rental fittings | | Handles | 2 per side | | Color | Black | | | | Dimensions (H x W x D) | 38.81 x 18.03 x 25.43" (986 x 458 x 646 mm) | | Weight | 145.5 lb (66.0 kg) |
