RCF TTS36-A Active High Power Subwoofer

Search your instruction manual in PDF to download

User Manual for RCF TTS36-A Active High Power Subwoofer

Click to enlarge the picture
RCF TTS36-A Active High Power Subwoofer Contents of the user manual for the RCF TTS36-A Active High Power Subwoofer
  • Product category: PA Speakers RCF
  • Brand: RCF
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for RCF PA Speakers

RCF TTS36-A Active High Power Subwoofer RCF TTS36-A Active High Power Subwoofer RCF TTS36-A Active High Power Subwoofer
User manual for the RCF TTS36-A Active High Power Subwoofer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any RCF product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!



Product description

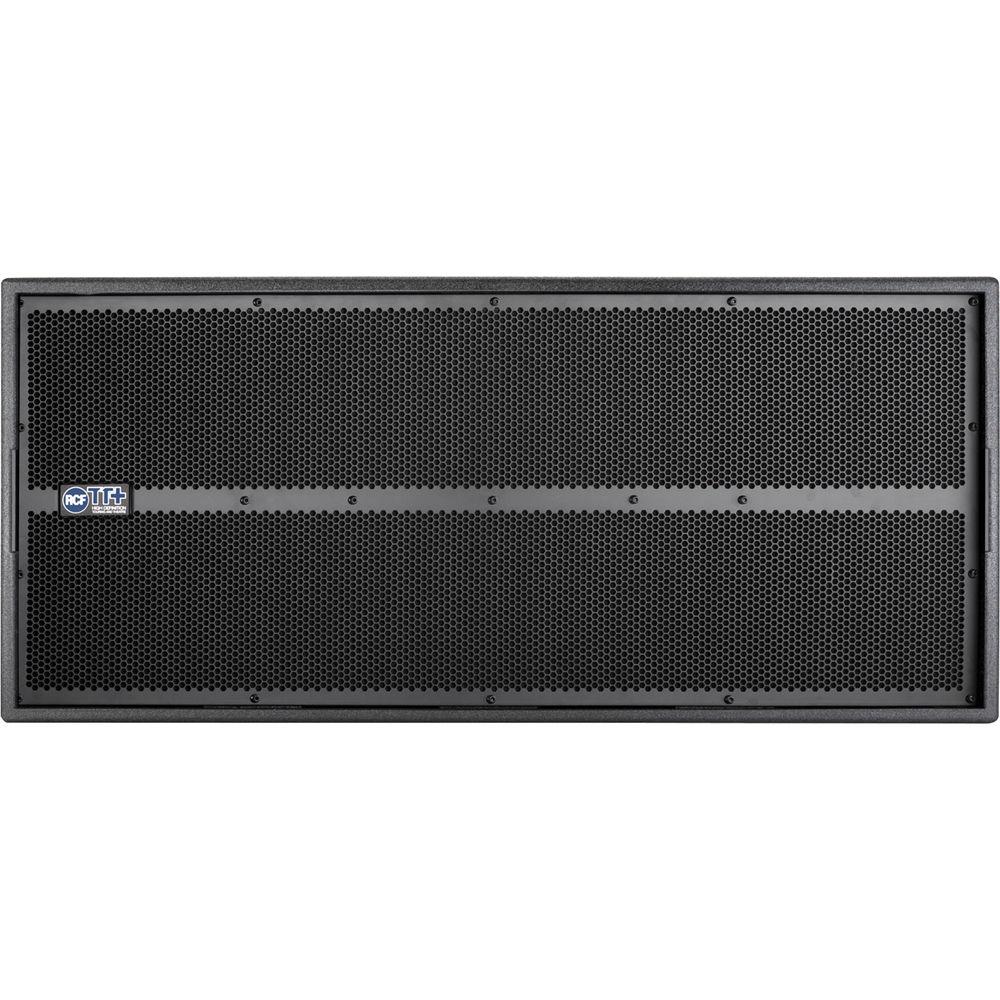

The TTS36-A Active High Power Subwoofer from RCF features low-frequency 18" woofers with a 4.5" inside/outside voice coil transducers. The TTS36-A amplifier section features 2 x 2000W highly advanced digital amplifier modules. Each module features Power Factor Correction (PFC), separated power supply and amplification, and two "on board" ventilation fans. The comprehensive protection features thermal, overcurrent, and non audio-signals.

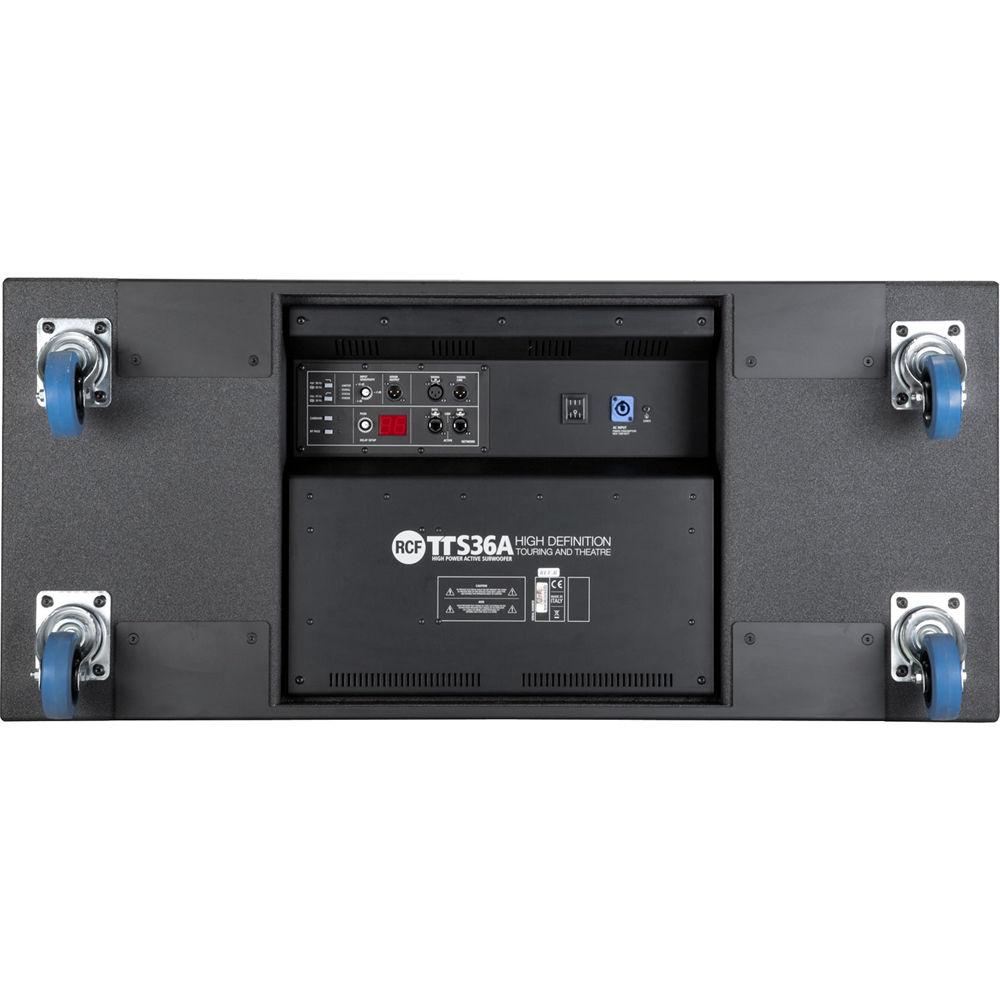

The input section provides: In/Out XLR connectors, crossover output XLR connectors, system sensitivity control, crossover set-up (90 Hz - 120 Hz), high pass set-up (35 Hz - 50 Hz), 4 status LEDs, and RDnet Ethercon input/output connectors. The TTS36-A is equipped with a dedicated RDnet networking board. You can monitor all the system parameters, from the input to the status of each amplifier, to address single cabinets or groups of cabinets, specific presets or modifications of parameters like gain, equalization or delay. You can also create subwoofer cardioid systems using groups of three modules.

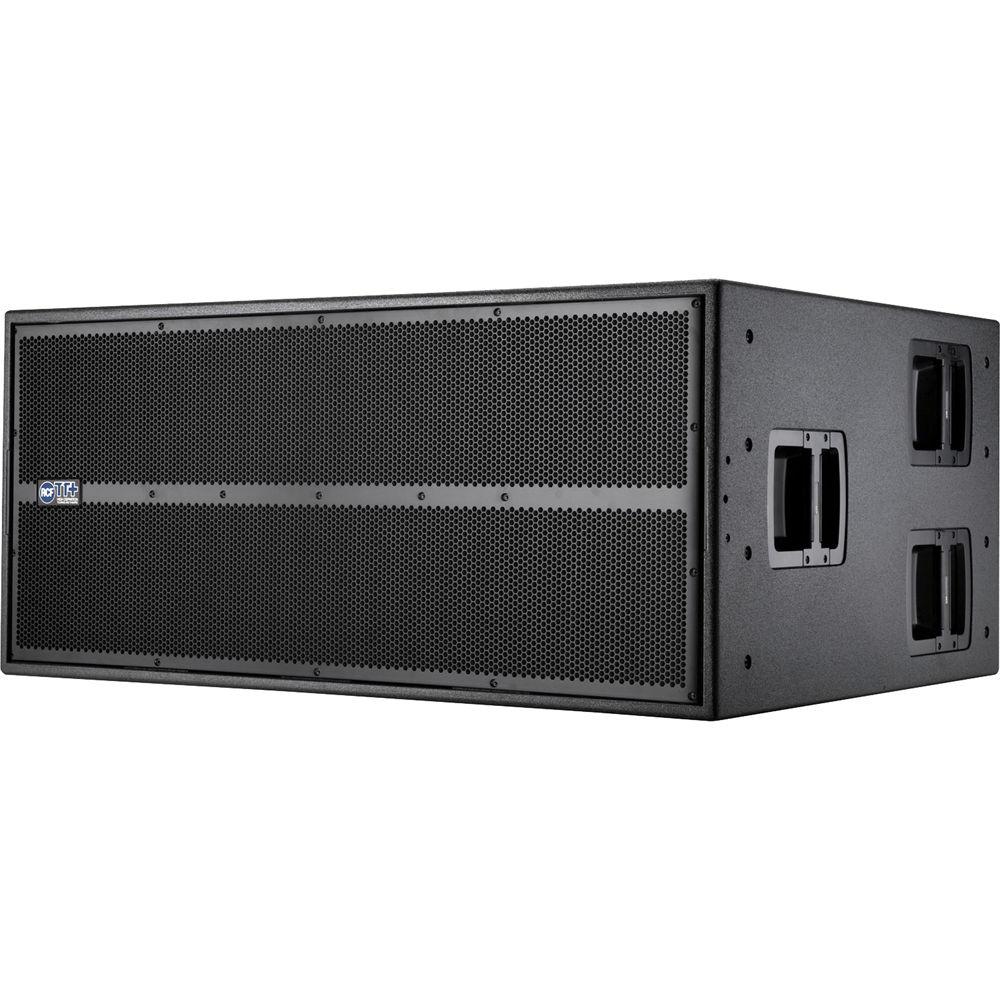

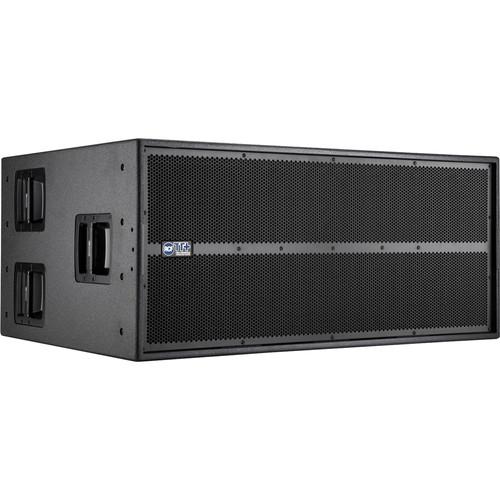

The TTS36-A cabinet of built in Baltic birch plywood and protected with a heavy duty coating. The internal structure is braced and reinforced and all the parts are assembled on metal inserts with metric screws. The front grille is powder coated and features foam backing that is very transparent to the sound. The power amplifiers and the input board are housed on a heavy duty aluminum panel suspended from the main cabinet with flexible mounts. This subwoofer can be used for touring sound reinforcement, large-scale event reinforcement, stadiums, arenas, and concerts.
  • 4000 W (2 x 2000 W digital amplifiers)
  • 2 x 18" high power neodymium woofers, 4.5" voice coil
  • 96 kHz, 32-bit DSP processing
  • Remote monitoring and control
  • Time delay alignment
  • Bass reflex design, cardioid preset for groups
  • RDNet on board
  • Tour grade cabinet
In the Box RCF TTS36-A Active High Power Subwoofer
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the RCF TTS36-A Active High Power Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    RCF TTS36-A Specs

    Frequency Response 35 - 120 Hz @ -3 dB
    Maximum Sound Pressure Level (SPL) 143 dB
    Woofer 2 x 18" neo, 4.5" voice coil
    Connectors XLR, Ethercon input
    XLR, Ethercon output
    PowerCON, power
    Input Sensitivity -2 dBu / + 10 dBu
    Protections Thermal, excursion, rms
    Limiter Soft limiter
    Controls DSP controlled
    Amplifier Power 4000 W RMS
    Low Frequencies: 2 x 2000 W RMS
    Cooling Convection/forced
    Cabinet Material: Baltic birch plywood
    Hardware: 4 wheels, Steel bars x fork-lift
    Handles: 6, side
    Dimensions 20.6 x 46.0 x 33.4" (525 x 1170 x 850 mm)
    Weight 209.4 lb (95 kg)
    Package Weight 209.0 lb
    Box Dimensions (LxWxH) 47.0 x 41.5 x 31.5"
