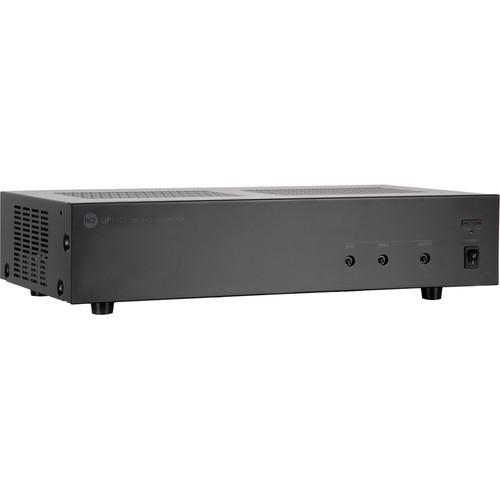

User Manual for RCF UP 1121 Power Amplifier Click to enlarge the picture
Contents of the user manual for the RCF UP 1121 Power Amplifier
- Product category: 70-Volt Amplifiers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF 70-Volt Amplifiers
|
User manual for the RCF UP 1121 Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The UP 1121 Power Amplifier from RCF is a 120W power amplifier with a single balanced line level audio input. The amplifier audio output is for low impedance loudspeakers or 100 - 70 V constant voltage line transformer loudspeakers. In addition to the connection to the main power supply, the UP 1121 features a 24 VDC input to be powered by external batteries. - Single balanced 'line' level audio input (terminal strip)
- Amplifier output to loudspeakers, available as 100 / 70V constant voltage line and Low impedance (min. 4 ohms)
- Input for the secondary 24 VDC power supply (batteries)
- Master volume control with screw
- Bass and Treble tone screw control (center position is flat response)
- LEDs indicating the audio signal level
In the Box RCF UP 1121 Power Amplifier (120 W) 2 x Rack Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF UP 1121 Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF UP1121 Specs | Power Output | 120 W RMS | | Frequency Response | 60 Hz to 15 kHz | | Distortion | < 1.5% | | Signal / Noise | > 80 dB | | Crosstalk | > 80 dB | | Line Input Sensitivity | 1 V (+2 dBu) | | Line Input Impedance | 10 kOhms | | Auxiliary Input Impedance | 10 kOhms | | Output Voltage | 70 V (83 ohms) / 100 V (167 ohms) | | Operating Voltage | 115-230 V, 50/60 Hz | | Power Consumption | 120 W | | Controls | Master volume, Treble, Bass | | Protections | Overload, short-circuit, thermal | | Dimensions | 3.4 x 16.96 x 15.15" (88 x 431 x 385 mm) | | Weight | 26.45 lb (12 kg) |
