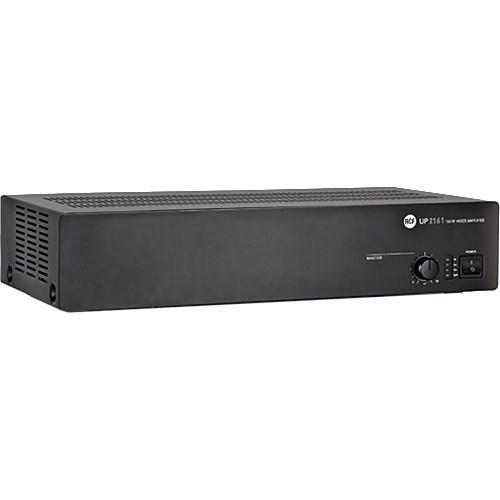

User Manual for RCF UP 2161 Power Amplifier Click to enlarge the picture
Contents of the user manual for the RCF UP 2161 Power Amplifier
- Product category: 70-Volt Amplifiers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF 70-Volt Amplifiers
|
User manual for the RCF UP 2161 Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The 160W UP 2161 Power Amplifier from RCF is equipped with a Microphone/Line main input via a removable connector, an XLR connector, or an RJ45 port. The amplifier also features an RCA Auxiliary input for music sources such as CD players and tuners. The amplifier output is available for either low impedance speakers or 100-70 constant voltage line. The Class D amplifier features a switching power supply. The UP 2161 is designed for the transmission of announcements and musical programs. It is ideal for use in restaurants, shops, supermarkets, hotels, offices, department stores, industrial systems and similar applications. - 160W RMS digital technology power amplifier
- Main input on either removable connector or XLR or RJ45
- Main input can have priority over the aux input
- Main input has a presence control command
- Main input has a high-pass filter useful for improving speech intelligibility
- Aux input for music sources on RCA type connector
- Aux input with volume and tone controls
- 100 V - 70 V and 4 ohm outputs
- Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)
In the Box RCF UP 2161 Power Amplifier (160W) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF UP 2161 Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF UP2161 Specs | Power Output | 160 W RMS | | Frequency Response | 50 Hz to 18 kHz | | Connectors | 1 x XLR, microphone/line input
1 x RJ45, paging microphone input
2 x RCA, L/R auxiliary input
1 x 4-pin terminal, input command control | | Distortion | < 0.3% | | Signal / Noise | Inputs 1-4: > 60 dB
AUX Input: > 80 dB | | Crosstalk | Inputs 1-4: > 60 dB
AUX Input: > 80 dB | | Line Input Sensitivity | Mic: -58 dBu
Phantom: -21 dBu
Line: 0 dBu
Aux: -6 to 13 dBu | | Input Impedance | Mic: 10 kOhms
Phantom: 5 kOhms
Line: 10 kOhms
Aux: 20 kOHms | | Tone Frequency | Bass: 80 Hz, ±8 dB
Treble: 13 kHz, ±8 dB | | Presence Frequency Bands | 2.15 kHz, +10 dB | | High-Pass Filter | 150 Hz | | Output Impedance | 4 ohms | | Output Voltage | 70 V (31 ohms) / 100 V (62 ohms) | | Operating Voltage | 115-230 V, 50/60 Hz | | Power Consumption | 350 W | | Controls | Master volume, Treble, Bass, Gain, Presence | | Protections | Overload, short circuit, thermal | | Dimensions | 3.4 x 17.4 x 8.6" (88 x 444 x 220 cm) | | Weight | 8.81 lb (4 kg) | | | | Package Weight | 13.65 lb | | Box Dimensions (LxWxH) | 19.0 x 13.0 x 8.0" |
