User Manual for RCF V218-S Passive Bass Reflex Subwoofer Click to enlarge the picture
Contents of the user manual for the RCF V218-S Passive Bass Reflex Subwoofer
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF V218-S Passive Bass Reflex Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

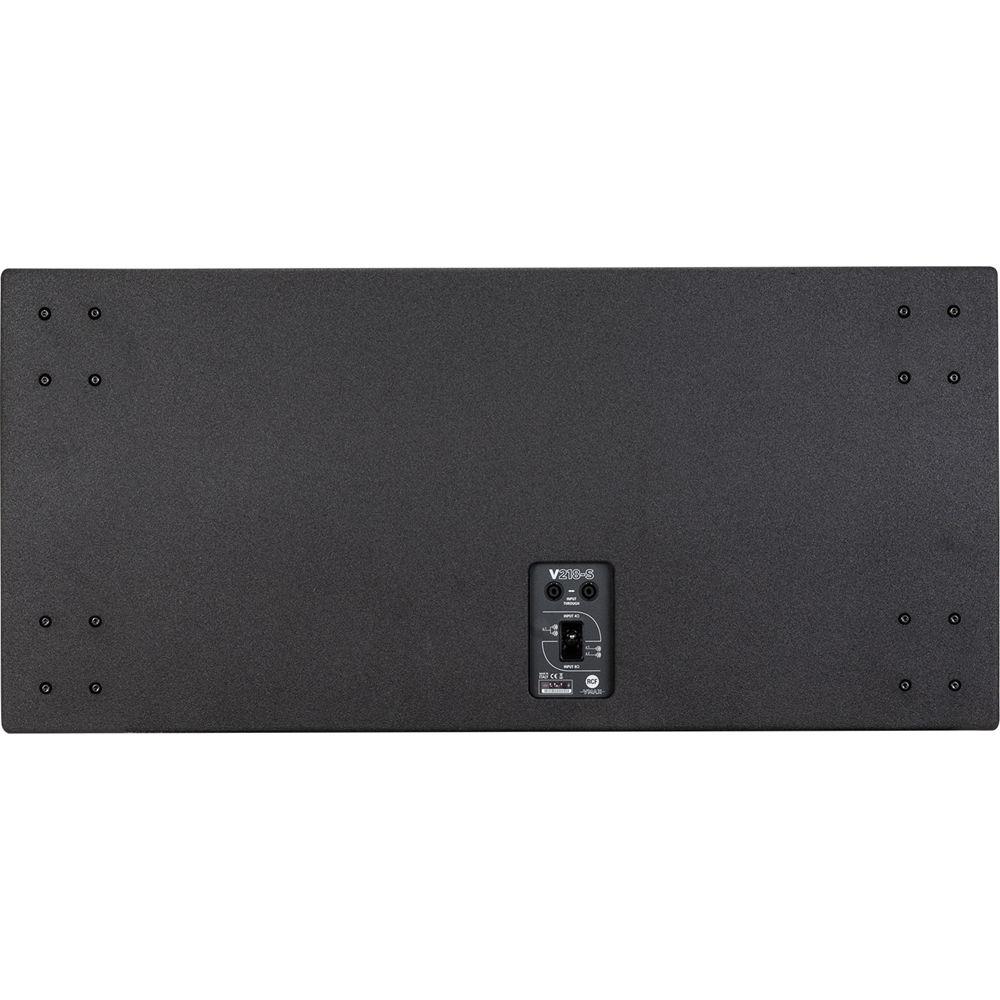

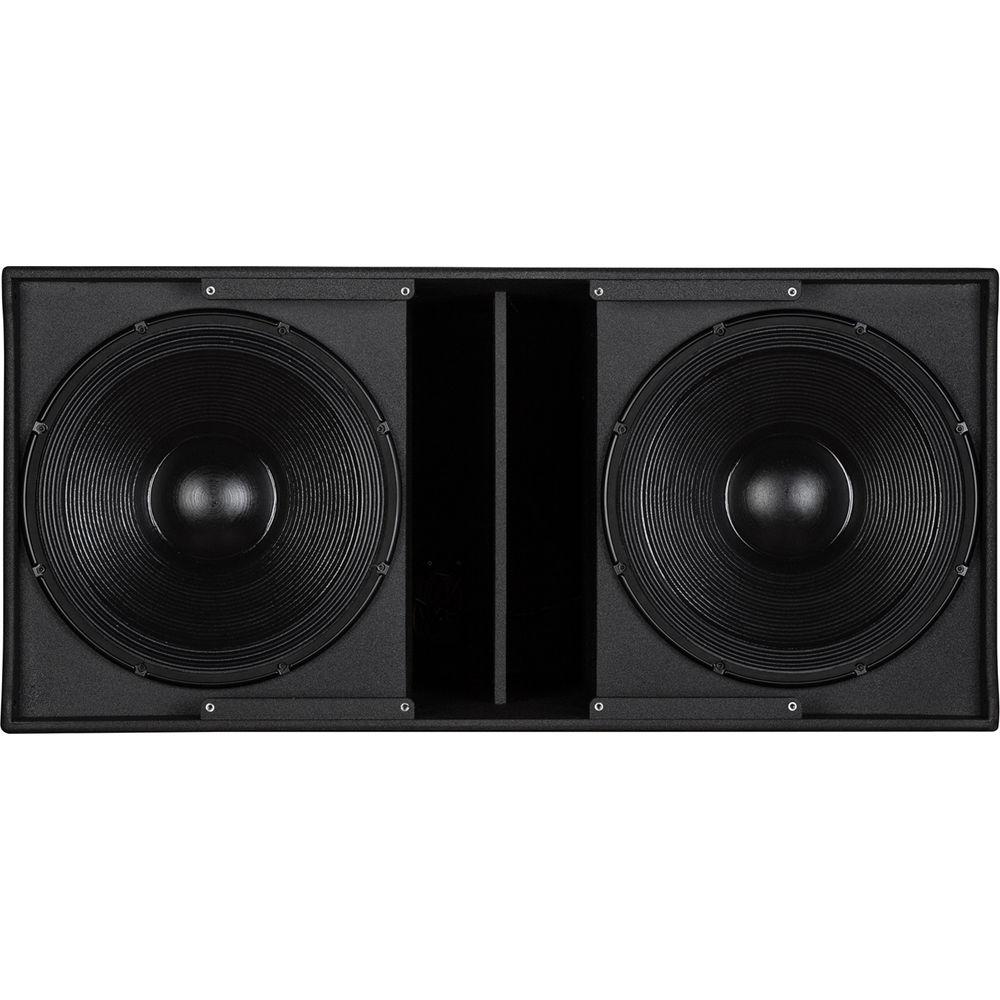

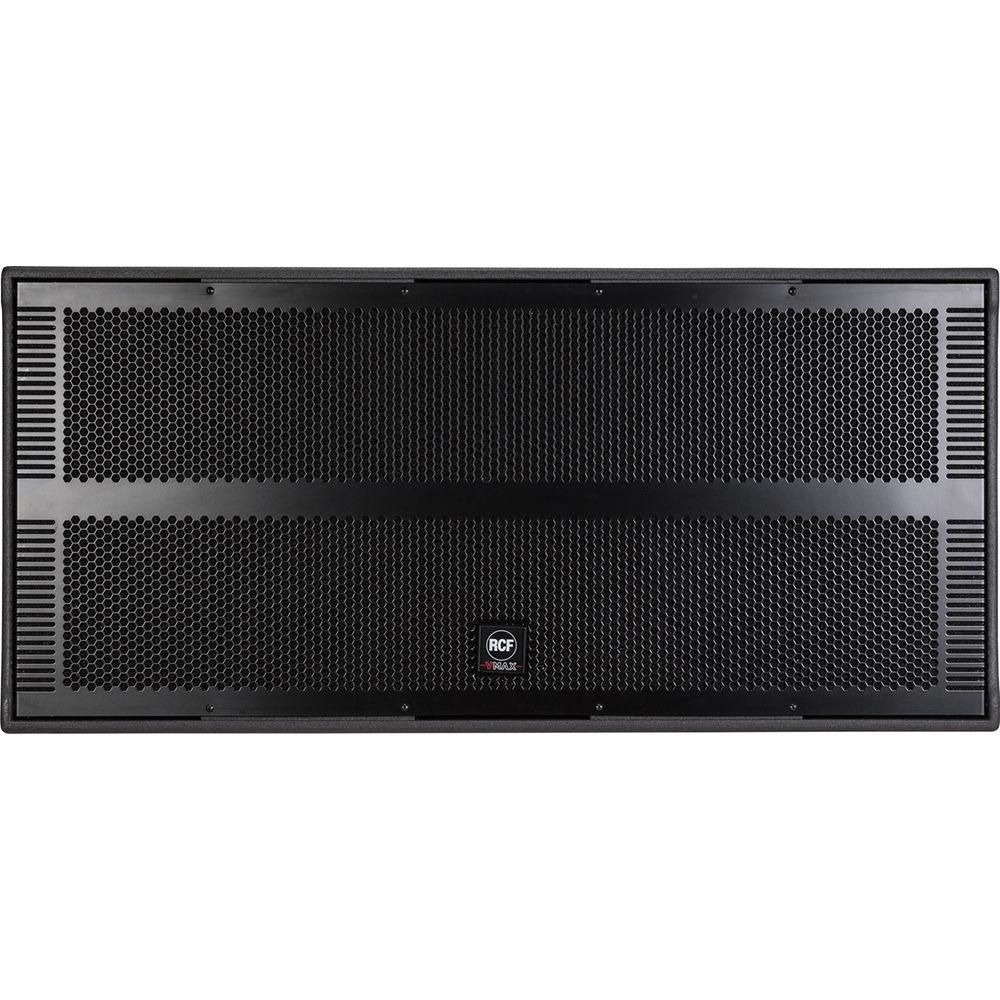

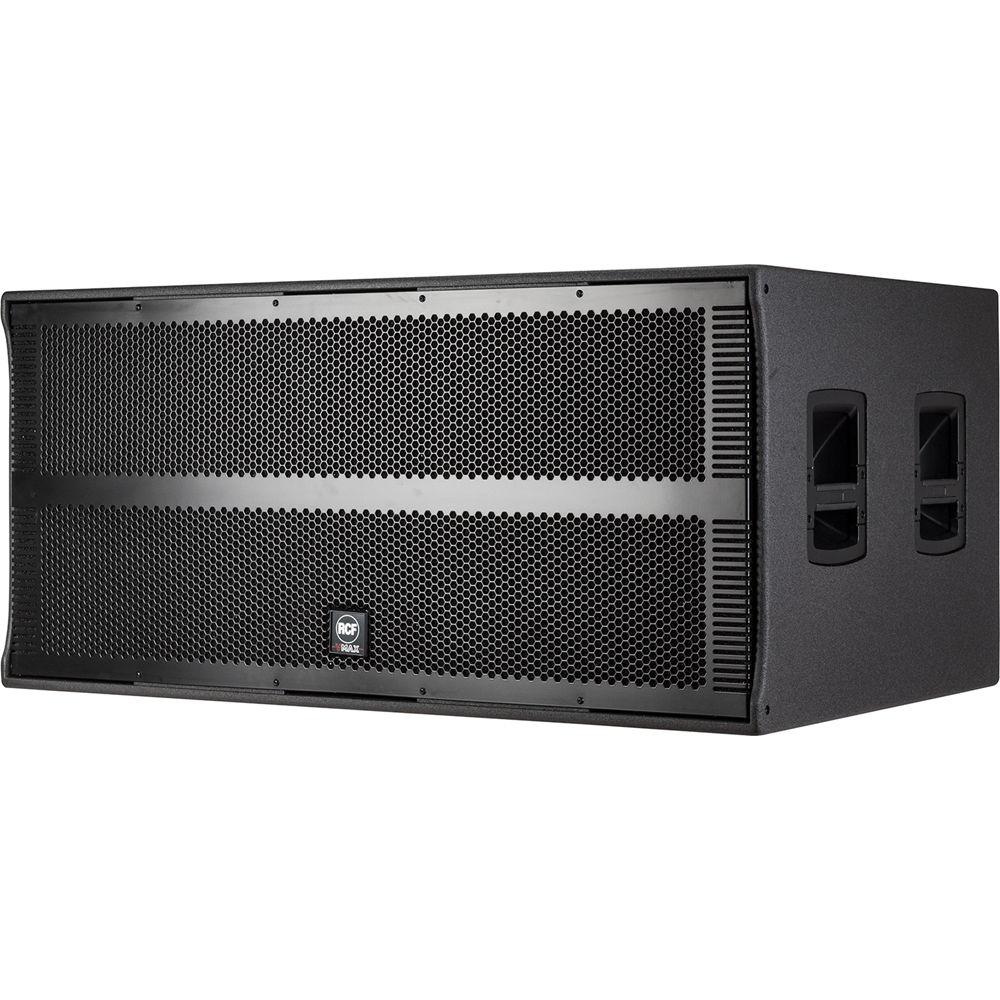

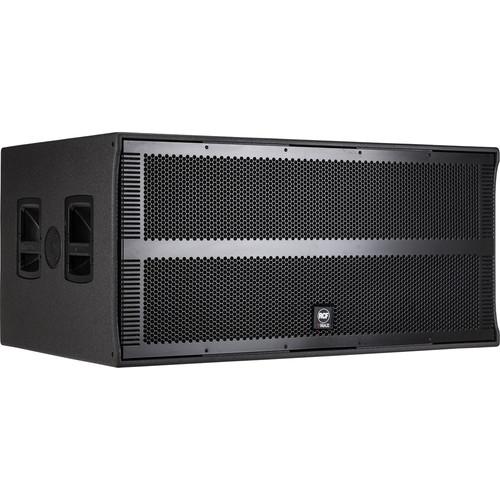

Product description The black V218-S Passive Bass Reflex Subwoofer from RCF is equipped with two neodymium 18" precision woofers mounted in a front-loaded configuration. Each woofer features massive vented magnets and 4" copper voice coil. It is capable of handling up to 3,000W AES power and produces a maximum SPL of 141 dB. The subwoofer's compact design ensures an efficient acoustic response down to 30 Hz. The cabinet is constructed using baltic birch plywood and coated with weather-resistant, textured polyurethane black paint. The front steel grille is epoxy powder coated. The unit can be installed in either horizontal or vertical configuration. The enclosure features four side recessed handles and rubber feet. - High power, bass reflex subwoofer system
- Two 18" neodymium hyper vented woofers with 4" voice coil
- High output, acoustic response down to 30 Hz
- Weather-resistant, textured, polyurethane finish
- Epoxy powder coated front grille
In the Box RCF V218-S Passive Bass Reflex Subwoofer (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF V218-S Passive Bass Reflex Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF V218-S Specs | Frequency Response | 30 to 250 Hz | | Maximum SPL | 141 dB | | Sensitivity | 99 dB | | Nominal Impedance | 4 Ohms | | Peak Power | 3,000 W
Peak: 12,000 W | | Recommended Amplifier Power | 6,000 W | | Woofer | 2 x 18" (45.7 cm), 4" (10.2 cm) voice coil
Nominal Impedance: 8 Ohms
Input Power Rating: 2 x 1,500 W AES | | Input Connector | SpeakON NL4 | | Cabinet Construction | Material: 0.5" (15 mm) Baltic birch | | Mounting Options | Pole mount ready | | Handles | 4 side | | Grille | Perforated steel | | Dimensions (H x W x D) | 22.4 x 47.24 x 29.33" (56.90 x 120.00 x 74.50 cm) | | Weight | 172 lb (78 kg) |
