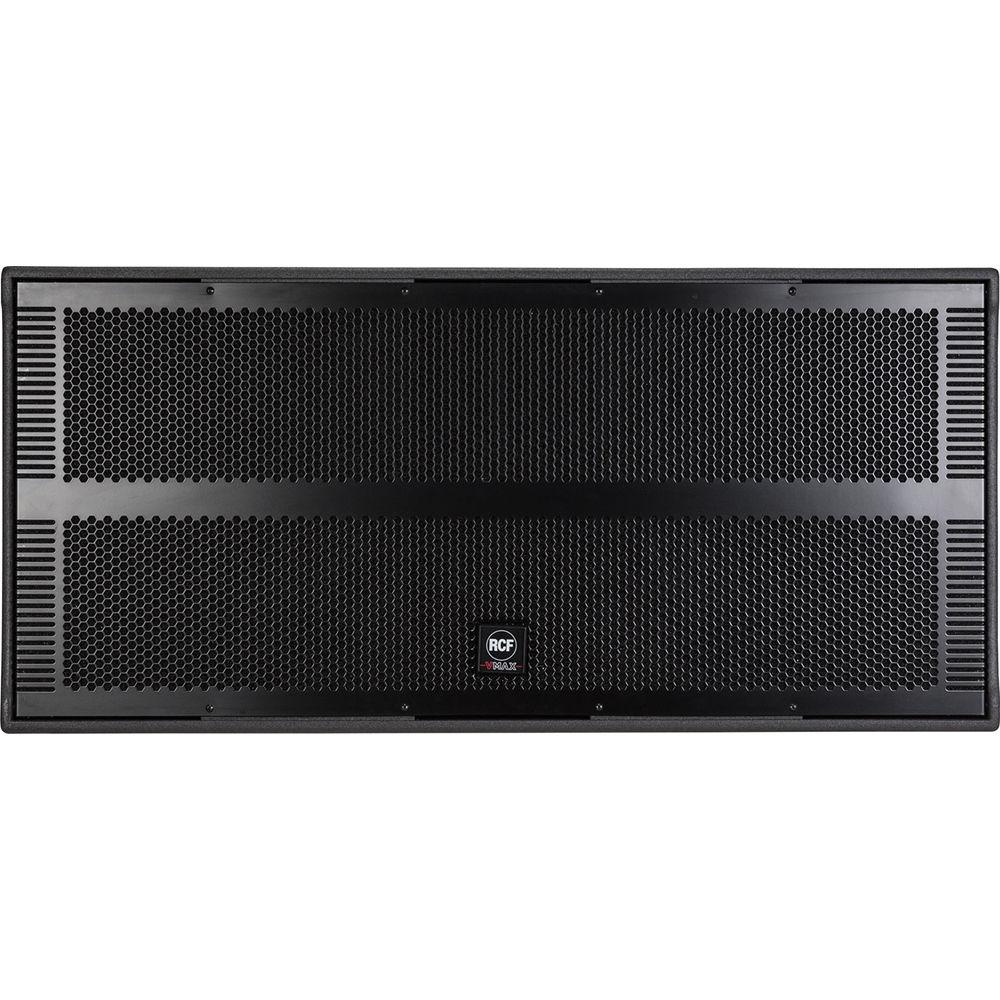

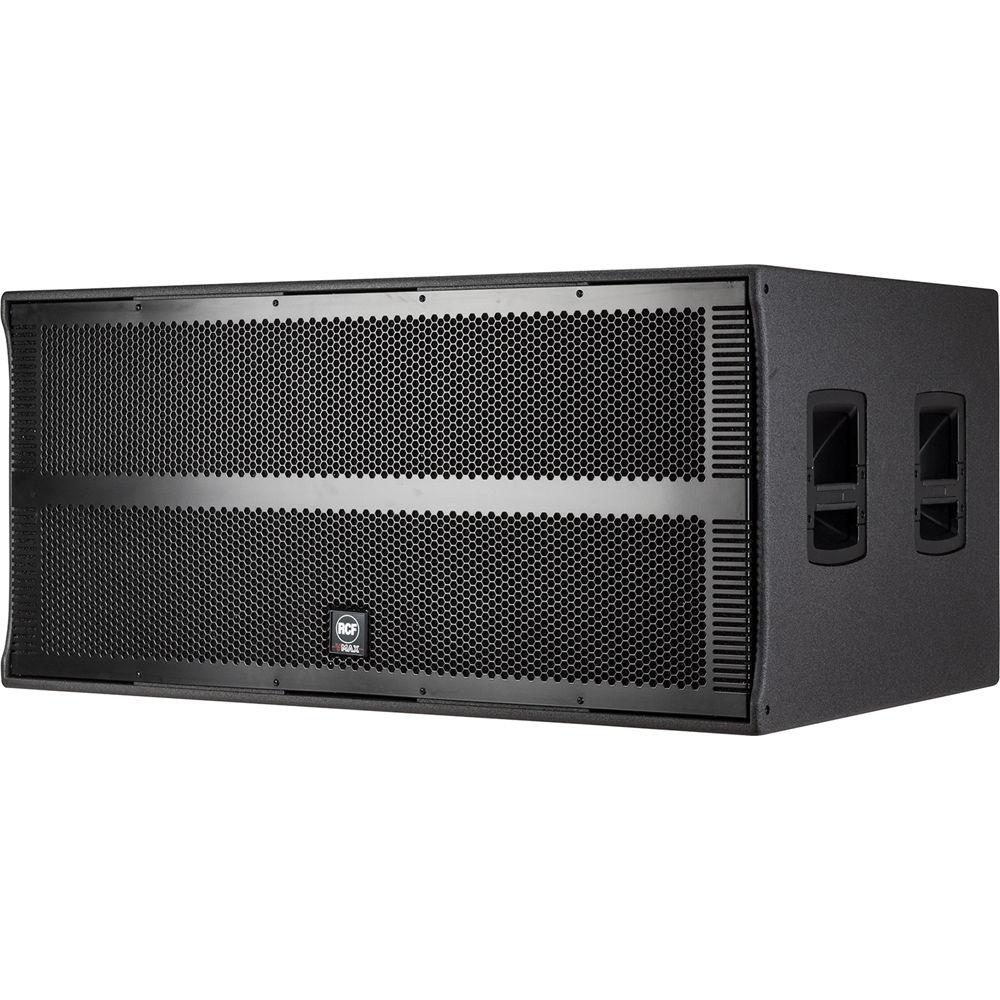

Product description The black V221-S Passive Bass Reflex Subwoofer from RCF is equipped with two 21" precision woofers mounted in a front-loaded configuration. Each woofer features massive vented magnets and 4.5" copper voice coil. It is capable of handling up to 4,000W AES power and produces a maximum SPL of 143 dB. The subwoofer's compact design ensures an efficient acoustic response down to 25 Hz. The cabinet is constructed using baltic birch plywood and coated with weather-resistant, textured polyurethane black paint. The front steel grille is epoxy powder coated. The unit can be installed in either horizontal or vertical configuration. The enclosure features four side recessed handles and rubber feet. - High power, bass reflex subwoofer system

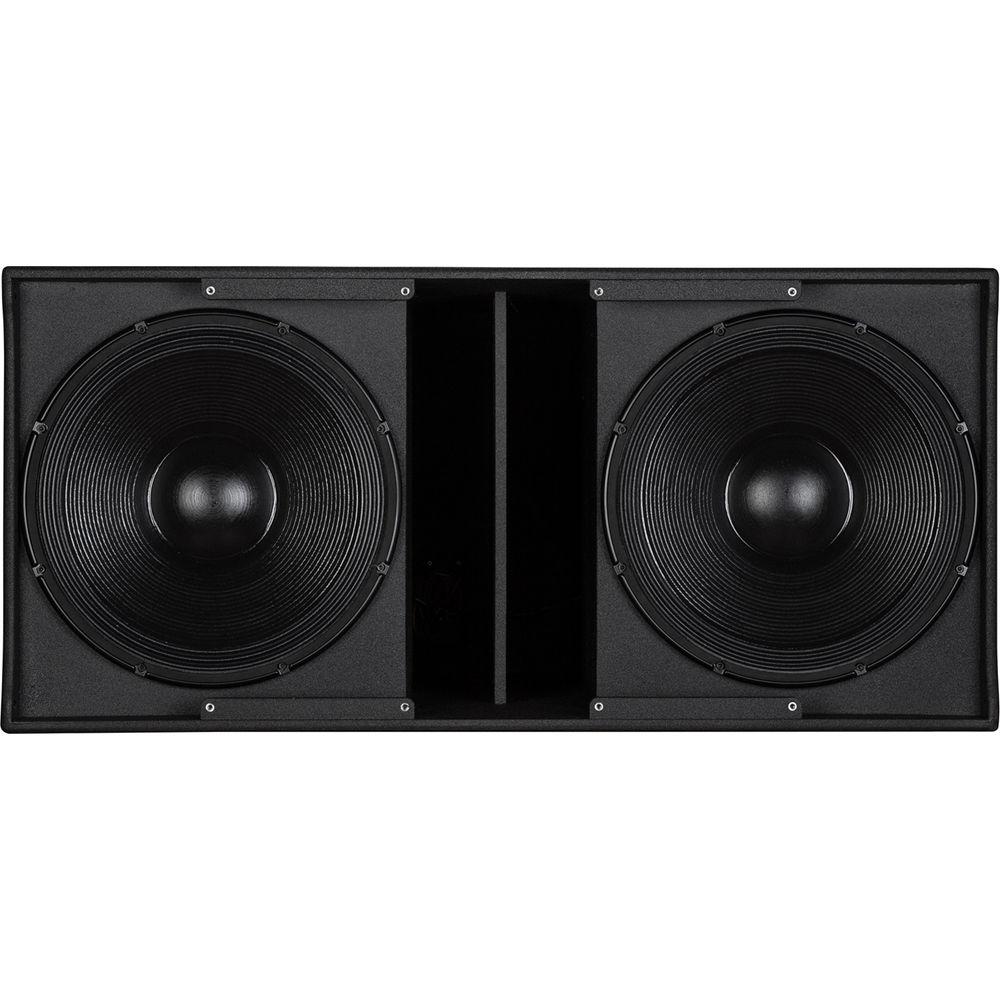

- Two 21" hyper vented woofers with 4.5" voice coil
- High output, acoustic response down to 25 Hz
- Weather-resistant, textured, polyurethane finish
- Epoxy powder coated front grille
In the Box RCF V221-S Passive Bass Reflex Subwoofer (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF V221-S Passive Bass Reflex Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF V221-S Specs | Frequency Response | 25 to 200 Hz | | Maximum SPL | 143 dB | | Sensitivity | 100 dB | | Nominal Impedance | 4 Ohms | | Peak Power | 4,000 W
Peak: 16,000 W | | Recommended Amplifier Power | 8,000 W | | Woofer | 2 x 21" (53.3 cm), 4.5" (11.4 cm) voice coil
Nominal Impedance: 8 Ohms

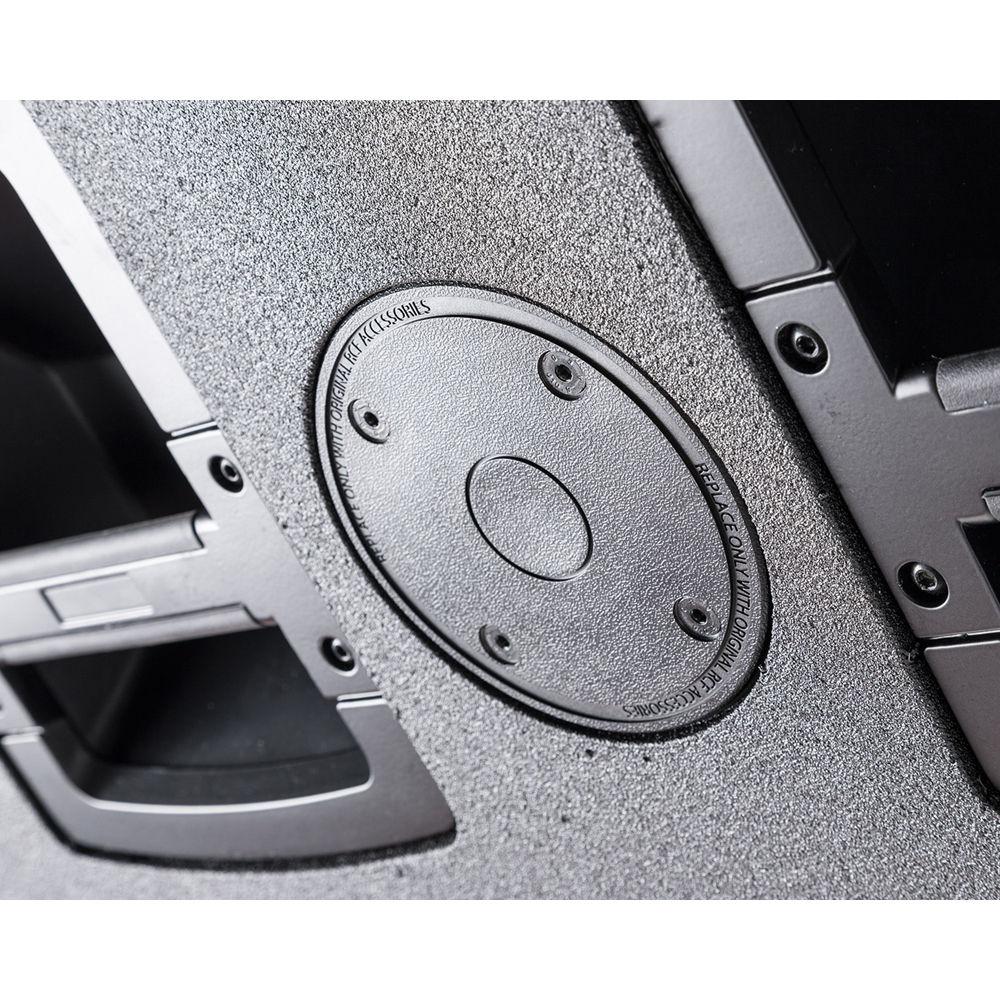

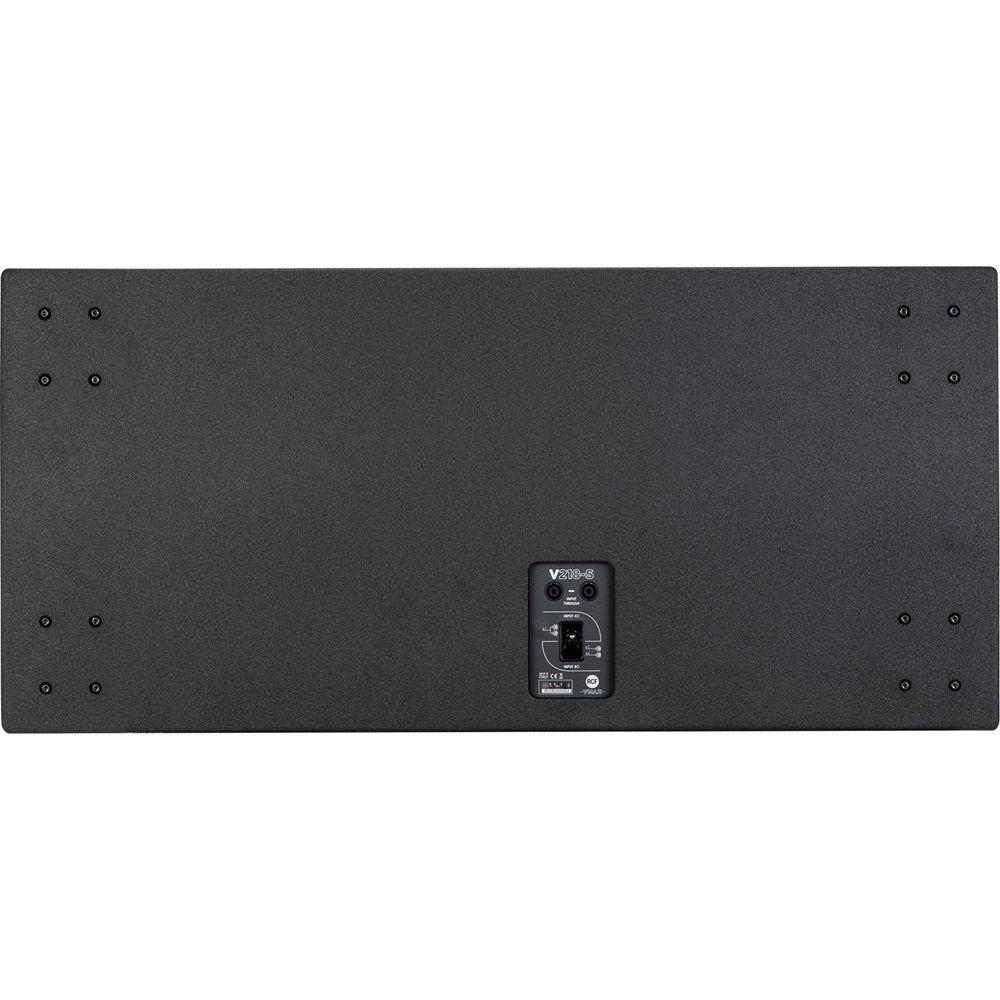

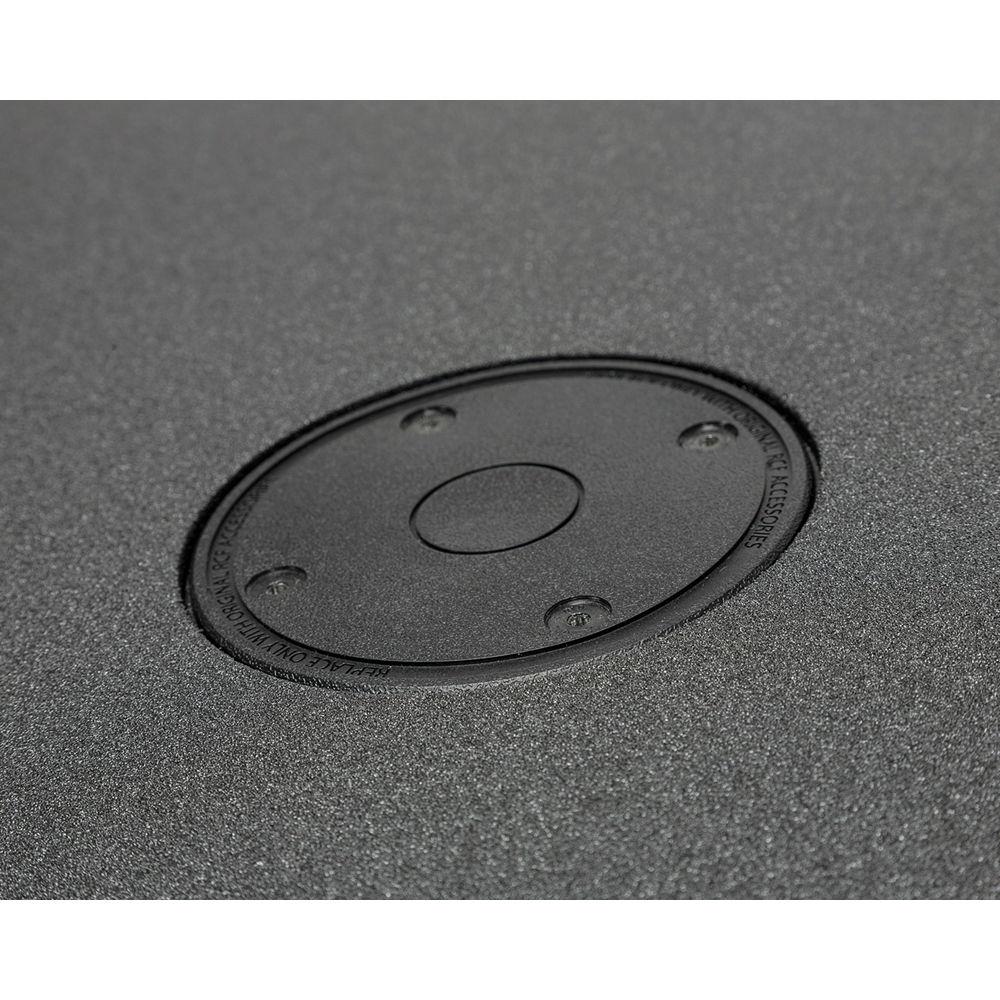

Input Power Rating: 2 x 2,000 W AES | | Input Connector | SpeakON NL4 | | Cabinet Construction | Material: 0.5" (15 mm) Baltic birch | | Mounting Options | Pole mount ready | | Handles | 4 side | | Grille | Perforated steel | | Dimensions (H x W x D) | 23 x 59.1 x 34.3" (58.50 x 150.00 x 87.00 cm) | | Weight | 242.5 lb (110 kg) |
