User Manual for RCF V35 15" 2-Way Full Range Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the RCF V35 15" 2-Way Full Range
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF V35 15" 2-Way Full Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

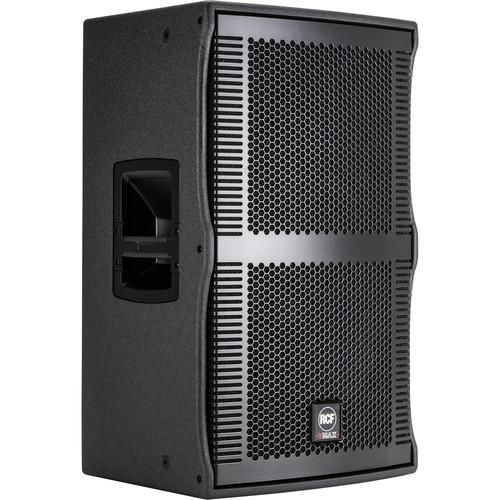

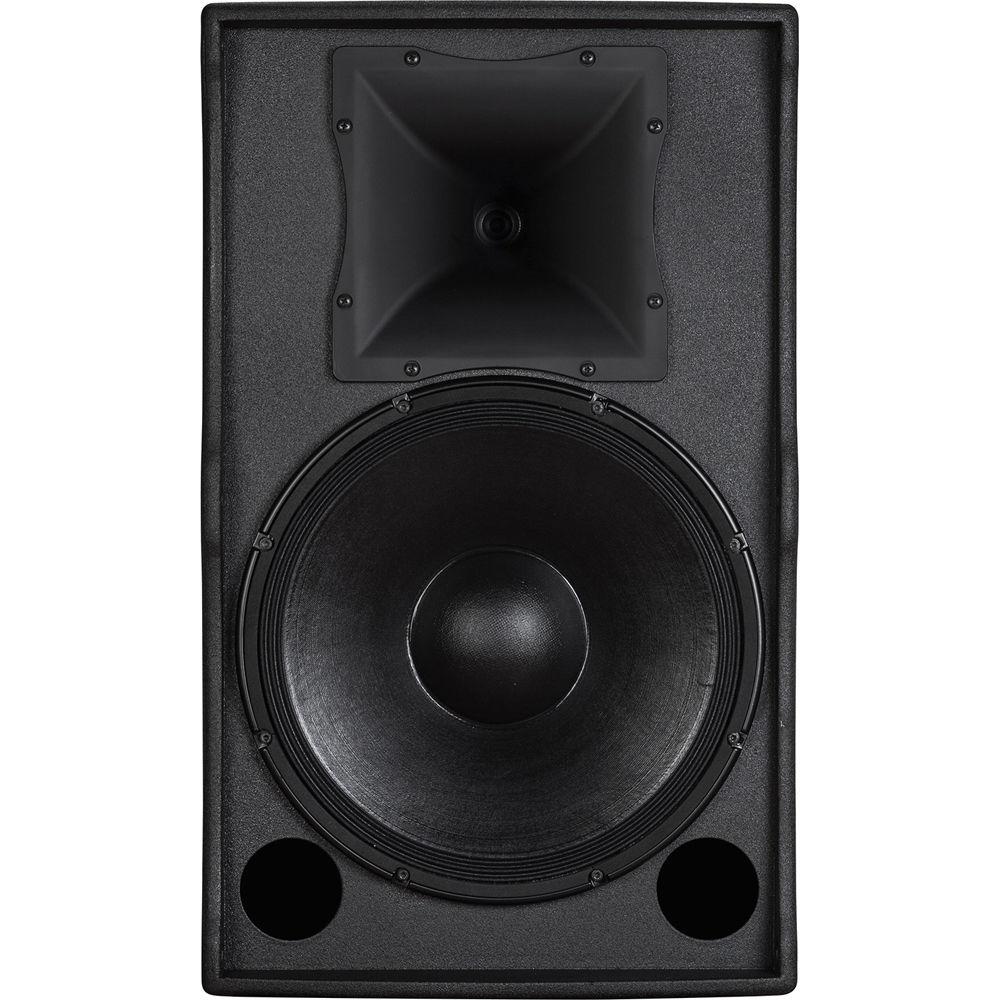

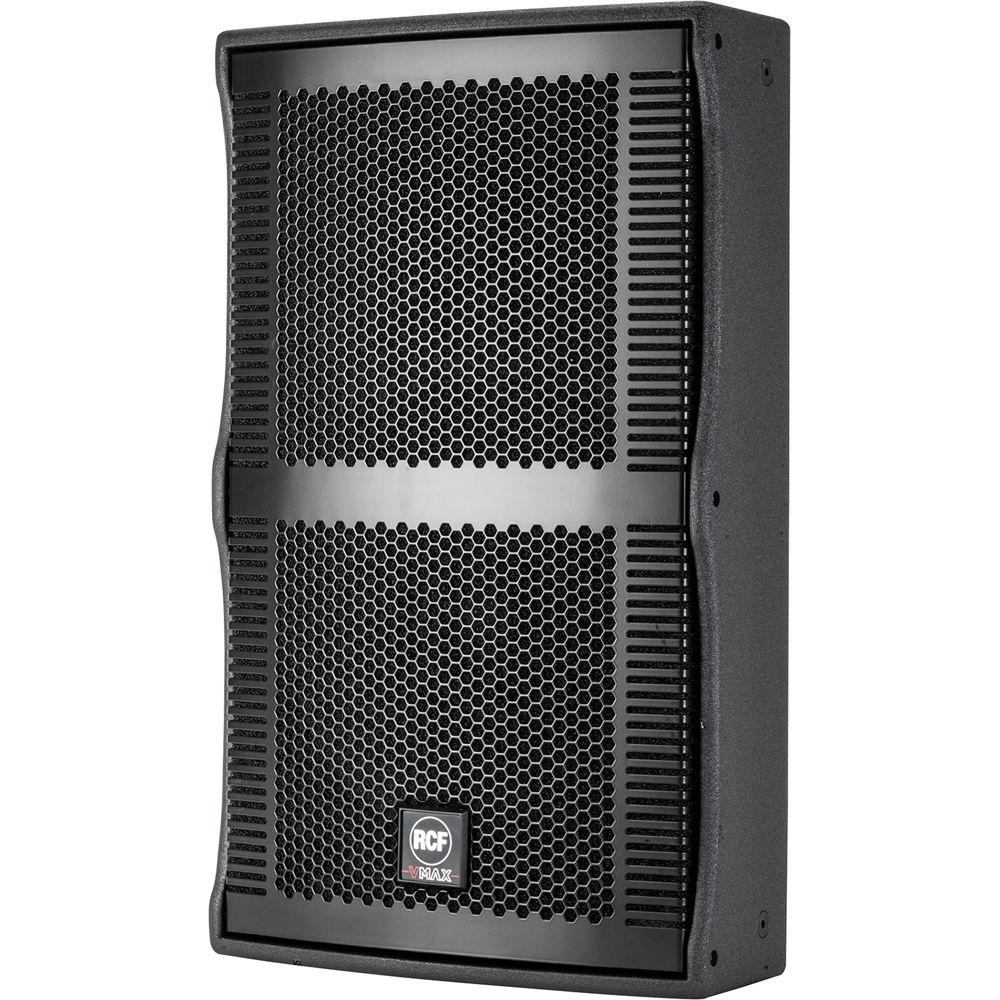

Product description The V35 2-Way Full Range Passive Loudspeaker from RCF is a two-way full range loudspeaker system that incorporate 1 x 15” LF transducer and a compression driver. The LF driver is equipped with a 4" voice coil and ferrite motor mounted in a vented enclosure with optimized front loading. It features a 3" HF titanium compression driver, loaded on a constant directivity horn with a perfect coverage of 90° x 40°.
It offers substantial power and efficiency for a variety of professional applications that include portable systems, primary sound reinforcement, plus permanent installations, and supplementary fill for larger systems. The high-frequency section is a constant directivity CMD (Constant Matching Design) horn in relation to the woofer system, loaded on a neodymium compression driver with a 3" titanium diaphragm assembly for smooth, controlled dispersion.

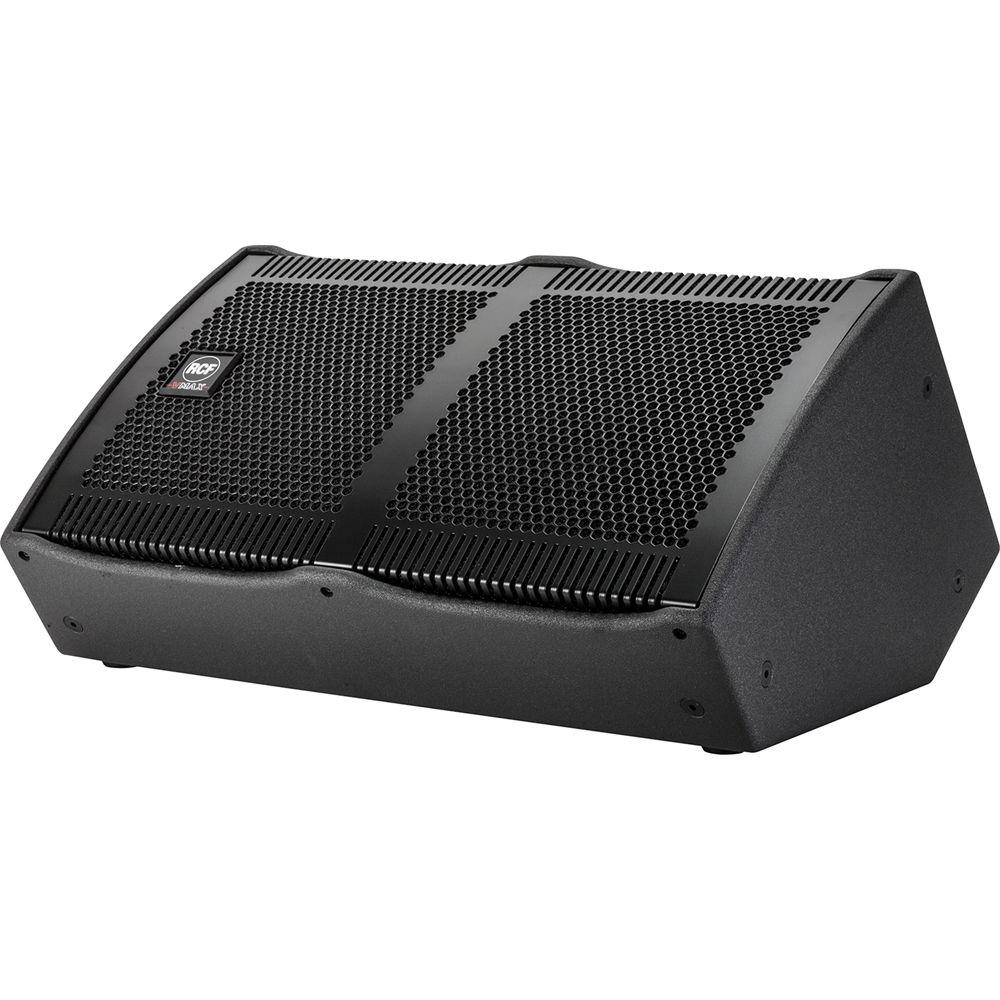

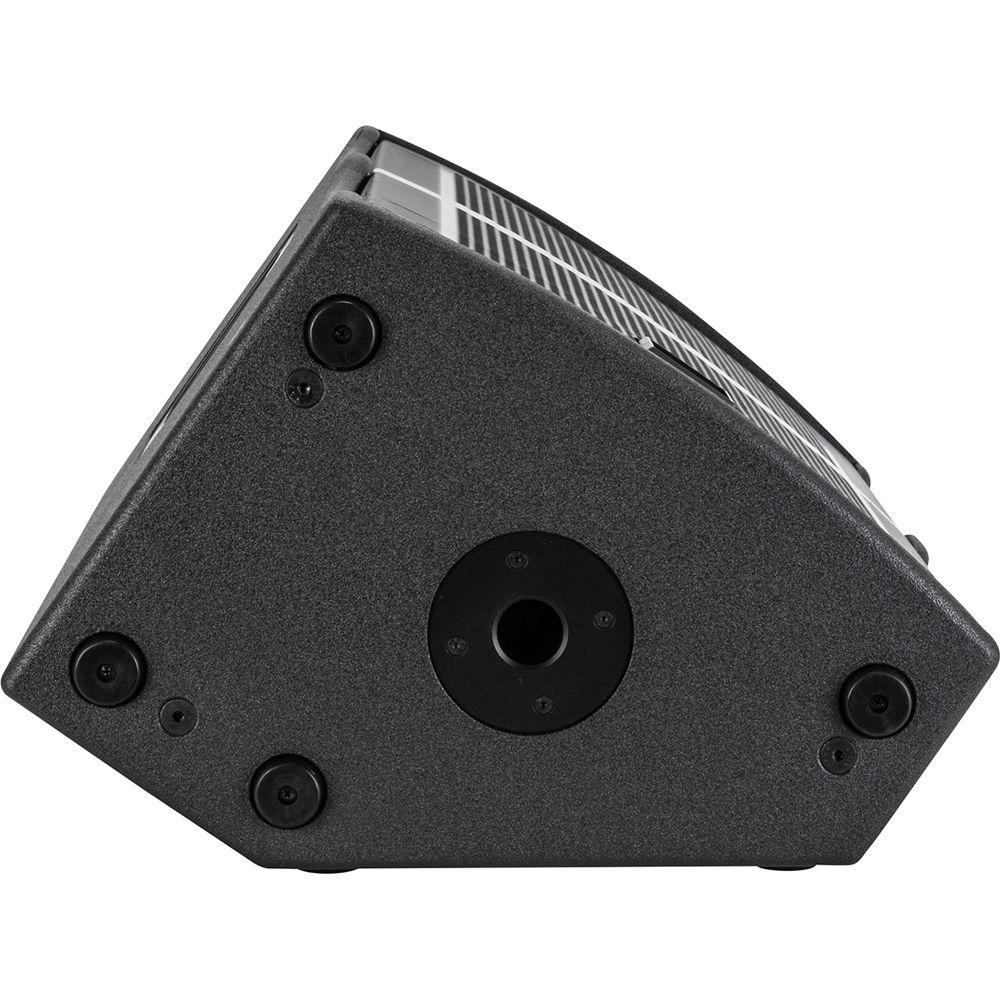

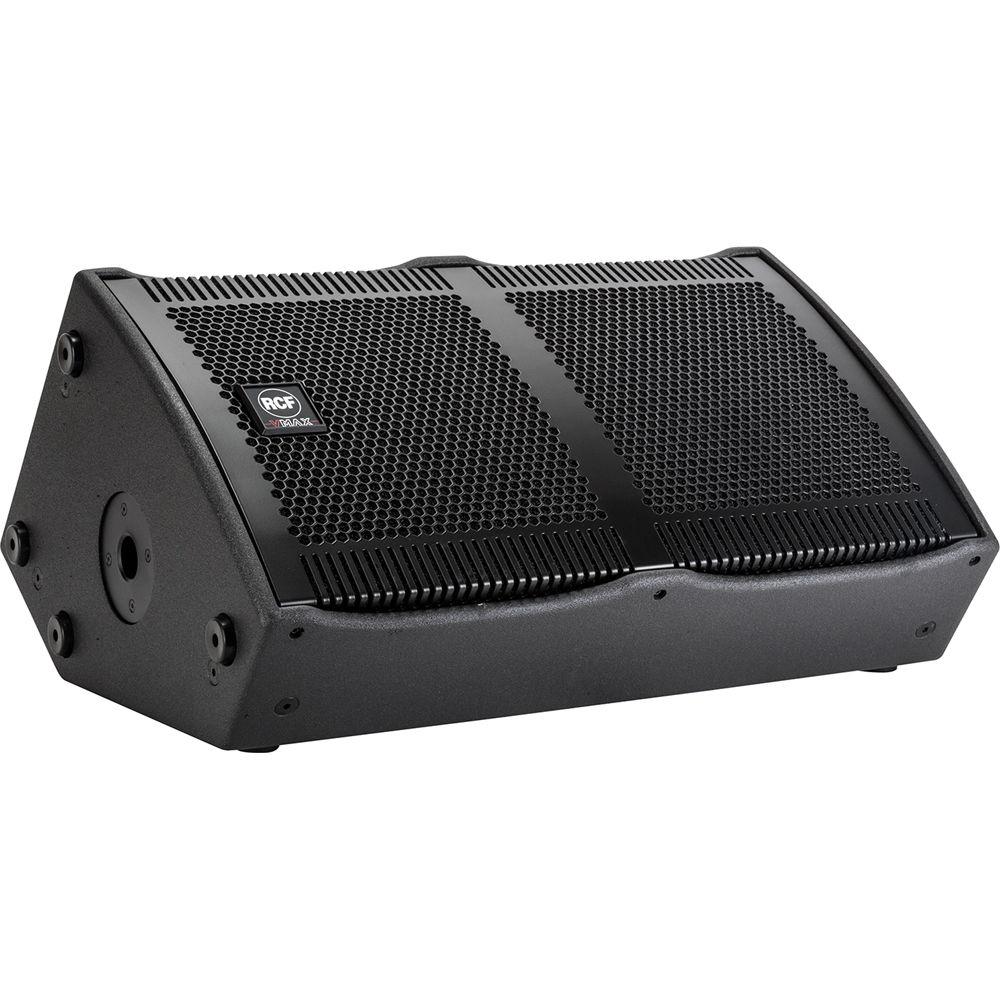

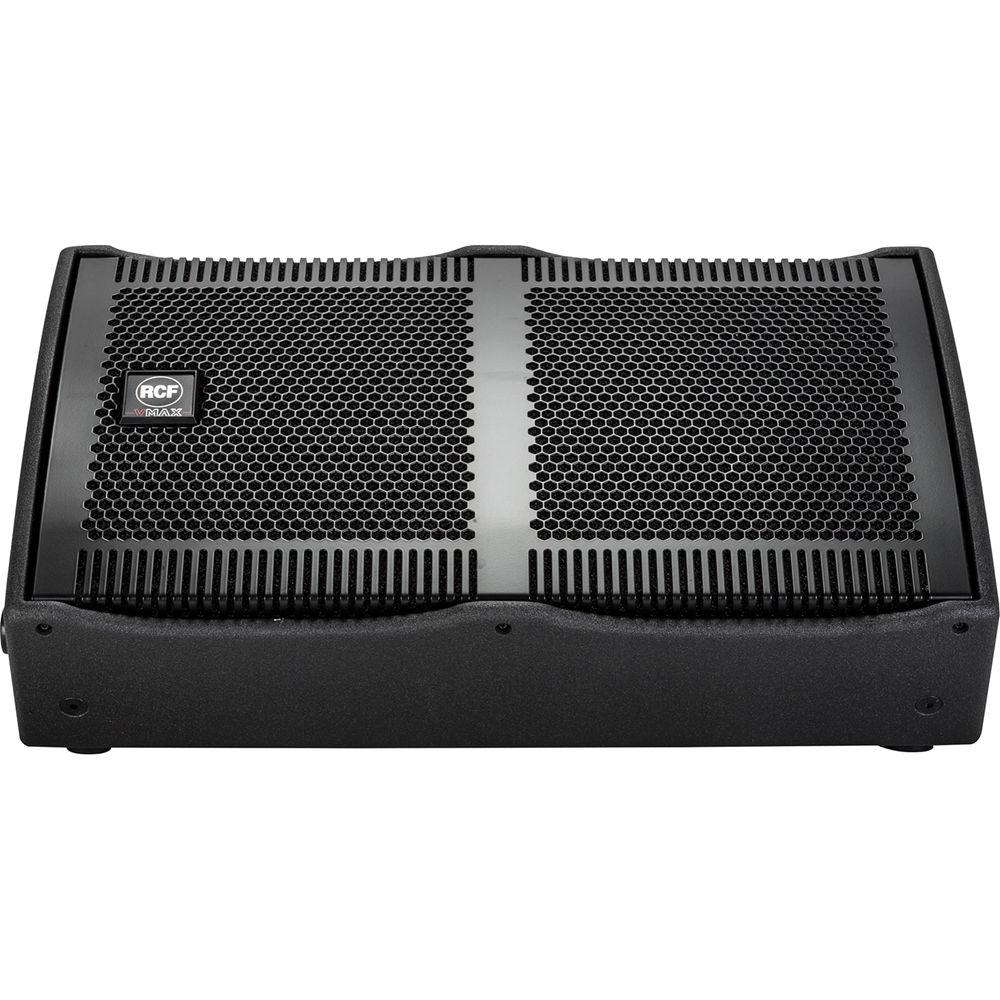

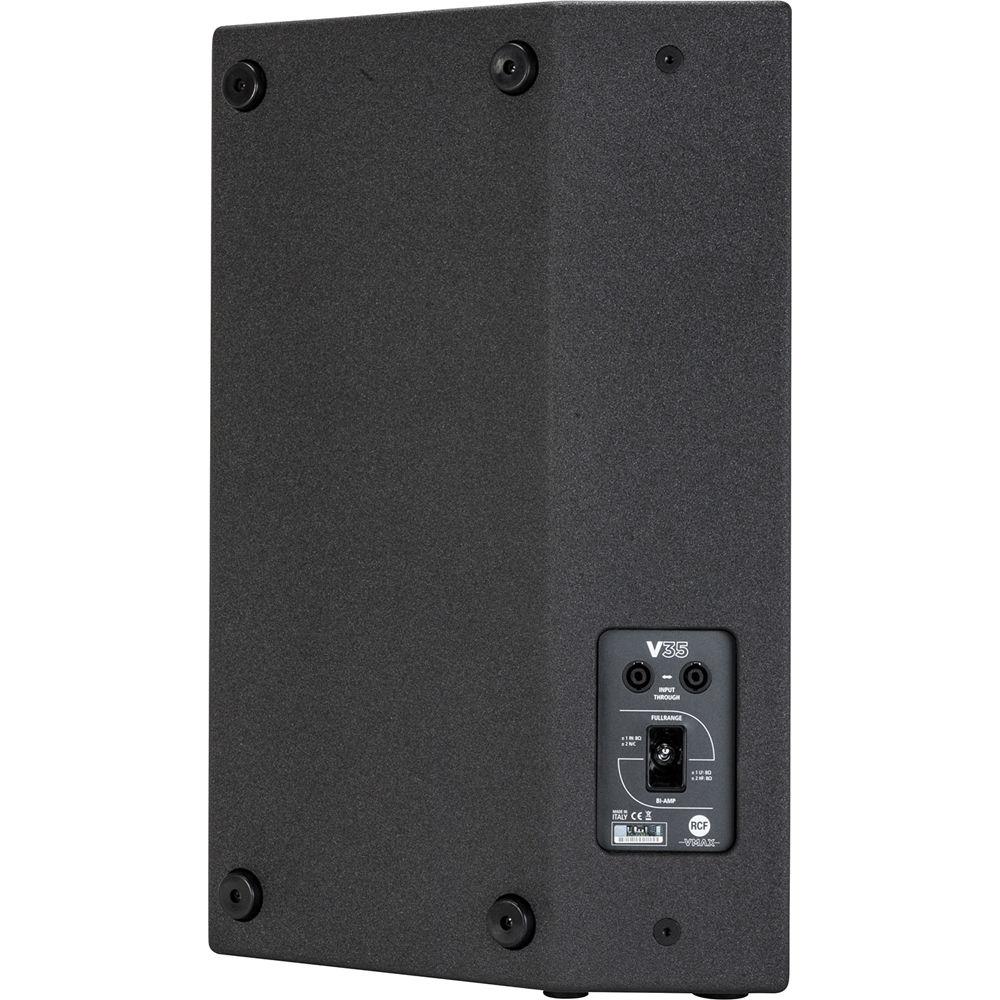

The 15" low-frequency transducer is equipped with a 4” voice coil. The system includes a high-level crossover network that features markedly lower (than conventional) induction values in series with the woofer. This innovation is called LICC (Low Impedance Compensated Crossover). The benefit is delay reduction, reduced phase shift and superior transient response. Dynamic high-frequency driver protection is accomplished with a bulb lamp dynamic chosen to complement the power curve of the driver. The cabinet shape will allow the V35 to be used in the standard configuration as well as in stage monitor model. Furthermore, M10 threaded inserts are provided for optional mounting hardware in installed sound applications. A rugged steel pole mount is being installed at the bottom. - High power, two-way bass reflex full range system
- 1 x 15" high power, 4" voice coil hyper vented woofer
- 3" high power titanium neo compression driver
- High output, response down to 40 Hz
- Weather resistant, textured, polyuria finish

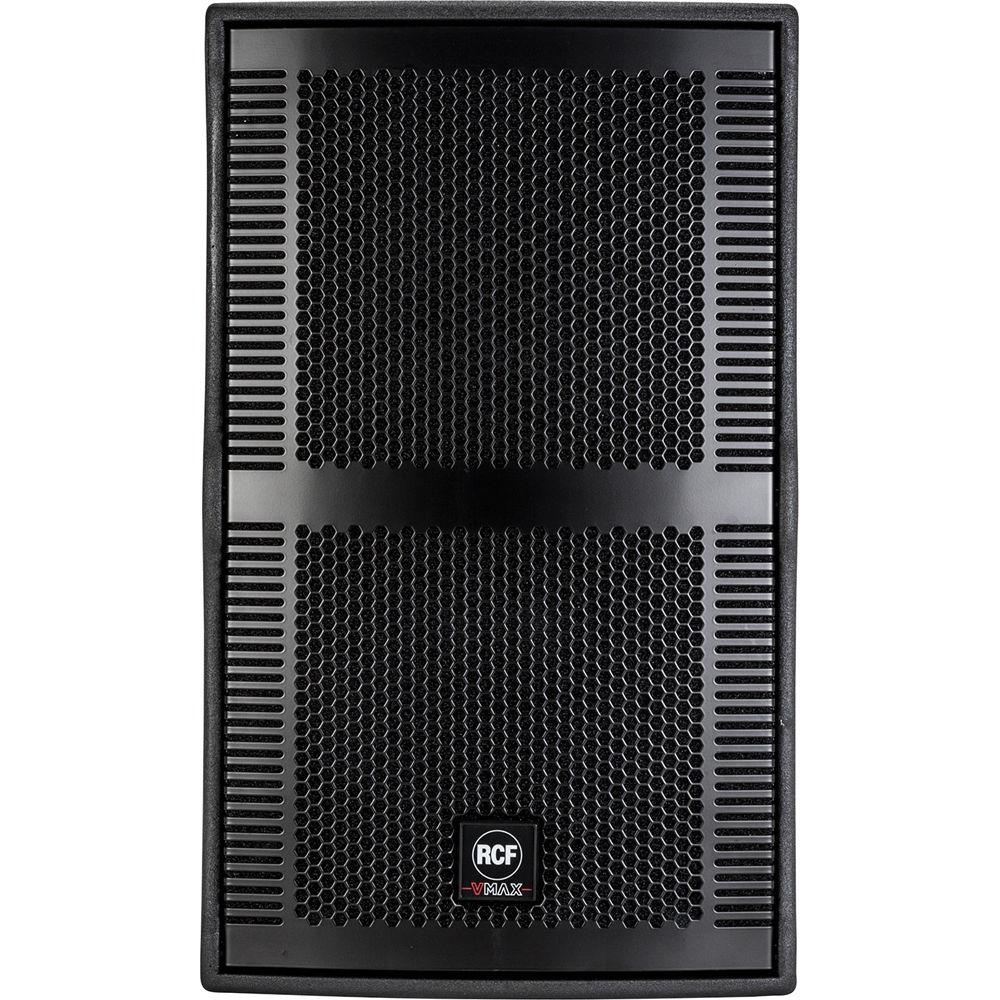

- Epoxy powder coated front grille
- Applications: Live performance, DJ set, rental solutions, permanent installations
Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF V35 15" 2-Way Full Range Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF VMAX-V35 Specs | | | Frequency Response | 40 to 20,000 Hz | | Maximum SPL | 132 dB | | Sensitivity | 1 W / 1 m: 97 dB | | Horizontal Coverage Angle | 90° | | Vertical Coverage Angle | 40° | | Compression Driver | 1.4" neo, 3" voice coil | | Woofer | 15" neo, 4" voice coil | | Power Handling | 1 x LF: 900 W

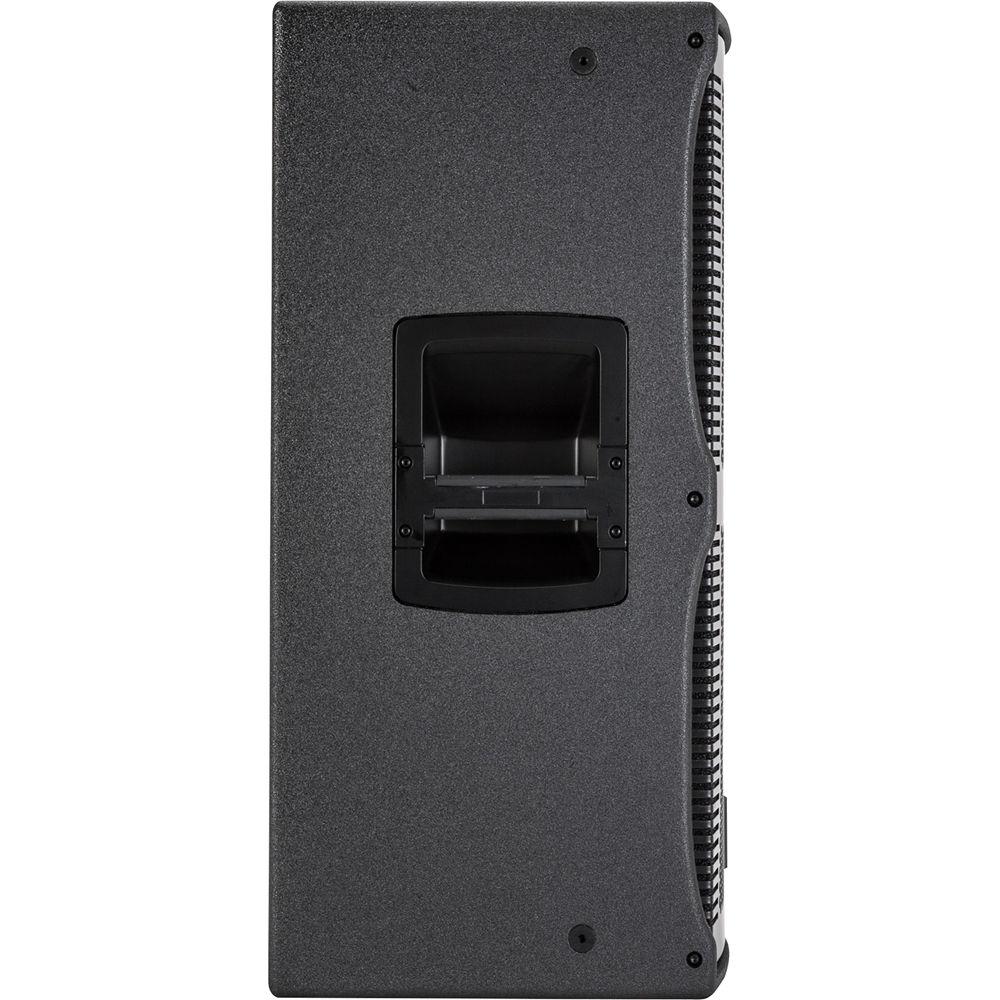

MF/HF: 110 W | | | | Input Signal | 8 Ohms | | Input Connector | 2 x Speakon NL4 | | Input Sensitivity | 4 dBu | | | | Crossover Frequencies | 1400 Hz | | Protections | Bulb lamp dynamic | | | | Material | 15 mm Birch plywood | | Hardware | Pole mount, 10 x M10 | | Handles | 1 per side | | | | Dimensions (H x W x D) | 29 x 17 x 14.0" (74 x 44 x 35.5 cm) | | Weight | 68.3 lb (31 kg) |
