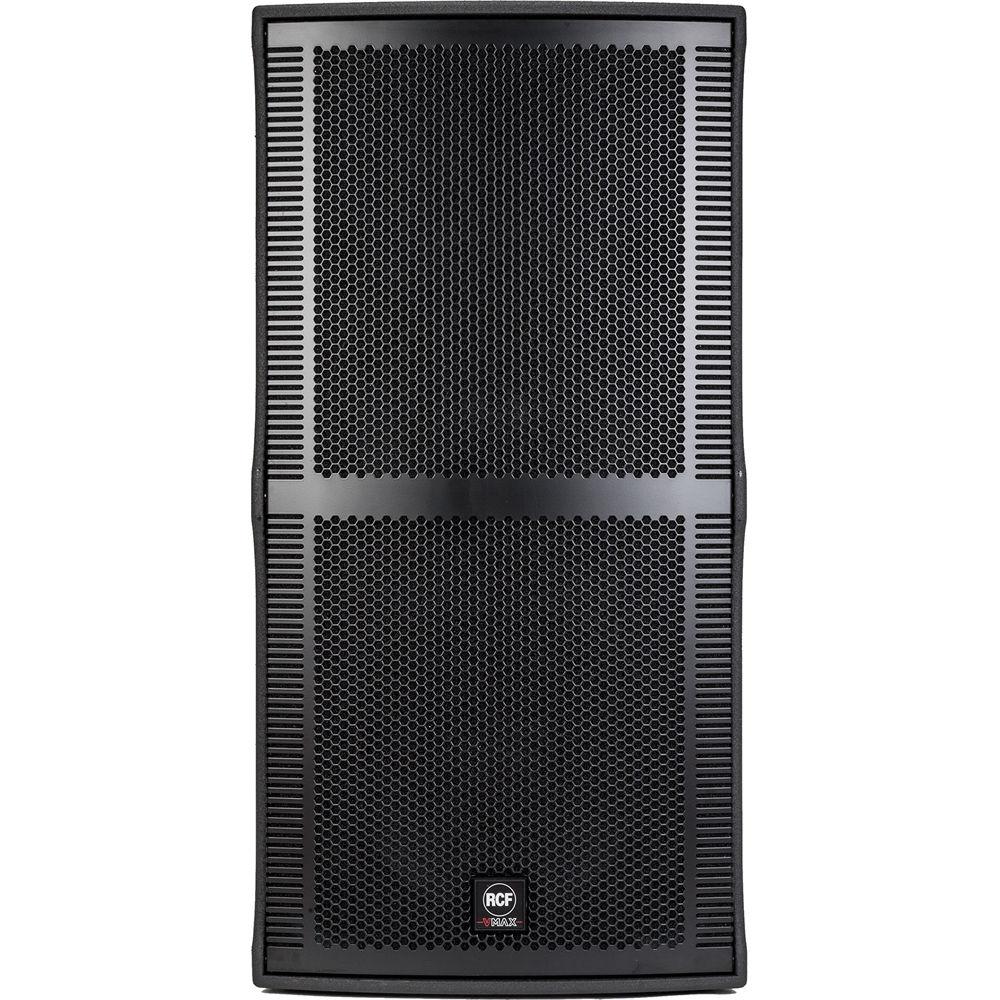

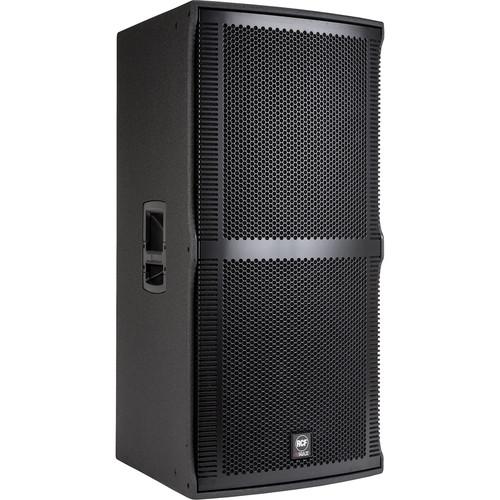

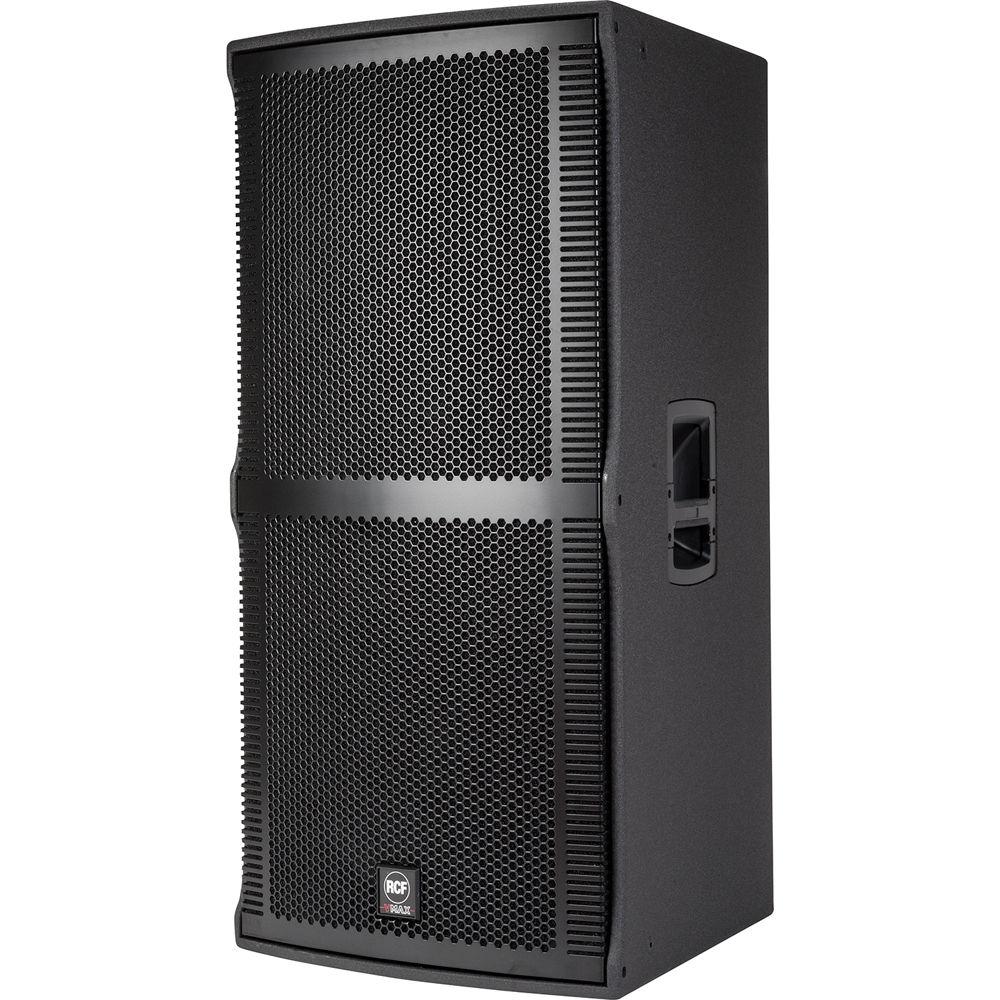

Product description The V45 2-Way Full Range Passive Loudspeaker from RCF is a two-way full range loudspeaker system that incorporate 2 x 15” LF transducers and a compression driver. The LF drivers are equipped with a 4" voice coil and ferrite motor mounted in a vented enclosure with optimized front loading. It features a 4" HF titanium compression driver, loaded on a constant directivity horn with a perfect coverage of 90° x 40°.
It offers substantial power and efficiency for a variety of professional applications that include portable systems, primary sound reinforcement, plus permanent installations, and supplementary fill for larger systems. The high-frequency section is a constant directivity CMD (Constant Matching Design) horn in relation to the woofer system, loaded on a neodymium compression driver with a 4" titanium diaphragm assembly for smooth, controlled dispersion.

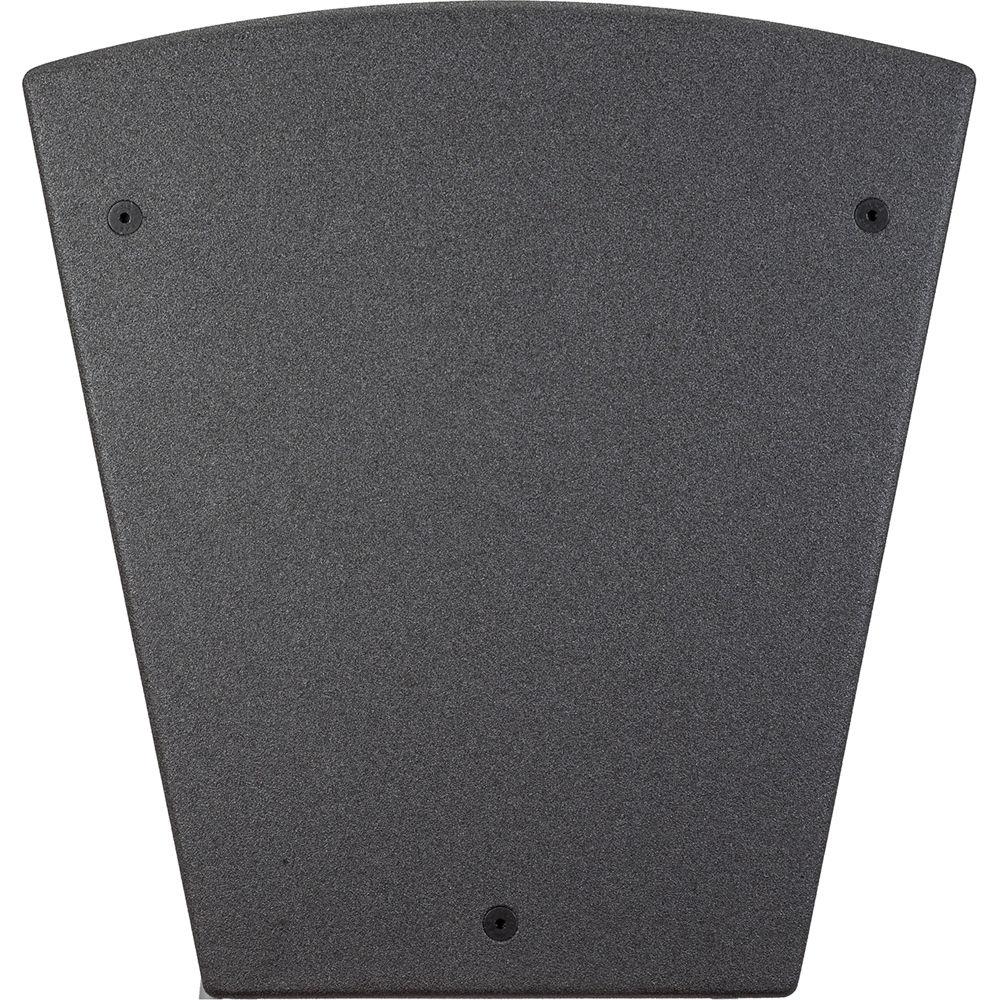

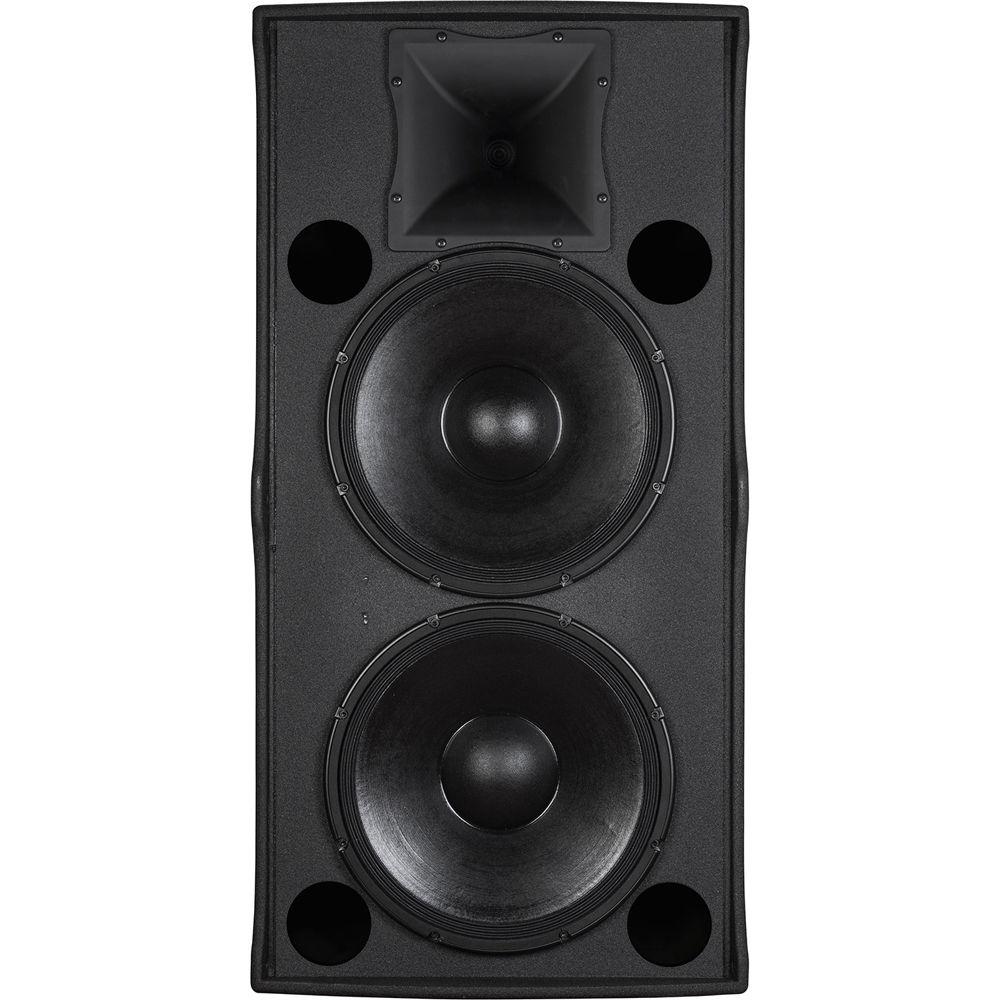

The two 15" low-frequency transducers are equipped with a 4” voice coil. The system includes a high-level crossover network that features markedly lower (than conventional) induction values in series with the woofer. This innovation is called LICC (Low Impedance Compensated Crossover). The benefit is delay reduction, reduced phase shift and superior transient response. Dynamic high-frequency driver protection is accomplished with a bulb lamp dynamic chosen to complement the power curve of the driver. The cabinet shape will allow the V45 to be used in the standard configuration as well as in stage monitor model. Furthermore, M10 threaded inserts are provided for optional mounting hardware in installed sound applications. A rugged steel pole mount is being installed at the bottom. - High power, two-way bass reflex full range system
- 2 x 15" high power, 4" voice coil hyper vented woofers
- 4" high power titanium neo compression driver
- High output, response down to 30 Hz
- Weather resistant, textured, polyuria finish
- Epoxy powder coated front grille
- Applications: Live performance, DJ set, rental solutions, permanent installations
Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF V45 15" 2-Way Full Range Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF VMAX-V45 Specs | | | Frequency Response | 30 to 20,000 Hz | | Maximum SPL | 137 dB | | Sensitivity | 1 W / 1 m: 99 dB | | Horizontal Coverage Angle | 90° | | Vertical Coverage Angle | 40° | | Compression Driver | 1.4" neo, 4" voice coil | | Woofer | 15" neo, 4" voice coil | | Power Handling | 2 x LF: 1800 W

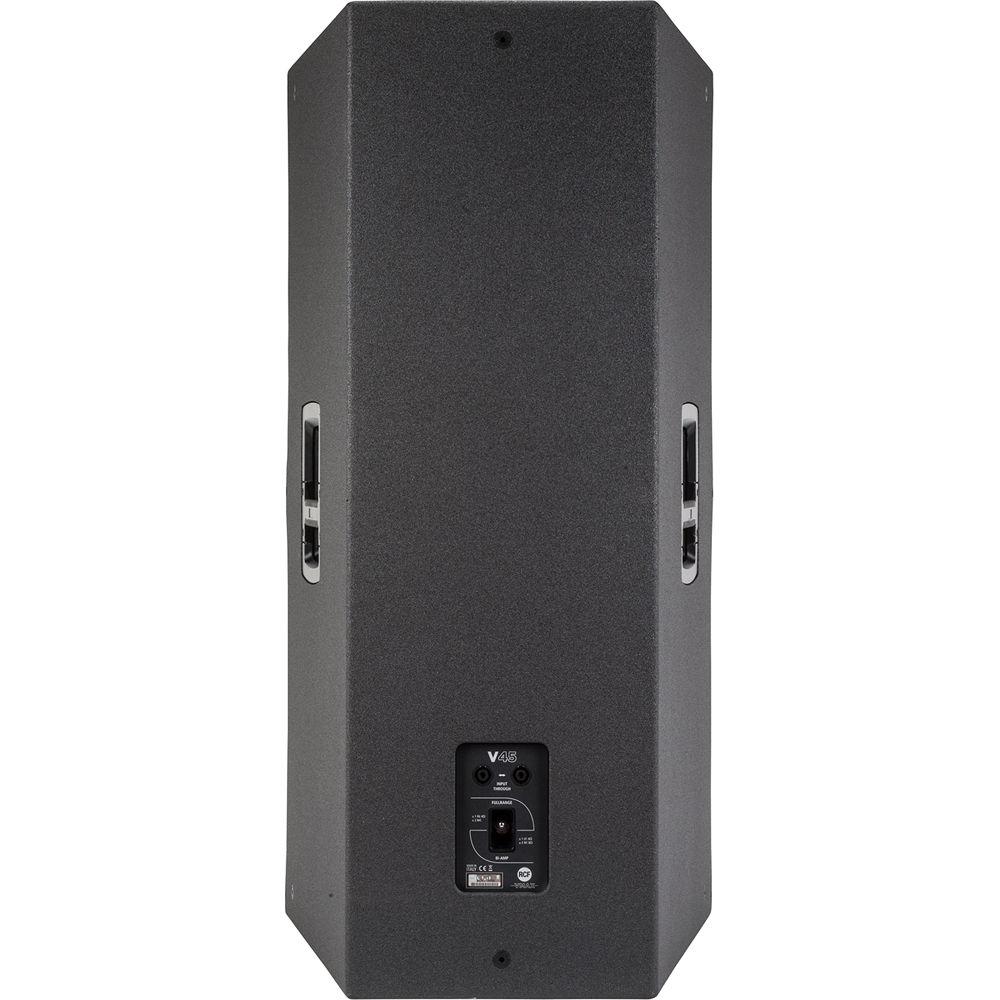

MF/HF: 140 W | | | | Input Signal | 4 Ohms | | Input Connector | 2 x Speakon NL4 | | Input Sensitivity | 4 dBu | | | | Crossover Frequencies | 1200 Hz | | Protections | Bulb lamp dynamic | | | | Material | 15 mm Birch plywood | | Hardware | Pole mount, 10 x M10 | | Handles | 1 per side | | | | Dimensions (H x W x D) | 44 x 22 x 23" (112 x 56 x 58 cm) | | Weight | 139 lb (63 kg) |
