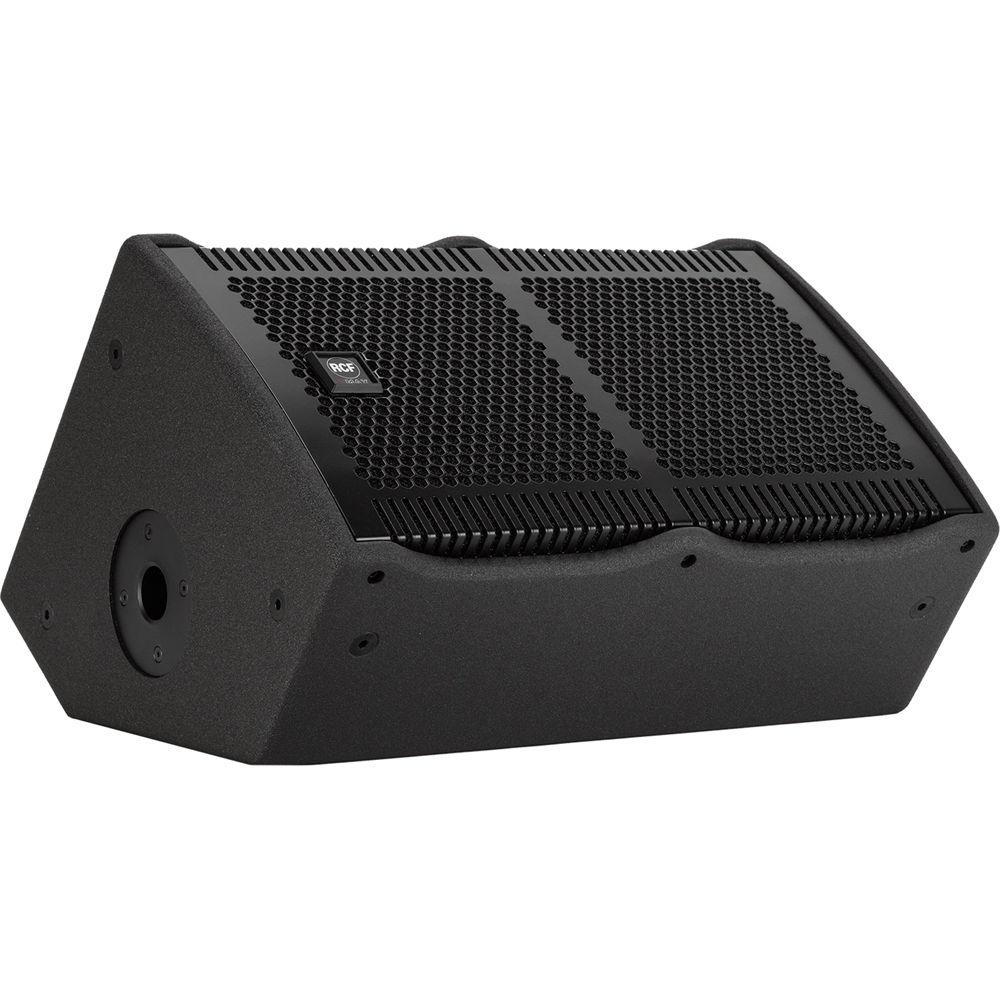

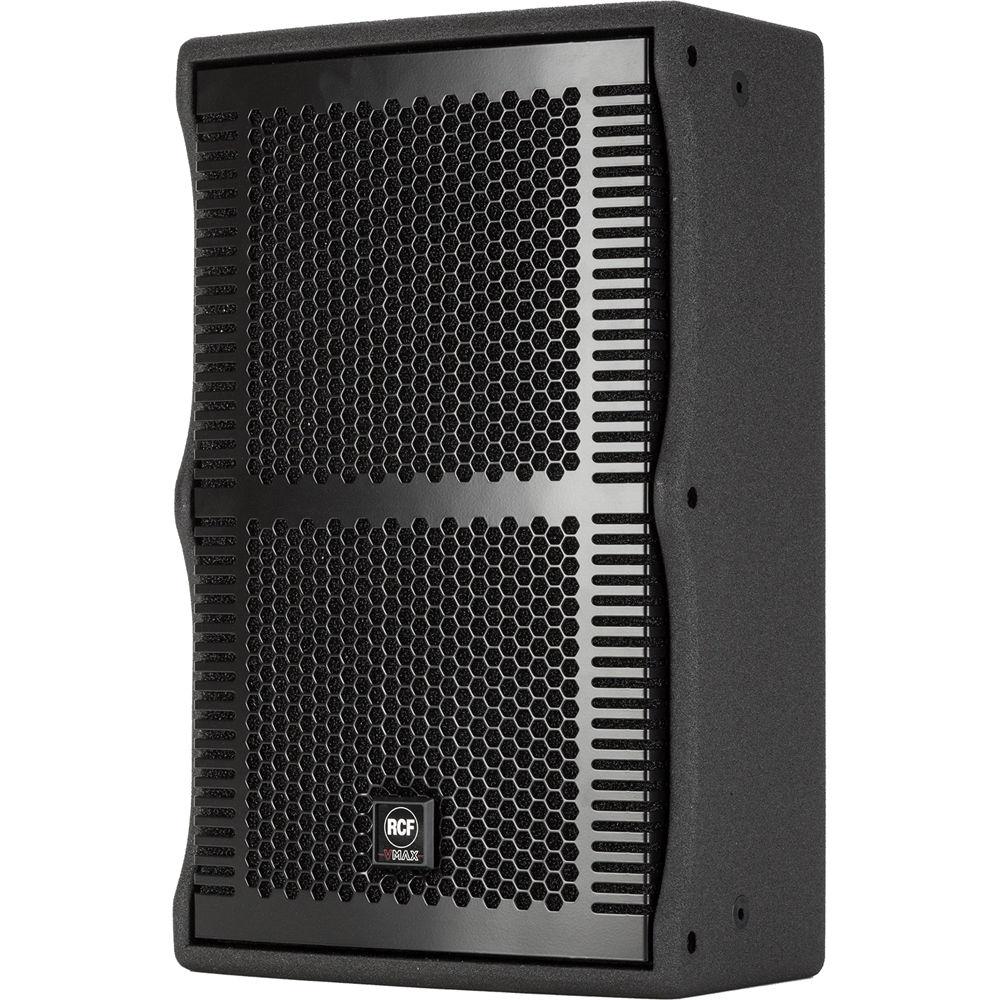

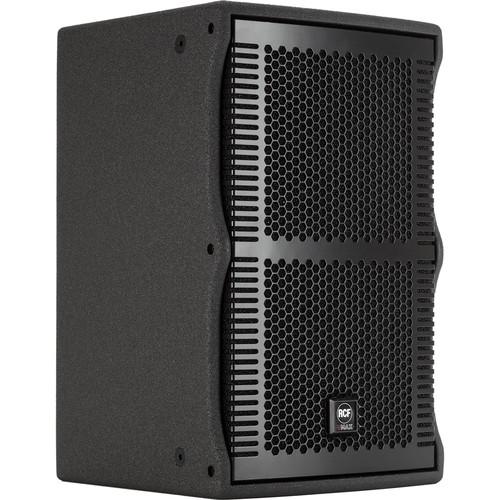

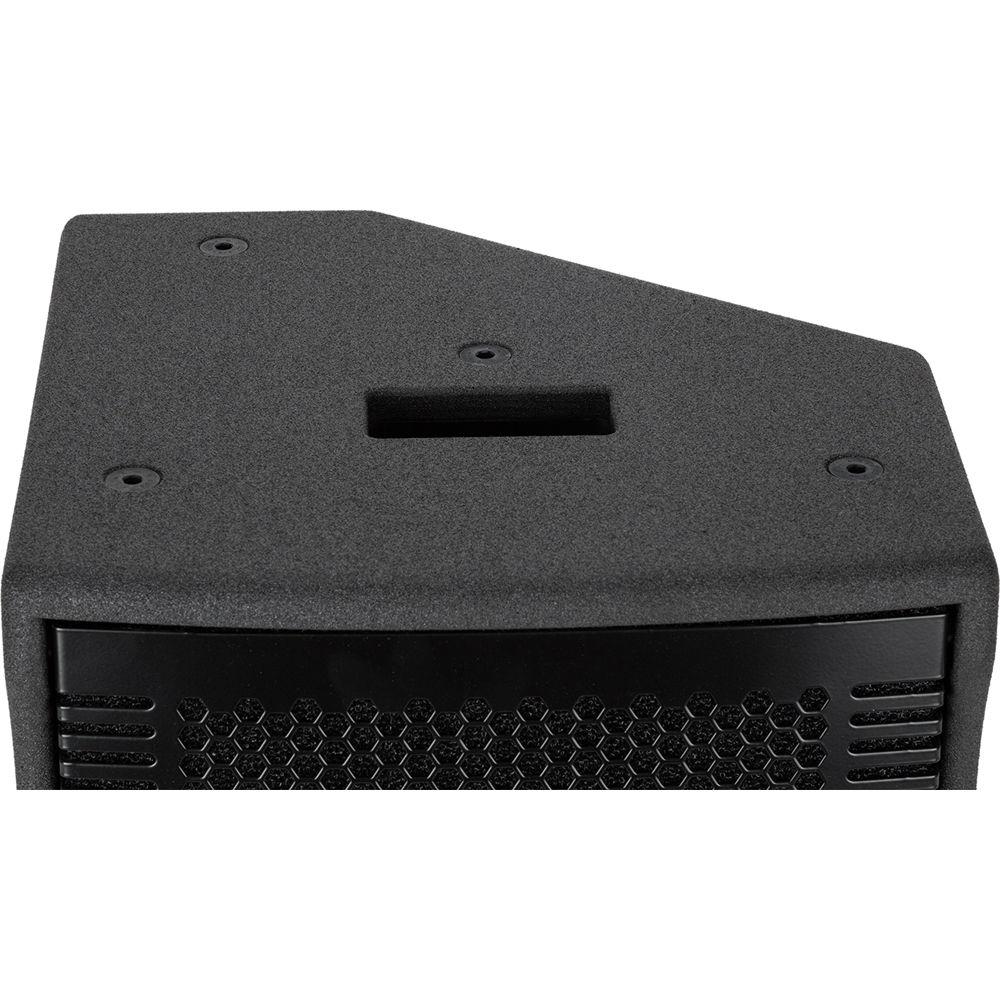

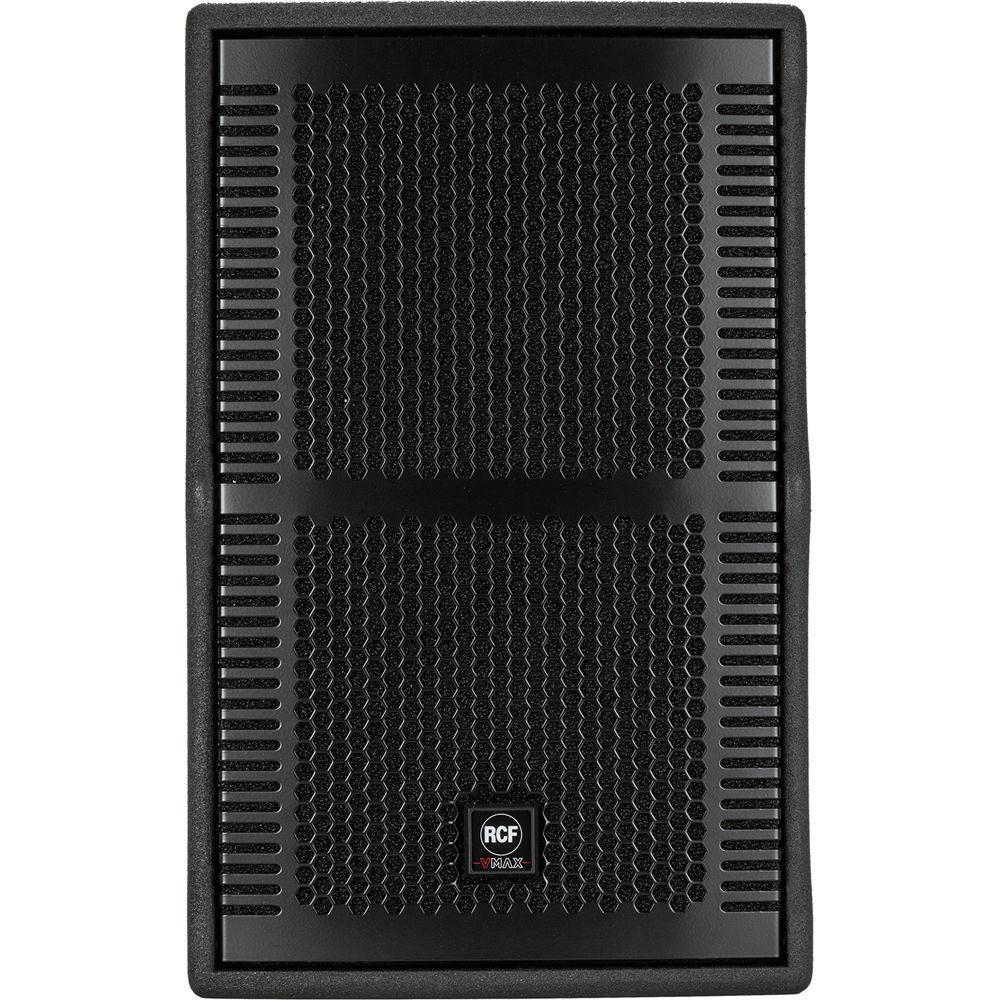

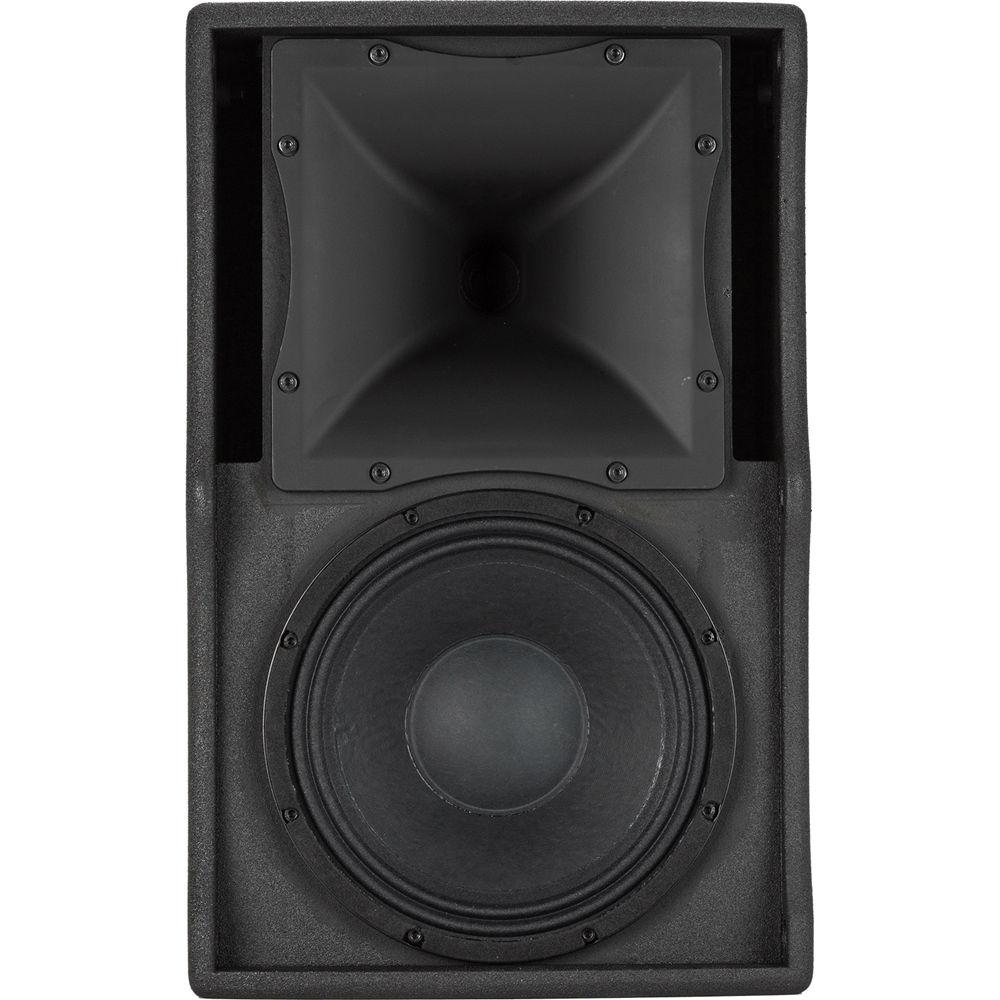

Product description The VMAX V10 Two-Way Bass Reflex Full-Range Passive Speaker System from RCF is a compact, full-range, versatile two-way loudspeaker, offering substantial output and efficiency for a variety professional applications. It can be used as a main unit in portable systems, small sound reinforcement, permanent installations, or as a supplementary fill in large speaker systems. The high-frequency section is a constant directivity CMD (Constant Matching Design) horn loaded on a compression driver with a 2.5" diaphragm assembly with a 1.4" exit throat for smooth, controlled dispersion. The low-frequency transducer is a high power 10" mid-bass woofer with a 2.5" voice coil. The voice coil is assembled using high-temperature Kapton former, a rectangular profile copper clad aluminum wire. The cabinet is made of birch plywood painted with polyurea providing resistance against weather and water. It features a steel pole mount cap and M10 points on the rear panel. The side is designed with an angle for near-field monitoring or under-balcony applications. The steel front grille is protected with double-mesh polyester clothing and the front RCF logo is easily rotatable. Connections are made through two Neutrik SpeakON NL4 connectors (audio input and parallel link output). - Two-way bass reflex full range system
- 10" high-power mid-bass woofer with 2.5" voice coil
- 2.5" high power titanium neo compression driver with 1.4" exit throat
- High output, response down to 55 Hz
- Weather-resistant, textured, polyurea finish
- Epoxy powder coated front grille
- Applications - Live performances, DJ sets, rental solutions, permanent installations, portable systems, and supplementary fill for larger systems
In the Box RCF VMAX V10 Two-Way Bass Reflex Full-Range Passive Speaker System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF VMAX V10 Two-Way Bass Reflex Full-Range Passive Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF VMAX-V10 Specs | Frequency Response | 55 to 20,000 Hz @ -10 dB | | Maximum Sound Pressure Level (SPL) | 130 dB @ 3.3' (1 m) | | Horizontal Coverage Angle | 90° | | Vertical Coverage Angle | 60° | | Directivity Index | Q: 10 | | Sensitivity | 98 dB 1 W/3.3' (1 m) | | Nominal Impedance | 8 Ohms | | Power Handling | 350 W | | Maximum Power Handling | 1400 W | | Recommended Amplifier Power | 700 W | | Protections | Dynamic | | Crossover Frequencies | 1000 Hz | | Compression Driver | 1.4" (3.6 cm), 2.5" (6.4 cm) voice coil
Nominal Impedance: 8 Ohms
Input Power Rating: 90 W AES, 180 W peak
Sensitivity: 110 dB | | Woofer | 10" (25.4 cm), 2.5" (6.4 cm) voice coil
Nominal Impedance: 8 Ohms
Input Power Rating: 250 W AES, 500 W peak

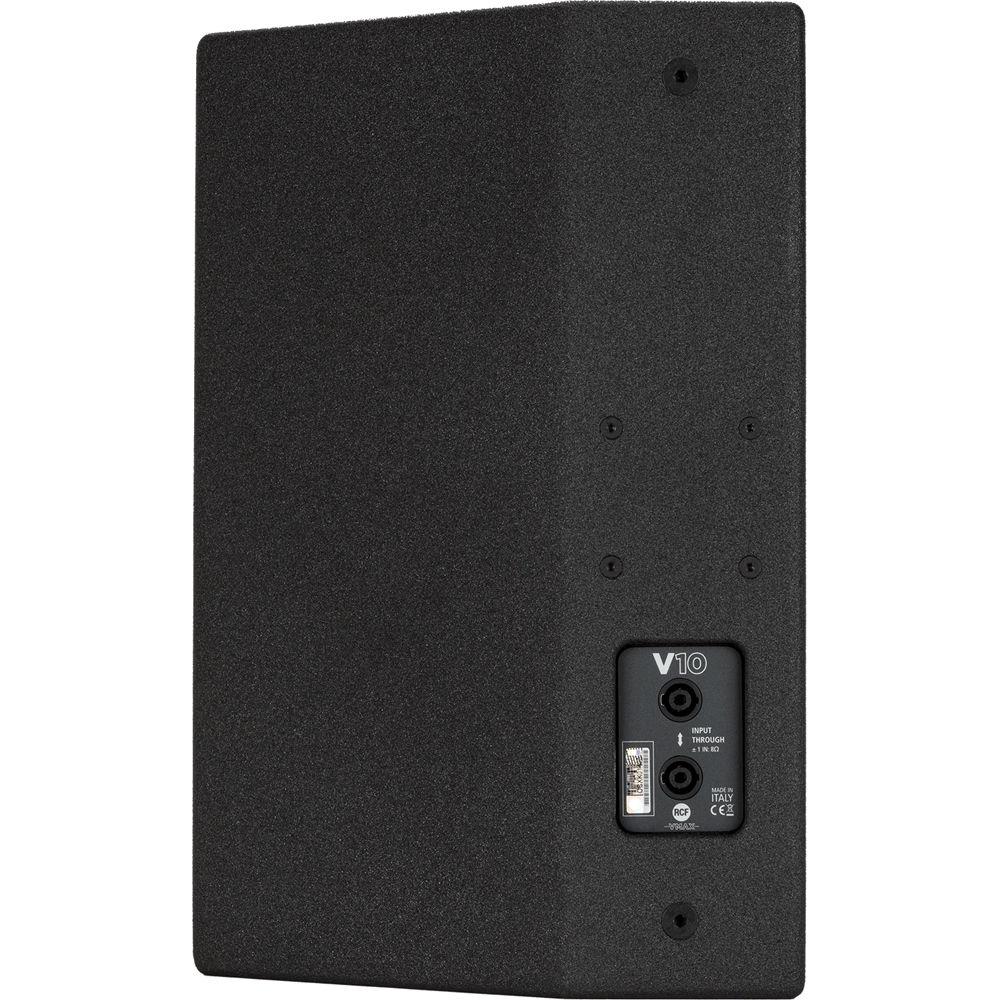

Sensitivity: 98 dB | | Input Connectors | 2 x SpeakON NL4 | | Cabinet Construction | 15 mm Birch plywood | | Mounting Options | Steel pole mount cap
M10 points | | Grille | Custom perforated steel grille | | Dimensions | 21.25 x 13.38 x 13.11" (54 x 34 x 33.3 cm) | | Weight | 33.1 lb (15 kg) | | | | Package Weight | 46.0 lb | | Box Dimensions (LxWxH) | 23.4 x 14.8 x 14.8" |
