User Manual for RCF VMAX V6 Two-Way Bass Reflex Full-Range Passive Speaker System Click to enlarge the picture
Contents of the user manual for the RCF VMAX V6 Two-Way Bass Reflex
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF VMAX V6 Two-Way Bass Reflex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

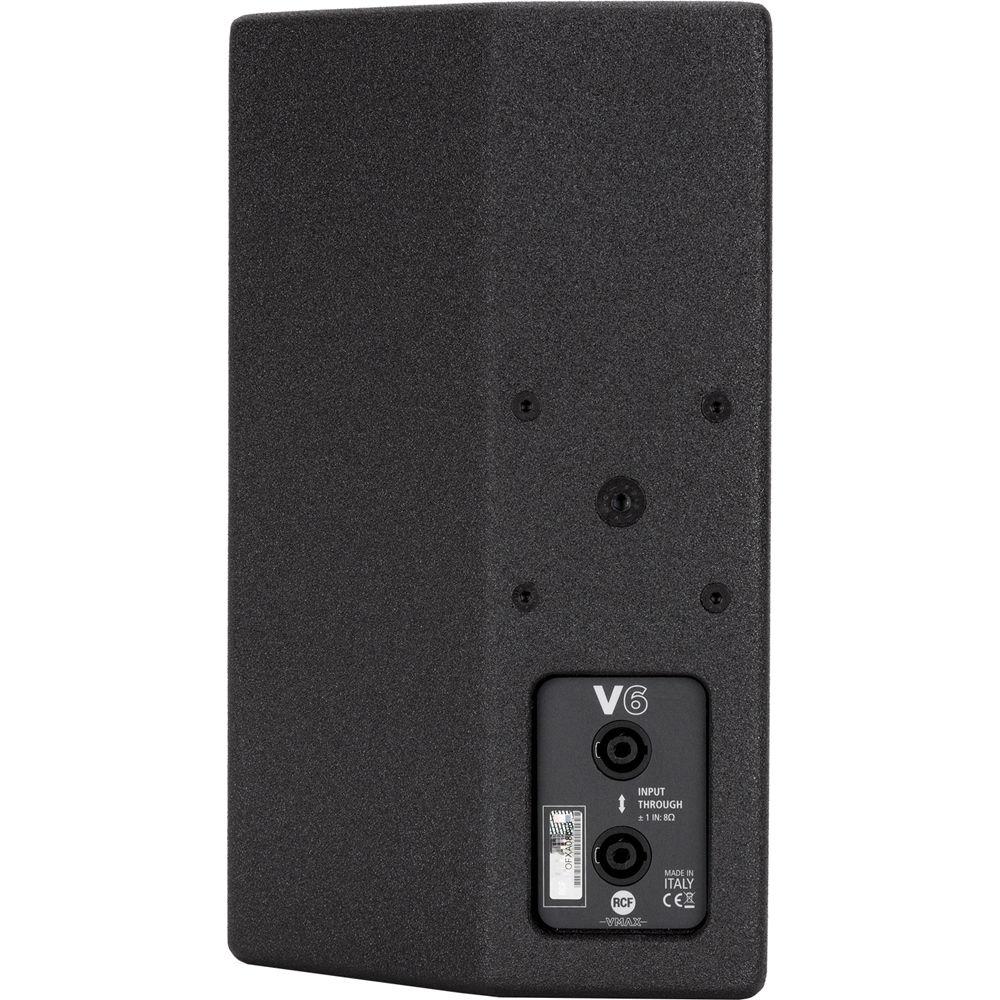

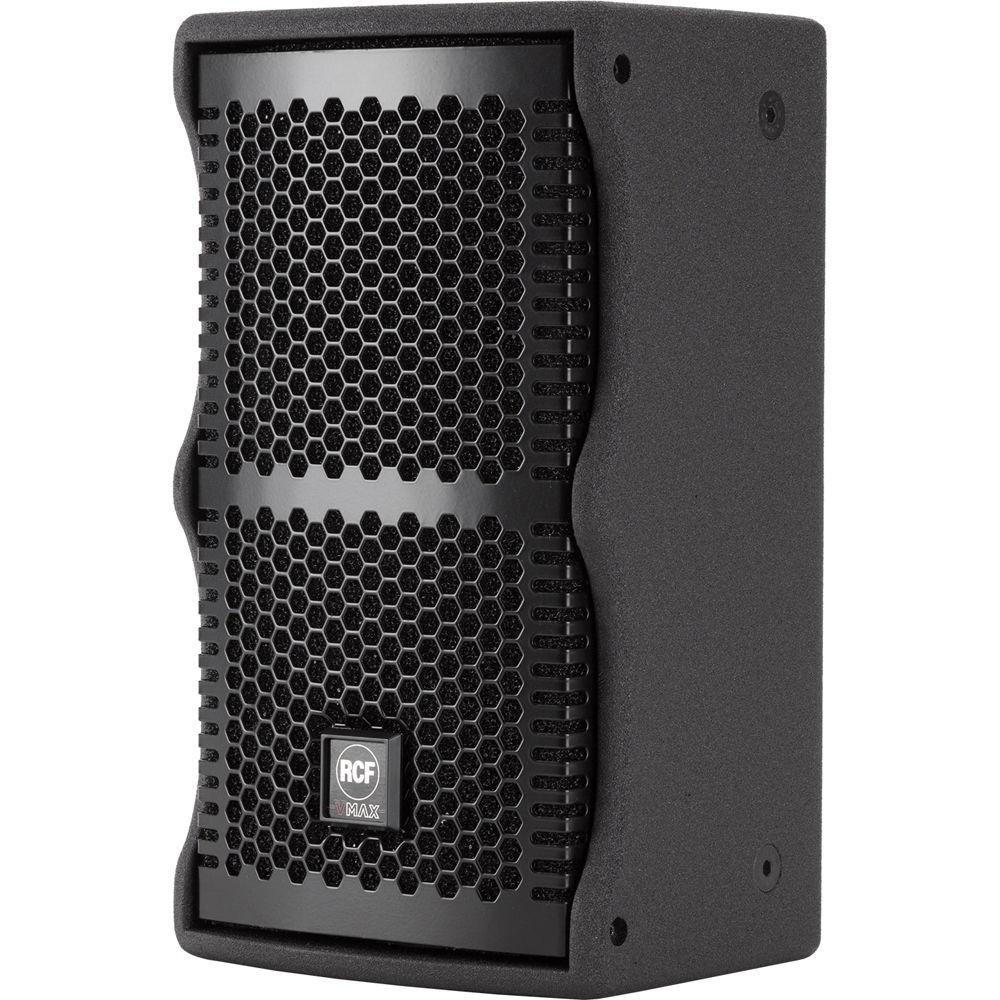

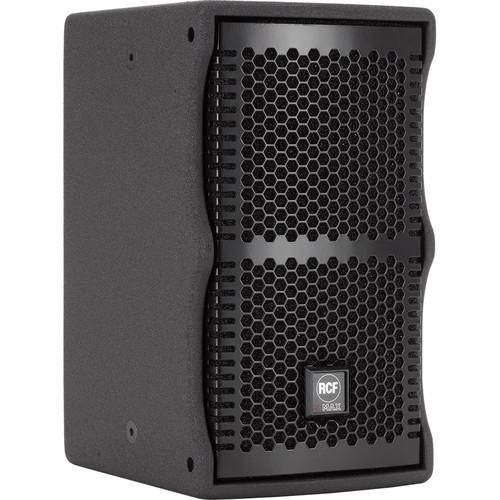

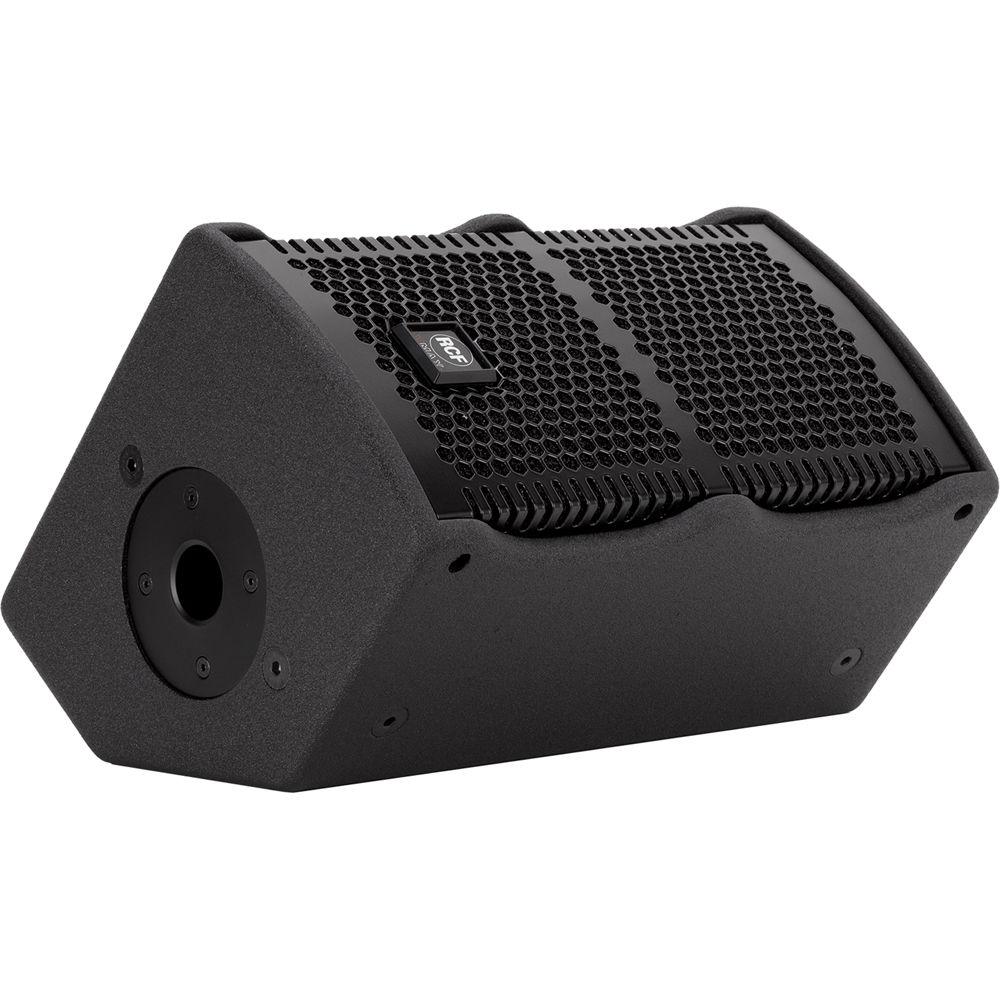

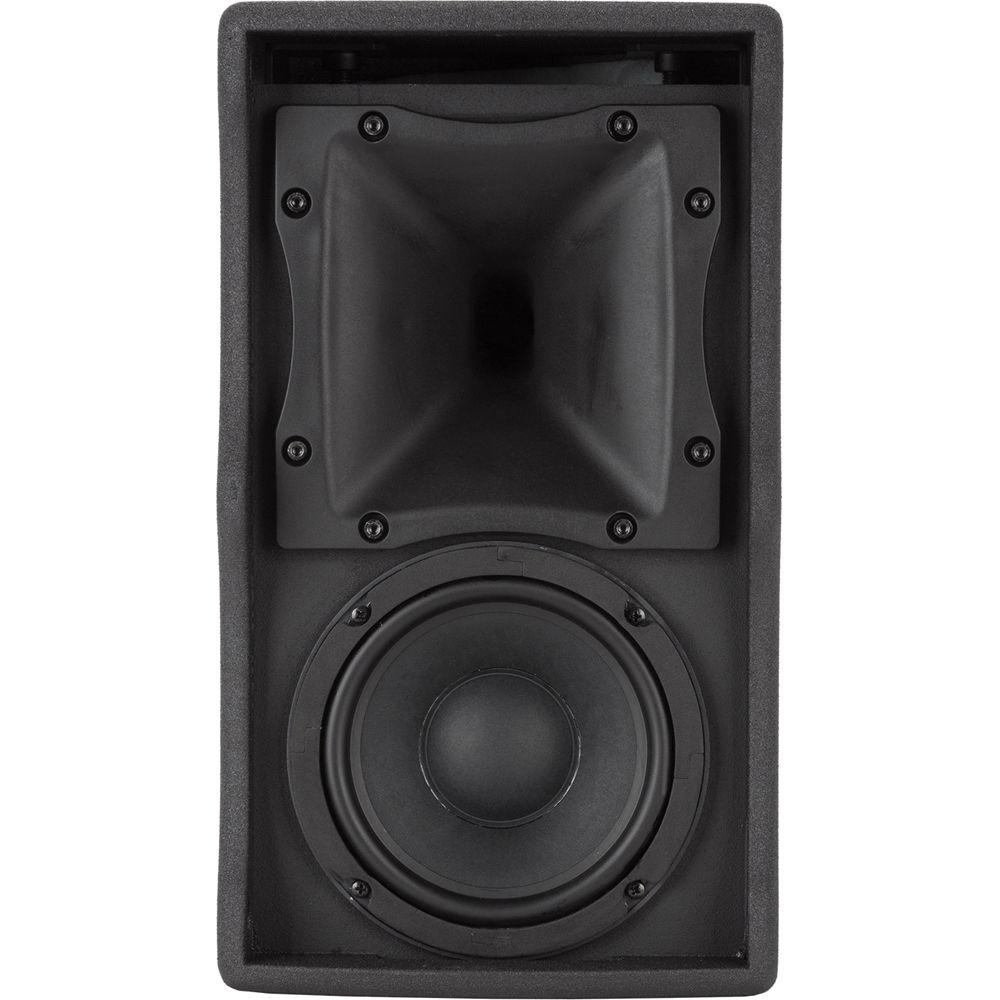

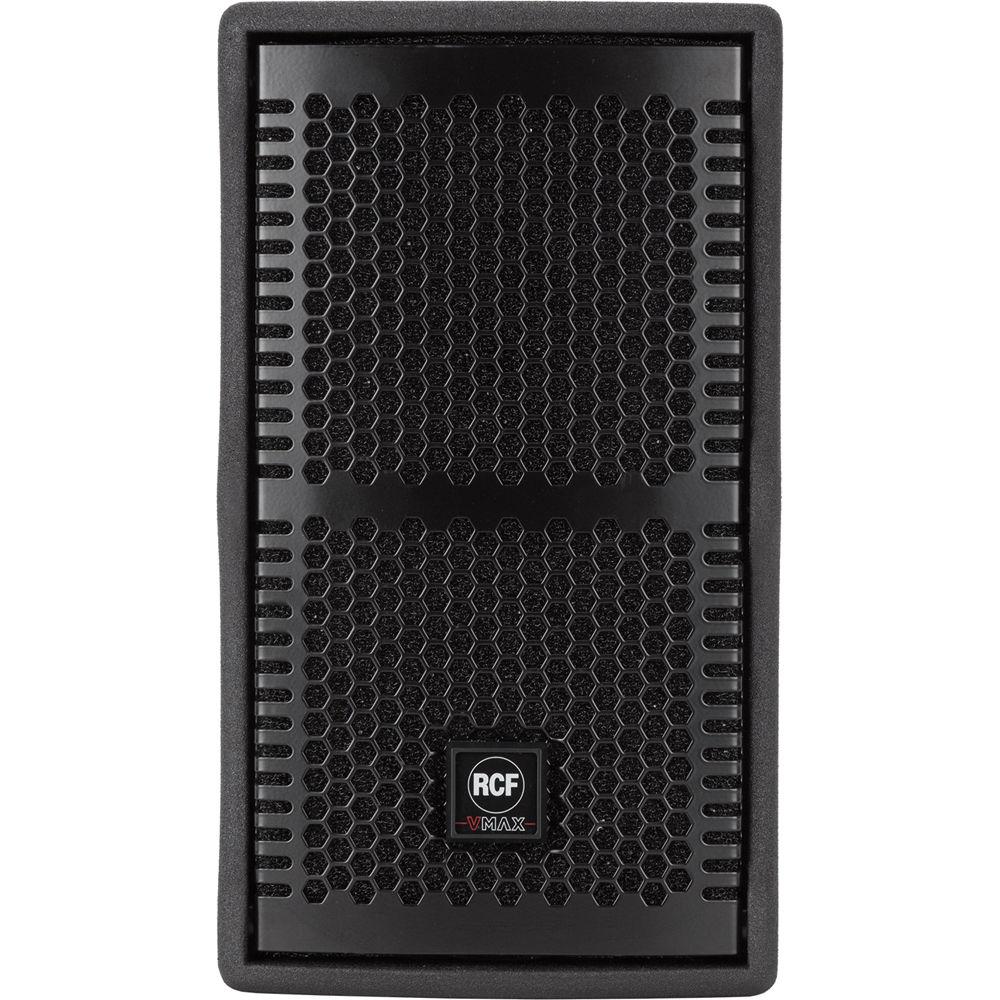

Product description The VMAX V6 Two-Way Bass Reflex Full-Range Passive Speaker System from RCF is a compact, full-range, versatile two-way loudspeaker, offering substantial output and efficiency for a variety professional applications. It can be used as a main unit in portable systems, small sound reinforcement, permanent installations, or as a supplementary fill in large speaker systems. The high-frequency section is a constant directivity CMD (Constant Matching Design) horn loaded on a compression driver with a 1.7" diaphragm assembly with a 1" exit throat for smooth, controlled dispersion. The low-frequency transducer is a high power 6" mid-bass woofer with a 1.8" voice coil. The voice coil is assembled using high-temperature Kaptoner former, a rectangular profile copper clad aluminum wire. The cabinet is made of Baltic birch plywood painted with polyurea providing resistance against weather and water. It features a steel pole mount cap and M10 points on the rear panel. The side is designed with an angle for near-field monitoring or under-balcony applications. The steel front grille is protected with double-mesh polyester clothing and the front RCF logo is easily rotatable. Connections are made through two Neutrik SpeakON NL4 connectors (audio input and parallel link output). - Two-way bass reflex full range system
- 6" high-power mid-bass woofer with 1.8" voice coil
- 1.7" high power titanium neo compression driver with 1" exit throat
- High output, response down to 60 Hz
- Weather-resistant, textured, polyurea finish
- Epoxy powder coated front grille
- Applications - Live performances, DJ, rental solutions, permanent installations, portable systems, and supplementary fill for larger systems
In the Box RCF VMAX V6 Two-Way Bass Reflex Full-Range Passive Speaker System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF VMAX V6 Two-Way Bass Reflex Full-Range Passive Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF VMAX-V6 Specs | Frequency Response | 60 to 20,000 Hz @ -10 dB | | Maximum Sound Pressure Level (SPL) | 123 dB @ 3.3' (1 m) | | Horizontal Coverage Angle | 90° | | Vertical Coverage Angle | 60° | | Directivity Index | Q: 10 | | Sensitivity | 94 dB 1 W/3.3' (1 m) | | Nominal Impedance | 8 Ohms | | Power Handling | 200 W | | Maximum Power Handling | 800 W | | Recommended Amplifier Power | 400 W | | Protections | Dynamic | | Crossover Frequencies | 1200 Hz | | Compression Driver | 1" (2.5 cm), 1.7" (4.3 cm) voice coil
Nominal Impedance: 8 Ohms
Input Power Rating: 100 W AES, 50 W peak
Sensitivity: 108 dB | | Woofer | 6" (15.2 cm), 1.8" (4.6 cm) voice coil
Nominal Impedance: 8 Ohms
Input Power Rating: 300 W AES, 150 W peak
Sensitivity: 94 dB | | Input Connectors | 2 x SpeakON NL4 | | Cabinet Construction | 15 mm Birch plywood | | Mounting Options | Steel pole mount cap
9 x M10 points | | Grille | Custom perforated steel grille | | Dimensions | 15.75 x 9.06 x 10.46" (40.00 x 23.00 x 25.66 cm) | | Weight | 19.8 lb (9 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
